2004 SUBARU FORESTER relay

EN(H4DOTC 2.5)-15
ENGINE (DIAGNOSTIC)
Electrical Component Location
(1) Fuel pump (4) Fuel pump controller (7) Fan mode relay
(2) Main relay (5) Radiator main fan relay (8) Starter
(3) Fuel pump relay (6) Radiator sub fan relay
EN-00099
(4)
(3)
(8)(1)
(7)(6)(5)(3)(2)
(2)(4)
(1)
EN-00100
(2)
EN-01268
FU-00130(3)
(4)
EN-00101

EN(H4DOTC 2.5)-18
ENGINE (DIAGNOSTIC)
Engine Control Module (ECM) I/O Signal
Tu m b l e
generator
valve posi-
tion sen-
sor RHSignal B136 27Fully closed: 3.8 — 4.9
Fully opened: 0.2 — 0.9—
Pow er
supplyB136 16 5 5 —
GND
(sensor)B136 35 0 0 —
Tu m b l e
generator
valve posi-
tion sen-
sor LHSignal B136 26Fully closed: 3.8 — 4.9
Fully opened: 0.2 — 0.9—
Pow er
supplyB136 16 5 5 —
GND
(sensor)B136 35 0 0 —
Tumble generator valve
RH (open)B134 9 0 or 10 — 13 0 or 13 — 14 Waveform
Tumble generator valve
RH (close)B134 8 0 or 10 — 13 0 or 13 — 14 Waveform
Tumble generator valve
LH (open)B134 11 0 or 10 — 13 0 or 13 — 14 Waveform
Tumble generator valve
LH (close)B134 10 0 or 10 — 13 0 or 13 — 14 Waveform
Wastegate control sole-
noid valveB134 32 0 or 10 — 13 0 or 13 — 14 Waveform
Starter switch B137 8 0 0 Cranking: 8 — 14
A/C switch B137 17ON: 10 — 13
OFF: 0ON: 13 — 14
OFF: 0—
Ignition switch B137 16 10 — 13 13 — 14 —
Neutral Position Switch B137 9ON: 10 — 13
OFF: 0ON: 13 — 14
OFF: 0—
Test Mode Connector B137 15 10 — 13 13 — 14 When connected: 0
Knock
sensorSignal B136 25 2.8 2.8 —
Shield B136 33 0 0 —
Back-up power supply B135 19 10 — 13 13 — 14 Ignition switch “OFF”: 10 — 13
Control module power
supplyB135 5 10 — 13 13 — 14 —
B135 6 10 — 13 13 — 14 —
Sensor power supply B136 16 5 5 —
Ignition
control#1 B135 18 0 13 — 14 Waveform
#2 B135 17 0 13 — 14 Waveform
#3 B135 16 0 13 — 14 Waveform
#4 B135 15 0 13 — 14 Waveform
Fuel injec-
tor#1 B136 6 10 — 13 1 — 14 Waveform
#2 B136 5 10 — 13 1 — 14 Waveform
#3 B136 4 10 — 13 1 — 14 Waveform
#4 B136 3 10 — 13 1 — 14 Waveform
Fuel pump
control unitDiagnosis
signalB137 28 0 or 5 0 or 5 Waveform
Control
signalB135 27 10 — 13 13 — 14 —
A/C relay control B135 33ON: 0.5, or less
OFF: 10 — 13ON: 0.5, or less
OFF: 13 — 14—
Radiator fan relay 1 con-
trolB135 25ON: 0.5, or less
OFF: 10 — 13ON: 0.5, or less
OFF: 13 — 14— DESCRIPTION Connector No. Terminal No.Signal (V)
NOTE
Ignition SW ON
(engine OFF)Engine ON
(Idling)

EN(H4DOTC 2.5)-19
ENGINE (DIAGNOSTIC)
Engine Control Module (ECM) I/O Signal
Radiator fan relay 2 con-
trolB135 24ON: 0.5, or less
OFF: 10 — 13ON: 0.5, or less
OFF: 13 — 14Model with A/C only
Malfunction indicator
lightB134 17 — —Light “ON”: 1, or less
Light “OFF”: 10 — 14
Engine speed output B134 23 — 0 — 13, or more Waveform
Purge control solenoid
valveB134 14ON: 1, or less
OFF: 10 — 13ON: 1, or less
OFF: 13 — 14Wavefor m
Manifold
absolute
pressure
sensorSignal B136 22 1.7 — 2.4 1.1 — 1.6
— Pow er
supplyB136 16 5 5
GND
(sensors)B136 35 0 0
Small light switch B137 12ON: 0
OFF: 10 — 13ON: 0
OFF: 13 — 14—
Blower fan switch B137 13ON: 0
OFF: 10 — 13ON: 0
OFF: 13 — 14—
Rear defogger switch B137 11ON: 0
OFF: 10 — 13ON: 0
OFF: 13 — 14—
Power steering oil pres-
sure switchB137 10 10 — 13ON: 0
OFF: 13 — 14—
Front oxygen (A/F) sen-
sor signal (+)B134 33 2.8 — 3.2 2.8 — 3.2 —
Front oxygen (A/F) sen-
sor signal (−)B134 26 2.4 — 2.7 2.4 — 2.7 —
Front oxygen (A/F) sen-
sor shieldB134 25 0 0 —
SSM/GST communica-
tion lineB137 20 1 ← → 41 ← → 4—
GND (injector) B137 7 0 0 —
GND (ignition system) B135 12 0 0 —
GND (power supply)B135 4 0 0 —
B135 1 0 0 —
GND (control system)B137 1 0 0 —
B137 2 0 0 —
GND (Front oxygen (A/F)
sensor heater 1)B134 7 0 0 —
GND (Front oxygen (A/F)
sensor heater 2)B134 6 0 0 —
Camshaft position sen-
sor (LH)B135 8 0 — 0.9ON: 0
OFF: 4.7 — 5.3Wavefor m
Camshaft position sen-
sor (RH)B135 9 0 — 0.9ON: 0
OFF: 4.7 — 5.3Wavefor m
Fuel level sensor B136 20 0.12 — 4.75 0.12 — 4.75 —
Electronic
throttle
controlMain B136 180.64 — 0.72
Fully opens:
3.960.64 — 0.72
(After engine is
warmed-up.)Fully closed: 0.6 Fully opens:
3.96
Sub B136 291.51 — 1.58
Fully opens:
4.171.51 — 1.58
(After engine is
warmed-up)Fully closed: 1.48 Fully opens:
4.17
Pow er
supplyB136 16 5 5 —
GND
(sensor)B137 3 0 0 — DESCRIPTION Connector No. Terminal No.Signal (V)
NOTE
Ignition SW ON
(engine OFF)Engine ON
(Idling)

EN(H4DOTC 2.5)-20
ENGINE (DIAGNOSTIC)
Engine Control Module (ECM) I/O Signal
Electronic throttle con-
trol motor (+)B137 5 Duty waveform Duty waveform Drive frequency: 500 Hz
Electronic throttle con-
trol motor (−)B137 4 Duty waveform Duty waveform Drive frequency: 500 Hz
Electronic throttle con-
trol motor power supplyB137 6 10 — 13 13 — 14 —
Electronic throttle con-
trol motor relayB135 35ON: 0
OFF: 10 — 13ON: 0
OFF: 13 — 14When ignition switch is turned to
ON: ON
Oil flow
control
solenoid
(LH)Signal (+) B134 19ON: 10 — 13
OFF: 0ON: 13 — 14
OFF: 0—
Signal (−) B134 29 0 0 —
Oil flow
control
solenoid
(RH)Signal (+) B134 18ON: 10 — 13
OFF: 0ON: 13 — 14
OFF: 0—
Signal (−) B134 28 0 0 —
Accelera-
tor Pedal
Po si ti o n
SensorMain B136 17Fully closed: 1
Fully opens: 3.5Fully closed: 1
Fully opens: 3.5—
Pow er
supplyB136 15 5 5 —
GND
(sensor)B136 34 0 0 —
Sub B136 28Fully closed: 1
Fully opens: 3.5Fully closed: 1
Fully opens: 3.5—
Main light B134 15ON: 0
OFF: 10 — 13ON: 0
OFF: 13 — 14—
Clutch switch B134 1When clutch
pedal is
depressed: 0
When clutch
pedal is
released: 10 —
13When clutch
pedal is
depressed: 0
When clutch
pedal is
released: 13 —
14—
SET/COAST switch B136 11ON: 10 — 13
OFF: 0ON: 13 — 14
OFF: 0—
Brake switch 1 B136 9When brake
pedal is
depressed: 0
When brake
pedal is
released: 10 —
13When brake
pedal is
depressed: 0
When brake
pedal is
released: 13 —
14—
Brake switch 2 B136 8When brake
pedal is
depressed: 10
— 13
When brake
pedal is
released: 0When brake
pedal is
depressed: 13
— 14
When brake
pedal is
released: 0—
RESUME/ACCEL
switchB136 10ON: 10 — 13
OFF: 0ON: 13 — 14
OFF: 0—
Main switch B136 7ON: 10 — 13
OFF: 0ON: 13 — 14
OFF: 0—
CAN Com-
municationSignal (+) B137 18 Pulse signal —
Signal (−) B137 26 Pulse signal — DESCRIPTION Connector No. Terminal No.Signal (V)
NOTE
Ignition SW ON
(engine OFF)Engine ON
(Idling)

EN(H4DOTC 2.5)-29
ENGINE (DIAGNOSTIC)
Subaru Select Monitor
NOTE:
For detailed operation procedure, refer to the “SUBARU SELECT MONITOR OPERATION MANUAL”.
Mass air flow sensor signal Air Flow Sensor Voltage V
AT/MT identification signal AT Vehicle ID Signal ON or OFF
ETC motor relay ETC Motor Relay ON or OFF
Clutch SW Clutch Switch ON or OFF
Stop Light SW Stop Light Switch ON or OFF
SET/COAST SW SET/COAST Switch ON or OFF
RESUME/ACCEL SW RESUME/ACCEL Switch ON or OFF
Brake SW Brake Switch ON or OFF
Main SW Main Switch ON or OFF
Ignition switch signal Ignition Switch ON or OFF
Test Mode Signal Test Mode Signal ON or OFF
Neutral position switch signal Neutral Position Switch ON or OFF
Air conditioning switch signal A/C Switch ON or OFF
Air conditioning signal A/C Compressor Signal ON or OFF
Radiator main fan relay signal Radiator Fan Relay #1 ON or OFF
Knocking signal Knocking Signal ON or OFF
Radiator sub fan relay signal Radiator Fan Relay #2 ON or OFF
Power steering switch signal P/S Switch ON or OFF
Rear oxygen sensor rich signalRear O
2 Rich Signal
ON or OFF
Starter switch signal Starter Switch ON or OFF
Idle switch signal Idle Switch Signal ON or OFF
Crankshaft position sensor signal Crankshaft Position Sig. ON or OFF
Camshaft position sensor signal Camshaft Position Sig. ON or OFF
Rear defogger switch signal Rear Defogger SW ON or OFF
Blower fan switch signal Blower Fan SW ON or OFF
Small light switch signal Light Switch ON or OFF
Handle switch signal Handle Switch —
Wiper switch signal Wiper Switch ON or OFF
A/C mid pressure switch signal A/C mid Pressure Switch ON or OFF
AT coordinate retard angle demand Retard Signal form AT ON or OFF
AT coordinate fuel cut demand Fuel Cut Signal from AT ON or OFF
AT coordinate permission signal Torque Permission Signal ON or OFF
UDC not torque down output Ban of Torque Down ON or OFF
UDC torque down demand Request Torque Down UDC ON or OFF
Tumble generated valve output signal TGV Output ON or OFF
Tumble generated valve drive signal TGV Drive OPEN or CLOSERemarks Display Unit of measure

EN(H4DOTC 2.5)-32
ENGINE (DIAGNOSTIC)
Subaru Select Monitor
7. LED OPERATION MODE FOR ENGINE
1) On the «Main Menu» display screen, select the {Each System Check} and press the [YES] key.
2) On the «System Selection Menu» display screen, select the {Engine} and press the [YES] key.
3) Press the [YES] key after the information of engine type was displayed.
4) On the «Engine Diagnosis» screen, select the {Current Data Display/Save}, and then press the [YES] key.
5) On the «Data Display» screen, select the {Data & LED Display} and press the [YES] key.
6) Using the scroll key, move the display screen up or down until the desired data is shown.
 A list of the support data is shown in the following table.
Description Display Message LED “ON” requirements
Ignition switch signal Ignition Switch ON or OFF When ignition switch is ON.
Test Mode Signal Test Mode Signal ON or OFF When test mode connector is connected.
Neutral position switch signal Neutral Position Switch ON or OFF When neutral position signal is entered.
Air conditioning switch signal A/C Switch ON or OFF When air conditioning switch is ON.
Air conditioning relay signal A/C Compressor Signal ON or OFF When air conditioning relay is in function.
Radiator main fan relay signal Radiator Fan Relay #1 ON or OFF When radiator main fan relay is in function.
Knocking signal Knocking Signal ON or OFF When knocking signal is input.
Radiator sub fan relay signal Radiator Fan Relay #2 ON or OFF When radiator sub fan relay is in function.
Rear oxygen sensor rich signalRear O
2 Rich Signal
ON or OFFWhen rear oxygen sensor mixture ratio is
rich.
Starter switch signal Starter Switch Signal ON or OFF When starter switch signal is entered.
Idle switch signal Idle Switch Signal ON or OFF When idle switch signal is entered.
Crankshaft position sensor signal Crankshaft Position Signal ON or OFFWhen crankshaft position sensor signal is
input.
Camshaft position sensor signal Camshaft Position Signal ON or OFFWhen camshaft position sensor signal is
entered.
Power steering switch signal P/S Switch ON or OFF When power steering switch is entered.
Rear defogger switch signal Rear Defogger Switch ON or OFF When rear defogger switch is ON.
Blower fan switch signal Blower Fan Switch ON or OFF When blower fan switch is ON.
Small light switch signal Light Switch ON or OFF When small light switch is ON.
Tumble generated valve actuator
signalTGV Output ON or OFF When TGV actuator signal is entered.
Tumble generated valve drive sig-
nalTGV DriveClose or
OpenWhen TGV moves and valve opens.
Handle switch signal Handle SWLow Input
or High
InputIlluminates in Low Input.
AT/MT identification terminal AT Vehicle ID Signal ON or OFF ON (AT model).
Wiper switch signal Wiper Switch ON or OFF When wiper switch is turned to ON.
A/C mid pressure switch signal A/C Mid Pressure Switch ON or OFFWhen A/C mid pressure switch is turned to
ON.
AT coordinate retard angle
demandRetard Signal from AT ON or OFF When AT retard angle signal is exists.
AT coordinate fuel cut demand Fuel Cut Signal from AT ON or OFFWhen AT coordinate fuel cut demand signal
is exists.
AT coordinate permission signal Torque Permission Signal ON or OFFWhen AT coordinate permission signal is
exists.
VDC not torque down out put Ban of Torque Down ON or OFFWhen VDC not torque down output signal is
exists.
VDC torque down demand Request Torque Down VDC ON or OFFWhen VDC torque down demand signal is
exists.
ETC motor relay signal ETC Motor Relay ON or OFFWhen electronic throttle control relay is in
function.
Clutch switch signal Clutch Switch ON or OFF When clutch switch is ON.
Stop switch signal Stop Light Switch ON or OFF When stop light switch is ON.

EN(H4DOTC 2.5)-44
ENGINE (DIAGNOSTIC)
Compulsory Valve Operation Check Mode
13) Pressing the [NO] key completes the compulso-
ry operation check mode. The display will then re-
turn to the «Actuator ON/OFF Operation» screen.
 A list of the support data is shown in the following
table.
NOTE:
 The following parts will be displayed but not func-
tional.
 For detailed operation procedure, refer to the “SUB-
ARU SELECT MONITOR OPERATION MANUAL”.
Description Display
Compulsory fuel pump relay operation
checkFuel Pump
Compulsory radiator fan relay operation
checkRadiator Fan
Relay
Compulsory air conditioning relay oper-
ation checkA/C Compressor
Relay
Compulsory purge control solenoid
valve operation checkCPC Solenoid
Compulsory wastegate control sole-
noid operation checkWastegate con-
trol solenoid
Display
EGR Solenoid
ASV Solenoid
FICD Solenoid
Vent. solenoid
Atmospheric pressure switching solenoid 1
AAI Solenoid
PCV Solenoid
Atmospheric pressure switching solenoid 2
EXH. Bypass control permit flag

EN(H4DOTC 2.5)-57
ENGINE (DIAGNOSTIC)
Diagnostics for Engine Starting Failure
C: CHECK POWER SUPPLY AND GROUND LINE OF ENGINE CONTROL MOD-
ULE (ECM)
CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode OPERATION, Clear Memory Mode.> and Inspection Mode Inspection Mode.>.

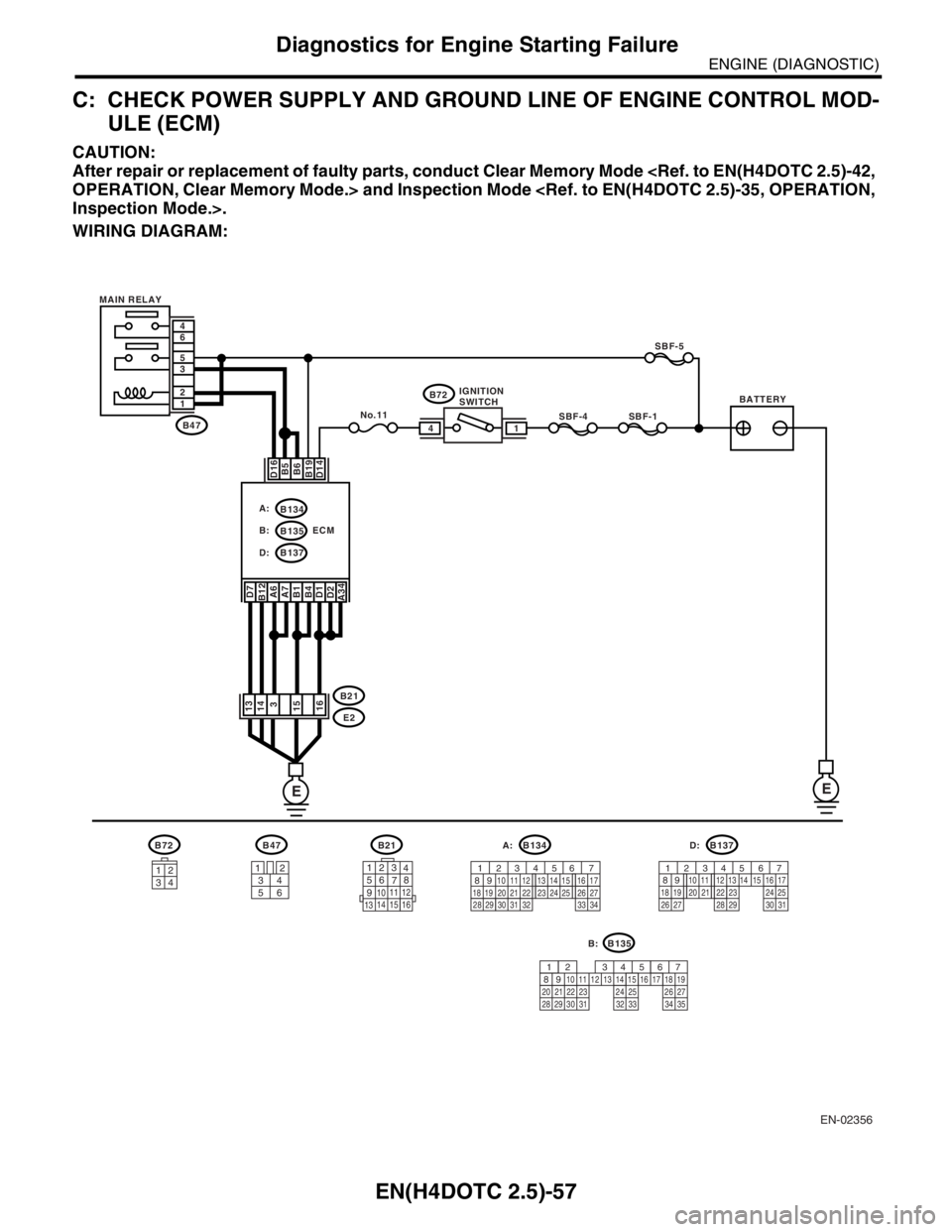

WIRING DIAGRAM:
EN-02356
B72
B135
3412
BATTERY MAIN RELAY
SBF-4 SBF-1SBF-5
B72
D16 D7
B12
A6
A7
B1
B4
D1
D2
A34B5
B6
B19
D14
No.11
B47
E2 B21 1 2 3 5 6 4
ECM
E
E
1 4
B134
B135
B137 A:
B:
D:
14133
15
16
34 12
56123
4
56
78
91011 12
1314 15 16
B134 B21 B47B137 A: D:
B: IGNITION
SWITCH
56 7
82 1
94 310
24 22 23 25 11 12 13 14 15
26 27
2816 17
18 19 20 21
33 34 29
32 30 31
567
82 1
94 310
24 22 23 2511 12 13 14 15
26 27
2816 17 18 19
20 21
29 30 31 32 33 34 35
567
82 1
94 310
22 23 11 12 13 14 15
24 25
2616 17
18 19 20 21
27 28 29 30 31
