Page 2228 of 3870

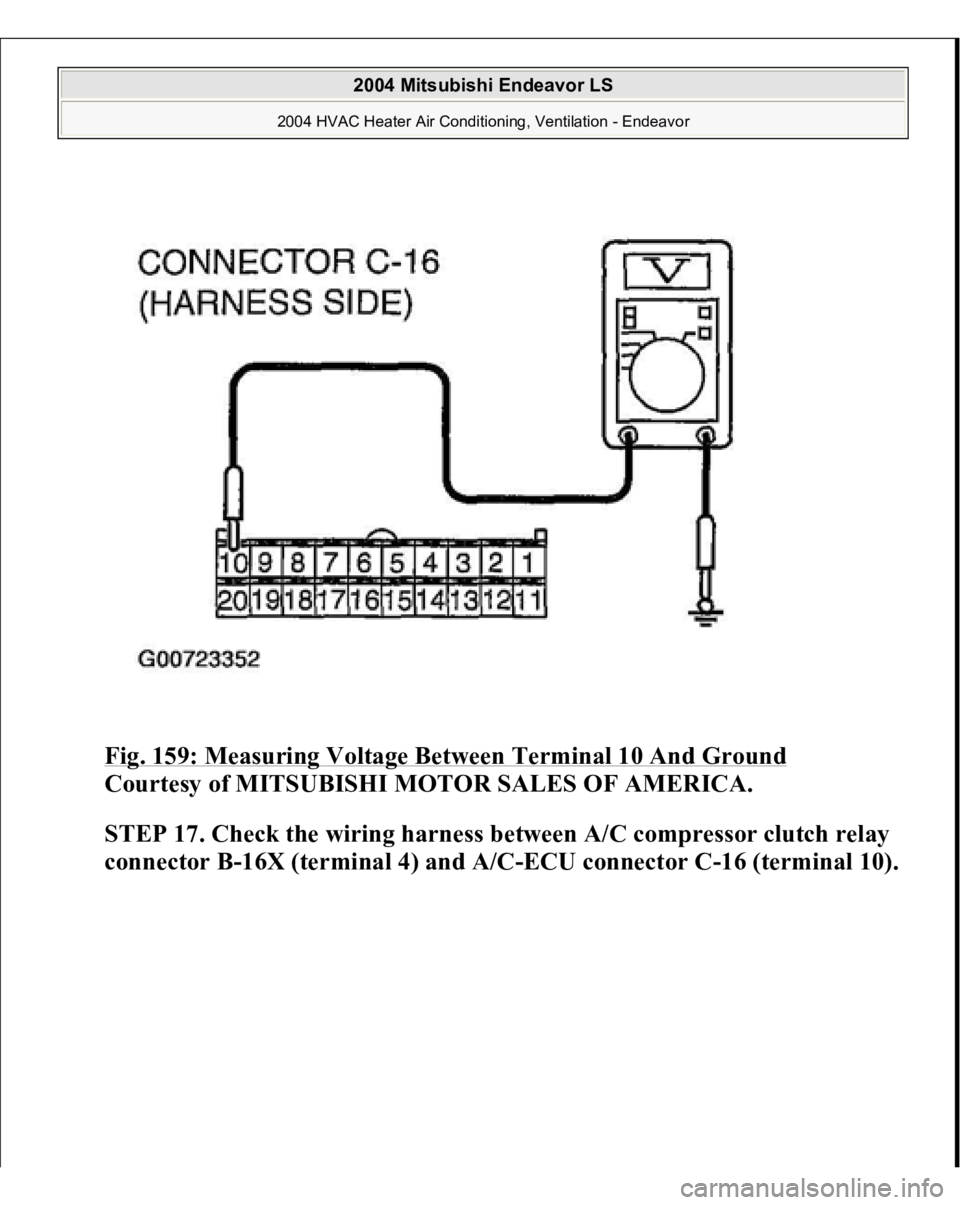

Fig. 159: Measuring Voltage Between Terminal 10 And Ground
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
STEP 17. Check the wiring harness between A/C compressor clutch relay
connector B-16X (terminal 4) and A/C-ECU connector C-16 (terminal 10).
2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor
Page 2230 of 3870

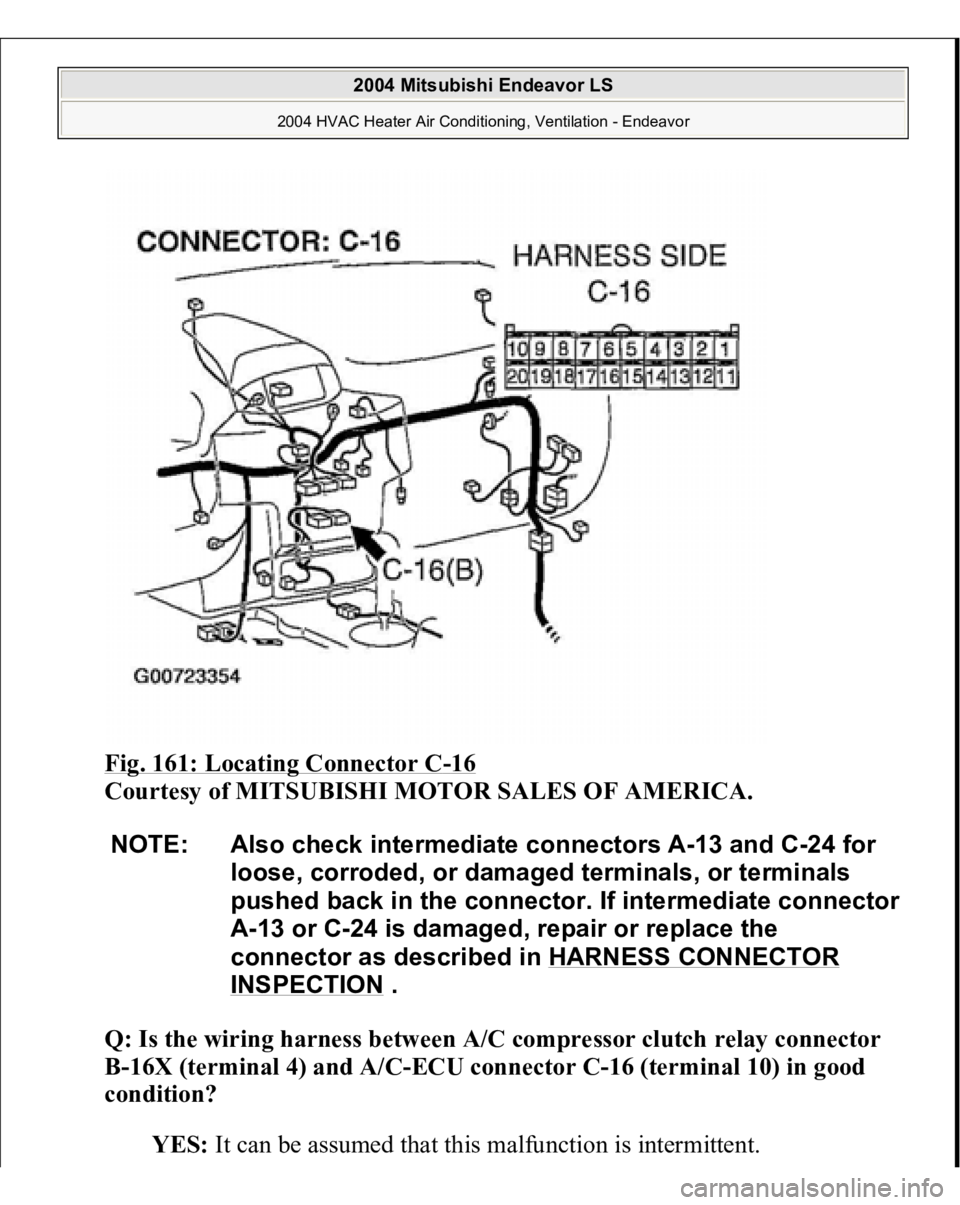

Fig. 161: Locating Connector C
-16
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the wiring harness between A/C compressor clutch relay connector
B-16X (terminal 4) and A/C-ECU connector C-16 (terminal 10) in good
condition?
YES:
It can be assumed that this malfunction is intermittent.
NOTE: Also check intermediate connectors A-13 and C-24 for
loose, corroded, or damaged terminals, or terminals
pushed back in the connector. If intermediate connector
A-13 or C-24 is damaged, repair or replace the
connector as described in HARNESS CONNECTOR
INSPECTION
.
2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor
Page 2246 of 3870
Fig. 176: Identifying Connectors C
-16, C
-108 And C
-111
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CIRCUIT OPERATION If the blower motor does not operate, the blower relay system is suspected. TROUBLESHOOTING HINTS
Malfunction of the front blower relay Malfunction of the
power transistor
2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor
Page 2252 of 3870

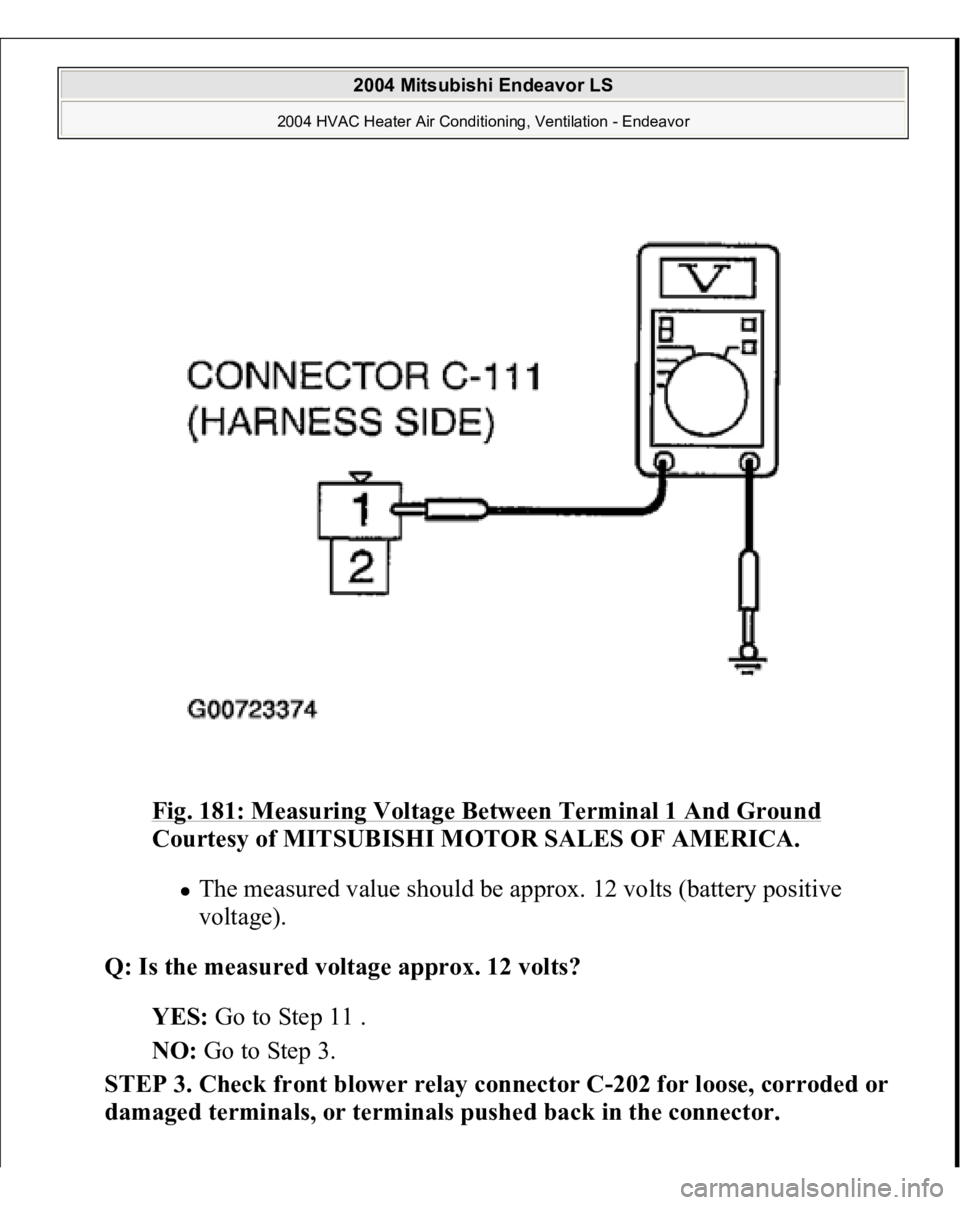

Fig. 181: Measuring Voltage Between Terminal 1 And Ground
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
The measured value should be approx. 12 volts (battery positive
voltage).
Q: Is the measured voltage approx. 12 volts?
YES:
Go to Step 11 .
NO:
Go to Step 3.
STEP 3. Check front blower relay connector C-202 for loose, corroded or
damaged terminals, or terminals pushed back in the connector.
2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor
Page 2253 of 3870
Q: Is front blower relay connector C-202 in good condition?
YES:
Go to Step 4.
NO:
Repair or replace the connector. Refer to
HARNESS
CONNECTOR INSPECTION
. The blower motor should operate
normally.

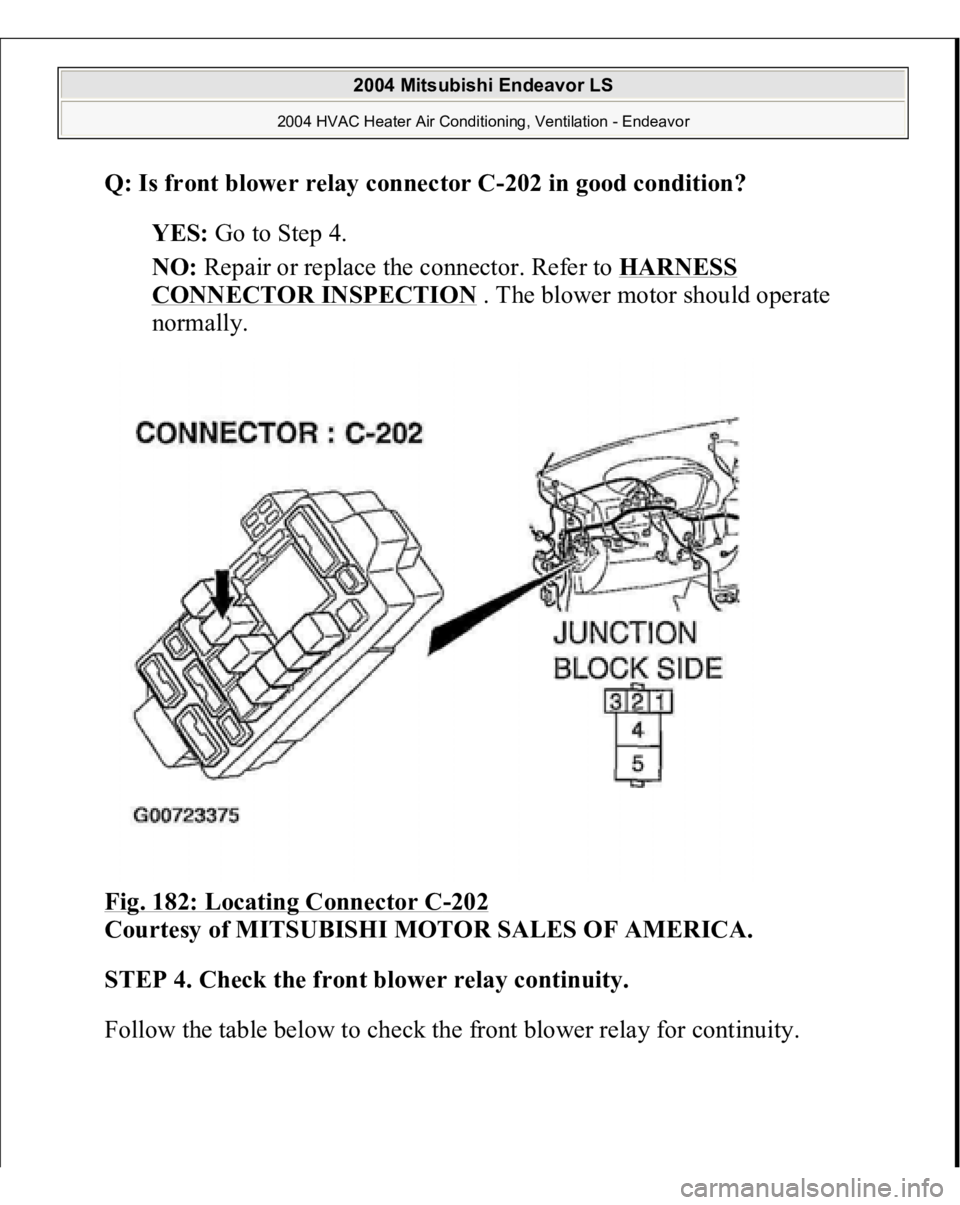

Fig. 182: Locating Connector C
-202
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
STEP 4. Check the front blower relay continuity.
Follow the table below to check the front blower relay for continuit
y.
2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor
Page 2254 of 3870

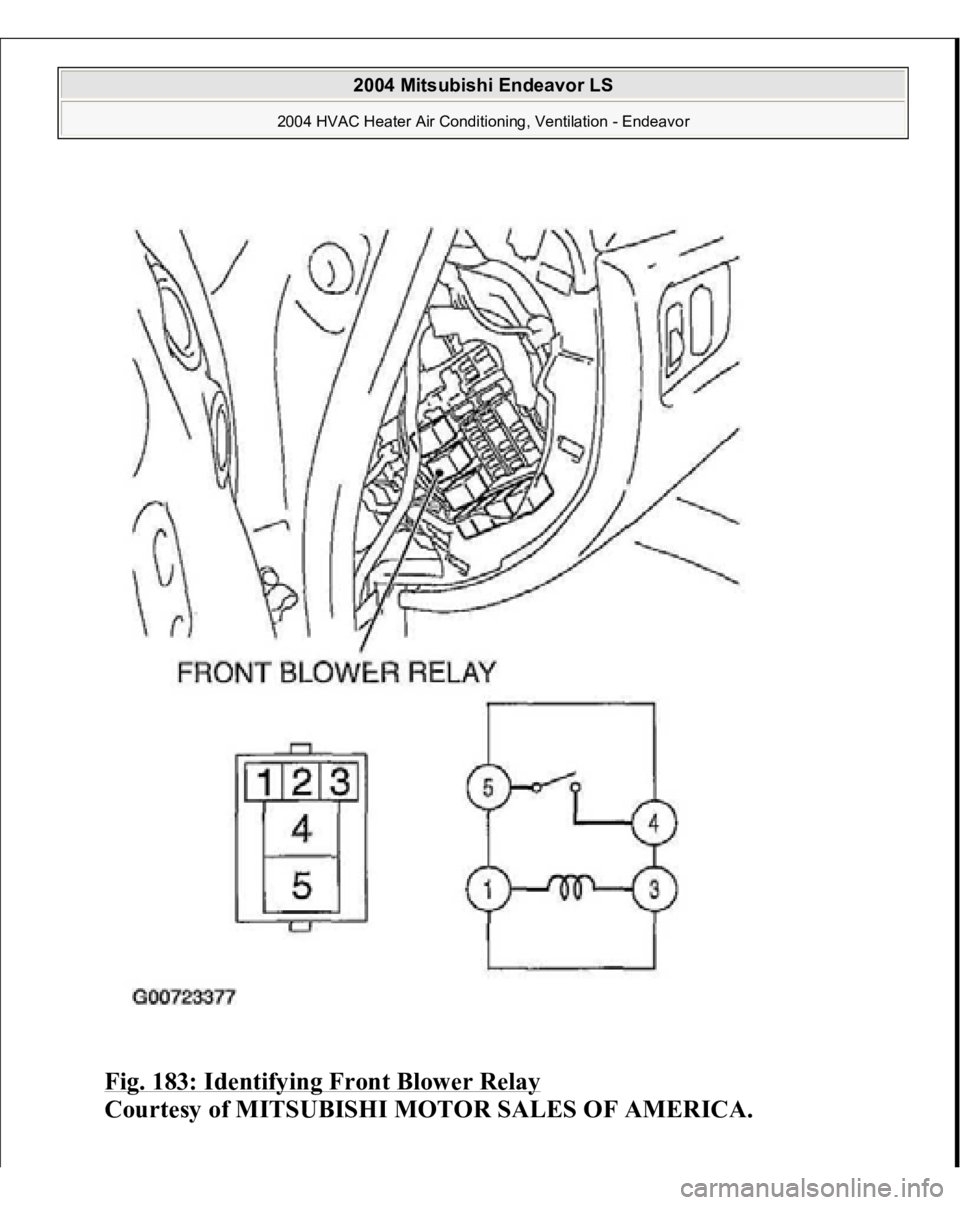

Fig. 183: Identifying Front Blower Relay
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor
Page 2255 of 3870

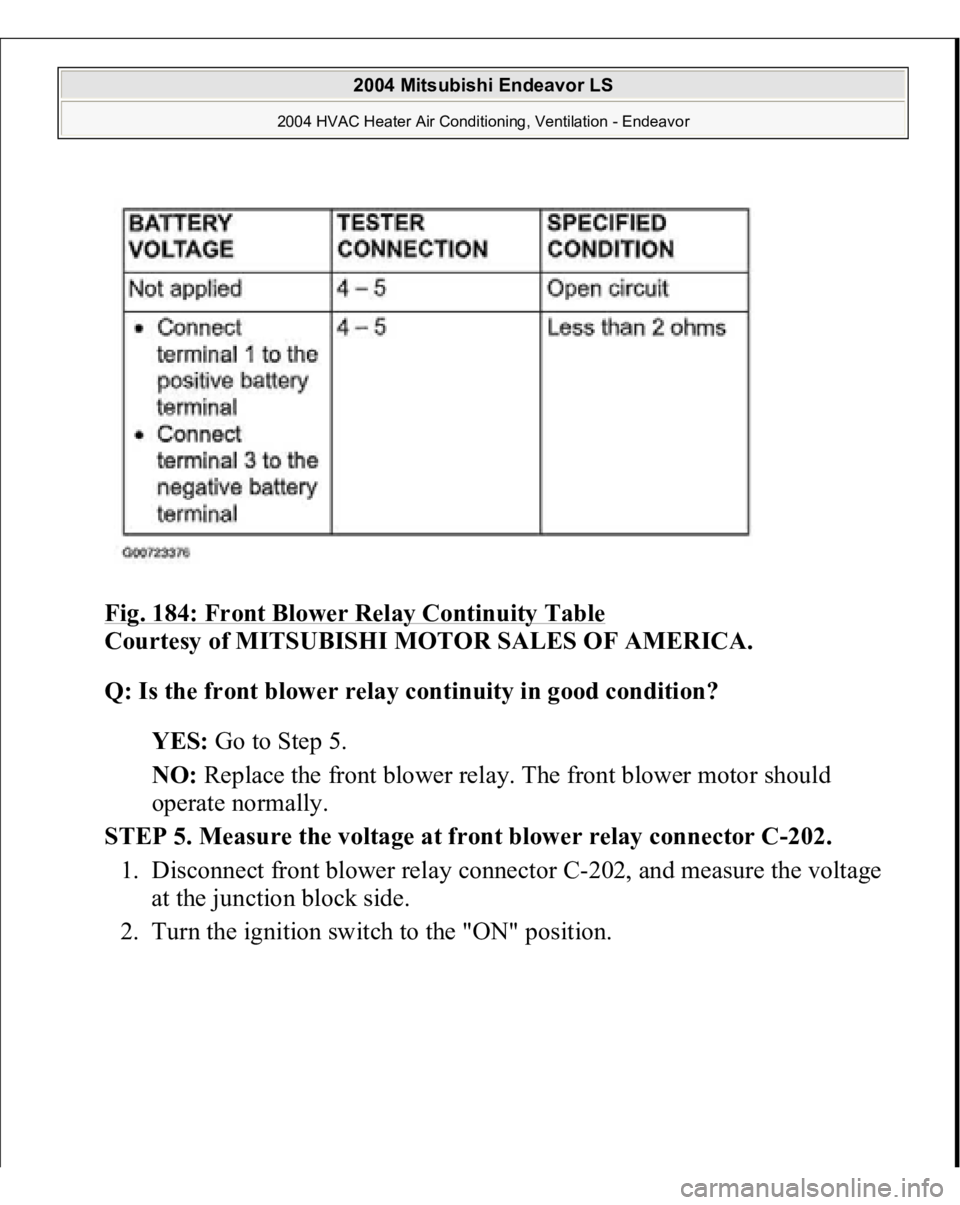

Fig. 184: Front Blower Relay Continuity Table
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the front blower relay continuity in good condition?
YES:
Go to Step 5.
NO:
Replace the front blower relay. The front blower motor should
operate normally.
STEP 5. Measure the voltage at front blower relay connector C-202.
1. Disconnect front blower relay connector C-202, and measure the voltage
at the junction block side.
2. Turn the i
gnition switch to the "ON"
position.
2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor
Page 2257 of 3870

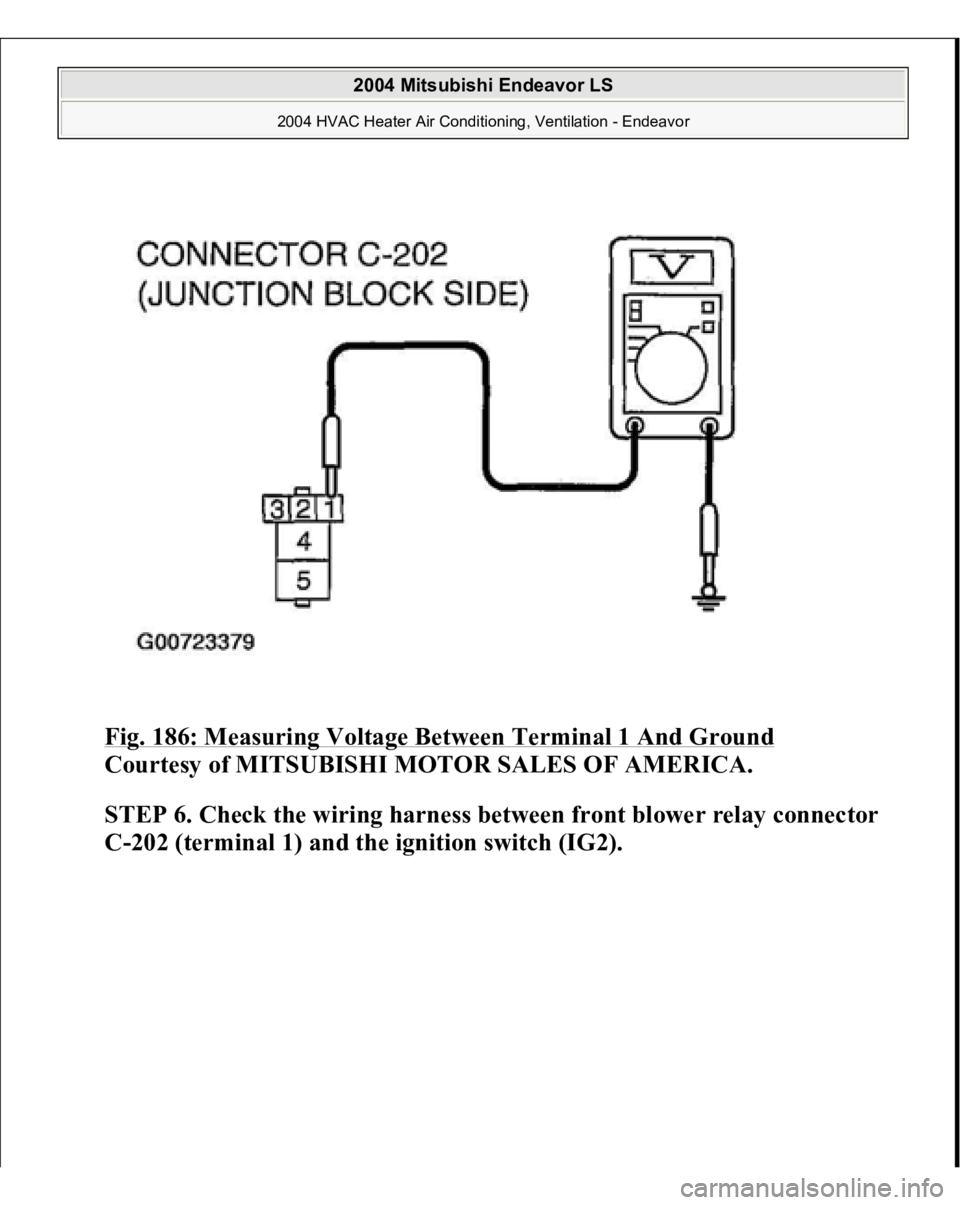

Fig. 186: Measuring Voltage Between Terminal 1 And Ground
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
STEP 6. Check the wiring harness between front blower relay connector
C-202 (terminal 1) and the i
gnition switch (IG2)
.
