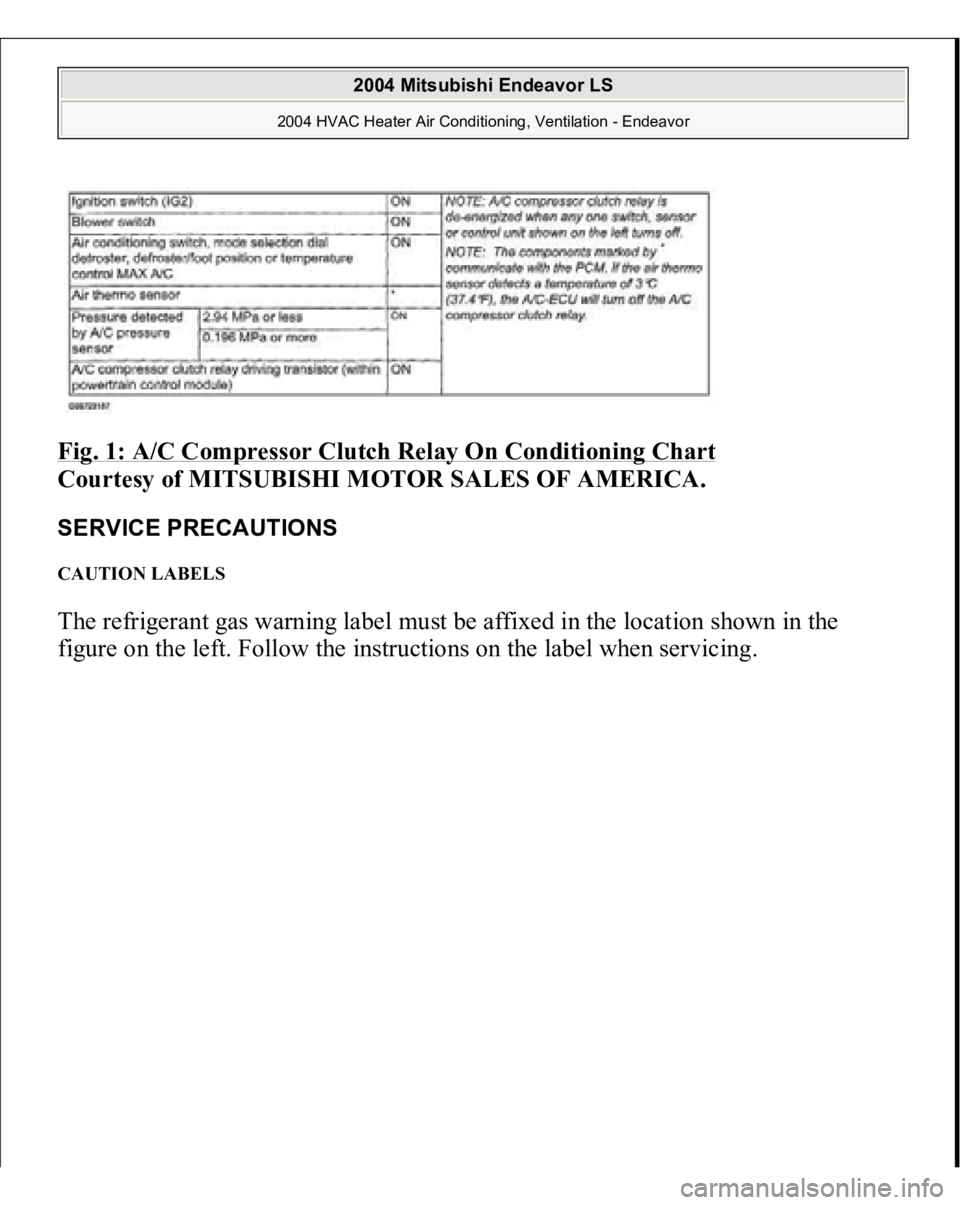

Page 2000 of 3870

MITSUBISHI ENDEAVOR 2004  Service Repair Manual Fig. 1: A/C Compressor Clutch Relay On Conditioning Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

SERVICE PRECAUTIONS CAUTION LABELS The refrigerant gas warning label must be affixed in the

Page 2002 of 3870

MITSUBISHI ENDEAVOR 2004  Service Repair Manual INTRODUCTION TO HEATER, AIR CONDITIONING AND VENTILATION DIAGNOSISAir is drawn into the heater assembly from either the outside, or from the inside of
the passenger cabin if DEFROST, maximum cooling

Page 2197 of 3870

MITSUBISHI ENDEAVOR 2004  Service Repair Manual relay system may be defective. TROUBLESHOOTING HINTS
Improper amount of refrigerant  Malfunction of the air thermo sensor  Malfunction of the ambient air temperature sensor  Malfunction of the A/C pr

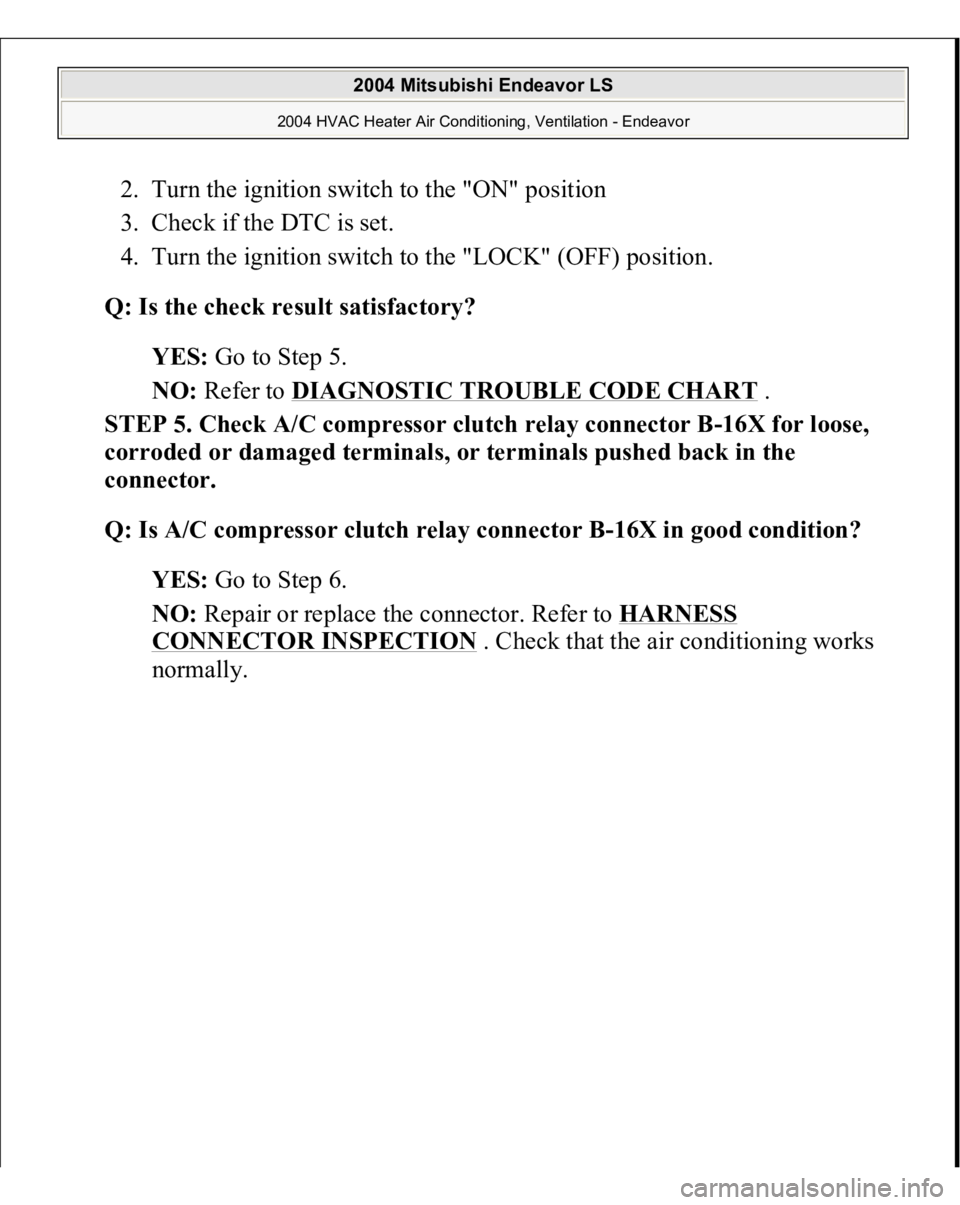

Page 2200 of 3870

MITSUBISHI ENDEAVOR 2004  Service Repair Manual 2. Turn the ignition switch to the "ON" position
3. Check if the DTC is set.
4. Turn the ignition switch to the "LOCK" (OFF) position.  Q: Is the check result satisfactory?

YES:

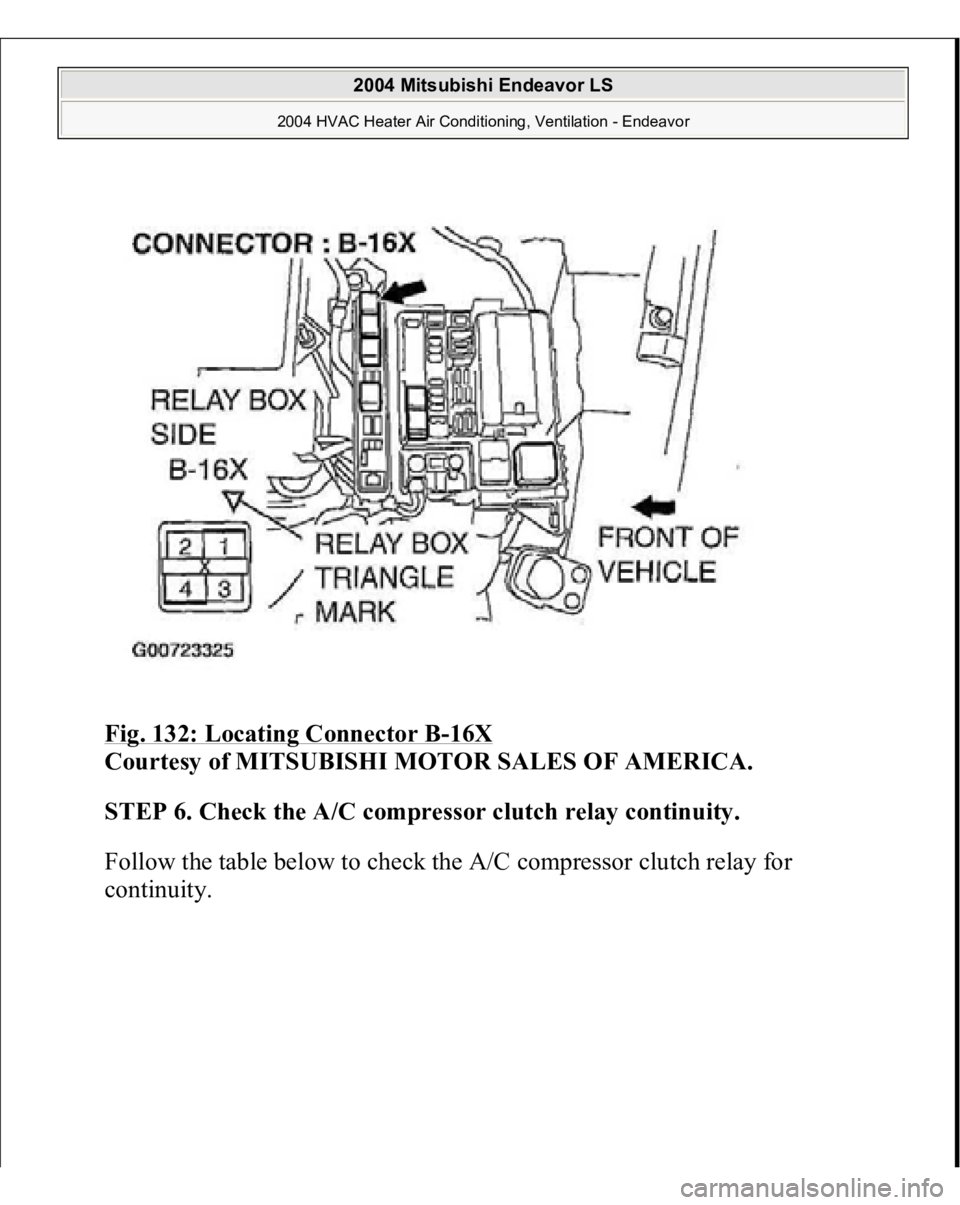

Page 2201 of 3870

MITSUBISHI ENDEAVOR 2004  Service Repair Manual Fig. 132: Locating Connector B
-16X

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

STEP 6. Check the A/C compressor clutch relay continuity.

Follow the table below to check the A/C compressor cl

Page 2203 of 3870

MITSUBISHI ENDEAVOR 2004  Service Repair Manual Fig. 133: Checking A/C Compressor Clutch Relay For Continuity

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig. 134: A/C Compressor Clutch Relay

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

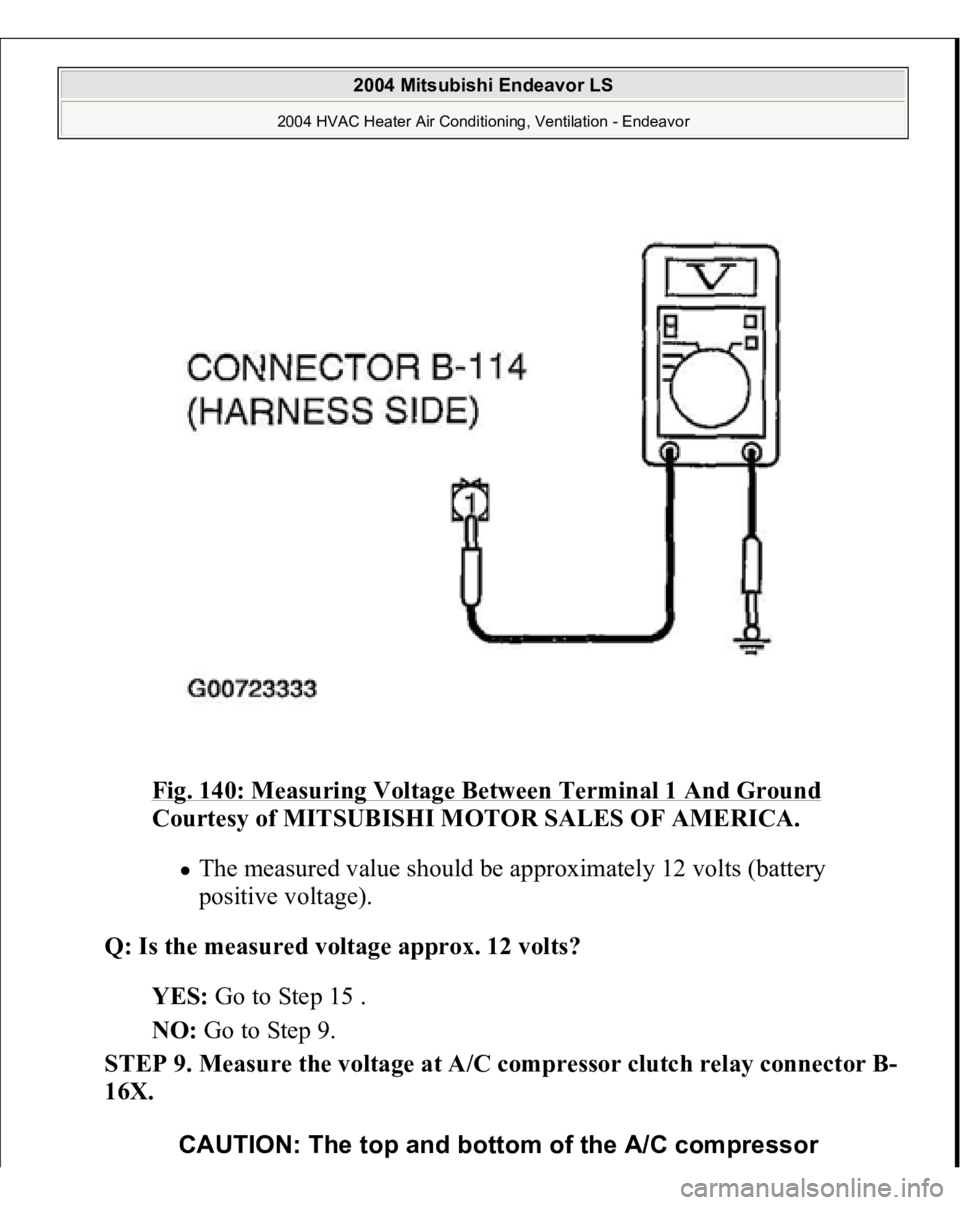

Page 2209 of 3870

MITSUBISHI ENDEAVOR 2004  Service Repair Manual Fig. 140: Measuring Voltage Between Terminal 1 And Ground

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

The measured value should be approximately 12 volts (battery
positive voltage).
Q: Is th

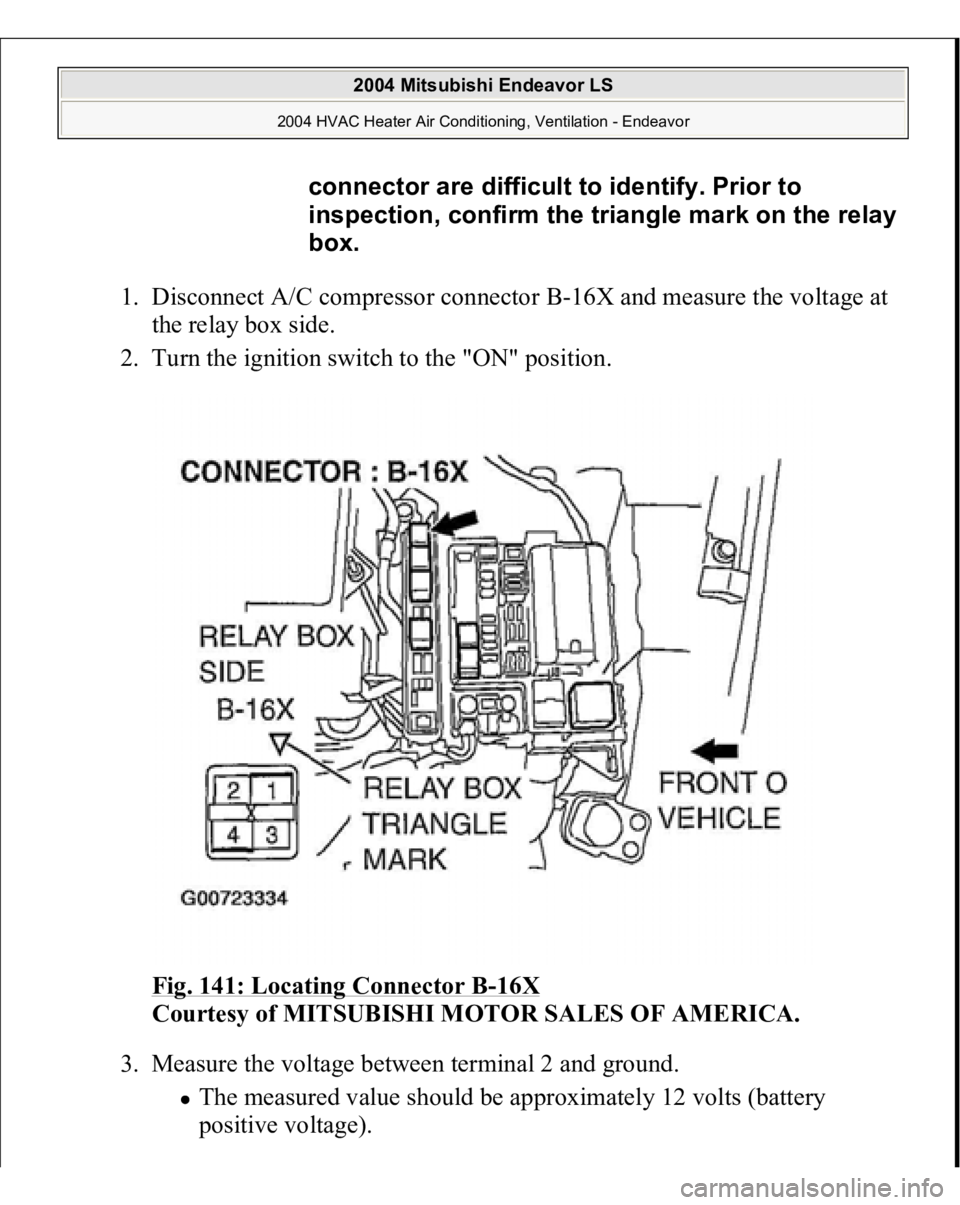

Page 2210 of 3870

MITSUBISHI ENDEAVOR 2004  Service Repair Manual 1. Disconnect A/C compressor connector B-16X and measure the voltage at
the relay box side.
2. Turn the ignition switch to the "ON" position.
Fig. 141: Locating Connector B
-16X

Courtesy
