CIRCUIT OPERATION
The fan control module is powered from fusible link number 2. The PCM judges the required revolution speed of radiator fan motor and
condenser fan motor using the input signals transmitted from A/C switch,
automatic compressor controller, vehicle speed sensor and engine coolant
temperature sensor. The PCM activates the fan control module to drive the
radiator fan motor and condenser fan motor.
TECHNICAL DESCRIPTION
The cause could be a malfunction of the fan control module power supply or
ground circuit. The cause could also be a malfunction of the fan control module or the PCM.
TROUBLESHOOTING HINTS
Malfunction of fusible link Malfunction of fan control relay Malfunction of MFI relay Malfunction of fan control module Malfunction of PCM Damaged wiring harness or connector
DIAGNOSIS Required Special Tools:
MB991223: Harness Set MB991923: Power Plant ECU Check Harness
STEP 1. Check the circuit at fan control module connector A-23 (terminal
3).
1. Disconnect fan control module connector A-23, and measure at the
harness side connector.
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Cooling - Endeavor
Page 1201 of 3870
Fig. 9: Measuring Voltage Between Terminal 3 & Ground
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is there voltage battery positive voltage when the ignition switch is
turned to the "ON" position?
YES: Go to Step 8 .
NO: Go to Step 2.
STEP 2. Check the fan control relay.
Refer to FAN CONTROL RELAY CONTINUITY CHECK
.
Q: Is the fan control relay in good condition?
YES: Go to Step 3.
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Cooling - Endeavor
Page 1202 of 3870
NO: Replace it, then go to Step 1 .
STEP 3. Check the MFI relay.
Refer to MULTIPORT FUEL INJECTION (MFI) RELAY AND
THROTTLE ACTUATOR CONTROL MOTOR RELAY CONTINUITY CHECK
.
Q: Is the MFI relay in good condition?
YES: Go to Step 4.
NO: Replace it, then go to Step 1 .
STEP 4. Check for harness dama
ge between fusible link number 2 and fan
control relay connector A-10X (terminal 4).
Fi
g. 10: Checkin
g Harness Dama
ge
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Cooling - Endeavor
Page 1203 of 3870
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
Q: Are the harness wires between fusible link number 2 and fan control
relay connector A-10X damaged?
YES: Repair or replace them, then go to Step 14 .
NO: Go to Step 5.
STEP 5. Check for harness damage between fan control relay connector
A-10X (terminal 2) and fan control module connector A-23 (terminal 3).
Fig. 11: Identifying Connector A
-10X
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Cooling - Endeavor
Page 1204 of 3870
Fig. 12: Identifying Connector A
-23
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Are the harness wires between fan control relay connector A-10X
(terminal 2) and fan control module connector A-23 (terminal 3)
damaged?
YES: Repair or replace them, then go to Step 14 .
NO: Go to Step 6.
STEP 6. Check intermediate connector A-13 for loose, corroded or
damaged terminals, or terminals pushed back in the connector.
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Cooling - Endeavor
Page 1205 of 3870

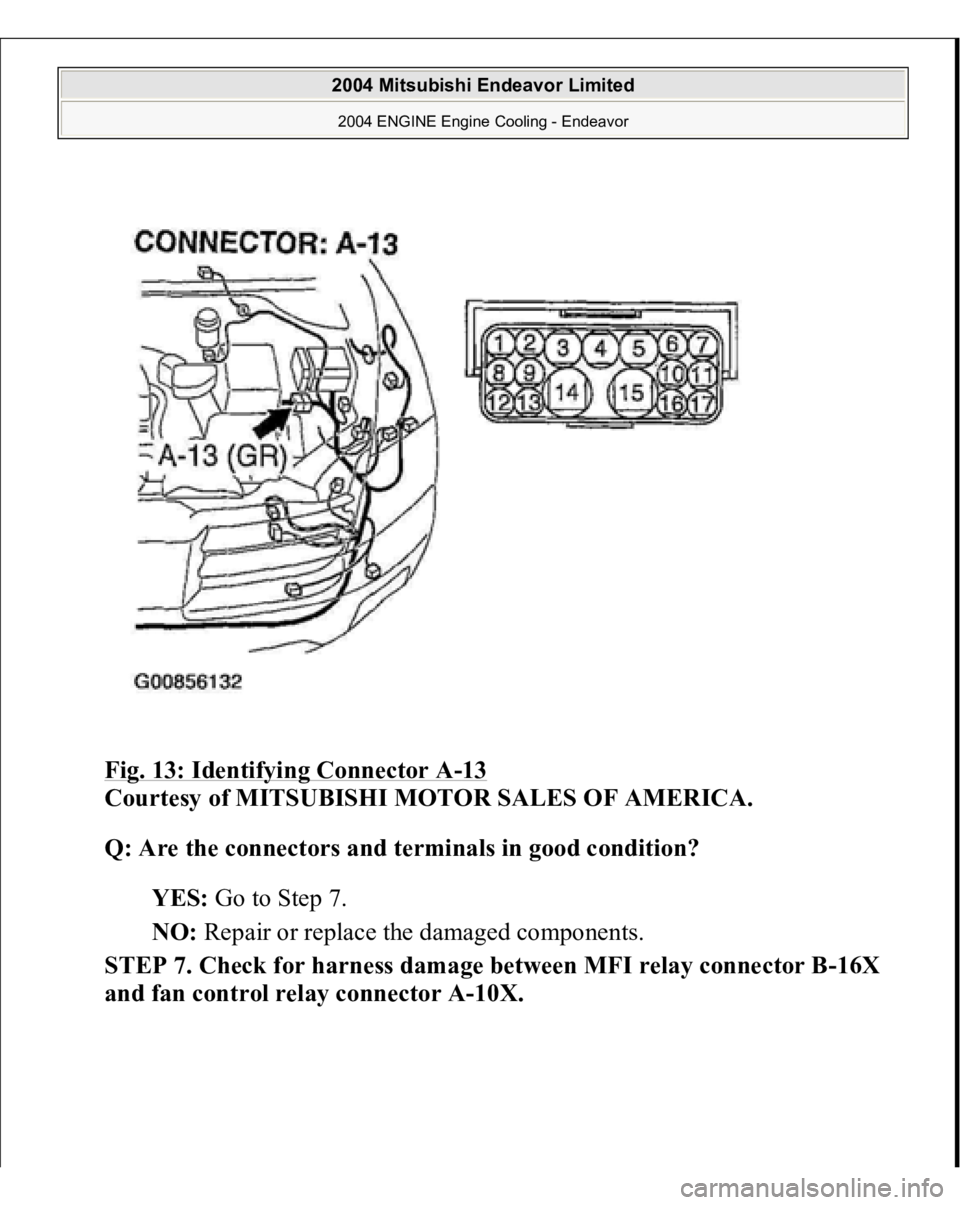

Fig. 13: Identifying Connector A
-13
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Are the connectors and terminals in good condition?
YES: Go to Step 7.
NO: Repair or replace the damaged components.
STEP 7. Check for harness damage between MFI relay connector B-16X
and fan control relay connector A-10X.
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Cooling - Endeavor
Page 1206 of 3870

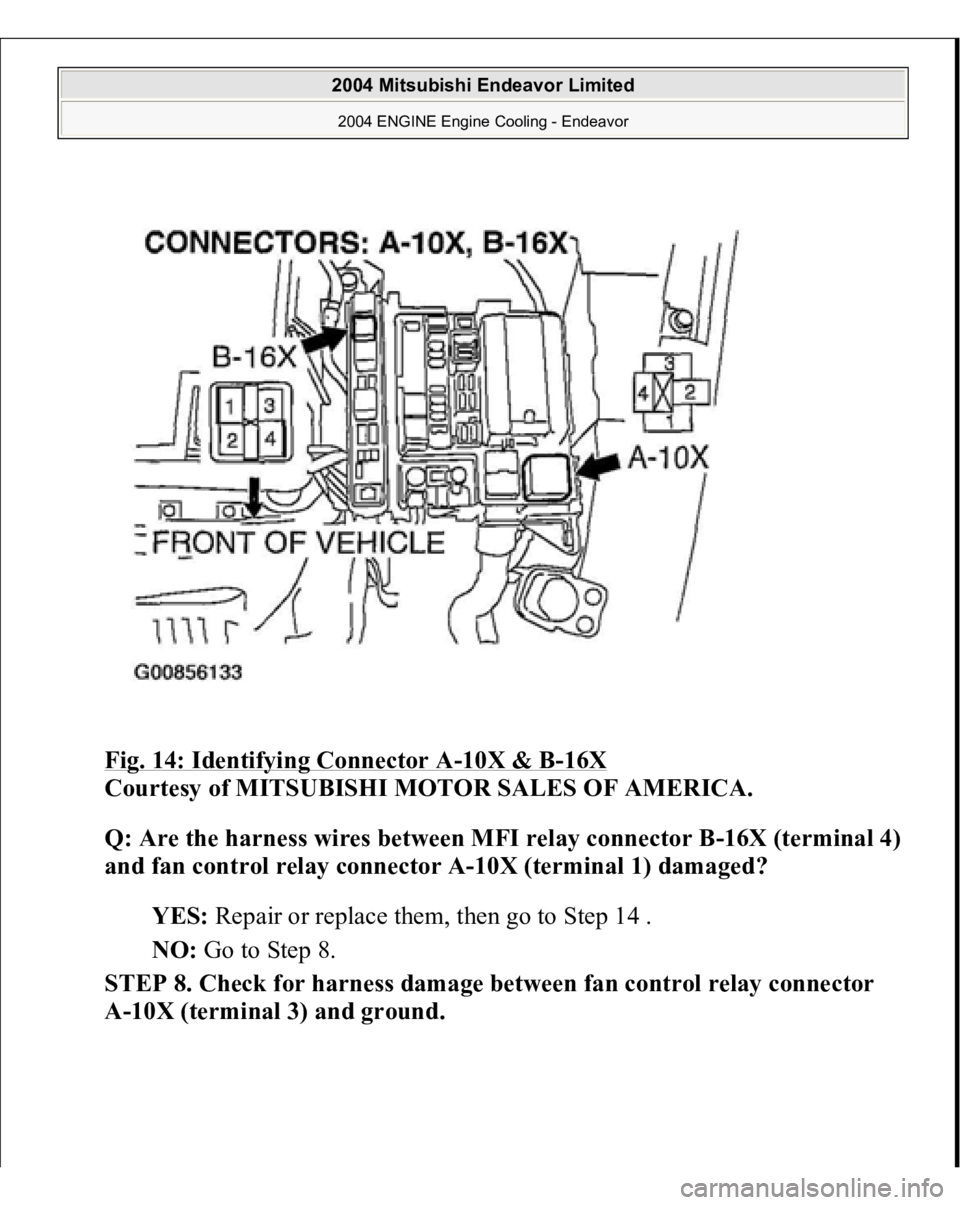

Fig. 14: Identifying Connector A
-10X & B
-16X
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Are the harness wires between MFI relay connector B-16X (terminal 4)
and fan control relay connector A-10X (terminal 1) damaged?
YES: Repair or replace them, then go to Step 14 .
NO: Go to Step 8.
STEP 8. Check for harness damage between fan control relay connector
A-10X (terminal 3) and ground.
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Cooling - Endeavor
Page 1207 of 3870

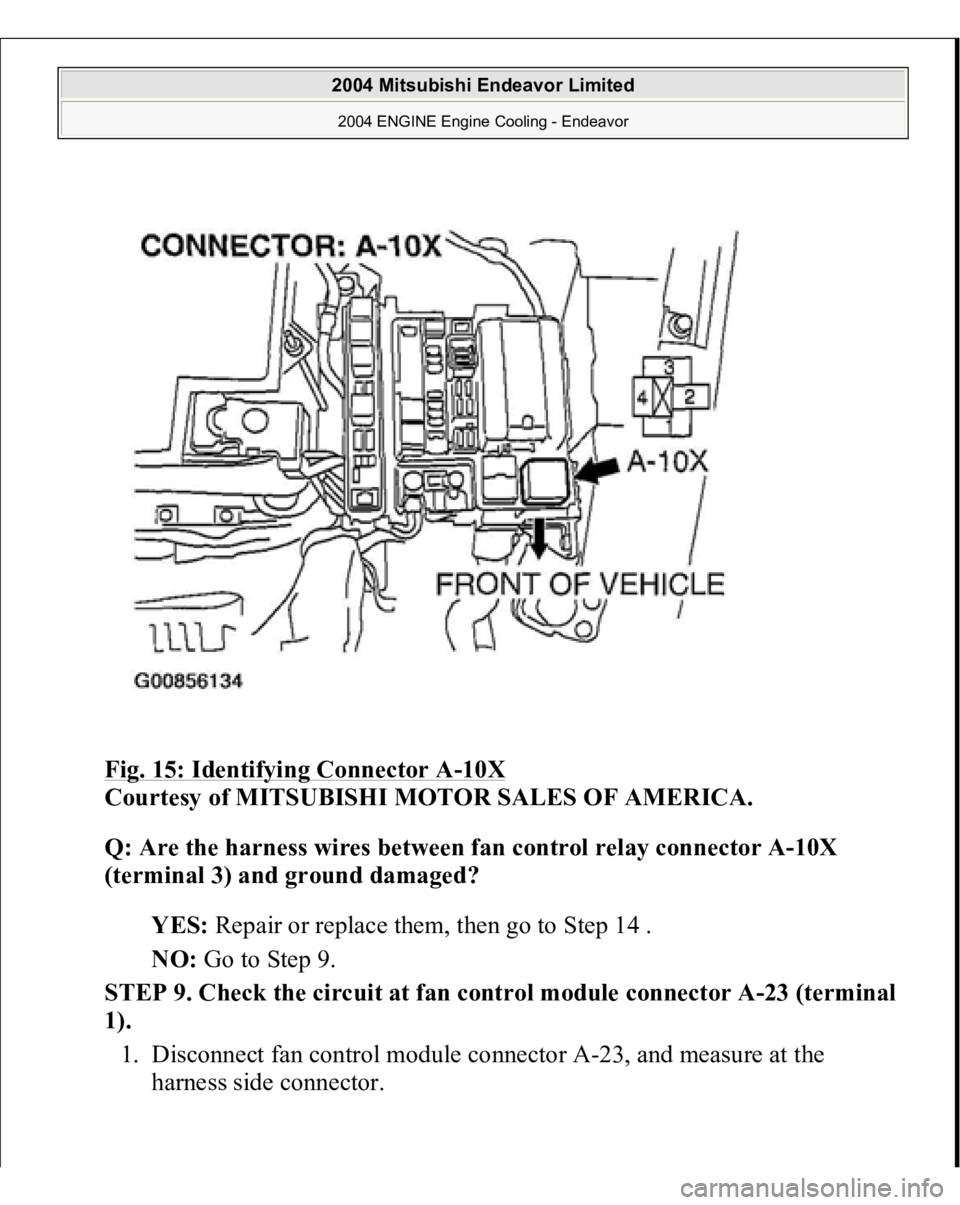

Fig. 15: Identifying Connector A
