Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.

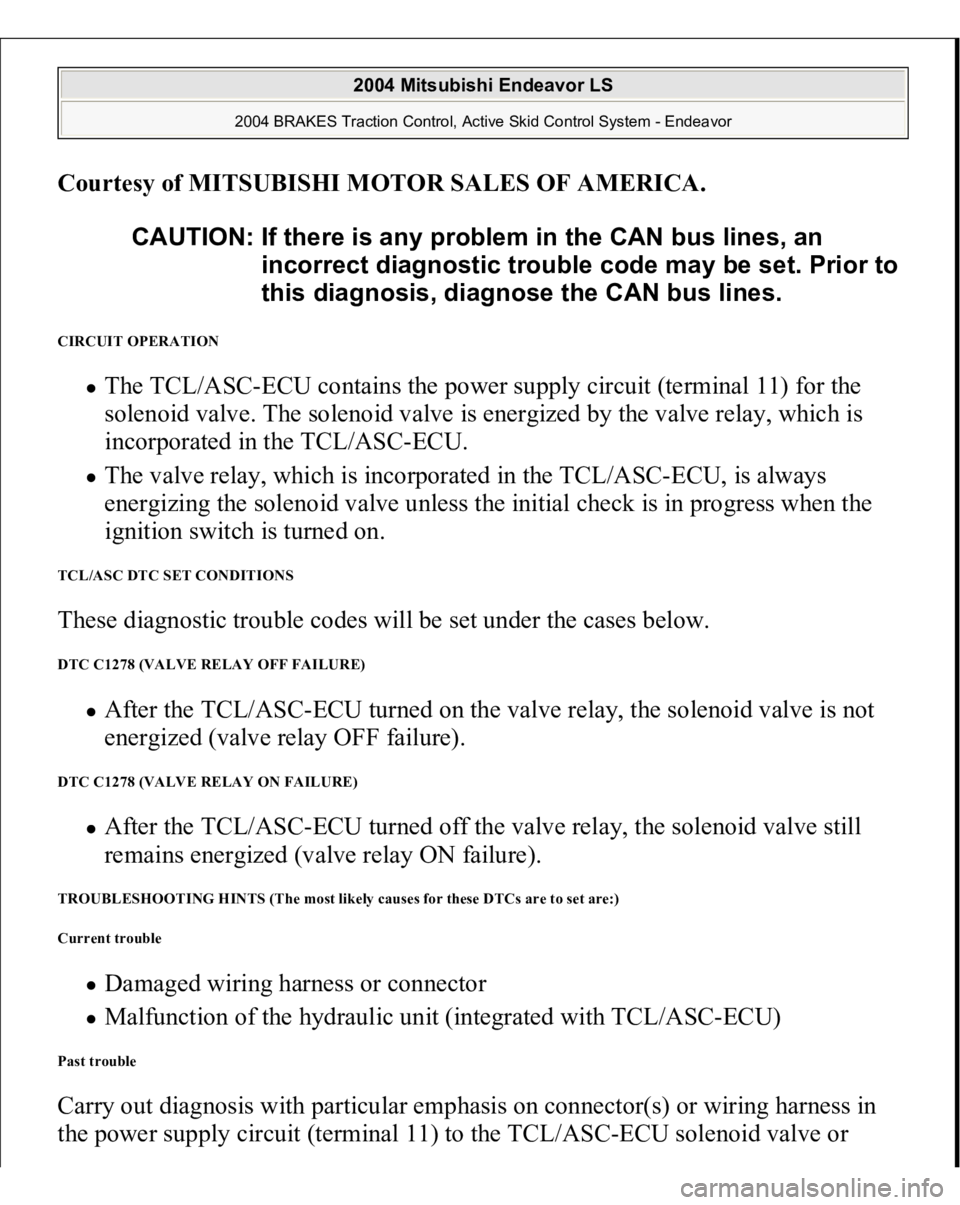

CIRCUIT OPERATION
The TCL/ASC-ECU contains the power supply circuit (terminal 11) for the
solenoid valve. The solenoid valve is energized by the valve relay, which is
incorporated in the TCL/ASC-ECU. The valve relay, which is incorporated in the TCL/ASC-ECU, is always
energizing the solenoid valve unless the initial check is in progress when the
ignition switch is turned on.
TCL/ASC DTC SET CONDITIONS These diagnostic trouble codes will be set under the cases below. DTC C1278 (VALVE RELAY OFF FAILURE)
After the TCL/ASC-ECU turned on the valve relay, the solenoid valve is not
energized (valve relay OFF failure).
DTC C1278 (VALVE RELAY ON FAILURE)
After the TCL/ASC-ECU turned off the valve relay, the solenoid valve still
remains energized (valve relay ON failure).
TROUBLESHOOTING HINTS (The most likely causes for these DTCs are to set are:)
Current trouble
Damaged wiring harness or connector Malfunction of the hydraulic unit (integrated with TCL/ASC-ECU)
Past trouble Carry out diagnosis with particular emphasis on connector(s) or wiring harness in
the power supply circuit (terminal 11) to the TCL/AS
C-ECU solenoid valve or CAUTION: If there is any problem in the CAN bus lines, an
incorrect diagnostic trouble code may be set. Prior to
this diagnosis, diagnose the CAN bus lines.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

2004 BODY & ACCESSORIES
Windshield Wiper And Washer - Endeavor

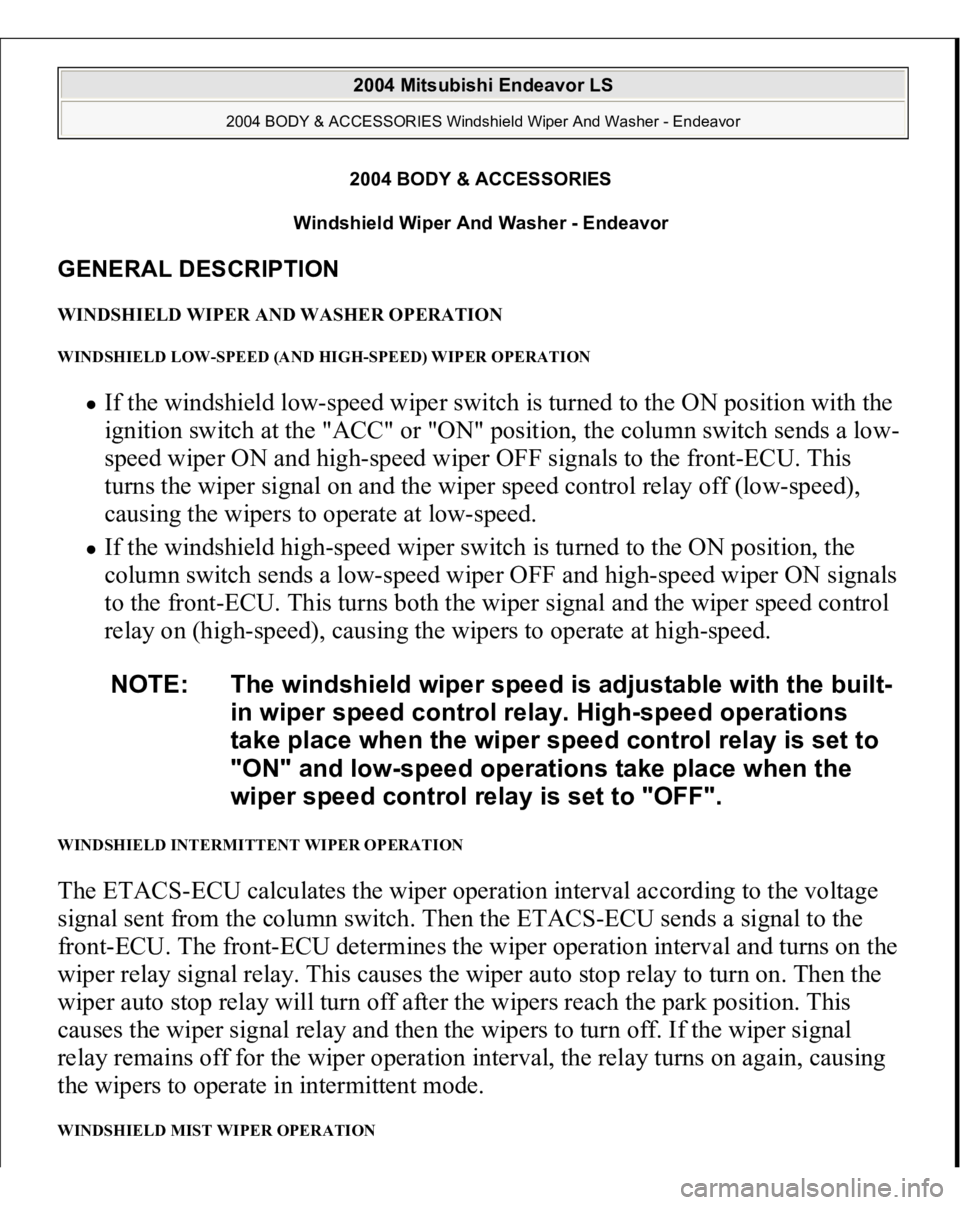

GENERAL DESCRIPTION WINDSHIELD WIPER AND WASHER OPERATION WINDSHIELD LOW-SPEED (AND HIGH-SPEED) WIPER OPERATION
If the windshield low-speed wiper switch is turned to the ON position with the
ignition switch at the "ACC" or "ON" position, the column switch sends a low-
speed wiper ON and high-speed wiper OFF signals to the front-ECU. This
turns the wiper signal on and the wiper speed control relay off (low-speed),
causing the wipers to operate at low-speed. If the windshield high-speed wiper switch is turned to the ON position, the
column switch sends a low-speed wiper OFF and high-speed wiper ON signals
to the front-ECU. This turns both the wiper signal and the wiper speed control
relay on (high-speed), causing the wipers to operate at high-speed.
WINDSHIELD INTERMITTENT WIPER OPERATION The ETACS-ECU calculates the wiper operation interval according to the voltage
signal sent from the column switch. Then the ETACS-ECU sends a signal to the
front-ECU. The front-ECU determines the wiper operation interval and turns on the
wiper relay signal relay. This causes the wiper auto stop relay to turn on. Then the
wiper auto stop relay will turn off after the wipers reach the park position. This
causes the wiper signal relay and then the wipers to turn off. If the wiper signal
relay remains off for the wiper operation interval, the relay turns on again, causing
the wipers to operate in intermittent mode. WINDSHIELD MIST WIPER OPERATION
NOTE: The windshield wiper speed is adjustable with the built-
in wiper speed control relay. High-speed operations
take place when the wiper speed control relay is set to
"ON" and low-speed operations take place when the
wiper speed control relay is set to "OFF".

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Windshield Wiper And Washer - Endeavor


2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Windshield Wiper And Washer - Endeavor

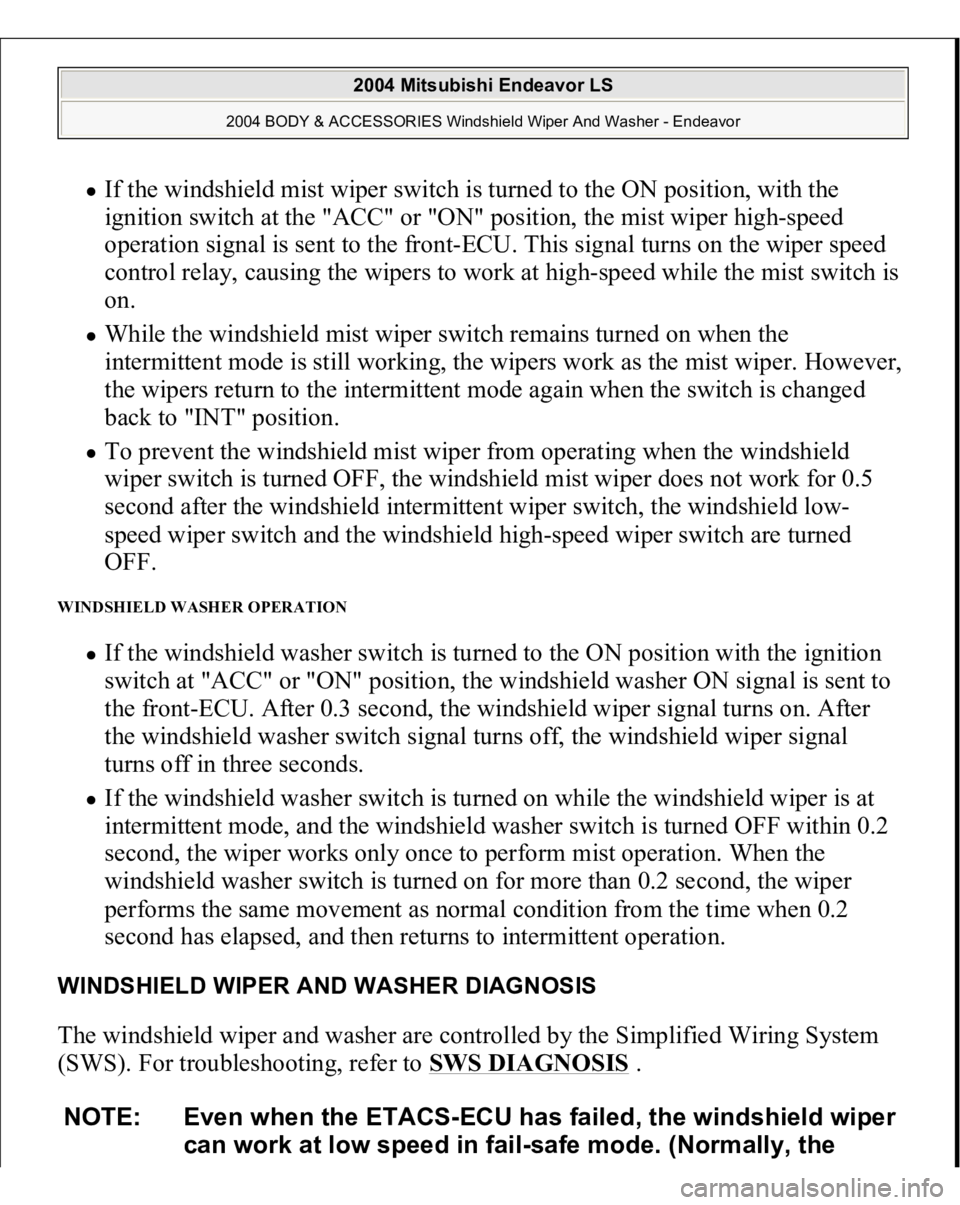

If the windshield mist wiper switch is turned to the ON position, with the
ignition switch at the "ACC" or "ON" position, the mist wiper high-speed
operation signal is sent to the front-ECU. This signal turns on the wiper speed
control relay, causing the wipers to work at high-speed while the mist switch is
on. While the windshield mist wiper switch remains turned on when the
intermittent mode is still working, the wipers work as the mist wiper. However,
the wipers return to the intermittent mode again when the switch is changed
back to "INT" position. To prevent the windshield mist wiper from operating when the windshield
wiper switch is turned OFF, the windshield mist wiper does not work for 0.5
second after the windshield intermittent wiper switch, the windshield low-
speed wiper switch and the windshield high-speed wiper switch are turned
OFF.
WINDSHIELD WASHER OPERATION
If the windshield washer switch is turned to the ON position with the ignition
switch at "ACC" or "ON" position, the windshield washer ON signal is sent to
the front-ECU. After 0.3 second, the windshield wiper signal turns on. After
the windshield washer switch signal turns off, the windshield wiper signal
turns off in three seconds. If the windshield washer switch is turned on while the windshield wiper is at
intermittent mode, and the windshield washer switch is turned OFF within 0.2
second, the wiper works only once to perform mist operation. When the
windshield washer switch is turned on for more than 0.2 second, the wiper
performs the same movement as normal condition from the time when 0.2
second has elapsed, and then returns to intermittent operation.
WINDSHIELD WIPER AND WASHER DIAGNOSIS The windshield wiper and washer are controlled by the Simplified Wiring System
(SWS). For troubleshooting, refer to SWS DIAGNOSIS
.
NOTE: Even when the ETACS-ECU has failed, the windshield wiper
can work at low speed in fail-safe mode. (Normally, the
