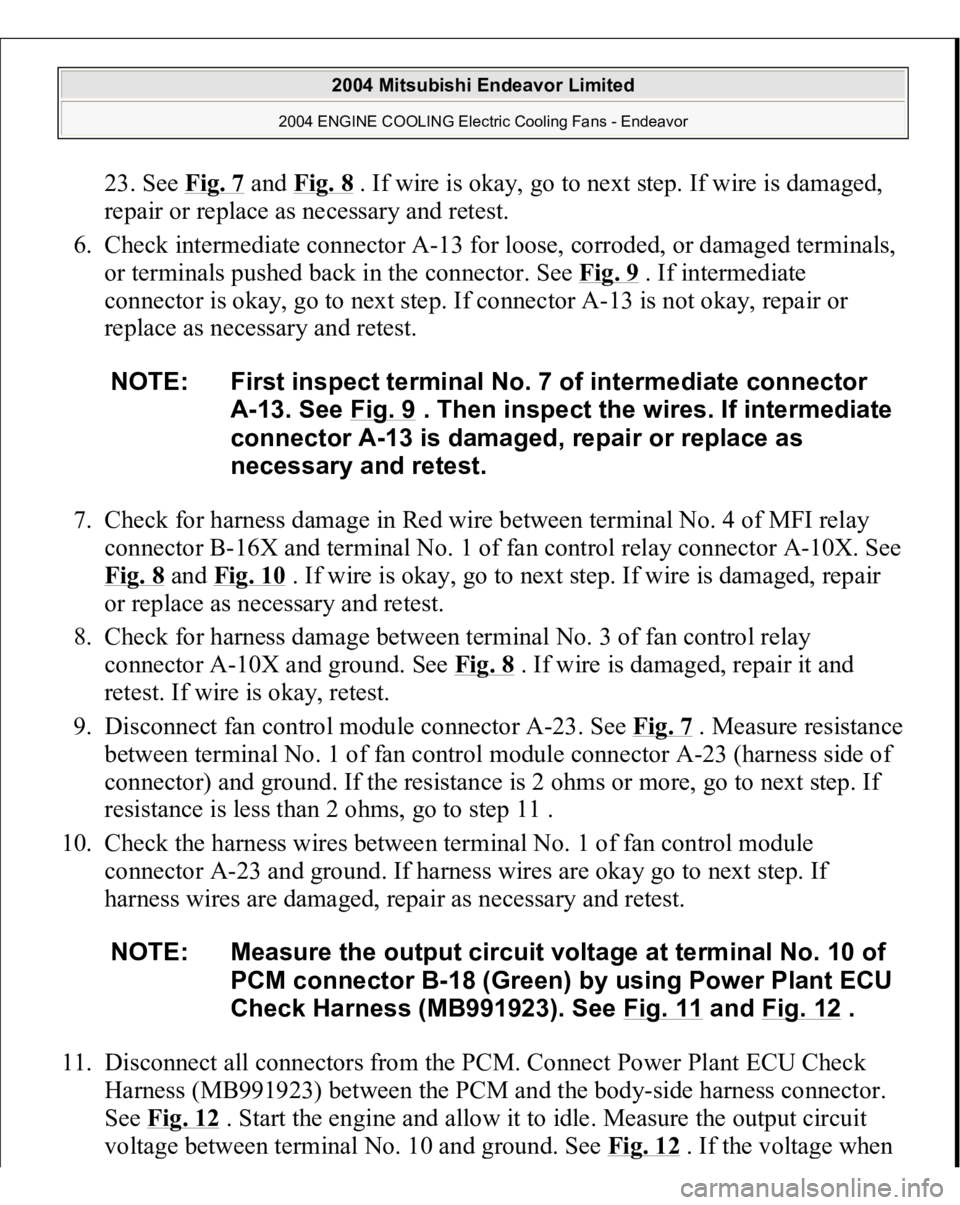

2004 MITSUBISHI ENDEAVOR relay

23. See Fig. 7
and Fig.
8 . If wire is okay, go to next step. If wire is damaged,
repair or replace as necessary and retest.
6. Check intermediate connector A-13 for loose, corroded, or damaged terminals,
or terminals pushed back in the connector. See Fig. 9
. If intermediate
connector is okay, go to next step. If connector A-13 is not okay, repair or
replace as necessary and retest.
7. Check for harness damage in Red wire between terminal No. 4 of MFI relay
connector B-16X and terminal No. 1 of fan control relay connector A-10X. See
Fig. 8
and Fig. 10
. If wire is okay, go to next step. If wire is damaged, repair
or replace as necessary and retest.
8. Check for harness damage between terminal No. 3 of fan control relay
connector A-10X and ground. See Fig. 8
. If wire is damaged, repair it and
retest. If wire is okay, retest.
9. Disconnect fan control module connector A-23. See Fig. 7
. Measure resistance
between terminal No. 1 of fan control module connector A-23 (harness side of
connector) and ground. If the resistance is 2 ohms or more, go to next step. If
resistance is less than 2 ohms, go to step 11 .
10. Check the harness wires between terminal No. 1 of fan control module
connector A-23 and ground. If harness wires are okay go to next step. If
harness wires are damaged, repair as necessary and retest.
11. Disconnect all connectors from the PCM. Connect Power Plant ECU Check
Harness (MB991923) between the PCM and the body-side harness connector.
See Fig. 12
. Start the engine and allow it to idle. Measure the output circuit
volta
ge between terminal No. 10 and
ground. See Fig. 12
. If the volta
ge when
NOTE: First inspect terminal No. 7 of intermediate connector
A-13. See Fig. 9
. Then inspect the wires. If intermediate
connector A-13 is damaged, repair or replace as
necessary and retest.
NOTE: Measure the output circuit voltage at terminal No. 10 of
PCM connector B-18 (Green) by using Power Plant ECU
Check Harness (MB991923). See Fig. 11
and Fig. 12
.

2004 Mitsubishi Endeavor Limited
2004 ENGINE COOLING Electric Cooling Fans - Endeavor

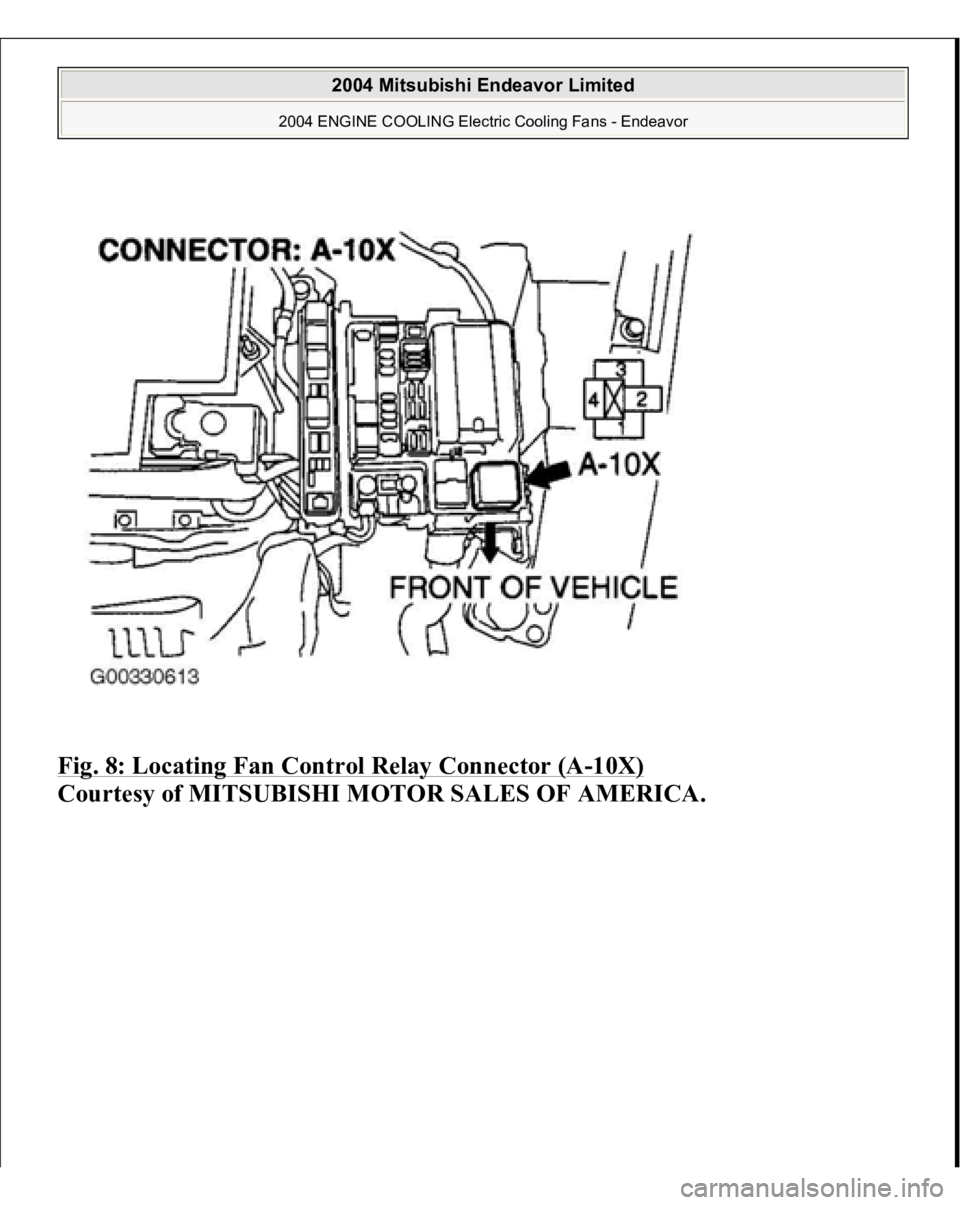

Fig. 8: Locating Fan Control Relay Connector (A
-10X)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor Limited
2004 ENGINE COOLING Electric Cooling Fans - Endeavor

Fig. 10: Locating Multi
-Port Fuel Injection (MFI) Relay Connector (B
-16X)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor Limited
2004 ENGINE COOLING Electric Cooling Fans - Endeavor

Fig. 12: Identifying Power Plant ECU Check Harness (MB991923)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
TEST B: RADIATOR FAN & CONDENSER FAN DO NOT CHANGE SPEED OR STOP Technical Description The fan control module has variable control of the radiator fan motor and the
condenser fan motor speeds using signals transmitted from the PCM. Troubleshooting Hints
Malfunction of fan control relay. Malfunction of fan control module. Malfunction of PCM.
Diagnosis 1. Check the fan control relay. See FAN CONTROL RELAY
under
COMPONENT TESTS. If fan control relay is okay, go to next step. If fan
control module is damaged, repair or replace as necessary and retest.
2. Check the harness wire between terminal No. 2 of fan control relay connector
A-10X and terminal No. 3 of fan control module connector A-18. See Fig. 7

and Fig. 8
. If wiring is damaged, repair or replace as necessary and retest. If
wiring is okay, go to next step.
3. Disconnect all the connectors from the PCM. Connect Power Plant ECU Check
Harness (MB991923
) between the PCM and the bod
y-side harness connector.
NOTE: If the engine coolant temperature reaches 230°F (110°C) or
higher, the radiator fan control runs the radiator fan for up
to 5 minutes even after the ignition switch is turned to the
LOCK position. The fan stops its rotation when the engine
coolant temperature decreases to 230°F (110°C) or l ower.
NOTE: Measure the output circuit voltage at terminal No. 10 of
PCM connector B-18 by using Power Plant ECU Check
Harness (MB991923). See Fig. 11
and Fig. 12
.

2004 Mitsubishi Endeavor Limited
2004 ENGINE COOLING Electric Cooling Fans - Endeavor

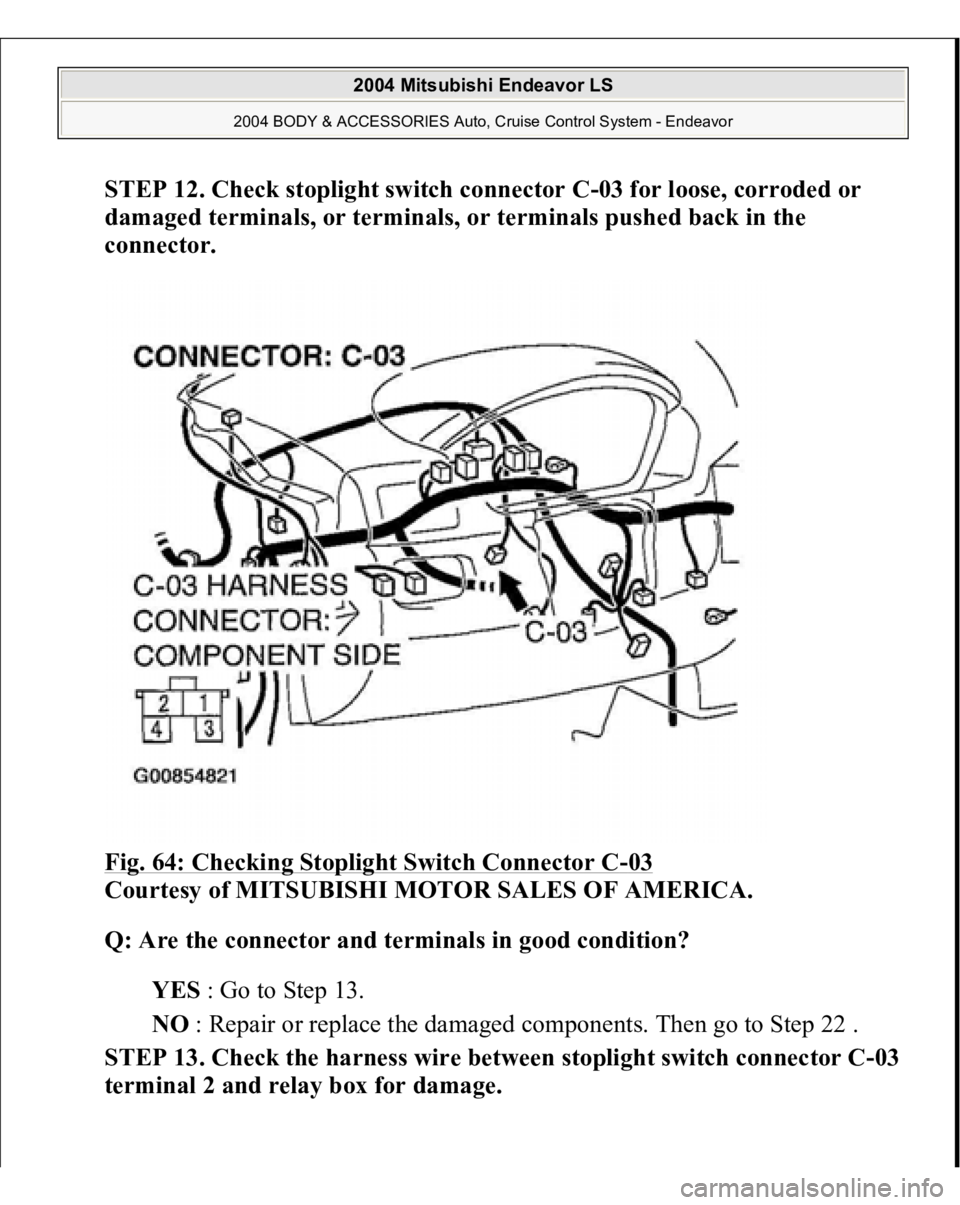

STEP 12. Check stoplight switch connector C-03 for loose, corroded or
damaged terminals, or terminals, or terminals pushed back in the
connector.
Fig. 64: Checking Stoplight Switch Connector C
-03
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Are the connector and terminals in good condition?
YES : Go to Step 13.
NO : Repair or replace the damaged components. Then go to Step 22 .
STEP 13. Check the harness wire between stoplight switch connector C-03
terminal 2 and relay box for damage.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

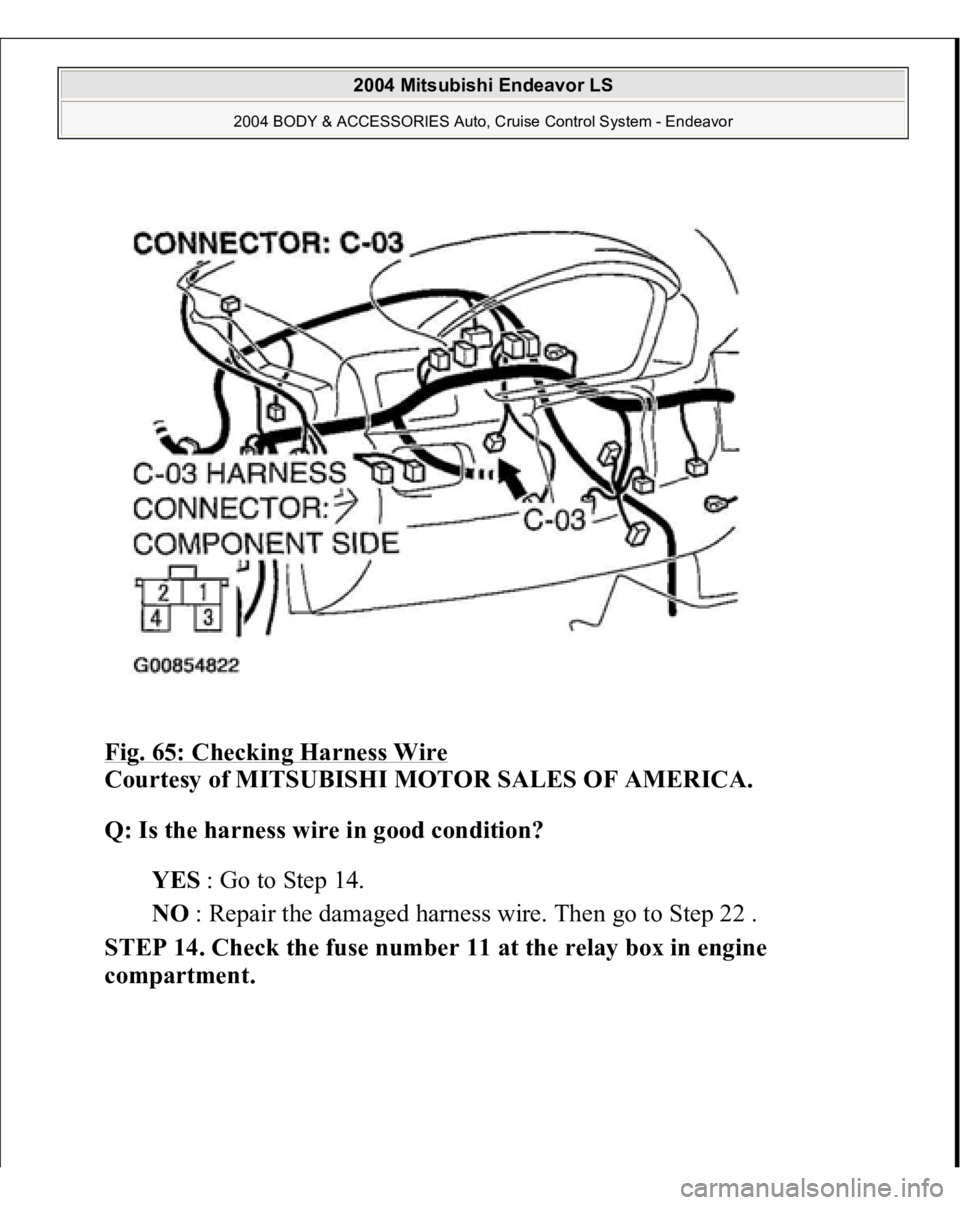

Fig. 65: Checking Harness Wire

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the harness wire in good condition?
YES : Go to Step 14.
NO : Repair the damaged harness wire. Then go to Step 22 .
STEP 14. Check the fuse number 11 at the relay box in engine
compartment.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

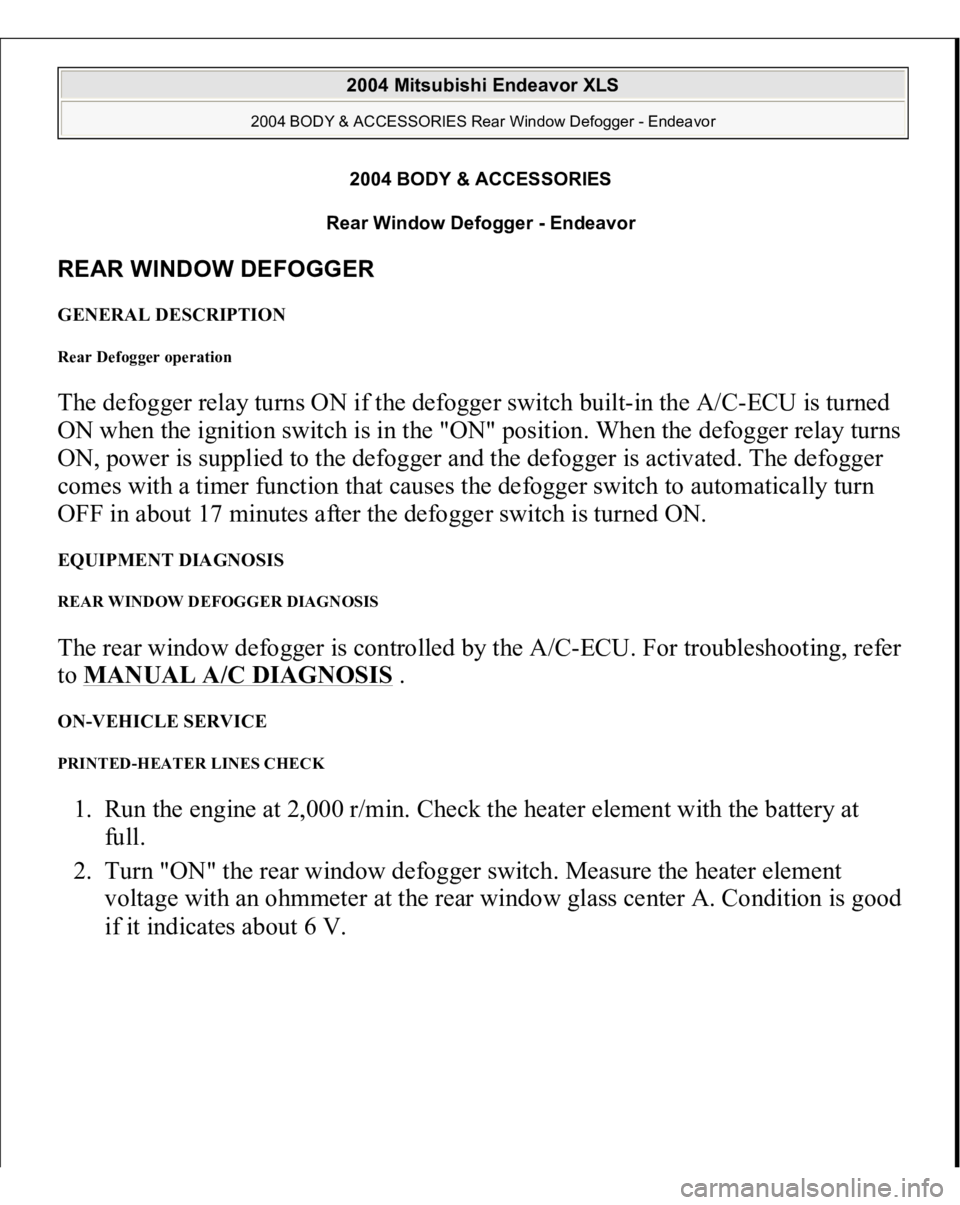

2004 BODY & ACCESSORIES
Rear Window Defogger - Endeavor
REAR WINDOW DEFOGGER GENERAL DESCRIPTION Rear Defogger operation The defogger relay turns ON if the defogger switch built-in the A/C-ECU is turned
ON when the ignition switch is in the "ON" position. When the defogger relay turns
ON, power is supplied to the defogger and the defogger is activated. The defogger
comes with a timer function that causes the defogger switch to automatically turn
OFF in about 17 minutes after the defogger switch is turned ON. EQUIPMENT DIAGNOSIS REAR WINDOW DEFOGGER DIAGNOSIS The rear window defogger is controlled by the A/C-ECU. For troubleshooting, refer
to MANUAL A/C DIAGNOSIS
.
ON-VEHICLE SERVICE PRINTED-HEATER LINES CHECK 1. Run the engine at 2,000 r/min. Check the heater element with the battery at
full.
2. Turn "ON" the rear window defogger switch. Measure the heater element
voltage with an ohmmeter at the rear window glass center A. Condition is good
if it indicates about 6 V.
2004 Mitsubishi Endeavor XLS
2004 BODY & ACCESSORIES Rear Window Defogger - Endeavor


2004 Mitsubishi Endeavor XLS
2004 BODY & ACCESSORIES Rear Window Defogger - Endeavor

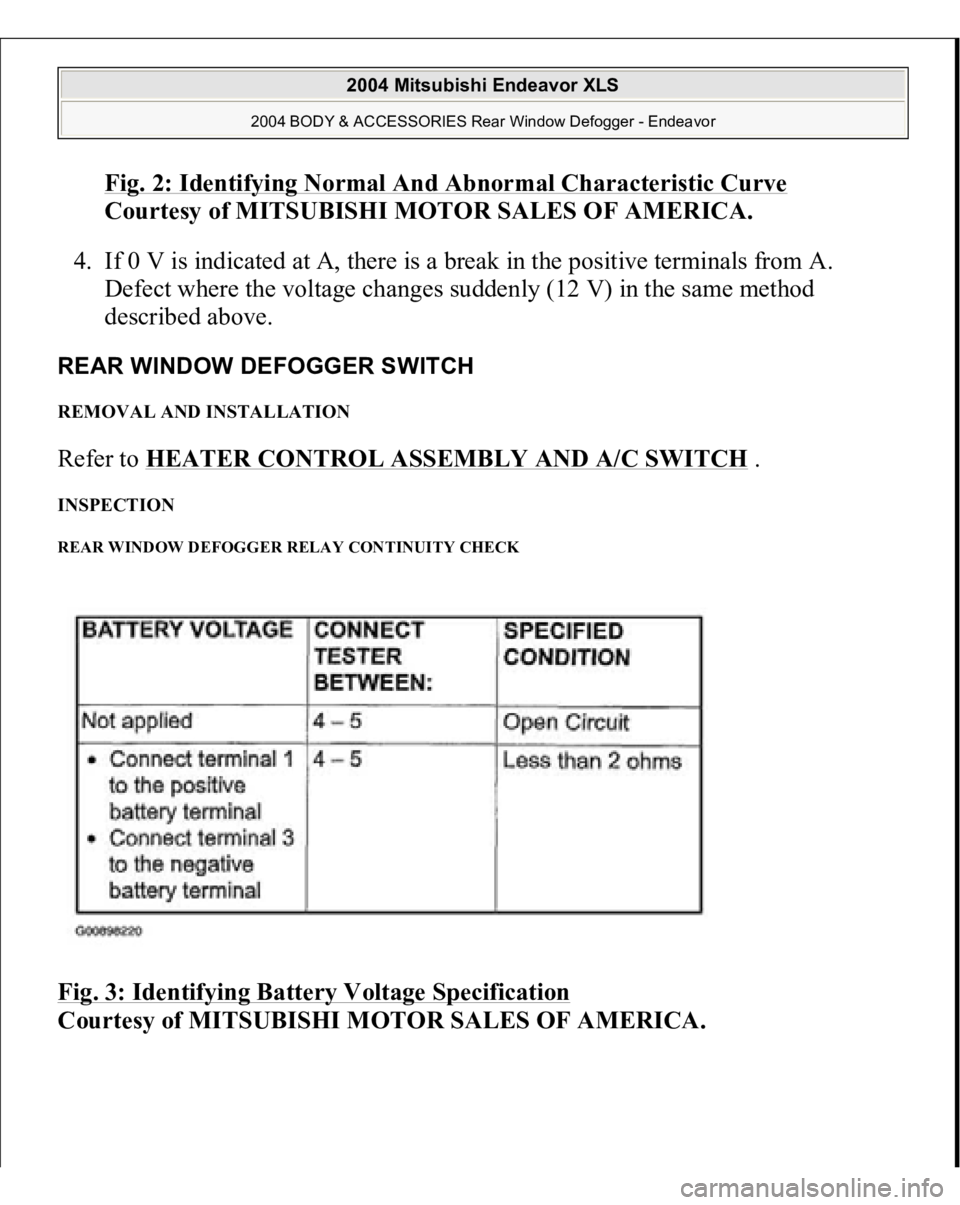

Fig. 2: Identifying Normal And Abnormal Characteristic Curve

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
4. If 0 V is indicated at A, there is a break in the positive terminals from A.
Defect where the voltage changes suddenly (12 V) in the same method
described above.
REAR WINDOW DEFOGGER SWITCH REMOVAL AND INSTALLATION Refer to HEATER CONTROL ASSEMBLY AND A/C SWITCH
.
INSPECTION REAR WINDOW DEFOGGER RELAY CONTINUITY CHECK Fig. 3: Identifying Battery Voltage Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
