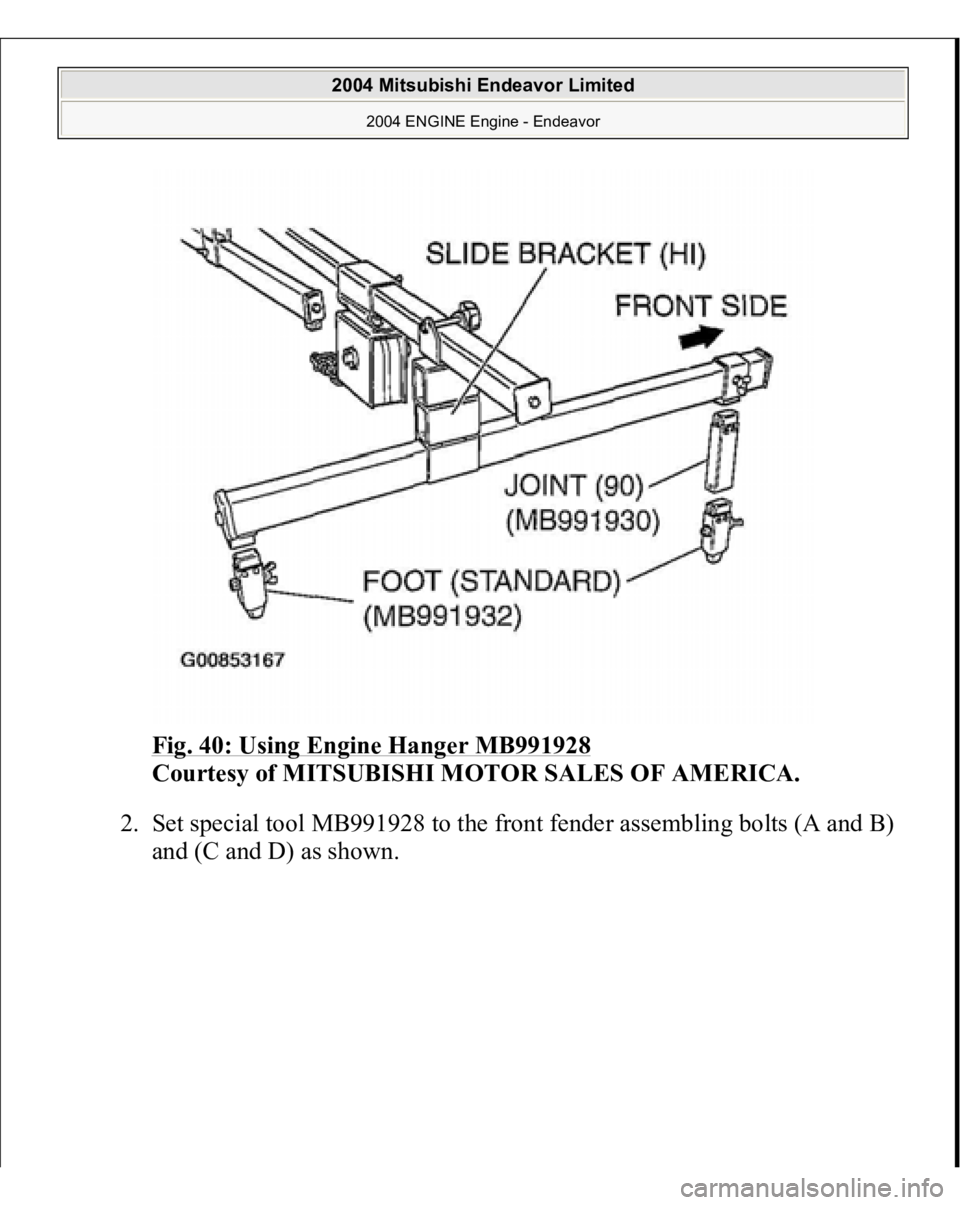

Fig. 40: Using Engine Hanger MB991928

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Set special tool MB991928 to the front fender assembling bolts (A and B)
and
(C and D
) as shown.

2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor

Fig. 41: Setting Special Tool MB991928 To Front Fender Assembling Bolts

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. CAUTION: Place a thick shop towel as shown so that
special tool MB991454 does not damage the
front deck panel.

2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor

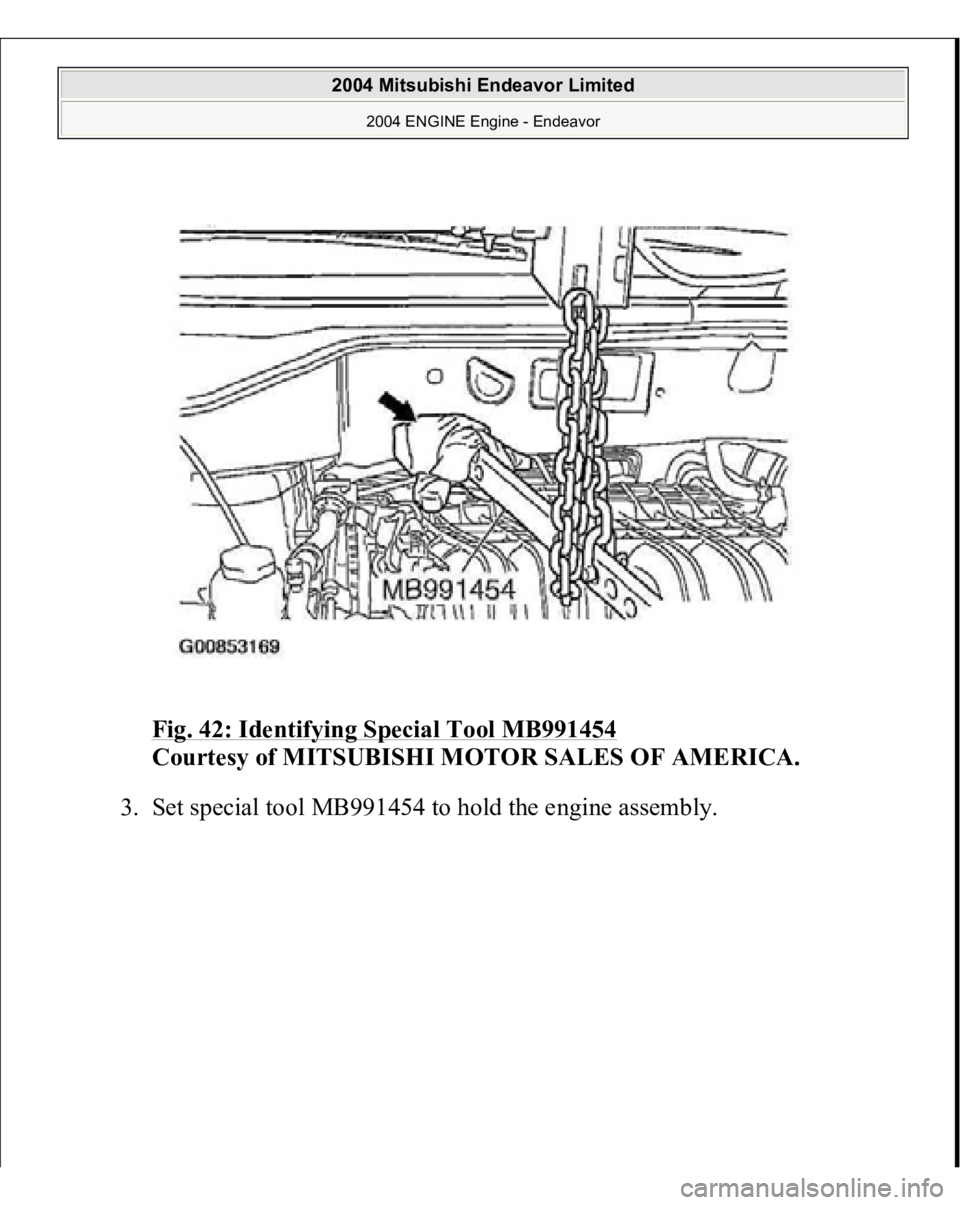

Fig. 42: Identifying Special Tool MB991454

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Set s
pecial tool MB991454 to hold the en
gine assembl
y.

2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor

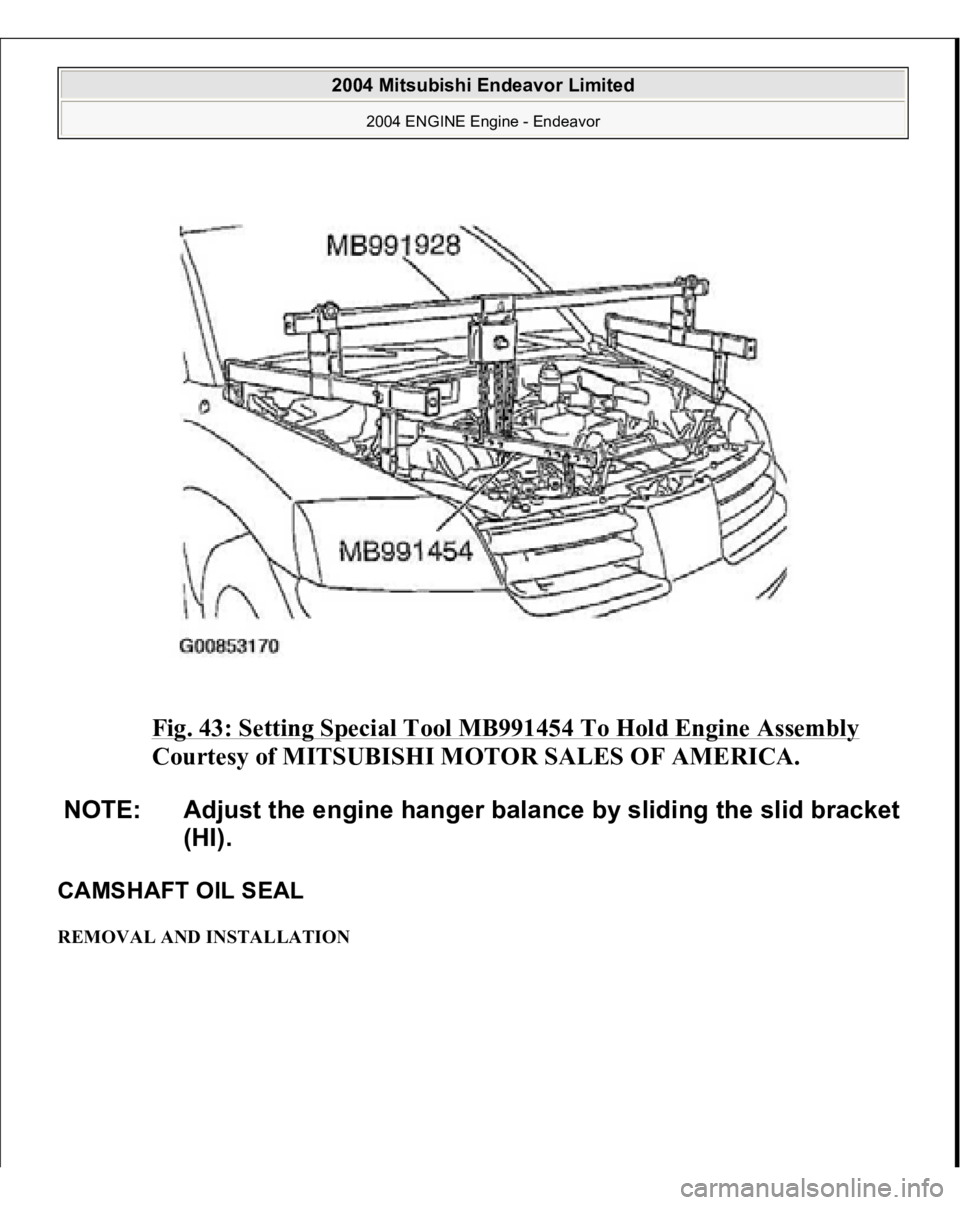

Fig. 43: Setting Special Tool MB991454 To Hold Engine Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAMSHAFT OIL SEAL REMOVAL AND INSTALLATION NOTE: Adjust the engine hanger balance by sliding the slid bracket
(HI).
2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor

Fig. 44: Removing And Installing Camshaft Oil Seal

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Required Special Tools:
MB990767: End Yoke Holder MB991559: Camshaft Oil Seal Adapter MD998713: Camshaft Oil Seal Installer MD998715: Crankshaft Pulley Holder Pin
REMOVAL SERVICE POINTS << A >>CAMSHAFT SPROCKET REMOVAL Use s
pecial tools MD998715 and MB990767 to remove the camshaft s
procket.

2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor

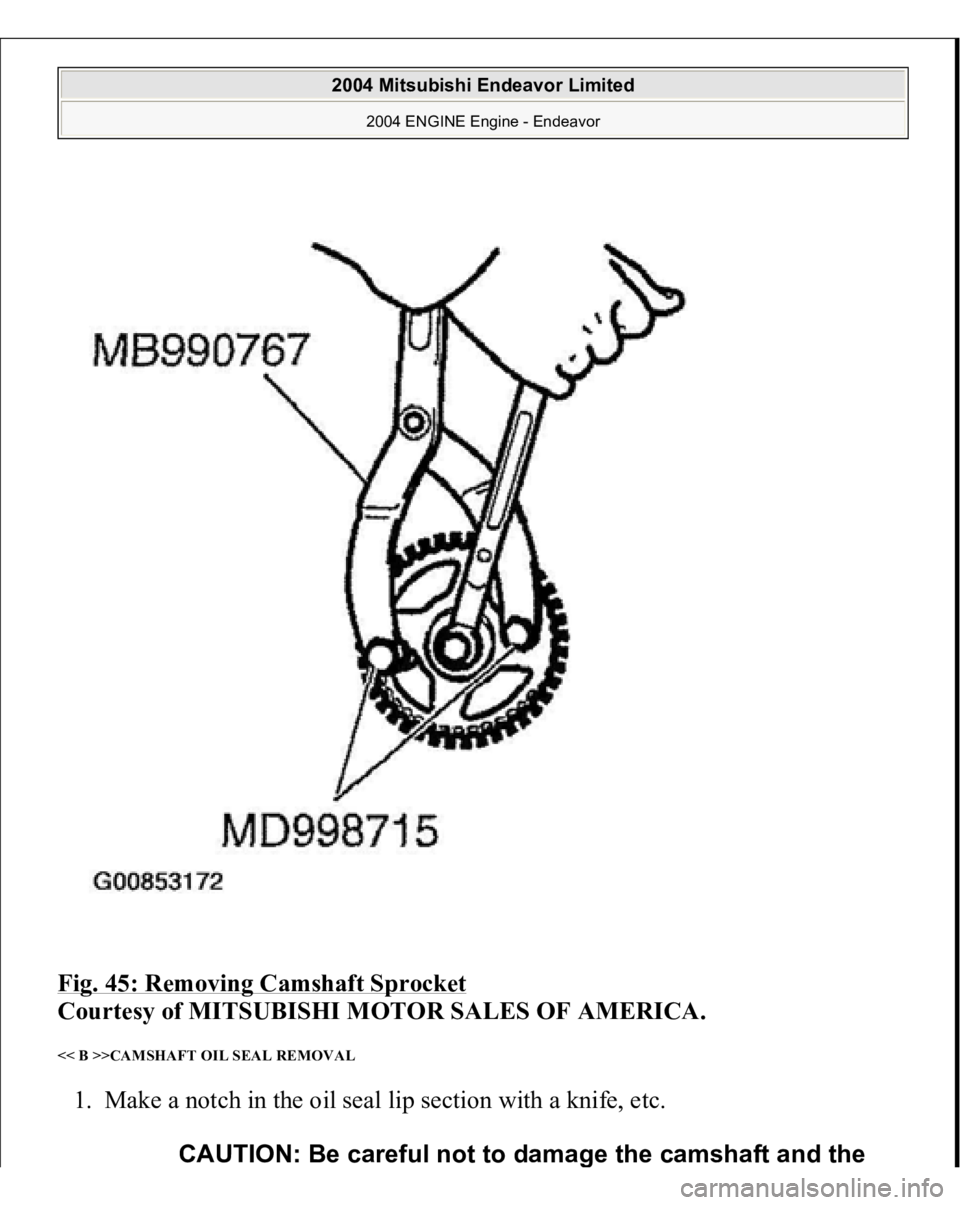

Fig. 45: Removing Camshaft Sprocket

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
<< B >>CAMSHAFT OIL SEAL REMOVAL 1. Make a notch in the oil seal lip section with a knife, etc.
CAUTION: Be careful not to dama
ge the camshaft and the

2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor

2. Cover the end of a flat-tipped screwdriver with a shop towel and insert into the
notched section of the oil seal, and pry out the oil seal to remove it.
Fig. 46: Removing Camshaft Oil Seal

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSTALLATION SERVICE POINTS >>A<< CAMSHAFT OIL SEAL INSTALLATION 1. A
pply en
gine oil to the camshaft oil seal li
p.
cylinder head.

2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor

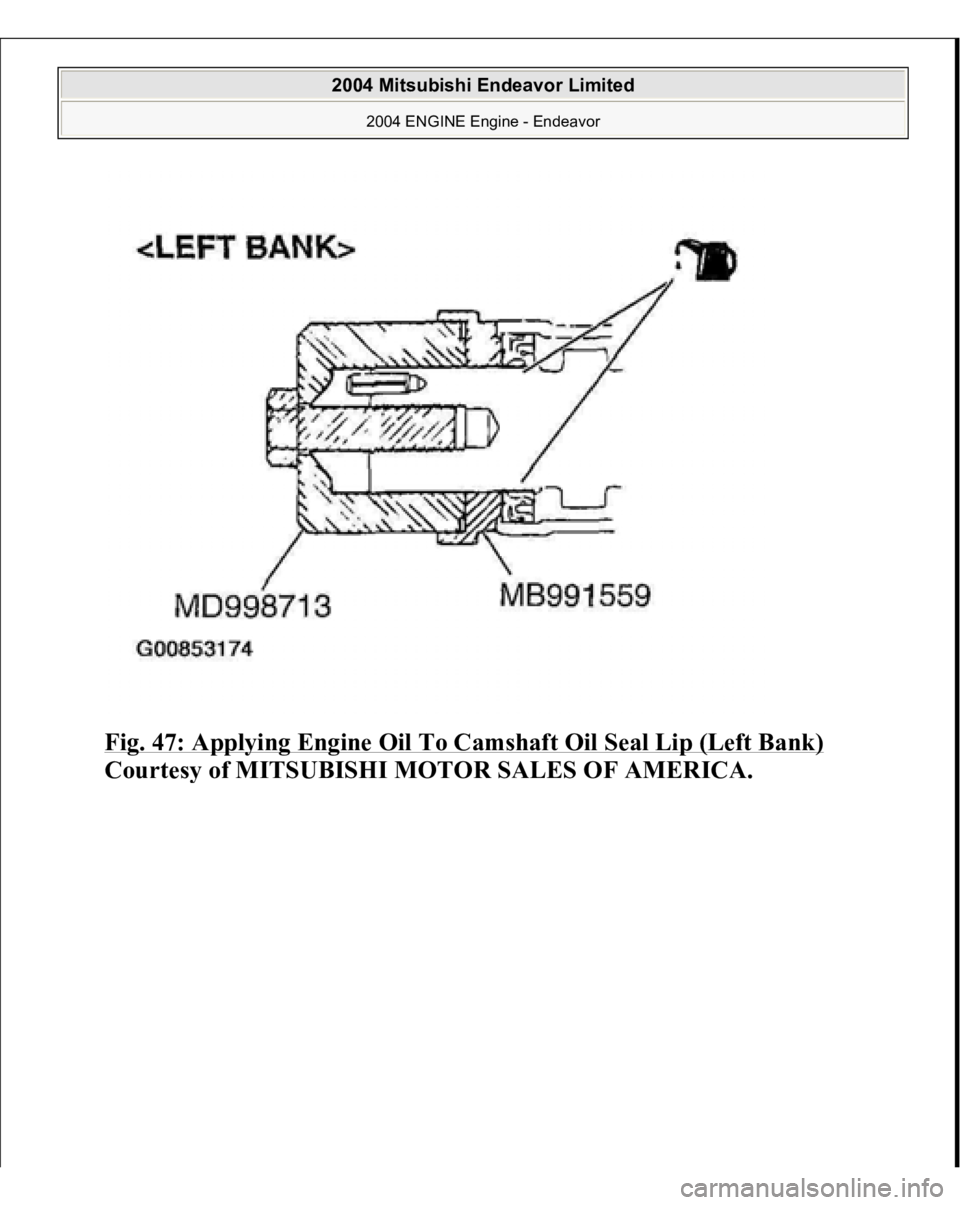

Fig. 47: Applying Engine Oil To Camshaft Oil Seal Lip (Left Bank)

Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.
