2004 MITSUBISHI ENDEAVOR engine

Fig. 48: Applying Engine Oil To Camshaft Oil Seal Lip (Right Bank)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Use special tools MD998713 and MB991559 to press-fit the camshaft oil seal.
>>B<< CAMSHAFT SPROCKET INSTALLATION 1. Use special tools MD998715 and MB990767 in the same way as during
removal to install the camshaft sprocket.
2. Tighten the camshaft sprocket mounting bolt to the specified torque.
Tightening torque: 88+/-10 N.m (65+/-7 ft-lb)
2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor

Fig. 49: Tightening Camshaft Sprocket Mounting Bolt

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAMSHAFT AND VALVE STEM SEAL REMOVAL AND INSTALLATION
2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor

< LEFT BANK >
CAUTION: *Remove and assemble the marked parts in each
cylinder unit.

2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor

2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor

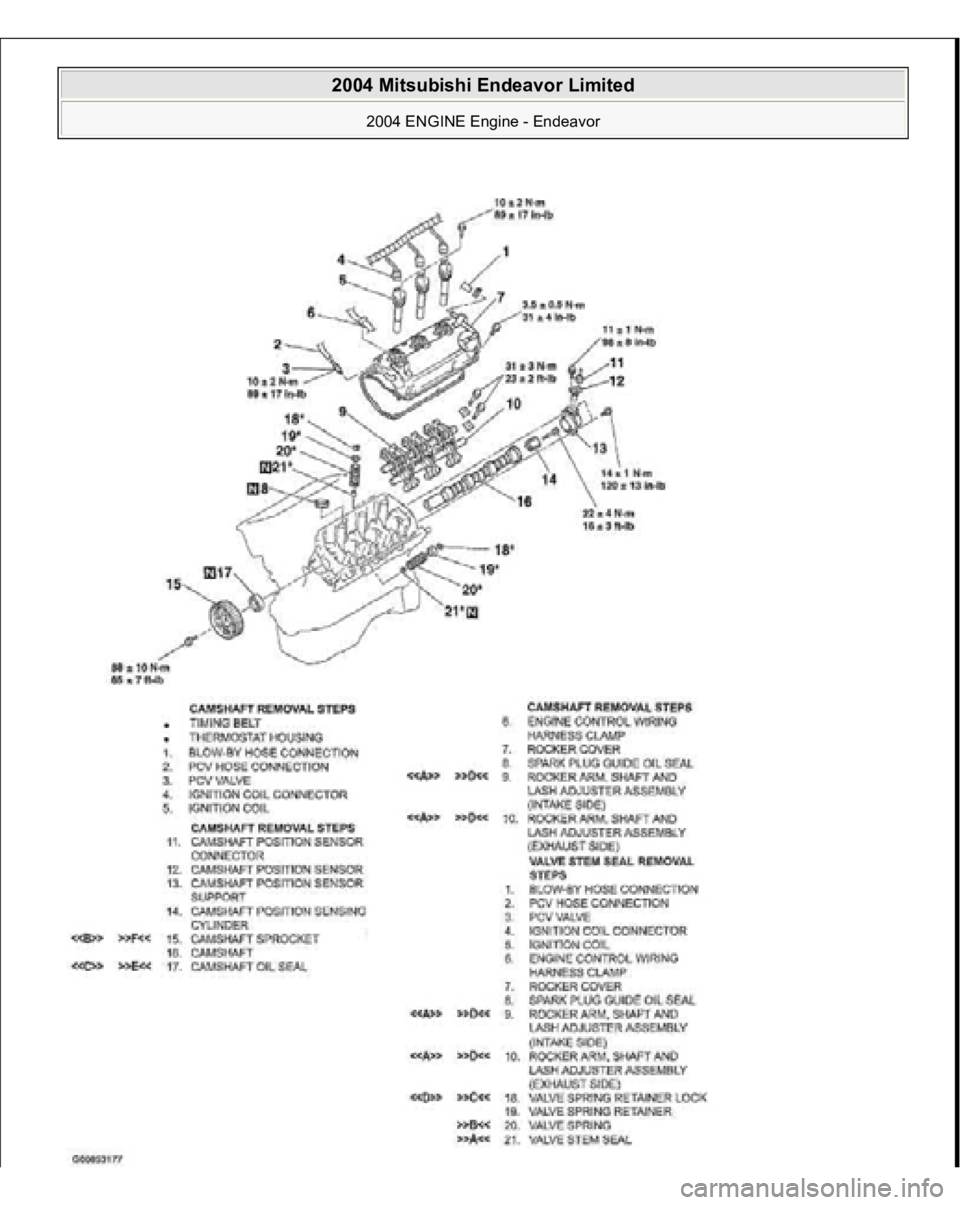

Fig. 50: Removing/Installing Camshaft And Valve Stem Seal (Left Bank)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Required Special Tools:
MB990767: End Yoke Holder MD998443: Auto-lash Adjuster Holder MB991559: Camshaft Oil Seal Adapter Installer MD998713: Camshaft Oil Seal Installer MD998715: Crankshaft Pulley Holder Pin MD998772: Valve Spring Compressor MD998774: Valve Stem Seal Installer
< RIGHT BANK >
2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor

Fig. 51: Removing/Installing Camshaft And Valve Stem Seal (Right Bank)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor

Required Special Tools:
MB990767: End Yoke Holder MD998443: Auto-lash Adjuster Holder MB991559: Camshaft Oil Seal Adapter Installer MD998713: Camshaft Oil Seal Installer MD998715: Crankshaft Pulley Holder Pin MD998772: Valve Spring Compressor MD998774: Valve Stem Seal Installer
REMOVAL SERVICE POINTS << A >>ROCKER ARM AND SHAFT ASSEMBLY REMOVAL 1. Install special tool MD998443 as shown in the illustration so that the lash
adjusters will not fall out.
CAUTION: Never disassemble the rocker arm and shaft
assembly.

2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor

Fig. 52: Installing Special Tool MD998443

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Loosen the rocker arm and shaft assembly mounting bolt, and then remove the
rocker arm and shaft assembly with the bolt still attached.
<< B >>CAMSHAFT SPROCKET REMOVAL Use s
pecial tools MD998715 and MB990767 to remove the camshaft s
procket.
