2004 MITSUBISHI ENDEAVOR engine

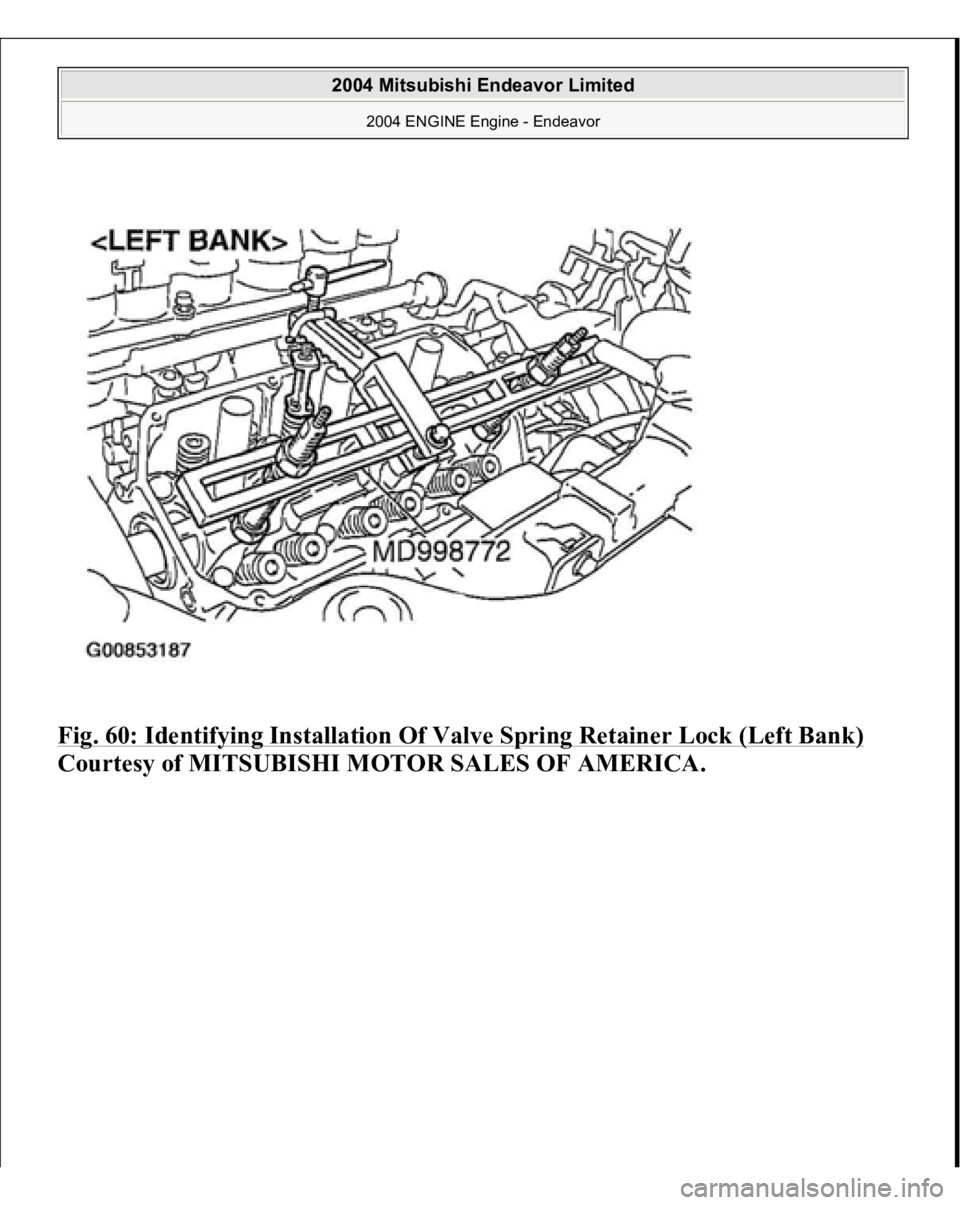

Fig. 60: Identifying Installation Of Valve Spring Retainer Lock (Left Bank)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor

Fig. 61: Identifying Installation Of Valve Spring Retainer Lock (Right Bank)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
>>D<< ROCKER ARM AND SHAFT ASSEMBLY INSTALLATION 1. Install the rocker arm, shaft and lash adjuster assembly.
2. Tighten the mounting bolts to the specified torque.
Tighten torque: 31+/- 3 N.m (23+/-2 ft-lb)
3. Remove s
pecial tool MD998443.

2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor

Fig. 62: Removing Special Tool MD998443

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
4. Check that notches in the each rocker shaft are facing the direction shown in
the illustration.

2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor

2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor

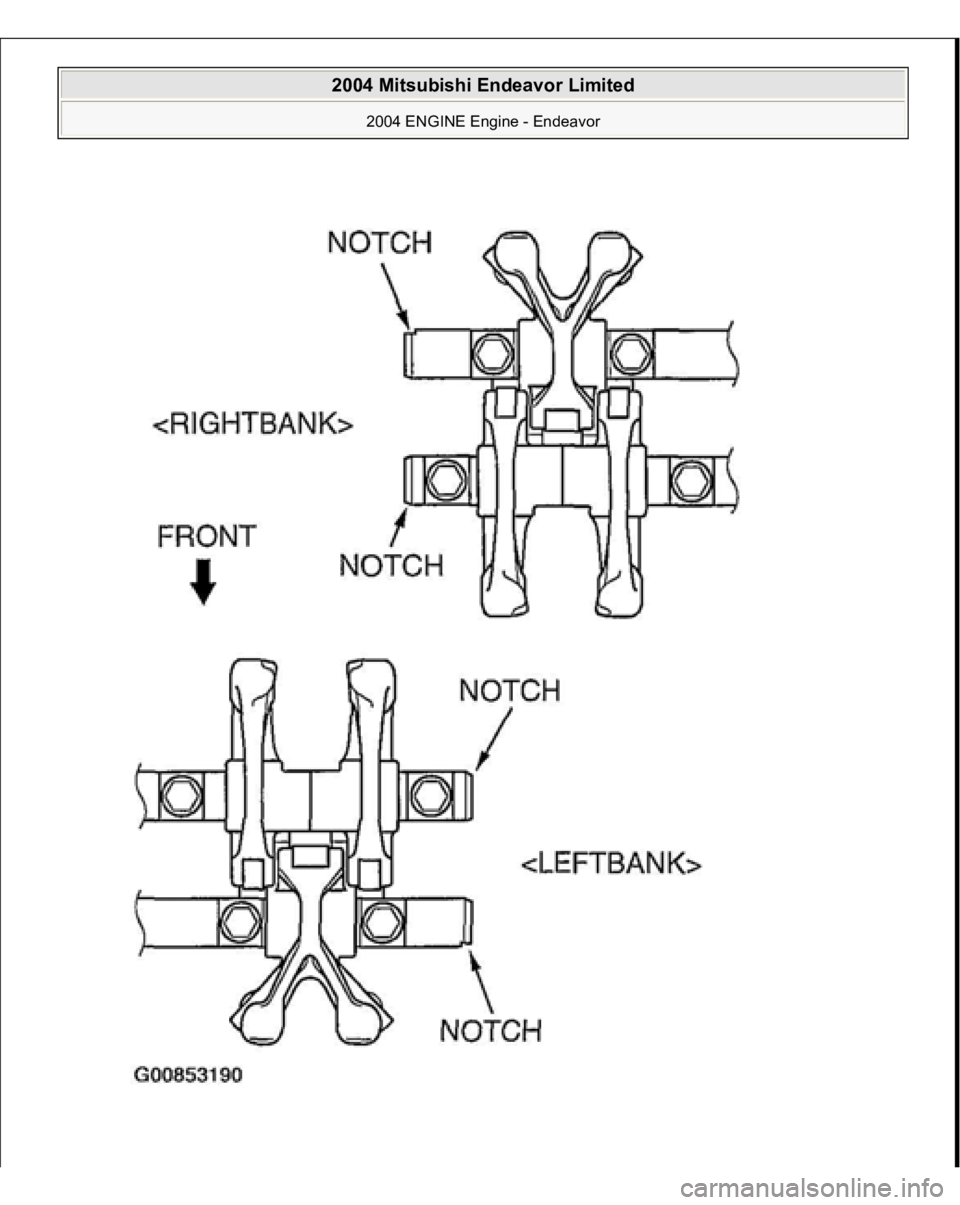

Fig. 63: Checking Notches In Each Rocker Shaft Are Facing Directio
n
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
>>E<< CAMSHAFT OIL SEAL INSTALLATION 1. Apply engine oil to the camshaft oil seal lip.
Fig. 64: Identifying Installation Of Camshaft Oil Seal (Left Bank)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor

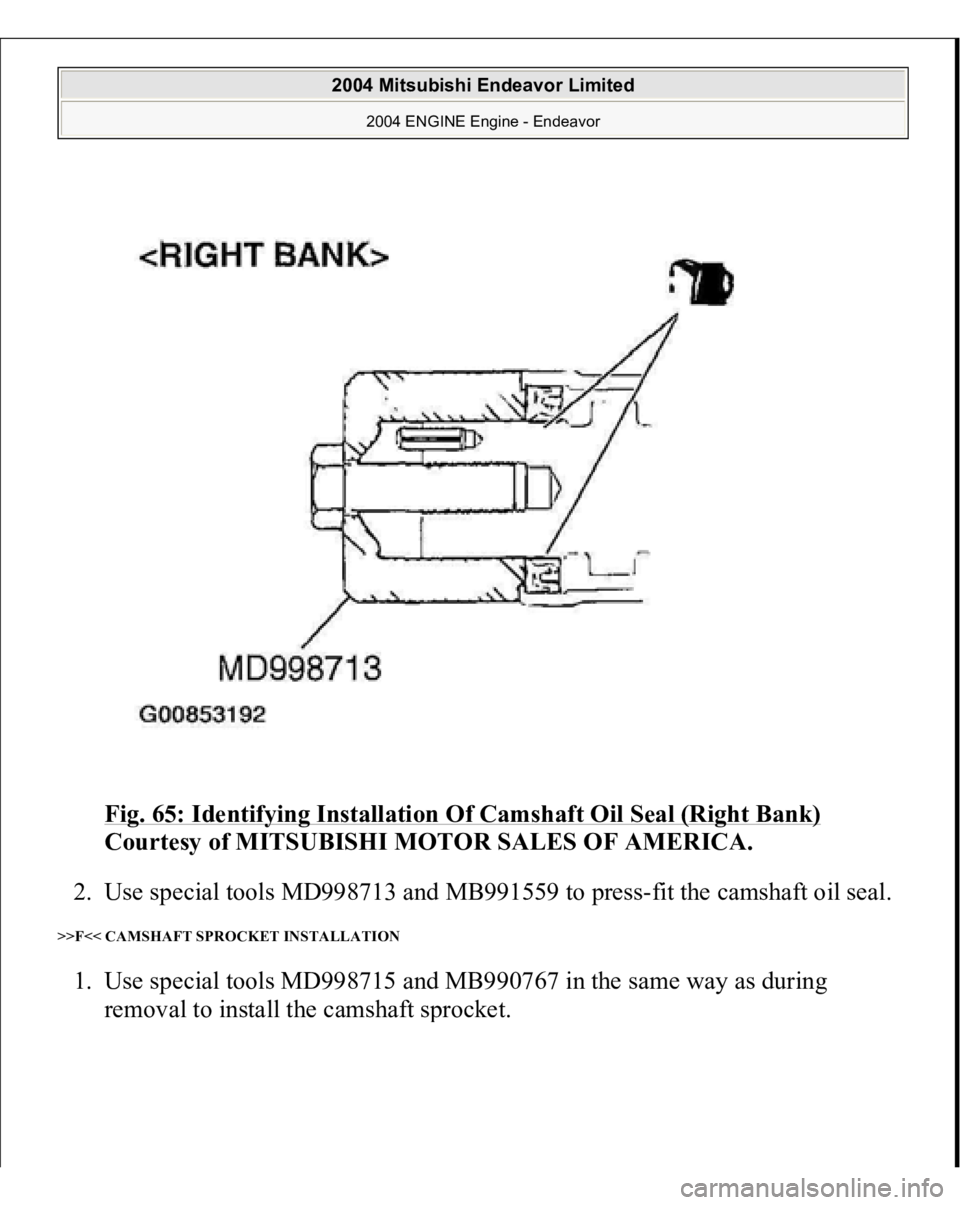

Fig. 65: Identifying Installation Of Camshaft Oil Seal (Right Bank)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Use special tools MD998713 and MB991559 to press-fit the camshaft oil seal.
>>F<< CAMSHAFT SPROCKET INSTALLATION 1. Use special tools MD998715 and MB990767 in the same way as during
removal to install the camshaft s
procket.

2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor

Fig. 66: Installing Camshaft Sprocket Using Special Tools MD998715 And MB990767

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Tighten the camshaft sprocket mounting bolt to the specified torque.
Tightening torque: 88+/-10 N.m (65+/-7 ft-lb)
OIL PAN AND OIL SCREEN
2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor

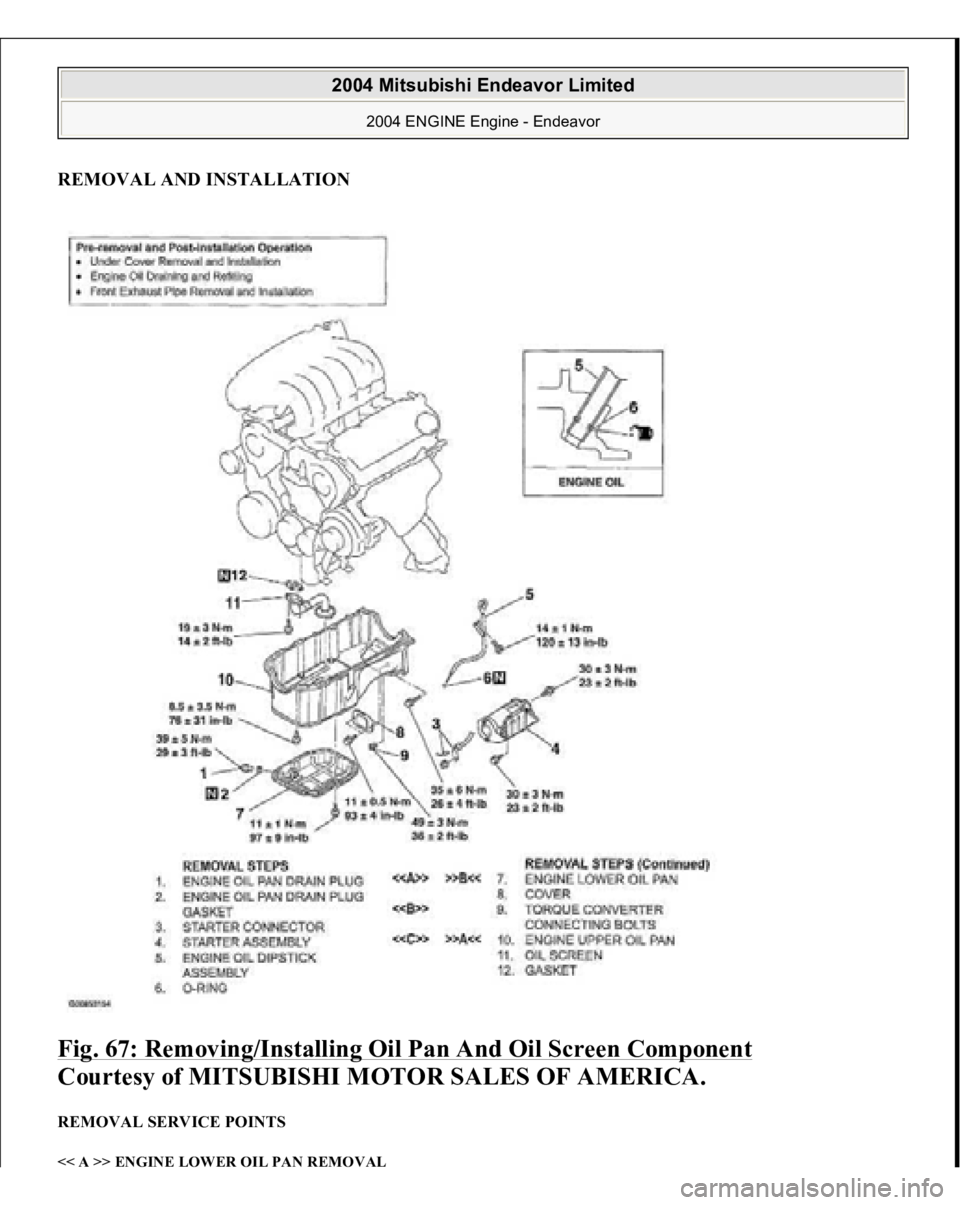

REMOVAL AND INSTALLATIONFig. 67: Removing/Installing Oil Pan And Oil Screen Component

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
REMOVAL SERVICE POINTS << A >> ENGINE LOWER OIL PAN REMOVAL
