Page 1596 of 3870

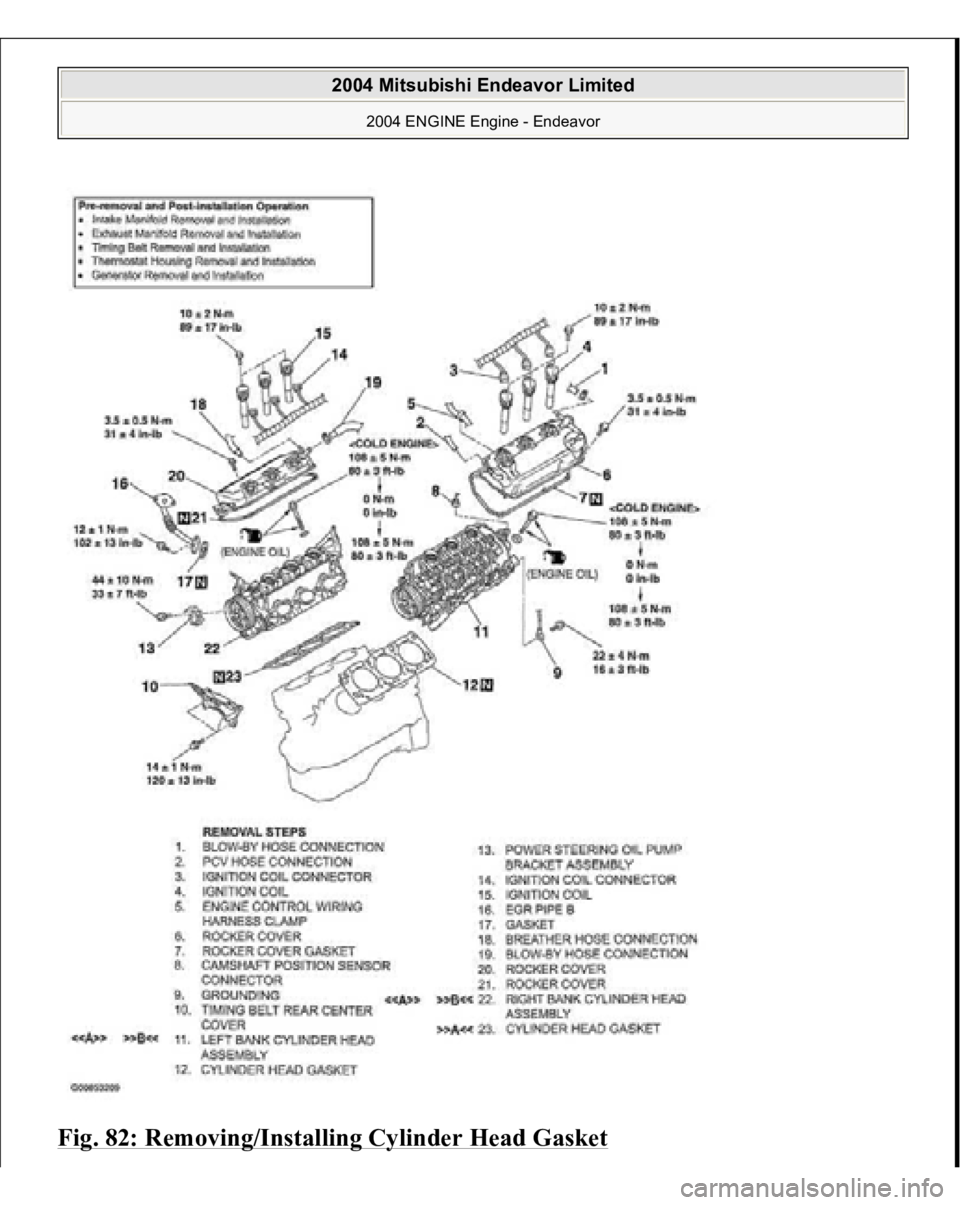

Fig. 82: Removing/Installing Cylinder Head Gasket
2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor
Page 1597 of 3870
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.

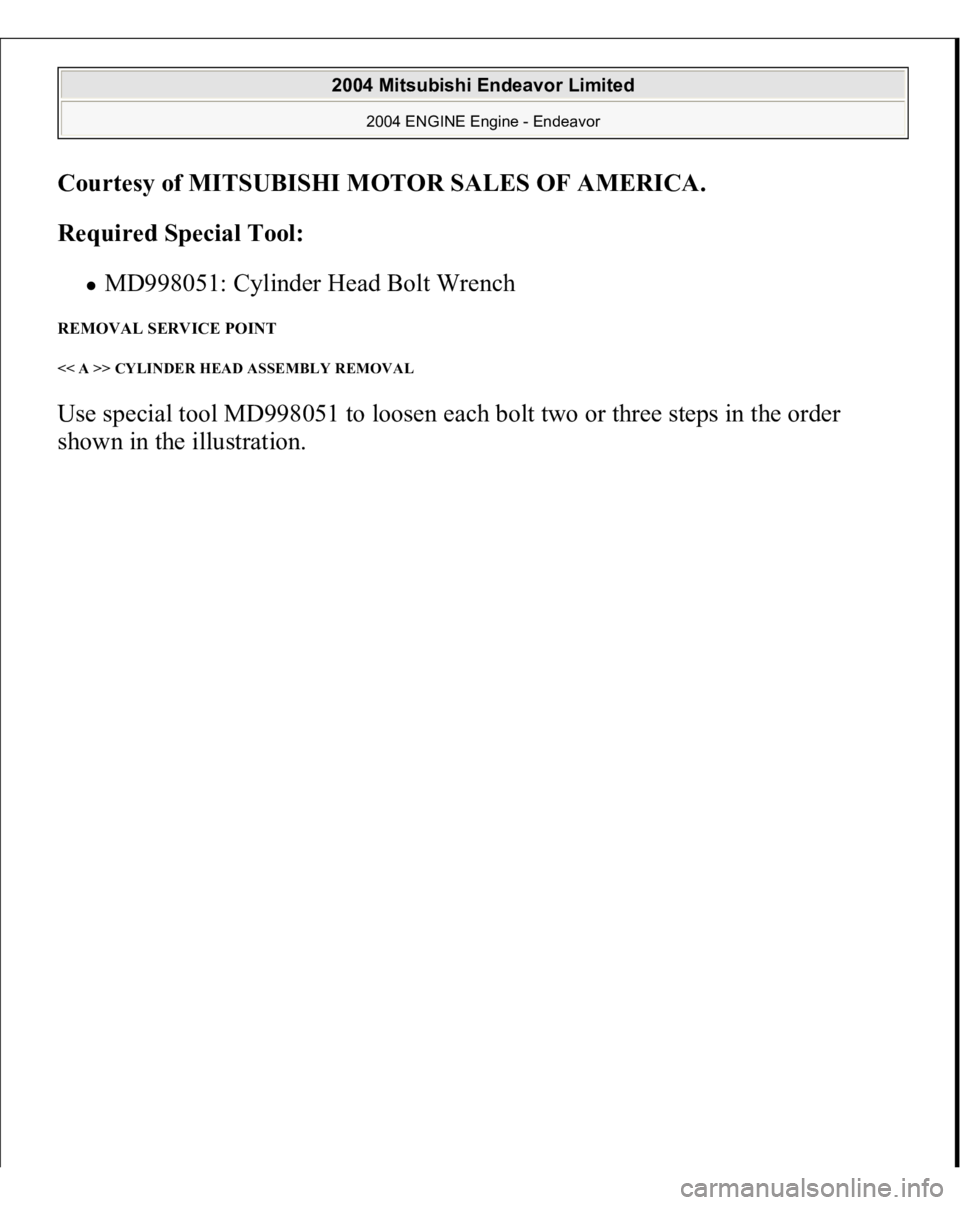

Required Special Tool:
MD998051: Cylinder Head Bolt Wrench

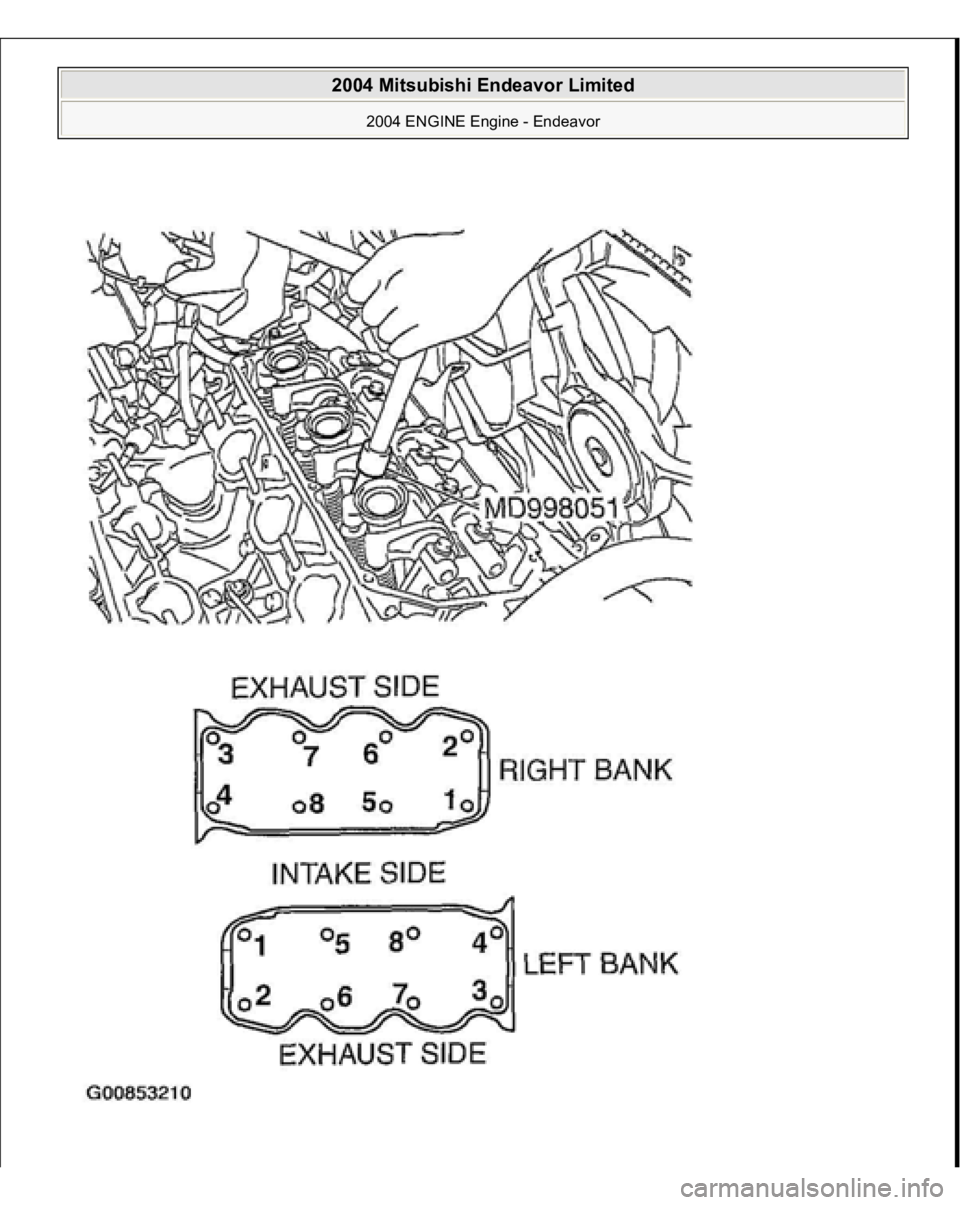

REMOVAL SERVICE POINT << A >> CYLINDER HEAD ASSEMBLY REMOVAL Use special tool MD998051 to loosen each bolt two or three steps in the order
shown in the illustration.
2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor
Page 1598 of 3870
2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor
Page 1599 of 3870
Fig. 83: Removing Cylinder Head
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSTALLATION SERVICE POINTS >>A<< CYLINDER HEAD GASKET INSTALLATION 1. Degrease the cylinder head and cylinder block gasket mounting surfaces.
2. Make sure that the gasket has the proper identification mark for the engine.
Fig. 84: Identifying Cylinder Head Gasket On Cylinder Block With
Identification Mark At Front Top
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Lay the cylinder head gasket on the cylinder block with the identification mark
at the front top.
>>B<< CYLINDER HEAD ASSEMBLY INSTALLATION
CAUTION: Be careful that no foreign material gets into the
cylinder, coolant passages or oil passages. Engine
2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor
Page 1600 of 3870
1. Use a scraper to clean the gasket surface of the cylinder head assembly.
2. Using special tool MD998051 and a torque wrench, tighten the bolts to the
specified torque in the order shown in the illustration. (in two or three cycles)
Tightening torque: 108 +/- 5 N.m (80 +/- 3 ft-lb) +/- 0 N.m (0 in-lb) +/-
108 +/- 5 N.m (80 +/- 3 ft-lb)
damage may result.
CAUTION: Install the head bolt washers with the beveled
side facing upwards as shown in the illustration.
2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor
Page 1601 of 3870
2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor
Page 1602 of 3870
Fig. 85: Tightening Bolts
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
TIMING BELT REMOVAL AND INSTALLATION
2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor
Page 1603 of 3870
Fig. 86: Removal And Installation Of Timing Belt
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
