2004 MITSUBISHI ENDEAVOR engine

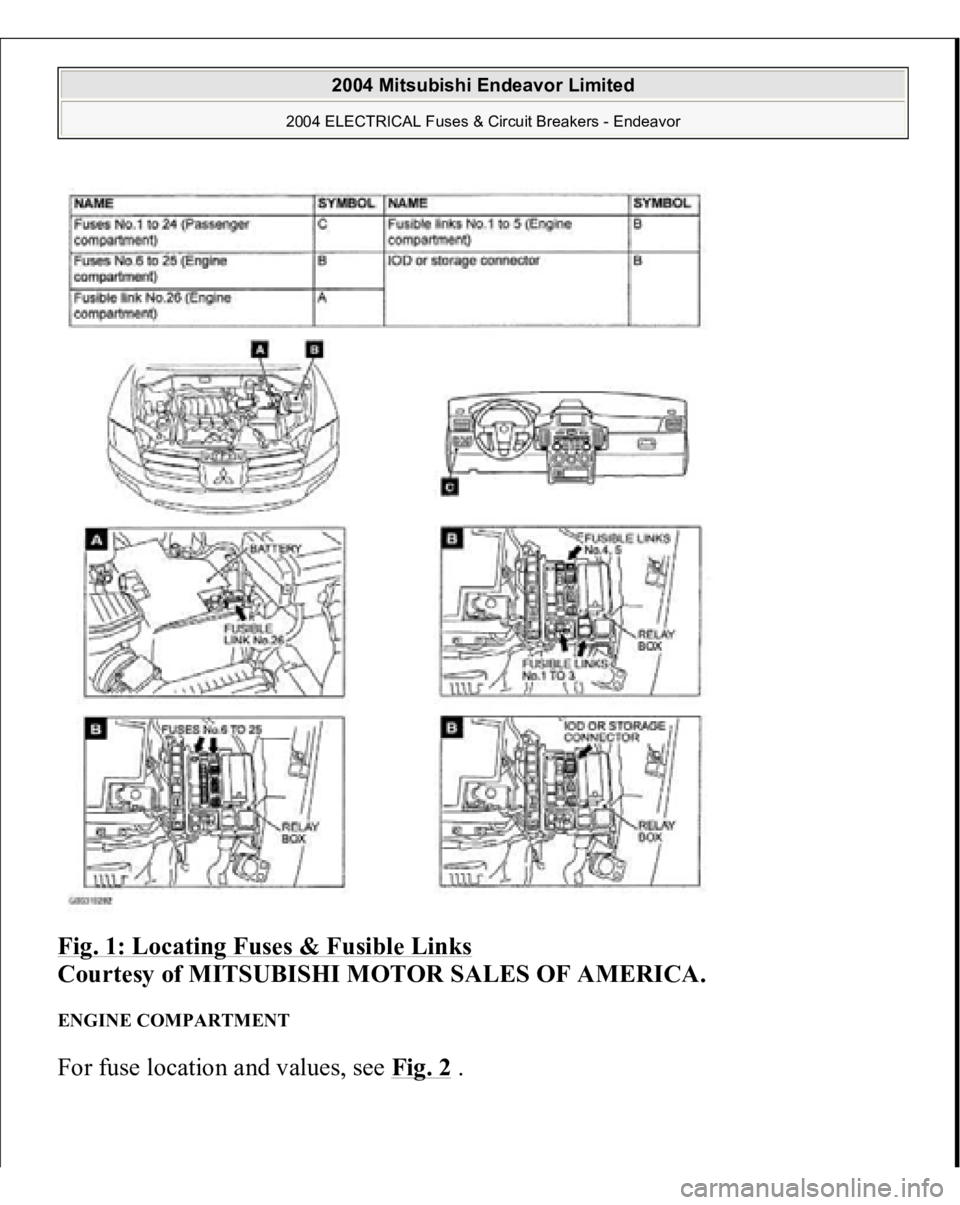

Fig. 1: Locating Fuses & Fusible Links

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
ENGINE COMPARTMENT For fuse location and values, see Fig. 2
.

2004 Mitsubishi Endeavor Limited
2004 ELECTRICAL Fuses & Circuit Breakers - Endeavor

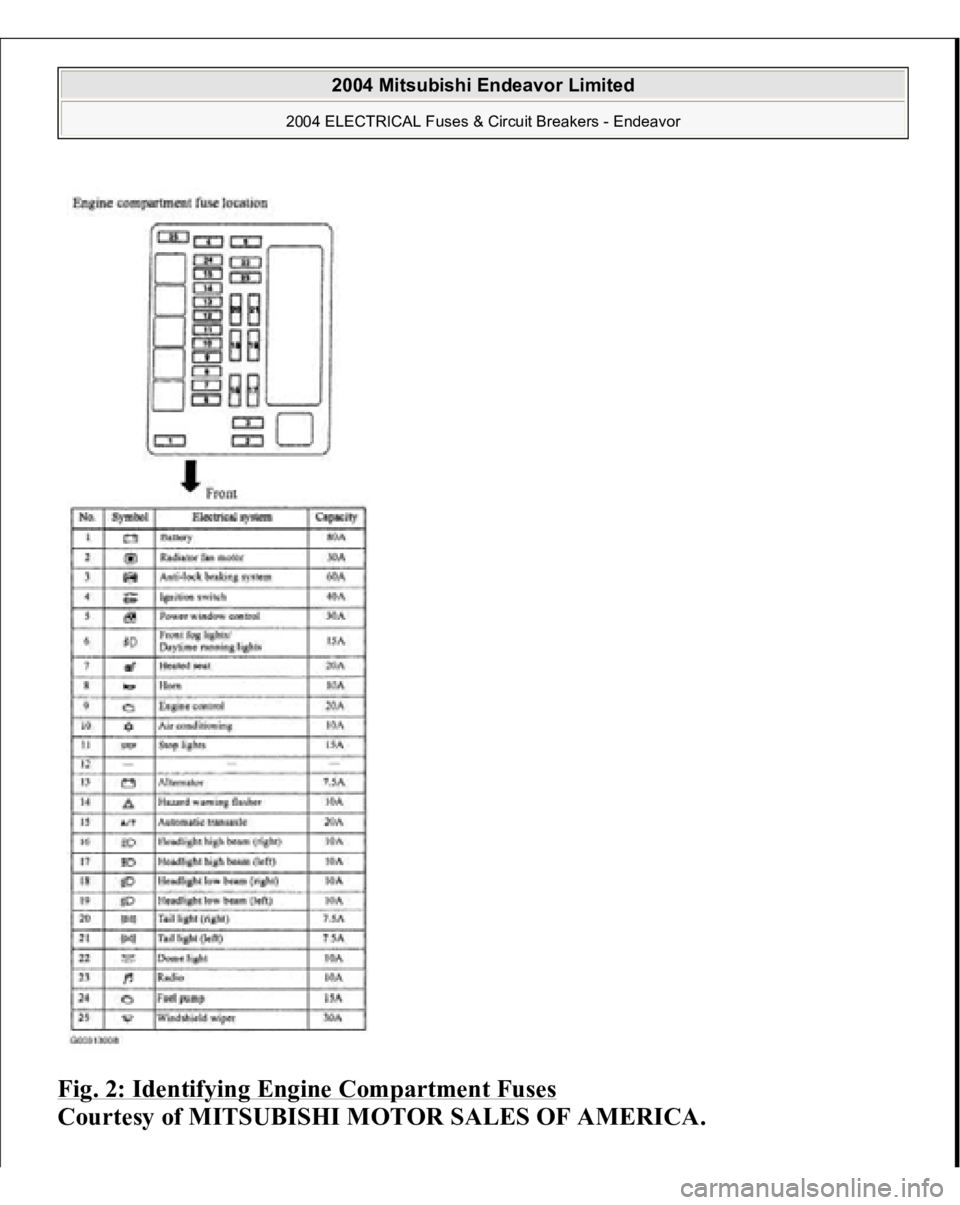

Fig. 2: Identifying Engine Compartment Fuses

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor Limited
2004 ELECTRICAL Fuses & Circuit Breakers - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
2. Start the engine.
3. Check the data list.
Item 02: Ambient air temperature sensor.
Check that the ambient temperature matches the displayed value on
the scan tool.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor within the specified range?

YES:
Replace the A/C-ECU. Then go to Step 7 .
NO:
Go to Step 4.
STEP 4. Check A/C-ECU connectors C-16, C-17 and ambient air
temperature sensor connector A-22 for loose, corroded or damaged
terminals, or terminals pushed back in the connector.NOTE: When this DTC is set and the system is fail-safe
status, the value of service data displays 20°C.

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
2. Ignition switch: ON
3. Check the data list.
Item 03: air thermo sensor.
Check that the passenger room temperature matches the displayed
value on the scan tool while the engine is cold.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor within the specified range?

YES:
Replace the A/C-ECU. Then go to Step 7 .
NO:
Go to Step 4.
STEP 4. Check A/C-ECU connectors C-16, C-17 and air thermo sensor
connector C-122 for loose, corroded or damaged terminals, or terminals
pushed back in the connector.

Q: Are A/C-ECU connectors C-16, C-17 and air thermo sensor connector
C-122 in good condition?

YES:
Go to Step 5.
NO:
Repair or replace the connector. Refer to
HARNESS
CONNECTOR INSPECTION
. Then
go to Ste
p 7 .
NOTE: When this DTC is set and the system is fail-safe
status, the value of service data displays -6°C.

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

STEP 2. Recheck for diagnostic trouble code.

Recheck if the DTC is set.
1. Erase the DTC.
2. Turn the ignition switch to "ON" position.
3. Check if the DTC is set.
Q: Is the check result satisfactory?

YES:
It can be assumed that this malfunction is intermittent. Refer to
HOW TO USE TROUBLESHOOTING/ INSPECTION SERVICE POINTS
.
NO:
Go to Step 3.
STEP 3. Using scan tool MB991958, check data list item 04: A/C pressure
sensor.

1. Connect scan tool MB991958 to the data link connector.
2. Assemble a manifold gauge onto the high pressure service valve.
3. Turn ON the engine and then turn ON the air conditioner switch.
4. Check the data list.
Item 04: A/C pressure sensor. Check that the refrigerant pressure matches the displayed value on the
scan tool.
5. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor within the specified range?

CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

1. Assemble a gauge manifold on the high pressure service valve.
2. Disconnect the A/C pressure sensor connector and connect special tool
MB991658 as shown in the illustration.
3. Turn ON the engine and then turn ON the air conditioner switch.
Fig. 45: Checking A/C Pressure Sensor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
2. Start the engine.
3. Check the data list.
Item 10: air mix potentiometer.
Check that the set position of the heater control matches the displayed
position on the scan tool.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor within the specified range?

YES:
Replace the A/C-ECU. Then go to Step 7 .
NO:
Go to Step 4.
STEP 4. Check A/C-ECU connectors C-16, C-17 and air mixing damper
control motor and potentiometer connector C-109 for loose, corroded or
damaged terminals, or terminals pushed back in the connector.

Q: Are A/C-ECU connectors C-16, C-17 and air mixing damper control
motor and potentiometer connector C-109 in good condition?

YES:
Go to Step 5.
NO:
Repair or replace the connector. Refer to
HARNESS
CONNECTOR INSPECTION
. Then
go to Ste
p 7 .

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
2. Start the engine.
3. Check the data list.
4. Use scan tool MB991958 to run the actuator test.
Item 10: air mix damper motor (MAX COOL position)
Item 11: air mix damper motor (middle position)
Item 12: air mix damper motor (MAX HOT position)
Check that the air mixing damper control motor operates.
5. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Does the motor operate normally?

YES:
Replace the A/C-ECU. Then go to Step 7 .
NO:
Go to Step 4.
STEP 4. Check A/C-ECU connectors C-16 and air mixing damper control
motor and potentiometer connector C-109 for loose, corroded or damaged
terminals, or terminals pushed back in the connector.

Q: Are A/C-ECU connectors C-16 and air mixing damper control motor
and potentiometer connector C-109 in good condition?

YES:
Go to Step 5.
NO:
Repair or replace the connector. Refer to
HARNESS
CONNECTOR INSPECTION
. Then
go to Ste
p 7 .

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor
