2004 MITSUBISHI ENDEAVOR engine

DTC SET CONDITION
DTC 11 may be set if other ignition keys are in the vicinity of the vehicle as it
is being started. The transponder's encrypted code is not sent to the immobilizer-ECU
immediately after the ignition switch is turned to "ON" position.
TROUBLESHOOTING HINTS
Radio interference of the encrypted code Malfunction of the transponder Malfunction of the immobilizer-ECU.
DIAGNOSIS Required Special Tools:
MB991958: Scan Tool (MUT-III Sub Assembly)
MB991824: Vehicle Communication Interface (V.C.I.) MB991827: MUT-III USB Cable MB991910: MUT-III Main Harness A
STEP 1. Check for presence of other key near the key in the ignition.
Q: Is there any other key near the key in the ignition?
YES: Move the other key well away from key being used. Retest the
system.
NO: Go to Step 2.
STEP 2. Check that the engine start using the spare ignition key which
encrypted code has been registered.
Q: Does the engine start using the spare ignition key for which the
encrypted code has been registered?
NOTE: DTC 11 is always set together with MFI system DTC P0513.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor

TROUBLESHOOTING HINTS
Radio interference of the encrypted code Malfunction of the transponder Malfunction of the immobilizer-ECU
DIAGNOSIS Required Special Tools:
MB991958: Scan Tool (MUT-III Sub Assembly)
MB991824: Vehicle Communication Interface (V.C.I.) MB991827: MUT-III USB Cable MB991910: MUT-III Main Harness A (Vehicles with CAN
communication system)
STEP 1. Check for presence of other key near the key in the ignition.
Q: Is there any other key near the key in the ignition?
YES: Move the other key well away from key being used. Retest the
system.
NO: Go to Step 2.
STEP 2. Check that the engine start using the spare ignition key which
encrypted code has been registered.
Q: Does the engine start using the spare ignition key for which the
encrypted code has been registered?
YES: Replace the ignition key that does not work. Then register the
password (secret code) and encrypted code. Retest the system.
NO: Go to Step 3.
STEP 3. Recheck for diagnosis trouble code.
1. Connect scan tool MB991958 to the data link connec
tor.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor

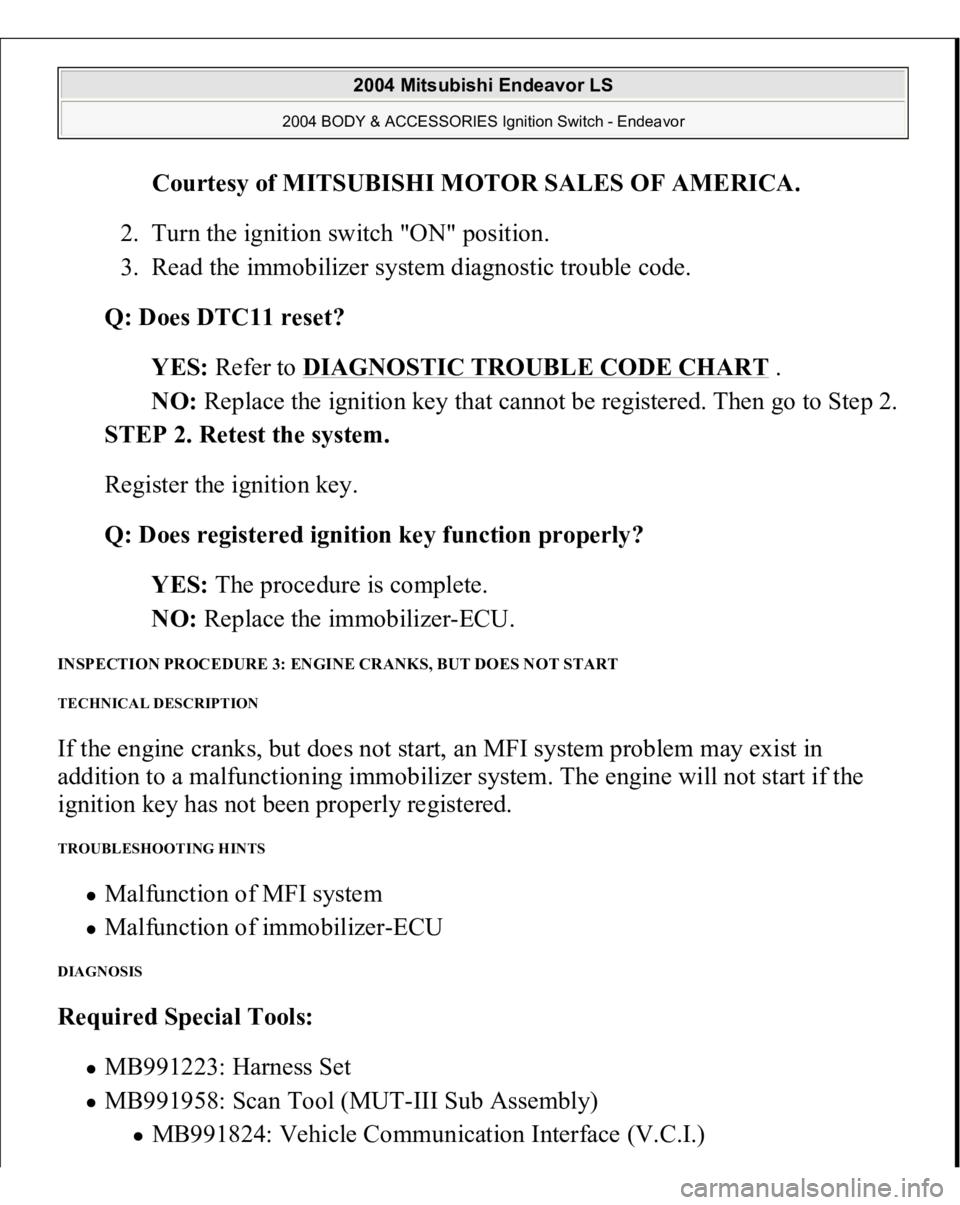

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
2. Turn the ignition switch "ON" position.
3. Read the immobilizer system diagnostic trouble code.
Q: Does DTC11 reset?
YES: Refer to DIAGNOSTIC TROUBLE CODE CHART
.
NO: Replace the ignition key that cannot be registered. Then go to Step 2.
STEP 2. Retest the system.
Register the ignition key.
Q: Does registered ignition key function properly?
YES: The procedure is complete.
NO: Replace the immobilizer-ECU.
INSPECTION PROCEDURE 3: ENGINE CRANKS, BUT DOES NOT START TECHNICAL DESCRIPTION If the engine cranks, but does not start, an MFI system problem may exist in
addition to a malfunctioning immobilizer system. The engine will not start if the
ignition key has not been properly registered. TROUBLESHOOTING HINTS
Malfunction of MFI system Malfunction of immobilizer-ECU
DIAGNOSIS Required Special Tools:
MB991223: Harness Set MB991958: Scan Tool (MUT-III Sub Assembly)
MB991824: Vehicle Communication Interface
(V.C.I.
)

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
2. Turn the ignition switch "ON" position.
3. Read the diagnosis code.
Q: Have any MFI system DTCs set?
YES: Refer to DIAGNOSTIC TROUBLE CODE CHART
.
NO: Go to Step 4.
STEP 4. Attempt to start the engine.
Q: Does the engine start?
YES: The procedure is complete (If no malfunctions are found in all steps,
an intermittent malfunction is suspected. Refer to HOW TO COPE
WITH INTERMITTENT MALFUNCTIONS
).
NO: Refer to SYMPTOM CHART
. If the malfunction is not resolved,
replace the immobilizer-ECU. Then register the password (secret code)
and encrypted code. (Refer to ON
-VEHICLE SERVICE
.) The engine
should now start.
INSPECTION PROCEDURE 4: THE IMMOBILIZER INDICATOR LIGHT DOES NOT ILLUMINATE. < UP TO
DECEMBER 2003
>

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor

Fig. 67: Identifying Connector C
-310
-1
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CIRCUIT OPERATION If the requirements for starting the engine are not satisfied, the immobilizer-ECU
flashes the immobilizer indicator for 30 seconds. TECHNICAL DESCRIPTION (COMMENT) The immobilizer indicator light or a malfunction of the combination meter or
immobilizer-ECU. TROUBLESHOOTING HINTS
Malfunction of combination meter Malfunction of immobilizer-ECU Damaged harness wires or connectors

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor

Fig. 81: Immobilizer Indicator Light Circuit Diagram & Connector Identification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CIRCUIT OPERATION If the requirements for starting the engine are not satisfied, the immobilizer-ECU
flashes the immobilizer indicator for 30 seconds.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor

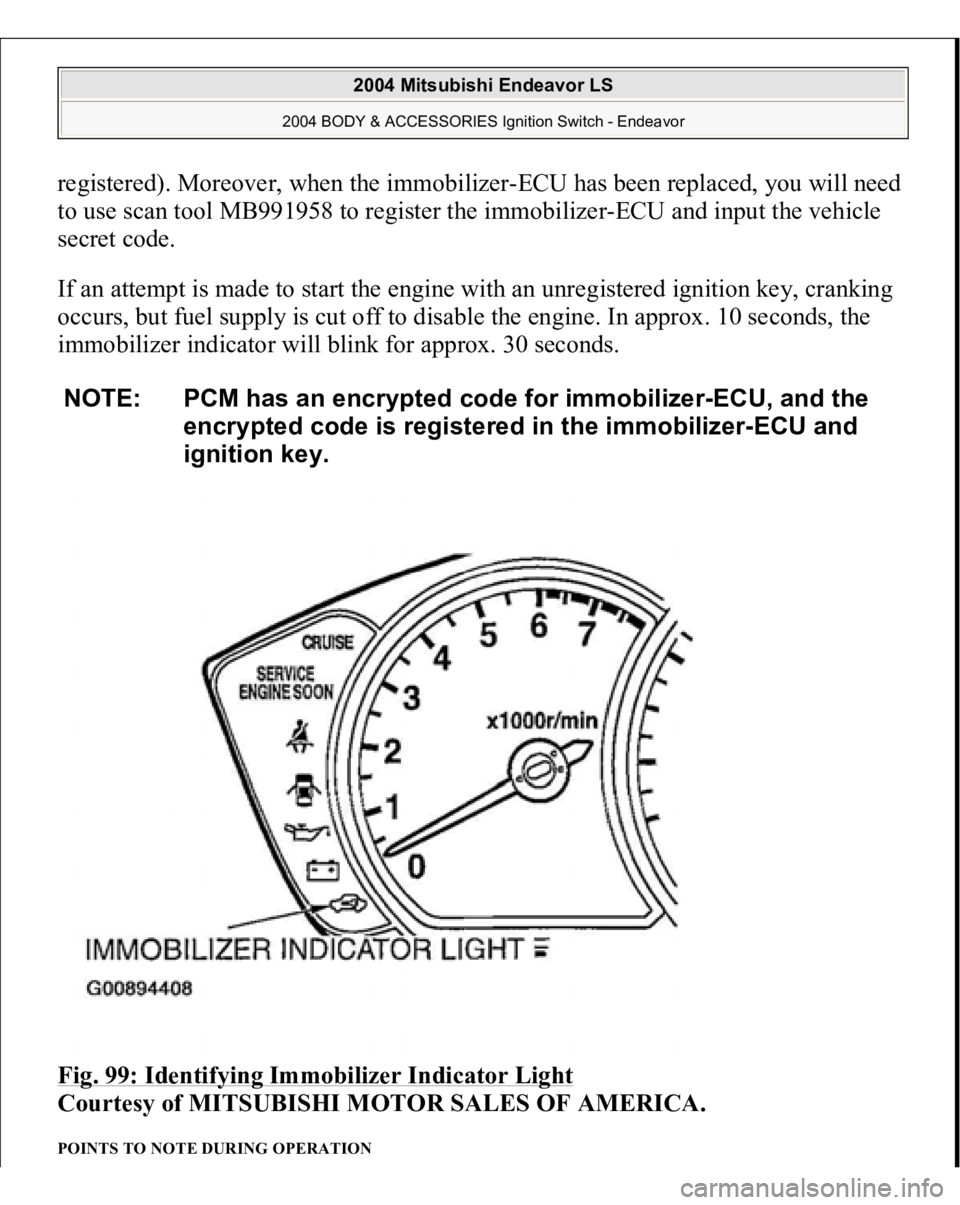

registered). Moreover, when the immobilizer-ECU has been replaced, you will need
to use scan tool MB991958 to register the immobilizer-ECU and input the vehicle
secret code.
If an attempt is made to start the engine with an unregistered ignition key, cranking
occurs, but fuel supply is cut off to disable the engine. In approx. 10 seconds, the
immobilizer indicator will blink for approx. 30 seconds.
Fig. 99: Identifying Immobilizer Indicator Light

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
POINTS TO NOTE DURING OPERATION NOTE: PCM has an encrypted code for immobilizer-ECU, and the
encrypted code is registered in the immobilizer-ECU and
ignition key.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor

If none of the functions can be used, check the diagnostic trouble codes, and after
carrying out any necessary repairs, repeat the operation. If an incorrect password is
input five times in a row, the immobilizer-ECU judges that an unauthorized
operation is being attempted. Start-prevention mode will be set, and engine
operation will stop and all special functions will be disabled. If the ignition switch
is turned to "ON" position and left in that position for approximately 16 minutes,
"Unauthorized operation, start- prevention mode" will be cancelled. KEY ID REGISTRATION All ignition keys can be registered with scan tool MB991958. Additional ignition
keys can be registered with or without scan tool MB991958. REGISTRATION WITH THE SCAN TOOL 1. Connect scan tool MB991958 to the data link connec
tor.
CAUTION: To prevent damage to scan tool MB991958, always
turn the ignition switch to "LOCK" (OFF) position
before connecting or disconnecting scan tool
MB991958.
NOTE:
Before registration, check that no DTC code is set. If a
DTC code is set, resolve the problem beforehand. Using the key ID register function will cause all key IDs
that have been previously registered in the immobilizer-
ECU to be erased. All ke
ys need to be re
gistered. Those
which have been registered before should be on hand
before using this function.
If registering more than one key, do not disconnect
scan tool MB991958 halfway through the registration
process. After registering key IDs, check that the engine can be
started using all of the keys that have been registered.
If the engine will not start, refer to IMMOBILIZER SYSTEM DIAGNOSIS
.
