2004 MITSUBISHI ENDEAVOR engine

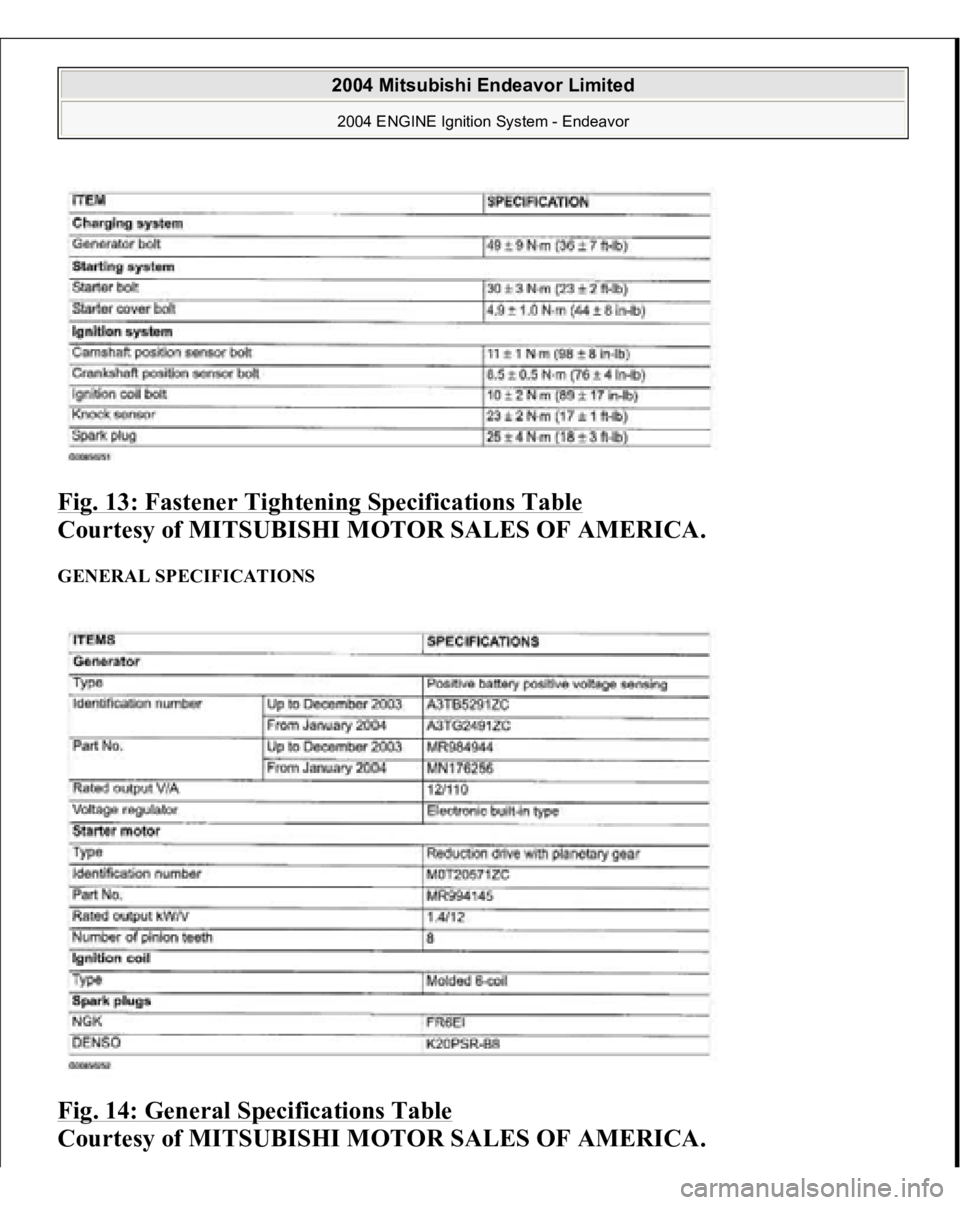

Fig. 13: Fastener Tightening Specifications Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
GENERAL SPECIFICATIONS Fig. 14: General Specifications Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Ignition System - Endeavor

SERVICE SPECIFICATIONS Fig. 15: Service Specifications Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Ignition System - Endeavor

2004 ENGINE
Intake And Exhaust - Endeavor
GENERAL DESCRIPTION The exhaust pipe is divided into three parts. INTAKE AND EXHAUST DIAGNOSIS INTRODUCTION Intake leaks usually create driveability issues that are not obviously related to the
intake system. Exhaust leaks or abnormal noise is caused by cracks, gaskets and
fittings, or by exhaust pipe or muffler damage due to impacts during travel. The
exhaust leaks from these sections and causes the exhaust noise to increase. There
may be cases when the system contacts the body and vibration noise is generated. TROUBLESHOOTING STRATEGY Use these steps to plan your diagnostic strategy. If you follow them carefully, you
will be sure that you have exhausted most of the possible ways to find an intake or
exhaust system fault.
1. Gather information from the customer.
2. Verify that the condition described by the customer exists.
3. Find the malfunction by following SYMPTOM CHART
.
4. Verify malfunction is eliminated.
SYMPTOM CHART INTAKE AND EXHAUST SYMPTOM CHART SYMPTOM
INSPECTION PROCEDURE
Exhaust Leakage
INSPECTION PROCEDURE 1:
EXHAUST LEAKAGE
.
Abnormal Noise
INSPECTION PROCEDURE 2:
ABNORMAL NOISE
.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Intake And Exhaust - Endeavor


2004 Mitsubishi Endeavor Limited 2004 ENGINE Intake And Exhaust - Endeavor

SYMPTOM PROCEDURES INSPECTION PROCEDURE 1: EXHAUST LEAKAGE DIAGNOSIS 1.STEP 1. Start the engine. Have an assistant stay in the driver's seat. Raise
the vehicle on a hoist. Have the assistant rev the en
gine while searchin
g for
exhaust leaks.
Q: Is the exhaust leaking?
YES : Go to Step 2.
NO : The procedure is complete.
2.STEP 2. Check the gasket for cracks, damage.
Q: Is the gasket damaged?
YES : Replace the gasket, then go Step 1 .
NO : Go to Step 3.
3.STEP 3. Check for loosening in each coupling section.
Q: Is there any loosening in each section?
YES : Tighten, then go to Step 1 .
NO : There is no action to be taken.
INSPECTION PROCEDURE 2: ABNORMAL NOISE DIAGNOSIS 1.STEP 1. Start the engine. Have an assistant stay in the drivers seat. Raise
the vehicle on a hoist. Have the assistant rev the en
gine while searchin
g for
exhaust leaks.
Q: Is any abnormal noise generated?
YES : Go to Step 2.
NO : The
procedure is com
plete.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Intake And Exhaust - Endeavor

2.STEP 2. Check for missing parts in the muffler. Tap the muffler lightly to
check for loose baffles, etc.
Q: Are there any missing parts in the muffler?
YES : Replace, then go to Step 1 .
NO : Go to Step 3.
3.STEP 3. Check the hanger for cracks.
Q: Is the hanger cracked?
YES : Replace, then go to Step 1 .
NO : Go to Step 4.
4.STEP 4. Check for interference of the pipes and muffler with the body.
Q: Are the pipes and muffler interfering with the body?
YES : Repair, then go to Step 1 .
NO : Go to Step 5.
5.STEP 5. Check the heat protectors.
Q: Are any heat protectors loose or damaged?
YES : Tighten or replace, then go to Step 1 .
NO : Go to Step 6.
6.STEP 6. Check the pipes and muffler for damage.
Q: Are the pipes and muffler damaged?
YES : Replace, then go to Step 1 .
NO : There is no action to be taken. SPECIAL TOOL
2004 Mitsubishi Endeavor Limited 2004 ENGINE Intake And Exhaust - Endeavor

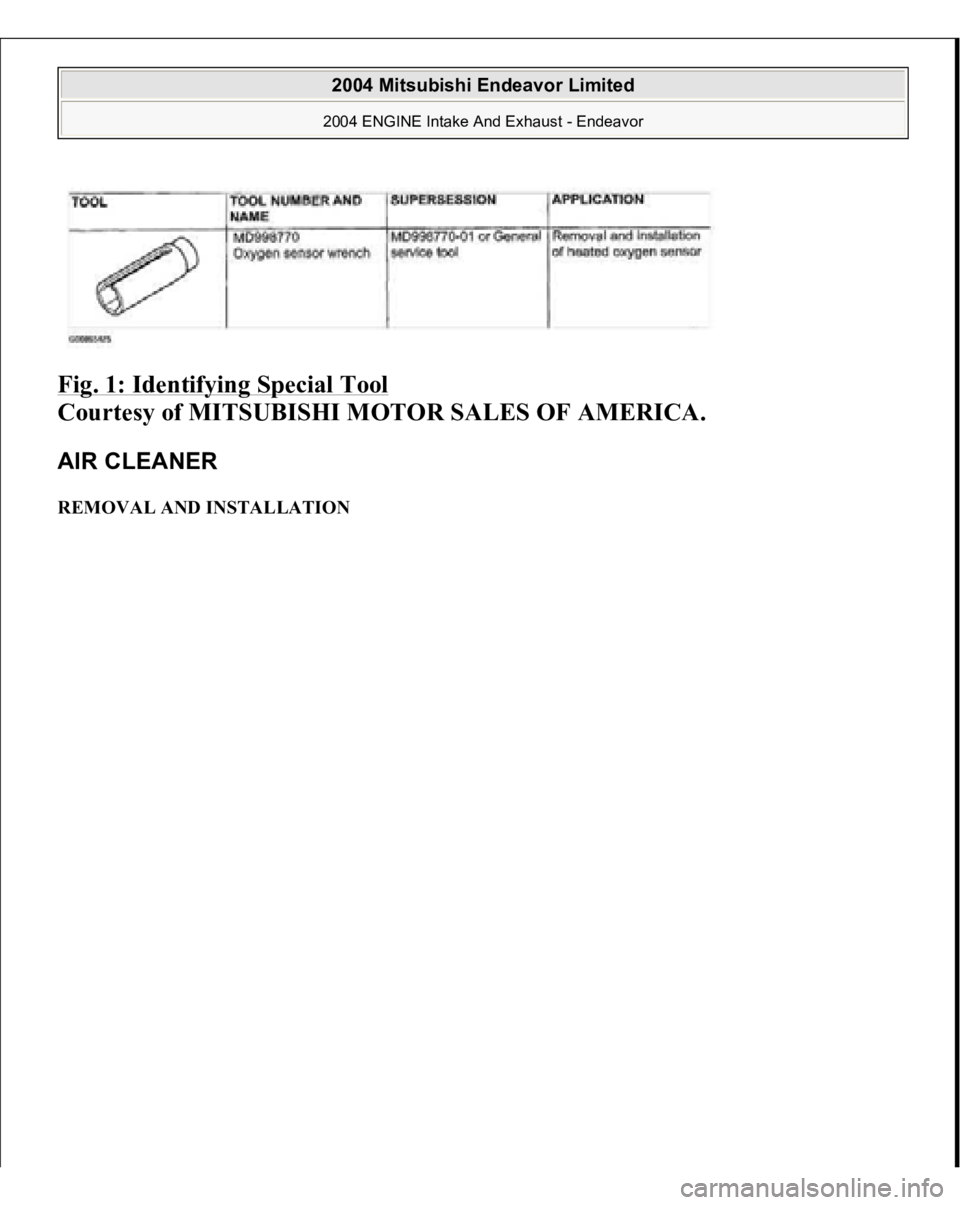

Fig. 1: Identifying Special Tool

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
AIR CLEANER REMOVAL AND INSTALLATION
2004 Mitsubishi Endeavor Limited 2004 ENGINE Intake And Exhaust - Endeavor

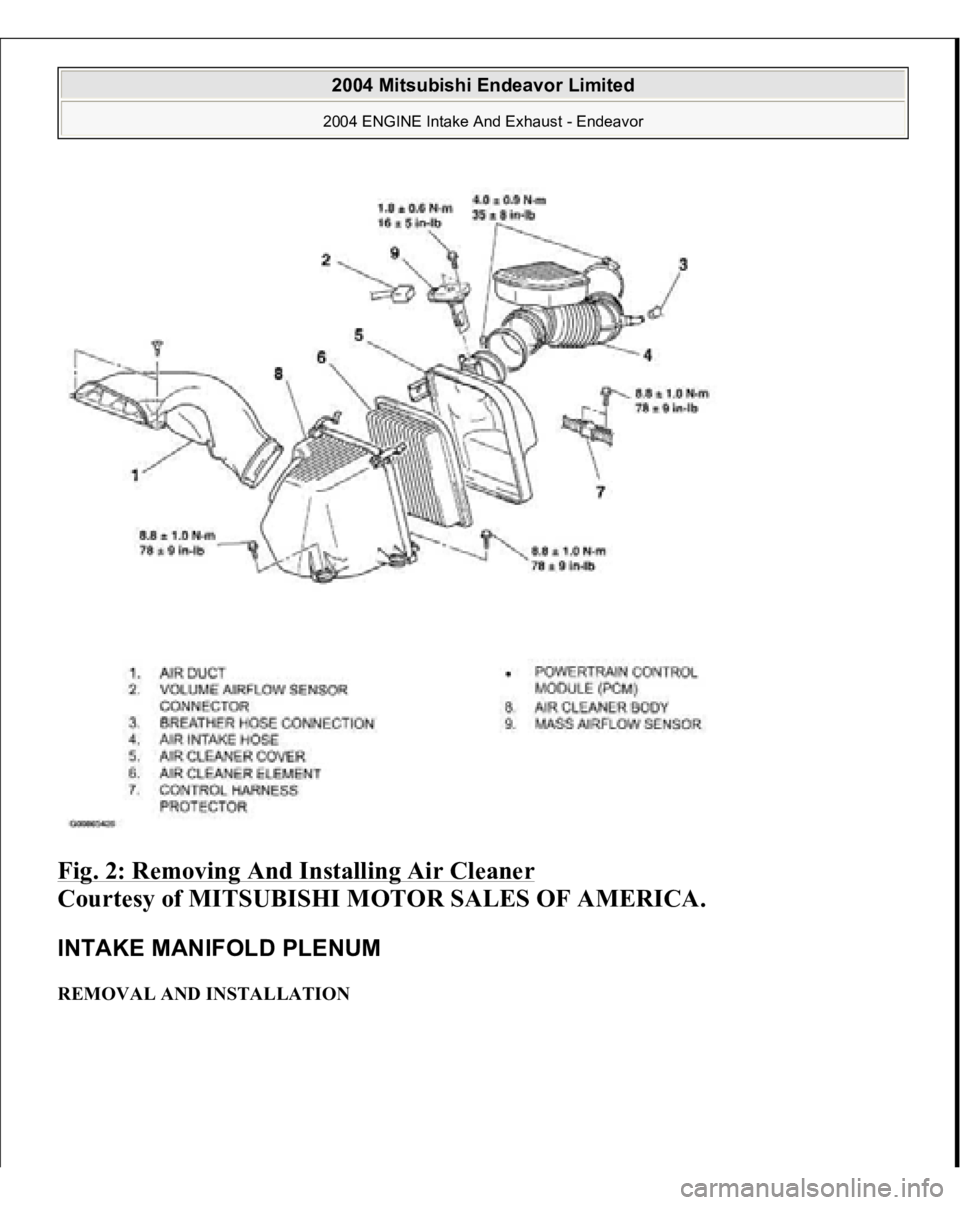

Fig. 2: Removing And Installing Air Cleaner

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INTAKE MANIFOLD PLENUM REMOVAL AND INSTALLATION
2004 Mitsubishi Endeavor Limited 2004 ENGINE Intake And Exhaust - Endeavor

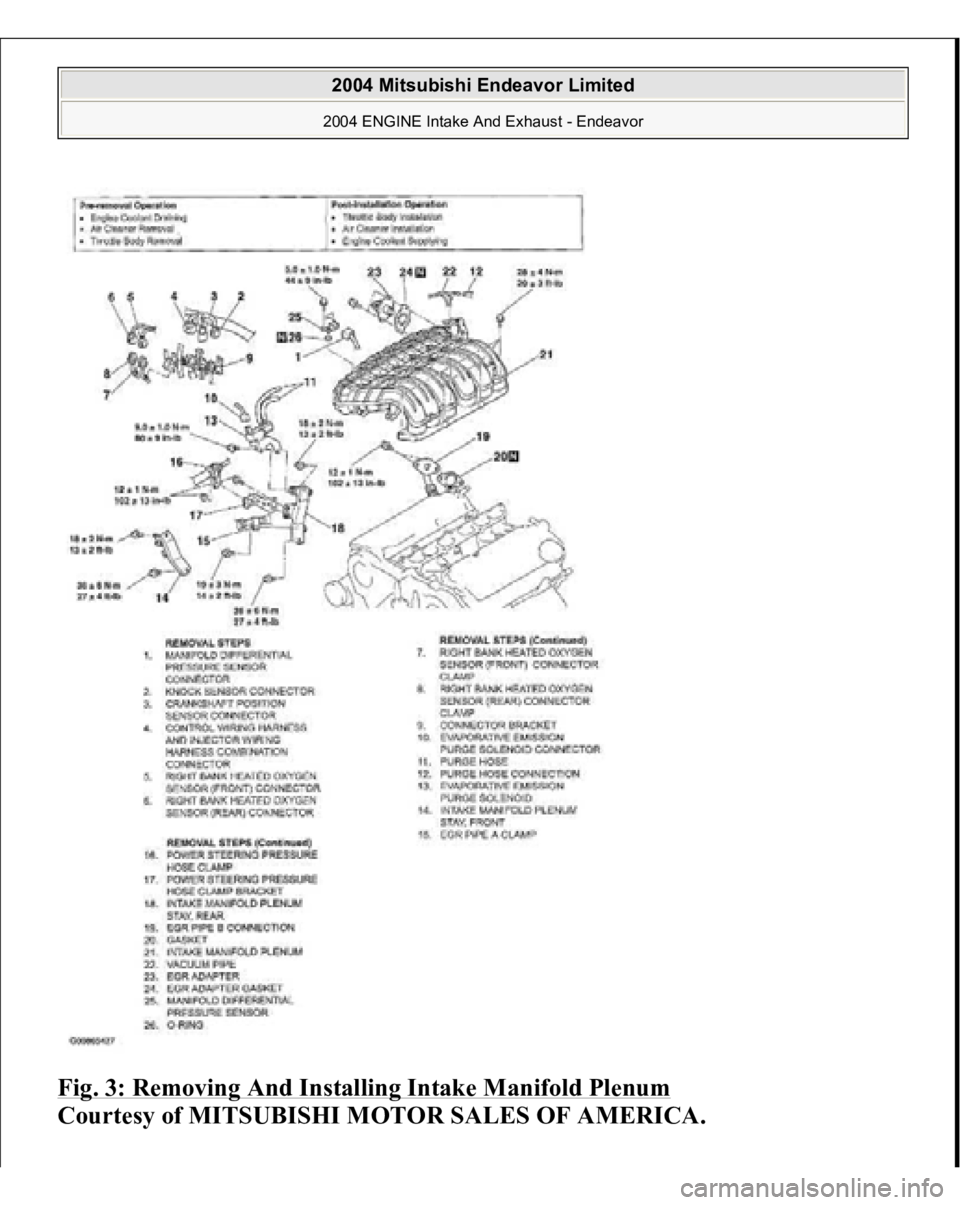

Fig. 3: Removing And Installing Intake Manifold Plenum

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Intake And Exhaust - Endeavor
