2004 MITSUBISHI ENDEAVOR Rear end

1. Temporarily tighten the nuts in mounting locations shown in the illustration
with no weight on the front seat cushion and check the operation of the seat
slide.

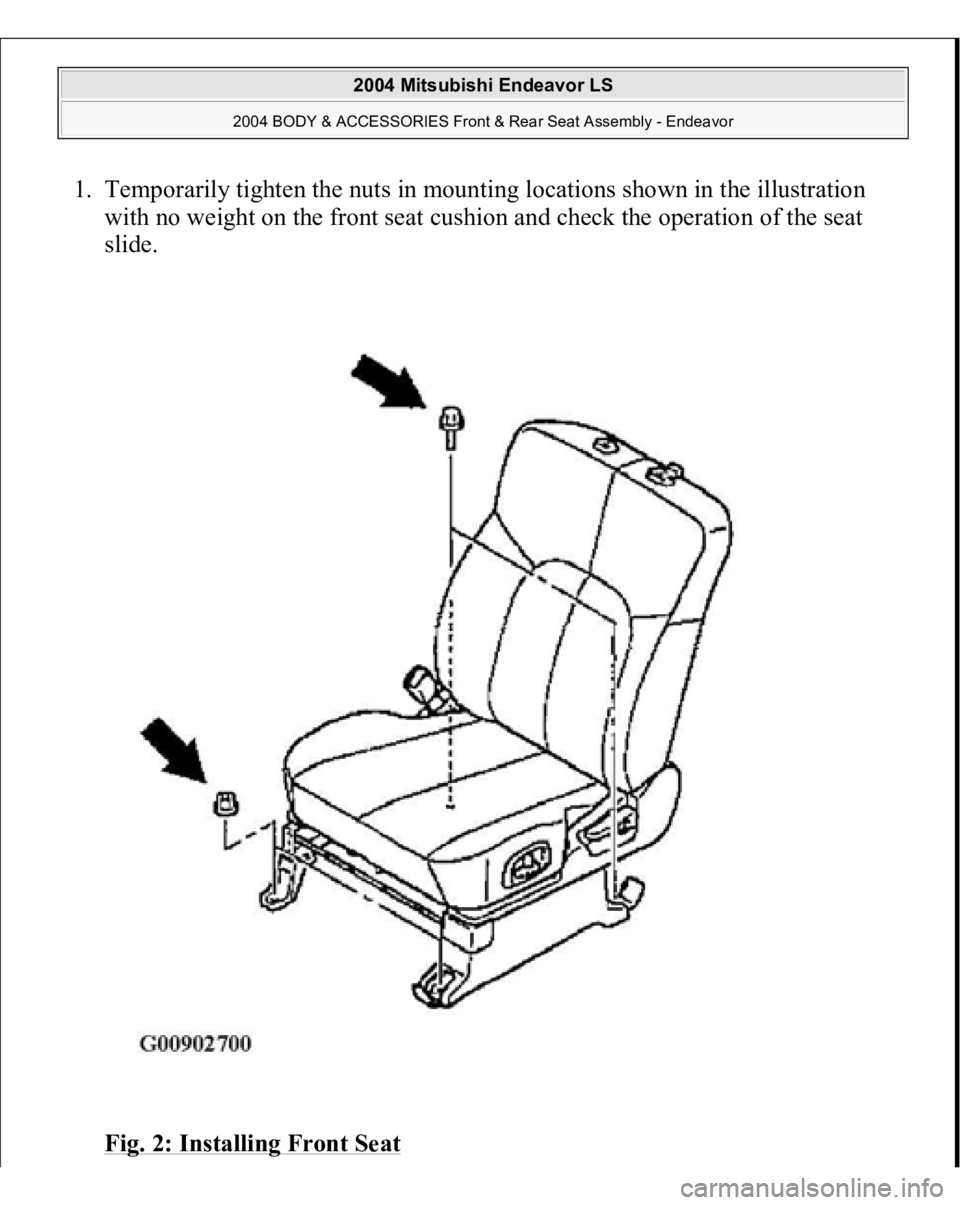

Fig. 2: Installing Front Seat
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Front & Rear Seat Assembly - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
2. Temporarily tighten the bolts in mounting locations shown in the illustration
with no weight on the front seat cushion.
3. Tighten the nuts and bolts in all mounting locations to the specified torque.
INSPECTION HEATED SEAT SWITCH CHECK CONTINUITY TEST OF HEATED SEAT SWITCH 1. Check for continuity between terminals.
Fig. 3: Identifying Heated Seat Switch Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Front & Rear Seat Assembly - Endeavor

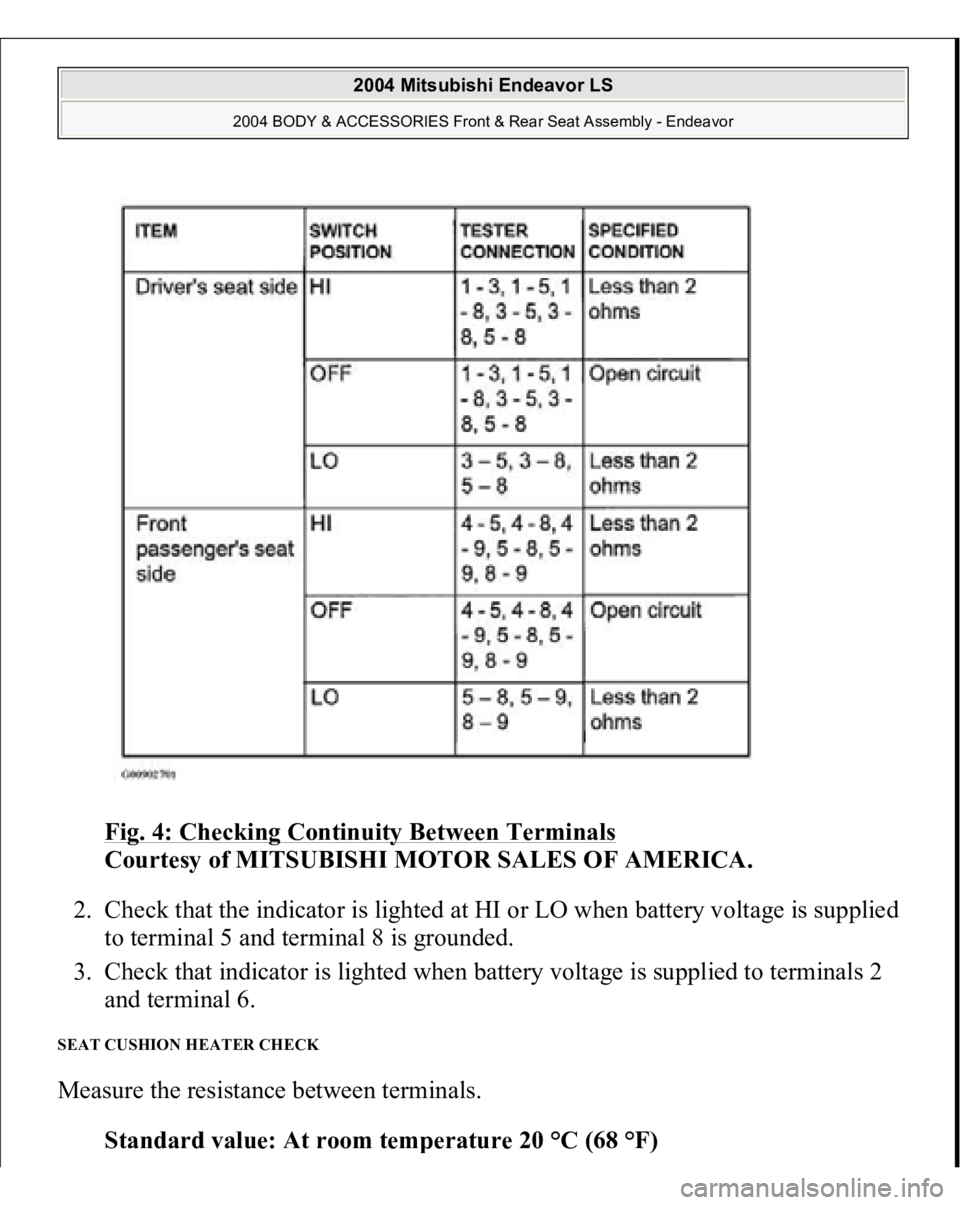

Fig. 4: Checking Continuity Between Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Check that the indicator is lighted at HI or LO when battery voltage is supplied
to terminal 5 and terminal 8 is grounded.
3. Check that indicator is lighted when battery voltage is supplied to terminals 2
and terminal 6.
SEAT CUSHION HEATER CHECK Measure the resistance between terminals.
Standard value: At room tem
perature 20 °C (68 °F)

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Front & Rear Seat Assembly - Endeavor

Between terminals 2 and terminal 3: Approximately 4.0 ohms +/- 9%
Between terminals 1 and terminal 3: 4.1 ohms +/- 9%

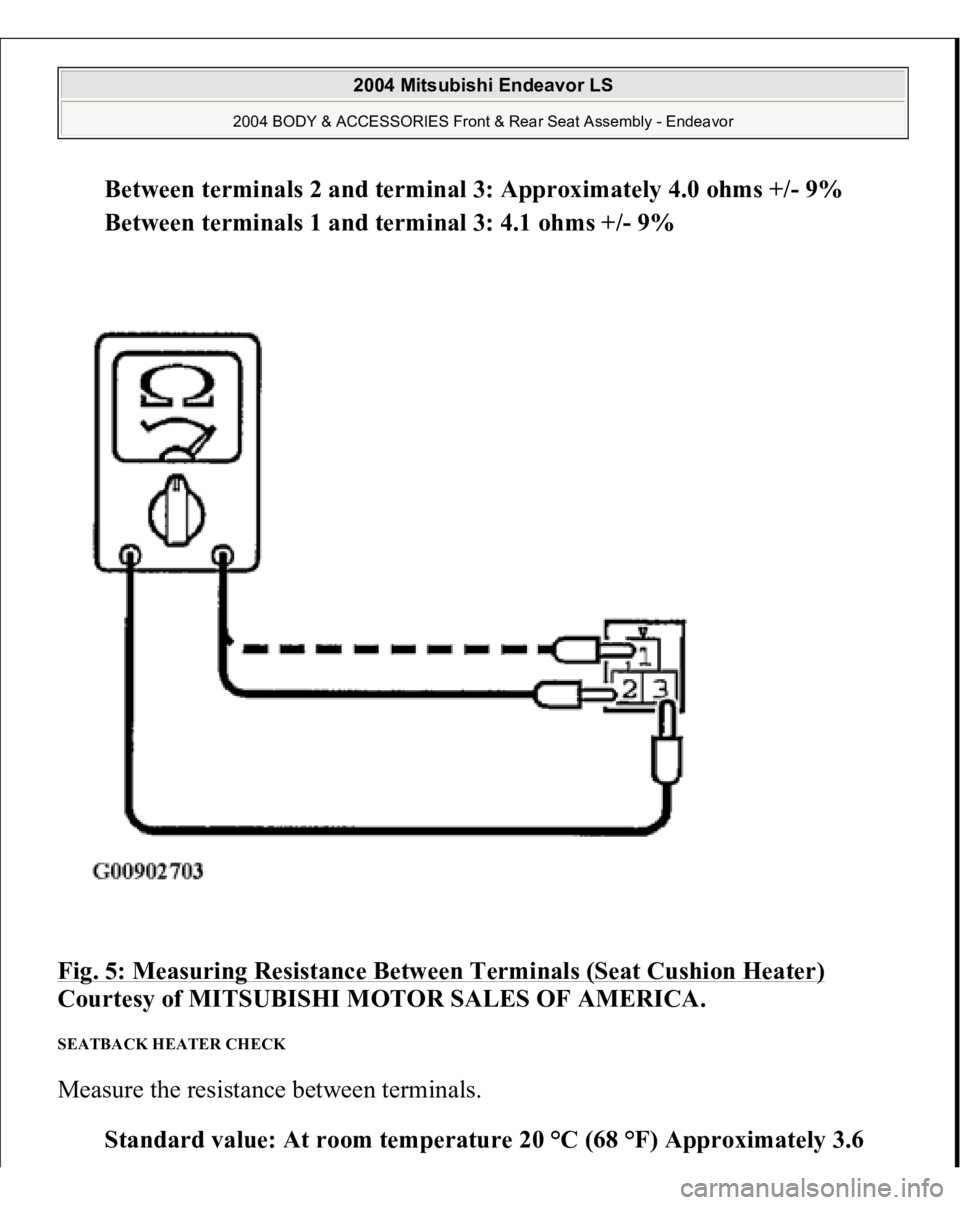

Fig. 5: Measuring Resistance Between Terminals (Seat Cushion Heater)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
SEATBACK HEATER CHECK Measure the resistance between terminals.
Standard value: At room temperature 20 °C (68 °F) Approximately 3.6
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Front & Rear Seat Assembly - Endeavor

ohms +/- 9%
Fig. 6: Measuring Resistance Between Terminals (Seatback Heater)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
HEATED SEAT RELAY CONTINUITY CHECK
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Front & Rear Seat Assembly - Endeavor

Fig. 7: Locating & Checking Heated seat Relay Continuity

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Front & Rear Seat Assembly - Endeavor

Fig. 8: Heated Seat Relay Continuity Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
POWER SEAT MANUAL SWITCH CONTINUITY CHECK Fig. 9: Identifying Power Seat Manual Switch Connector

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Front & Rear Seat Assembly - Endeavor

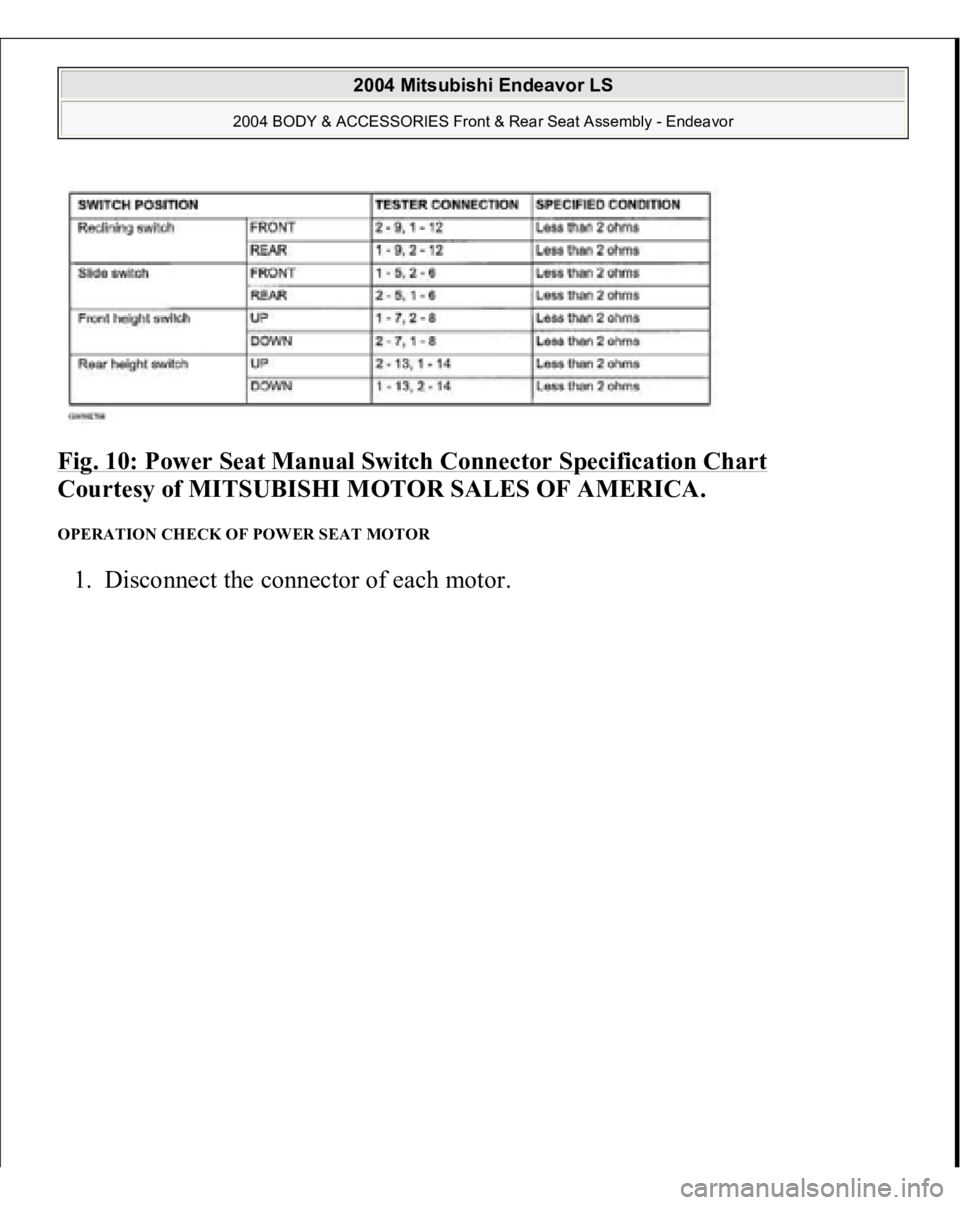

Fig. 10: Power Seat Manual Switch Connector Specification Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
OPERATION CHECK OF POWER SEAT MOTOR 1. Disconnect the connector of each motor.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Front & Rear Seat Assembly - Endeavor
