2004 MITSUBISHI ENDEAVOR Rear end

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Front & Rear Seat Assembly - Endeavor

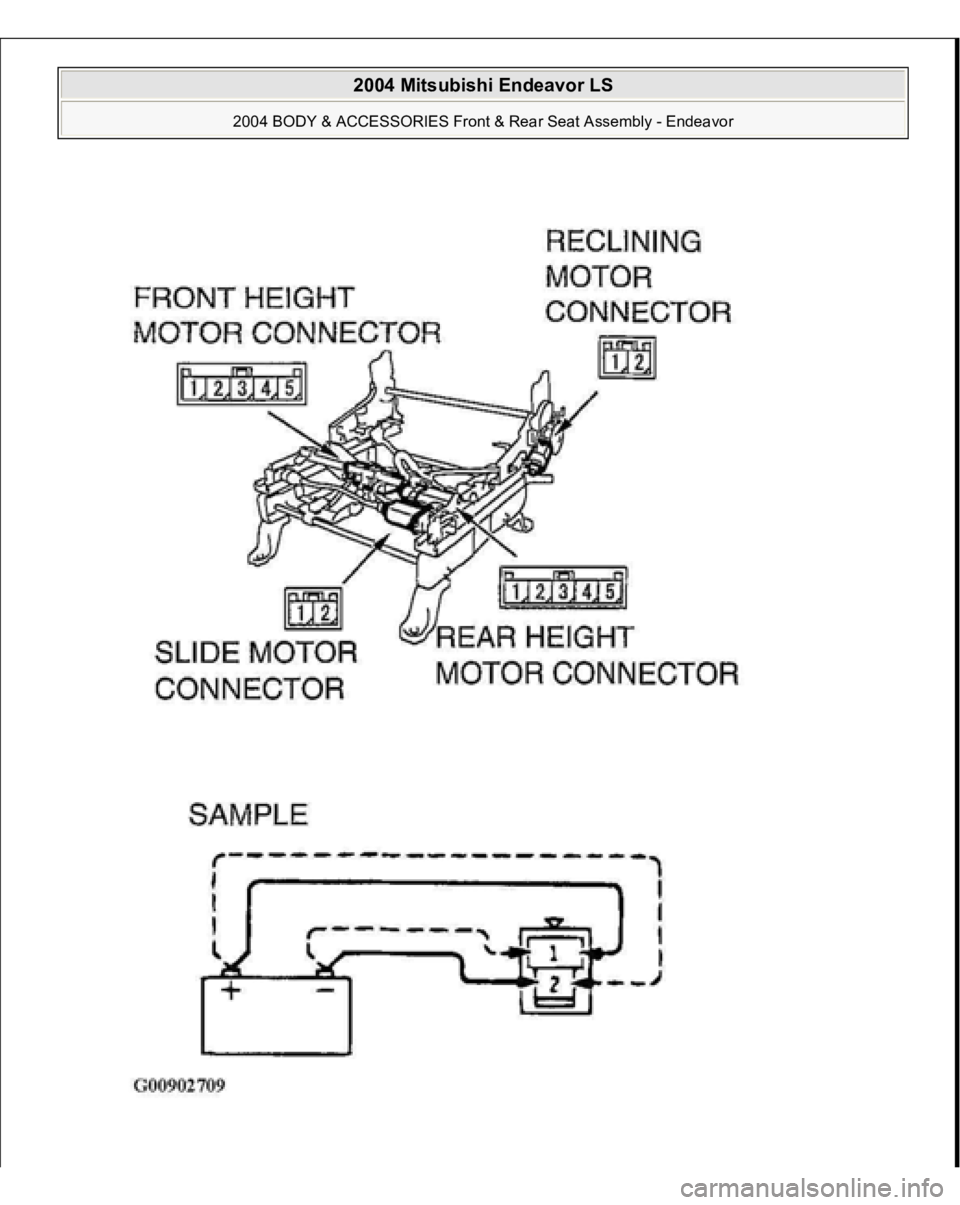

Fig. 11: Checking Operation Of Power Seat Motor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Check that when the battery is directly connected to the motor terminal, the
motor turns smoothly and each adjusting mechanism operates as stated below
for each motor:
1. Connect the battery power supply to the terminal 1 and ground the
terminal 2 for the rear reclining side, front slide side.
2. Connect the battery power supply to the terminal 2 and ground the
terminal 1 for the front reclining side, rear slide side.
3. Connect the battery power supply to the terminal 2 and ground the
terminal 3 for the front height down side and connect the battery power
supply to the terminal 3 and ground the terminal 2 for the front height up
side.
4. Connect the battery power supply to the terminal 3 and ground the
terminal 4 for the rear height up side and connect the battery power supply
to the terminal 4 and ground the terminal 3 for the rear height down side.
3. If abnormality was found, check the power seat adjuster assembly.
DISASSEMBLY AND ASSEMBLY < LH SIDE>
WARNING:Never attempt to disassemble or repair the seat slide
sensor. If faulty, replace it. < Vehicles with advanced
air bag>

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Front & Rear Seat Assembly - Endeavor

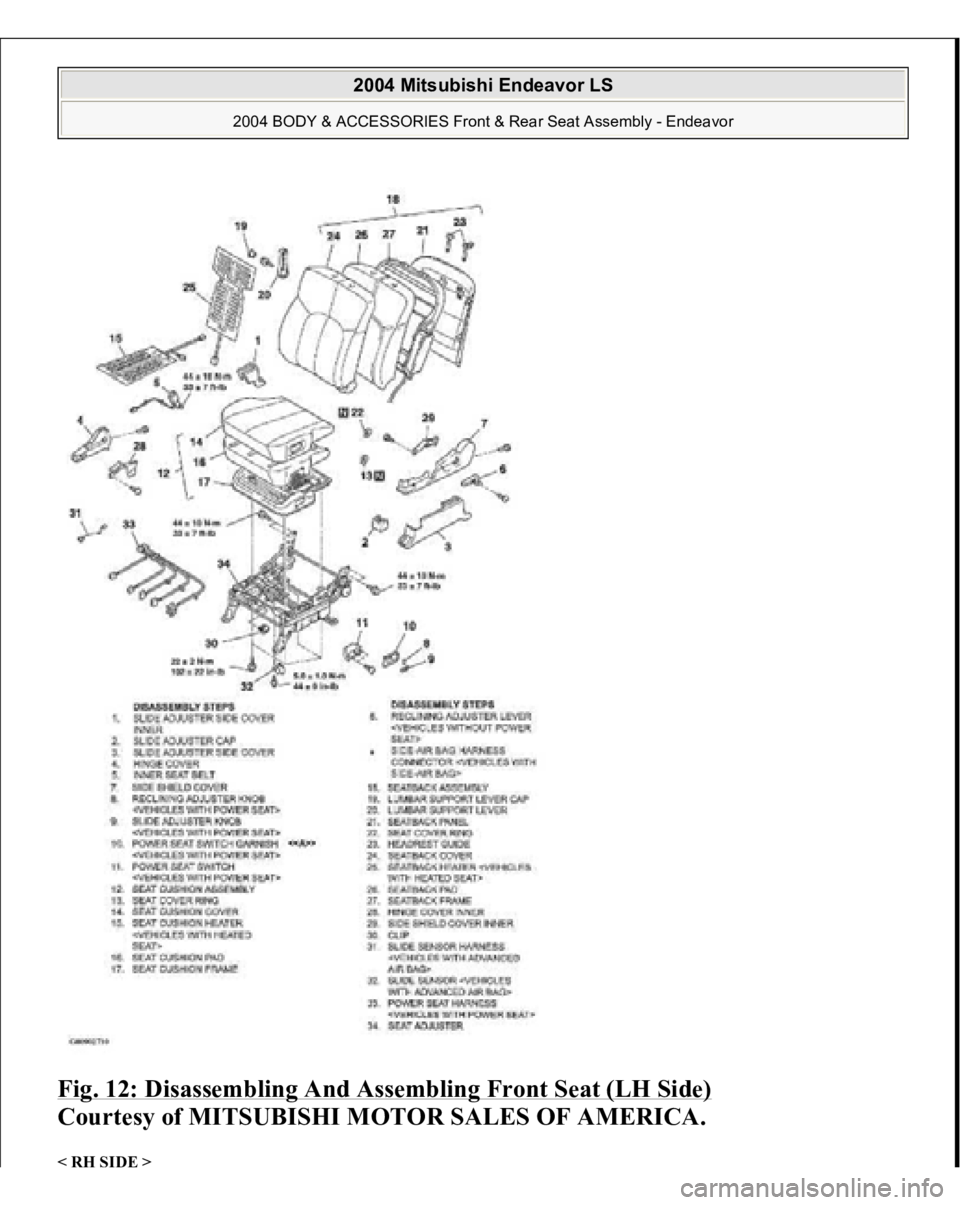

Fig. 12: Disassembling And Assembling Front Seat (LH Side)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
< RH
SIDE >

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Front & Rear Seat Assembly - Endeavor

WARNING:< Vehicles with advanced air bag>
Never attempt to disassemble or repair the
occupant classification-ECT or the occupant
classification sensor. If faulty, replace it. Do not drop or subject the occupant
classification-ECU and occupant classification
sensor to impact or vibration. If denting,
cracking, deformation, or rust are discovered in
the occupant classification-ECU or the occupant
classification sensor, replace it with a new
occupant classification-ECU or the occupant
classification sensor.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Front & Rear Seat Assembly - Endeavor

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Front & Rear Seat Assembly - Endeavor

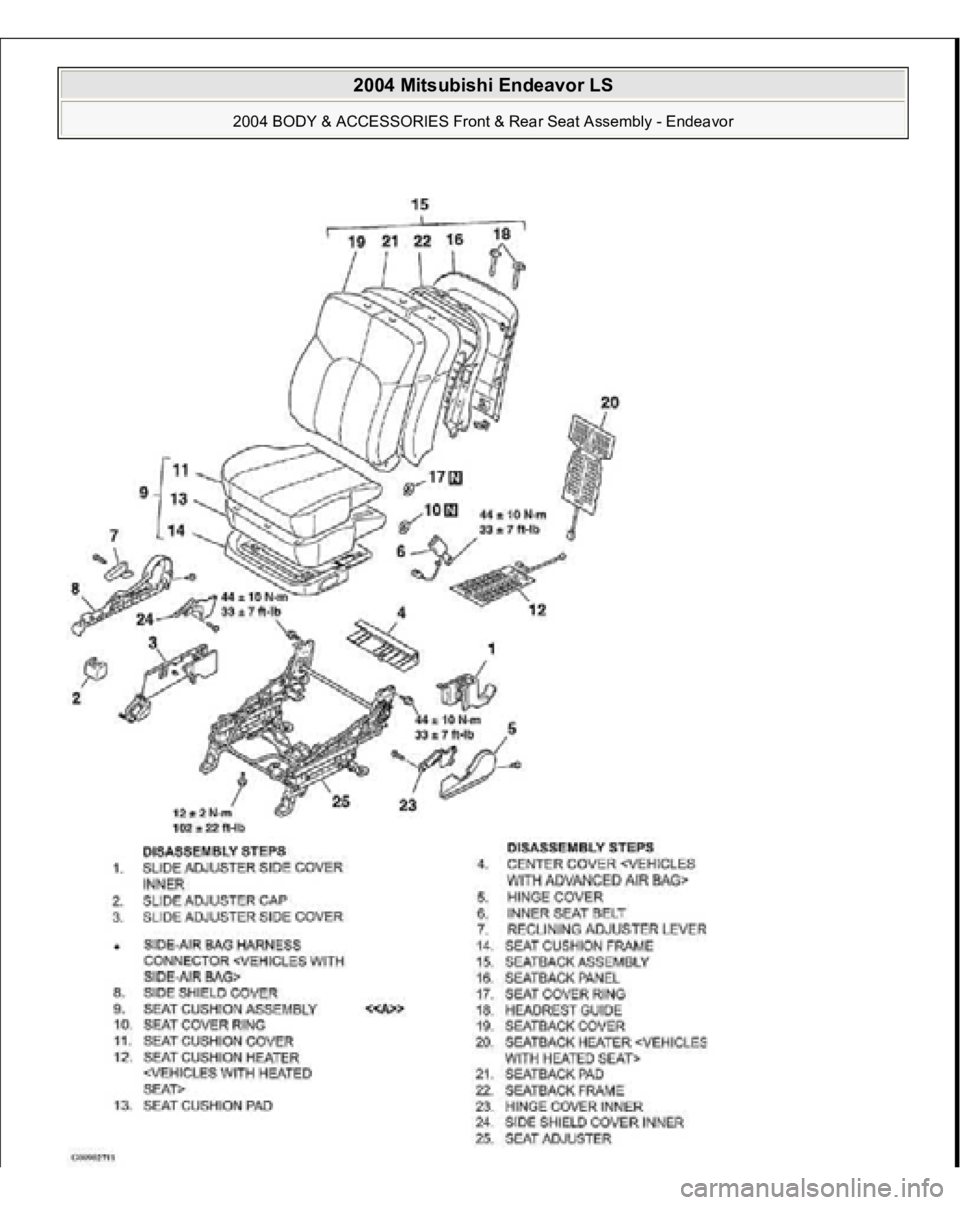

Fig. 13: Disassembling And Assembling Front Seat (RH Side)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
REMOVAL SERVICE POINT << A >> HEADREST GUIDE REMOVAL Fig. 14: Removing Headrest Guide

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
REAR SEAT ASSEMBLY REMOVAL AND INSTALLATION
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Front & Rear Seat Assembly - Endeavor

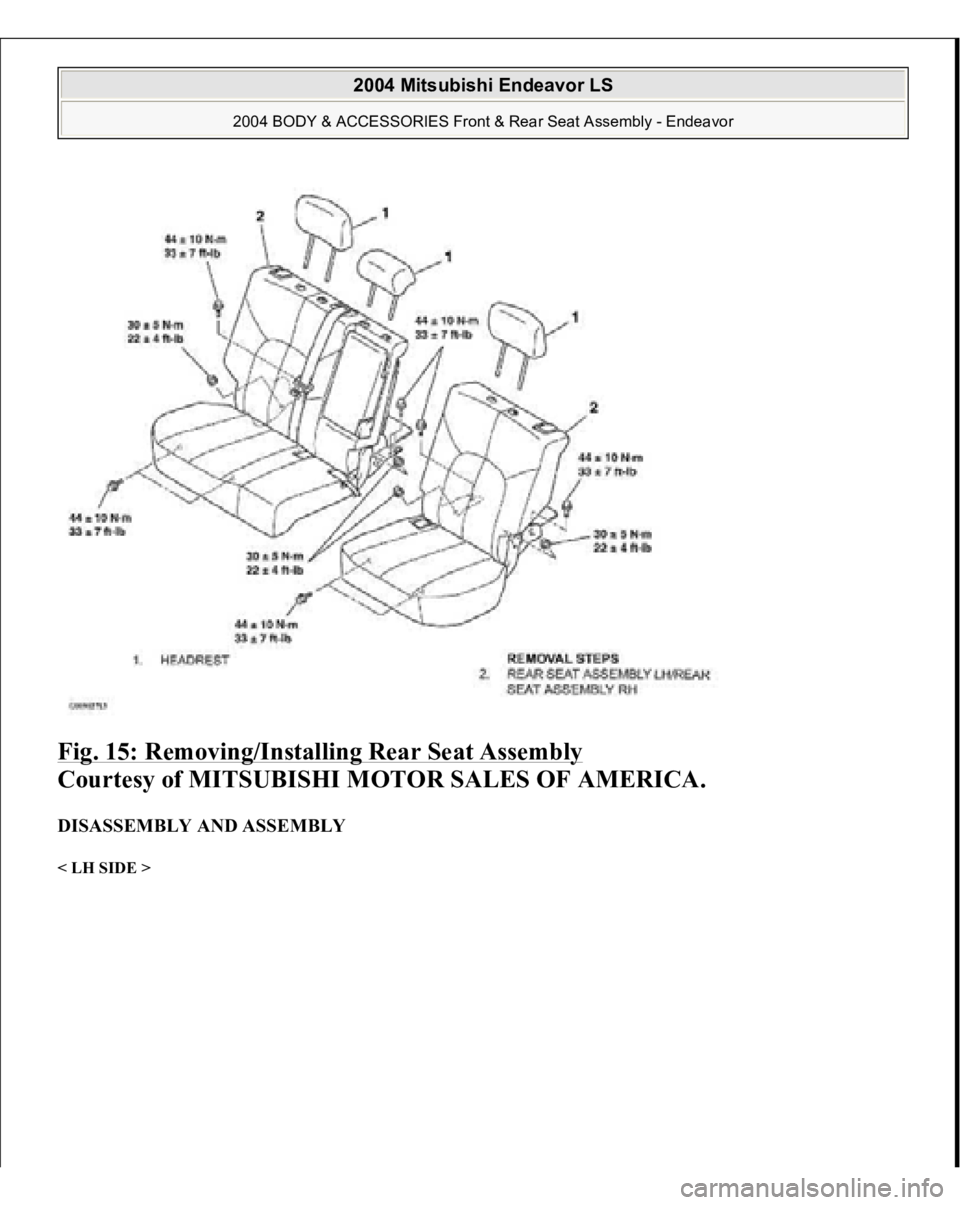

Fig. 15: Removing/Installing Rear Seat Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

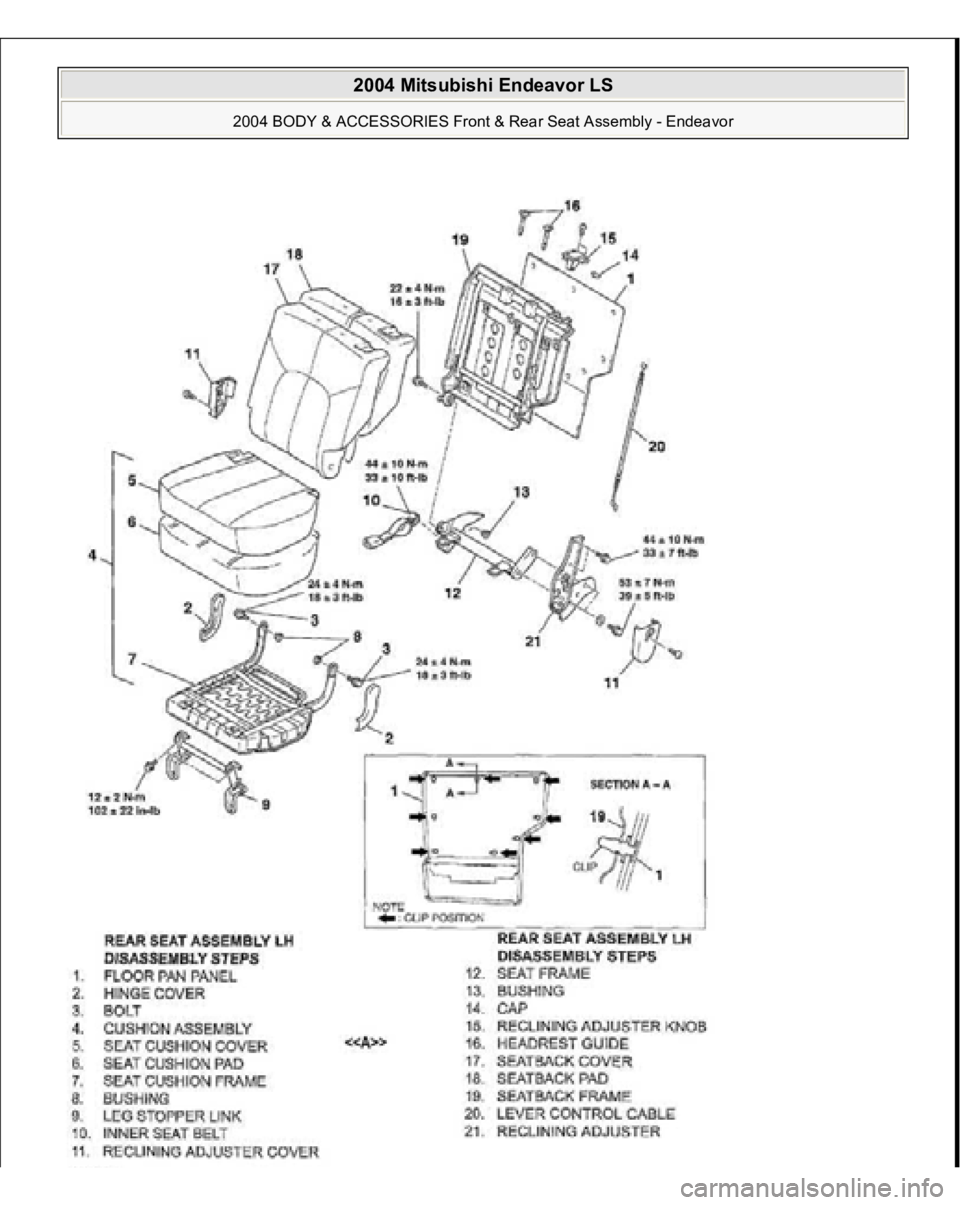

DISASSEMBLY AND ASSEMBLY < LH SIDE >
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Front & Rear Seat Assembly - Endeavor

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Front & Rear Seat Assembly - Endeavor
