2004 MITSUBISHI ENDEAVOR Rear end

The rear ABS sensor can be damaged during service work. Unclamp the rear ABS
sensor cable as shown, and tie it out of the way.
Fig. 40: Removing Rear ABS Sensor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
<< B>> SHOCK ABSORBER ASSEMBLY/TRAILING ARM ASSEMBLY AND KNUCKLE CONNECTION < TEMPORARY
ASSEMBLING> After removing the driveshaft, assemble the knuckle and shock absorber assembly
and the trailin
g arm assembl
y tem
poraril
y to su
pport the knuckle.

2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor

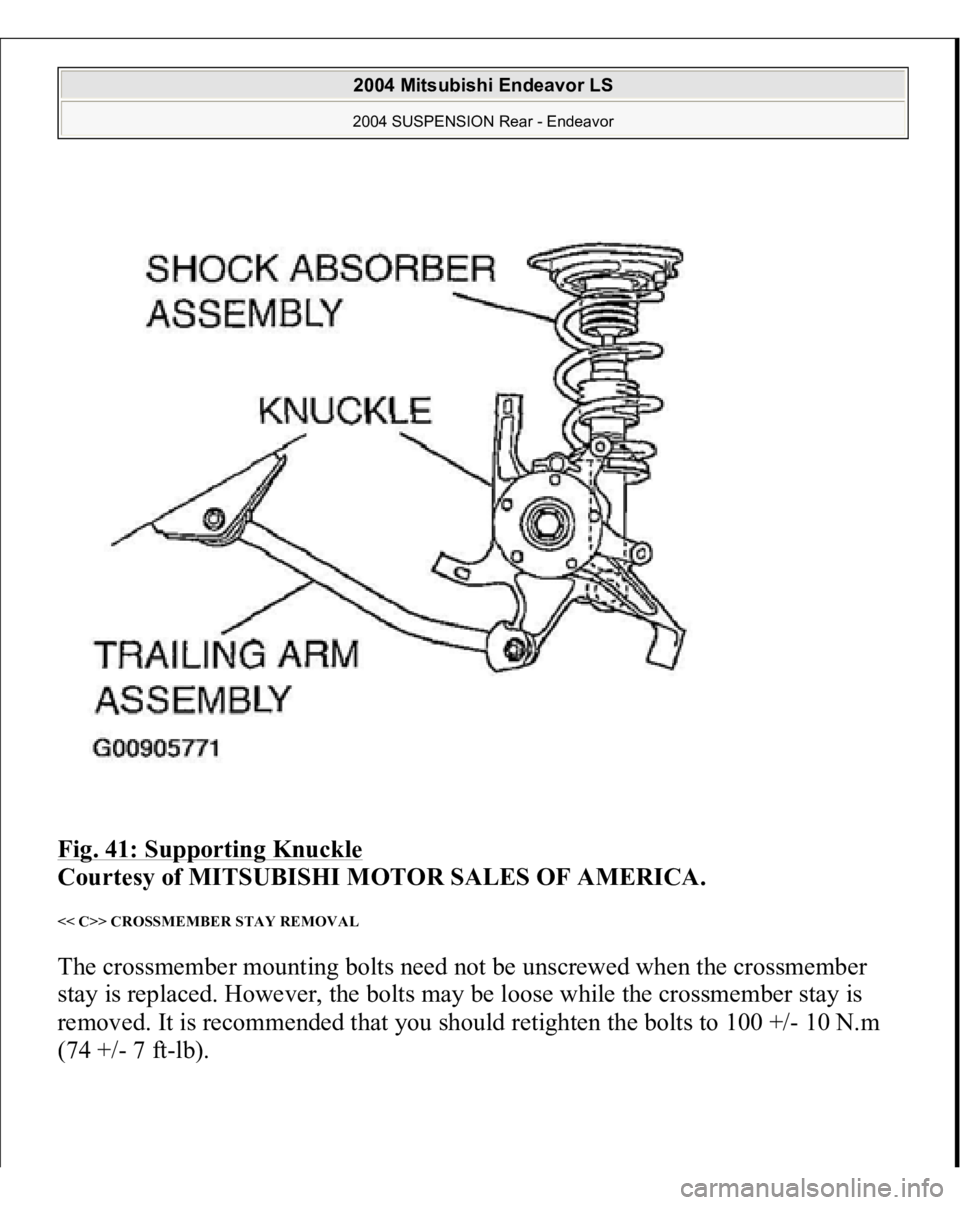

Fig. 41: Supporting Knuckle

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
<< C>> CROSSMEMBER STAY REMOVAL The crossmember mounting bolts need not be unscrewed when the crossmember
stay is replaced. However, the bolts may be loose while the crossmember stay is
removed. It is recommended that you should retighten the bolts to 100 +/- 10 N.m (74 +
/- 7 f
t-lb
).

2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor

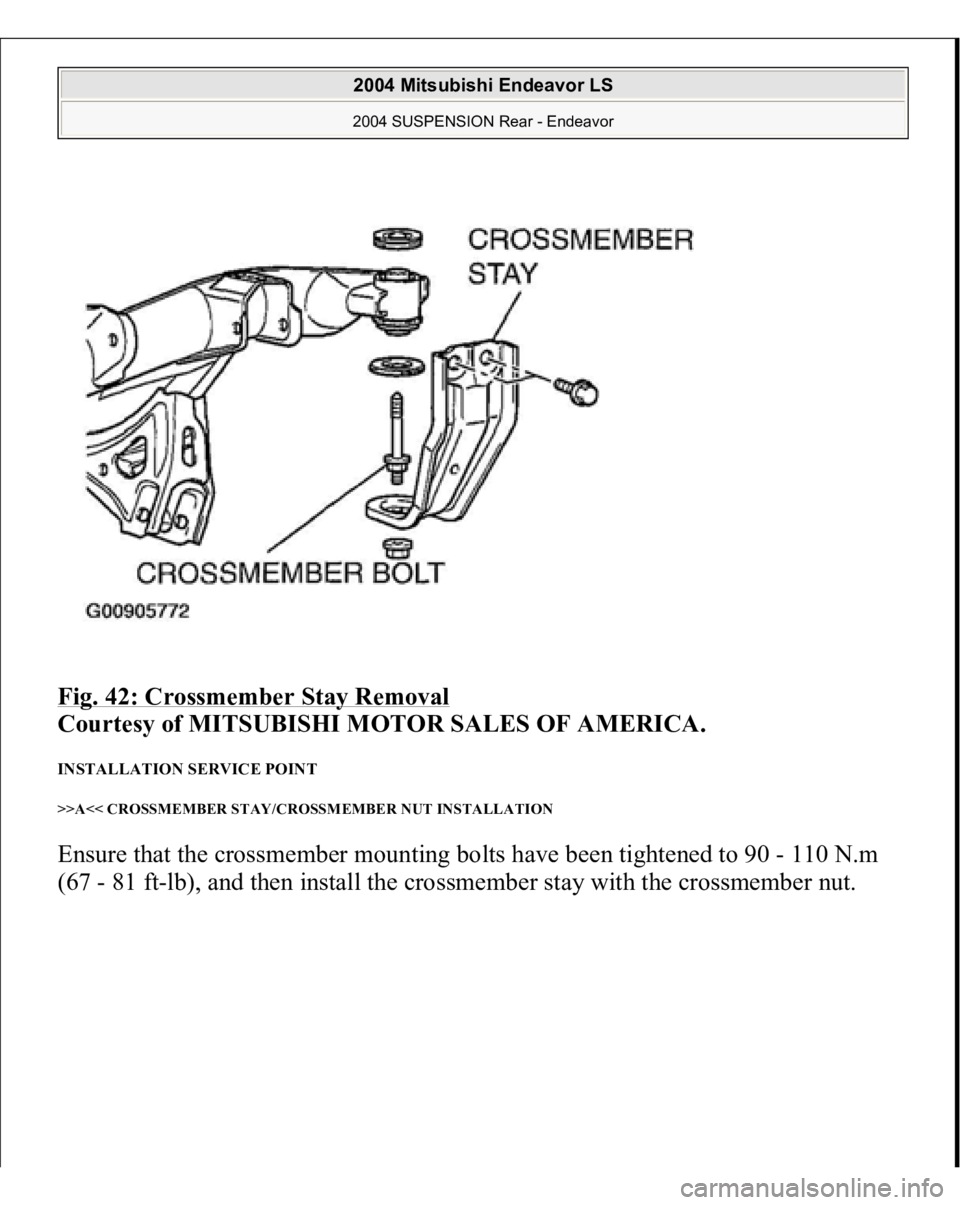

Fig. 42: Crossmember Stay Removal

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSTALLATION SERVICE POINT >>A<< CROSSMEMBER STAY/CROSSMEMBER NUT INSTALLATION Ensure that the crossmember mounting bolts have been tightened to 90 - 110 N.m (67 - 81 f
t-lb
), and then install the crossmember sta
y with the crossmember nut.

2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor

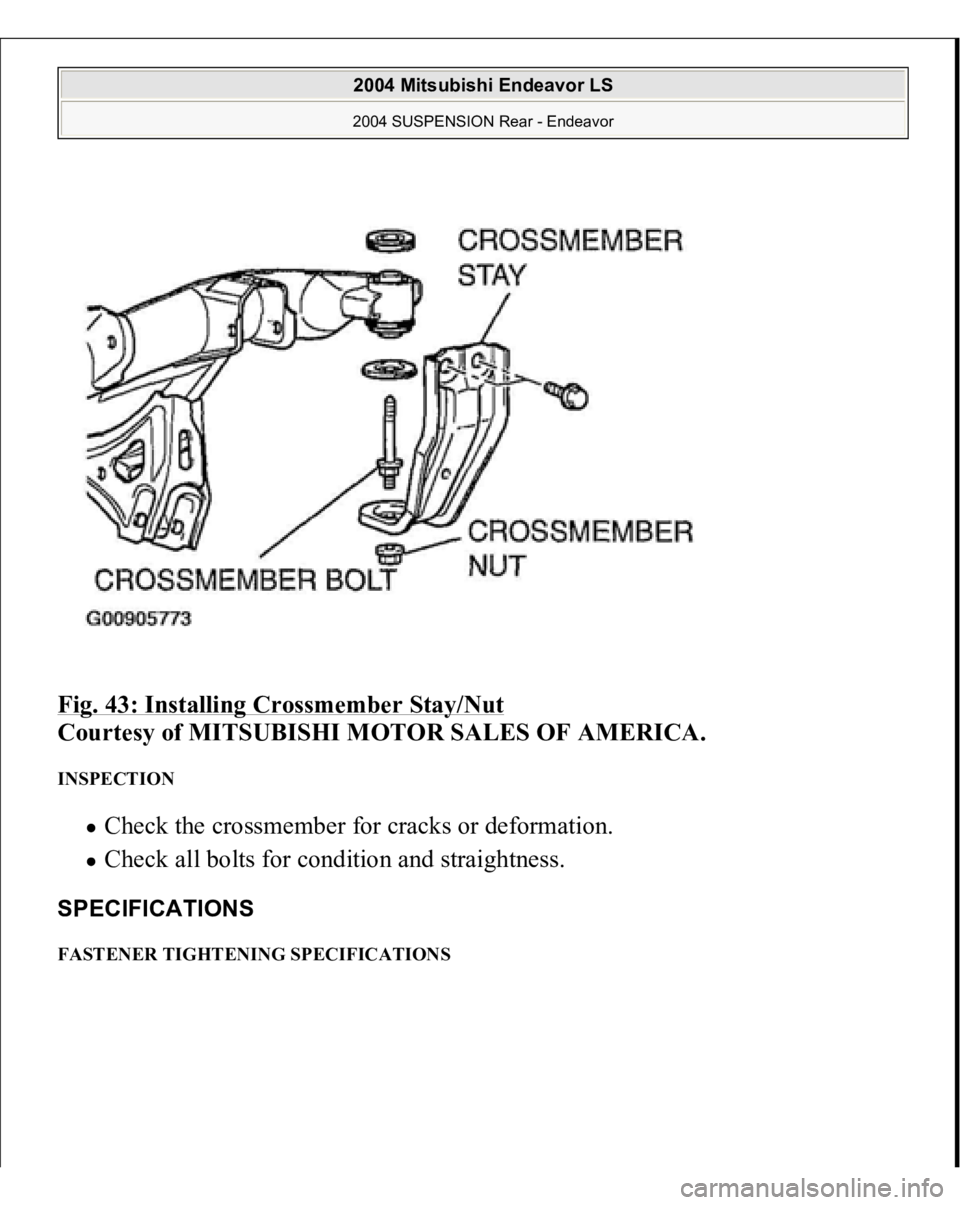

Fig. 43: Installing Crossmember Stay/Nut

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSPECTION
Check the crossmember for cracks or deformation. Check all bolts for condition and straightness.
SPECIFICATIONS FASTENER TIGHTENING SPECIFICATIONS
2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor

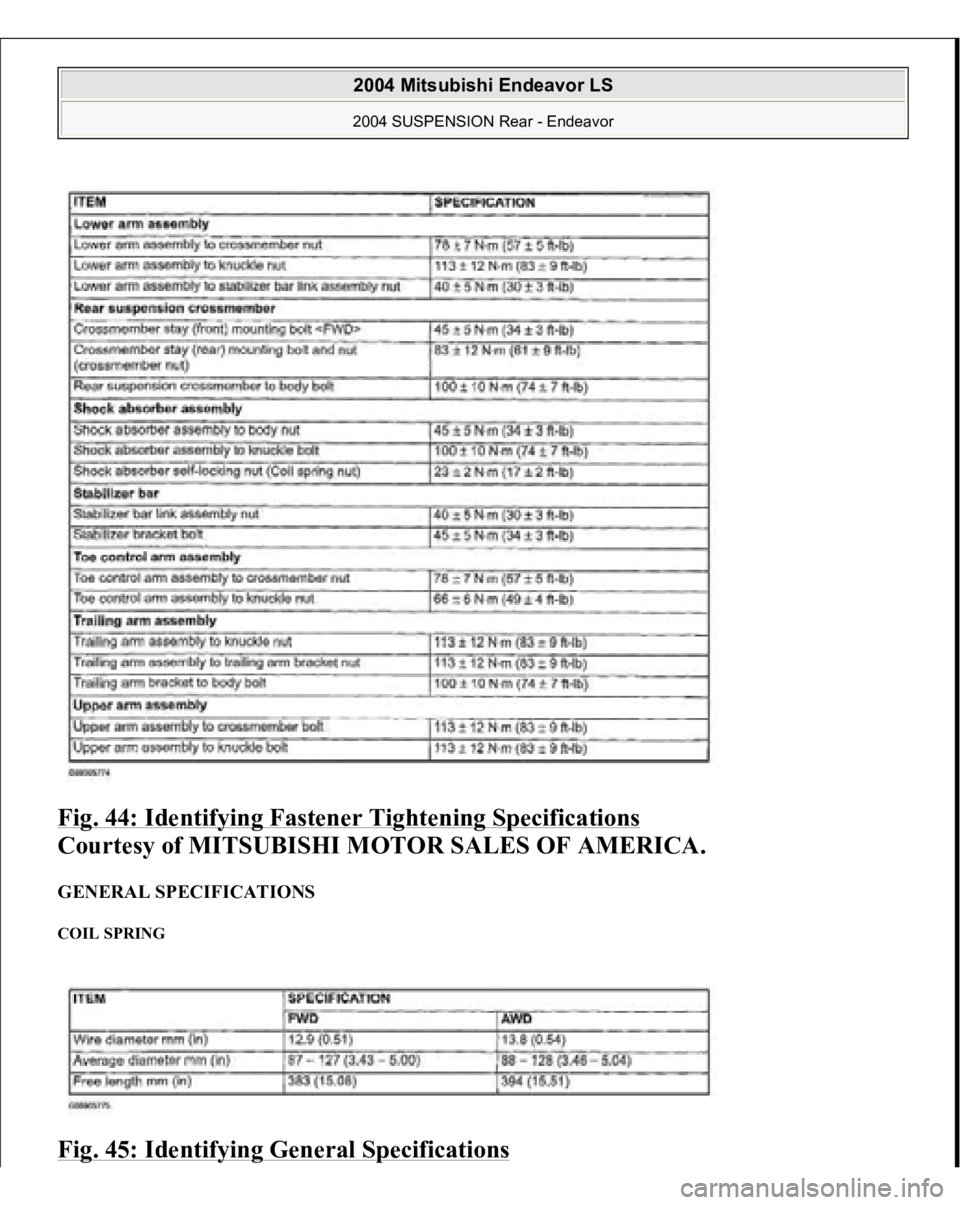

Fig. 44: Identifying Fastener Tightening Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
GENERAL SPECIFICATIONS COIL SPRING Fig. 45: Identifying General Specifications
2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.

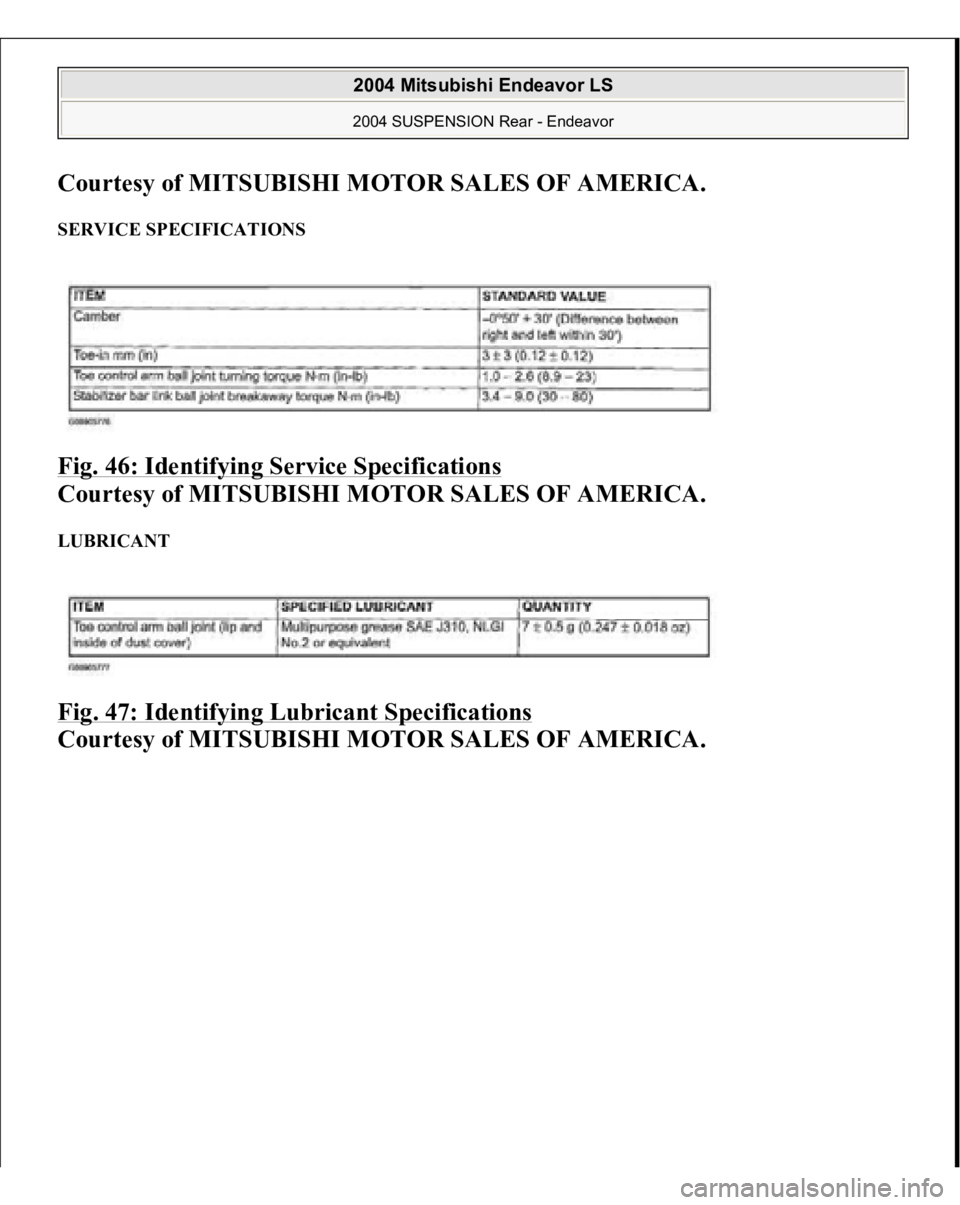

SERVICE SPECIFICATIONS Fig. 46: Identifying Service Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
LUBRICANT Fig. 47: Identifying Lubricant Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor

2004 BODY & ACCESSORIES
Front & Rear Seat Assembly - Endeavor
FRONT SEAT ASSEMBLY REMOVAL AND INSTALLATION Post-installation Operation
Adjustment Procedures of Special Function (refer to AIR BAG RESTRAINT SYSTEMS
.
WARNING:
Before removing the front seat assembly, refer
to SERVICE PRECAUTIONS and AIR BAG RESTRAINT SYSTEMS
.
When removing and installing the front
passenger seat, be sure to carry out accuracy
check occupant classification sensor after the
seat has been installed in the vehicle. (Refer to
AIR BAG RESTRAINT SYSTEMS
.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Front & Rear Seat Assembly - Endeavor


2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Front & Rear Seat Assembly - Endeavor

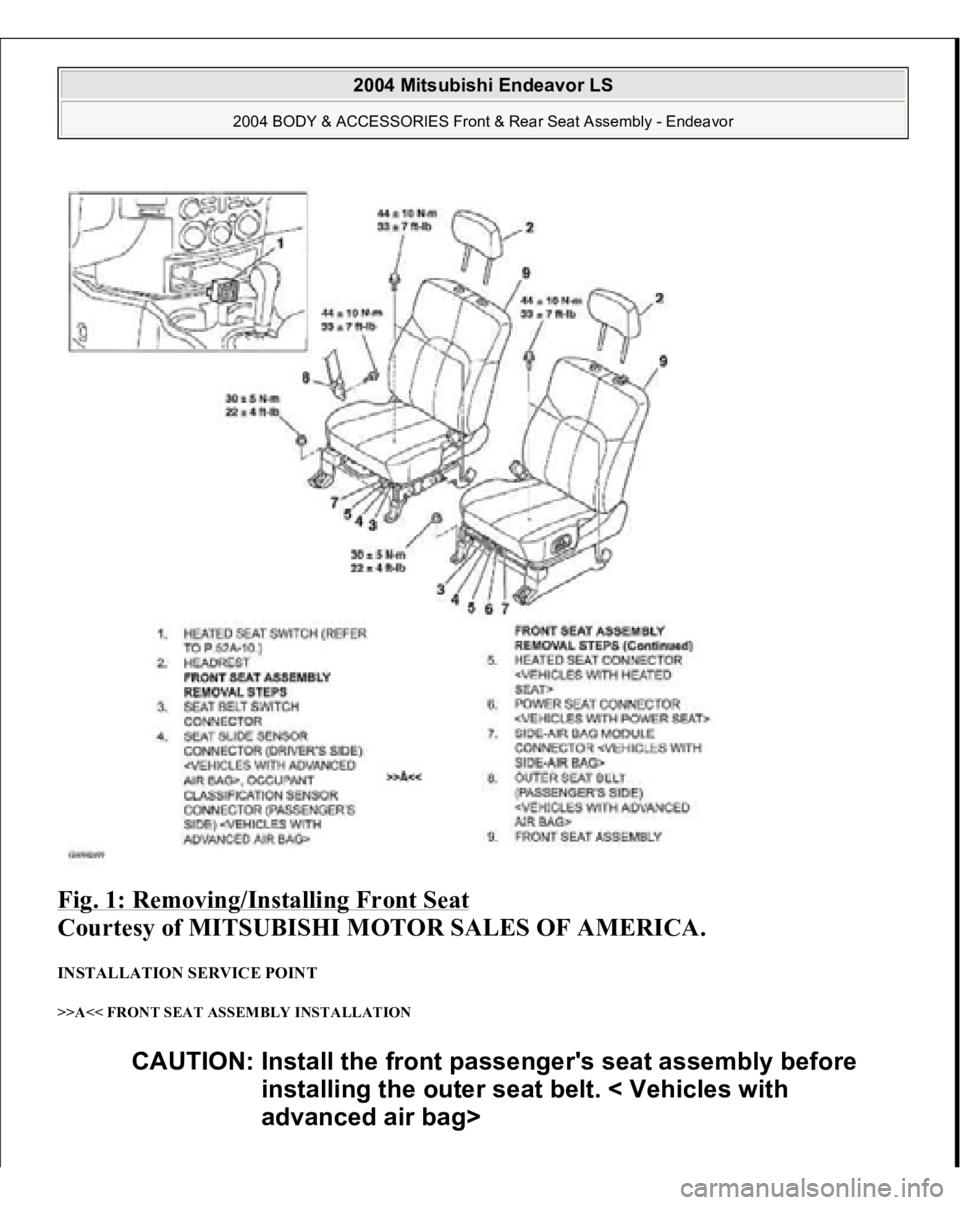

Fig. 1: Removing/Installing Front Seat

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSTALLATION SERVICE POINT >>A<< FRONT SEAT ASSEMBLY INSTALLATION
CAUTION: Install the front passenger's seat assembly before
installing the outer seat belt. < Vehicles with
advanced air bag>

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Front & Rear Seat Assembly - Endeavor
