2004 MITSUBISHI ENDEAVOR Rear end

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
REAR WASHER FLUID EJECTION CHECK If the rear washer does not spray washer fluid within the area shown, adjust it by
moving it.
Fig. 7: Checking Washer Fluid Ejection

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
REAR WIPER AND WASHER REMOVAL AND INSTALLATION
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Rear Wiper And Washer - Endeavor

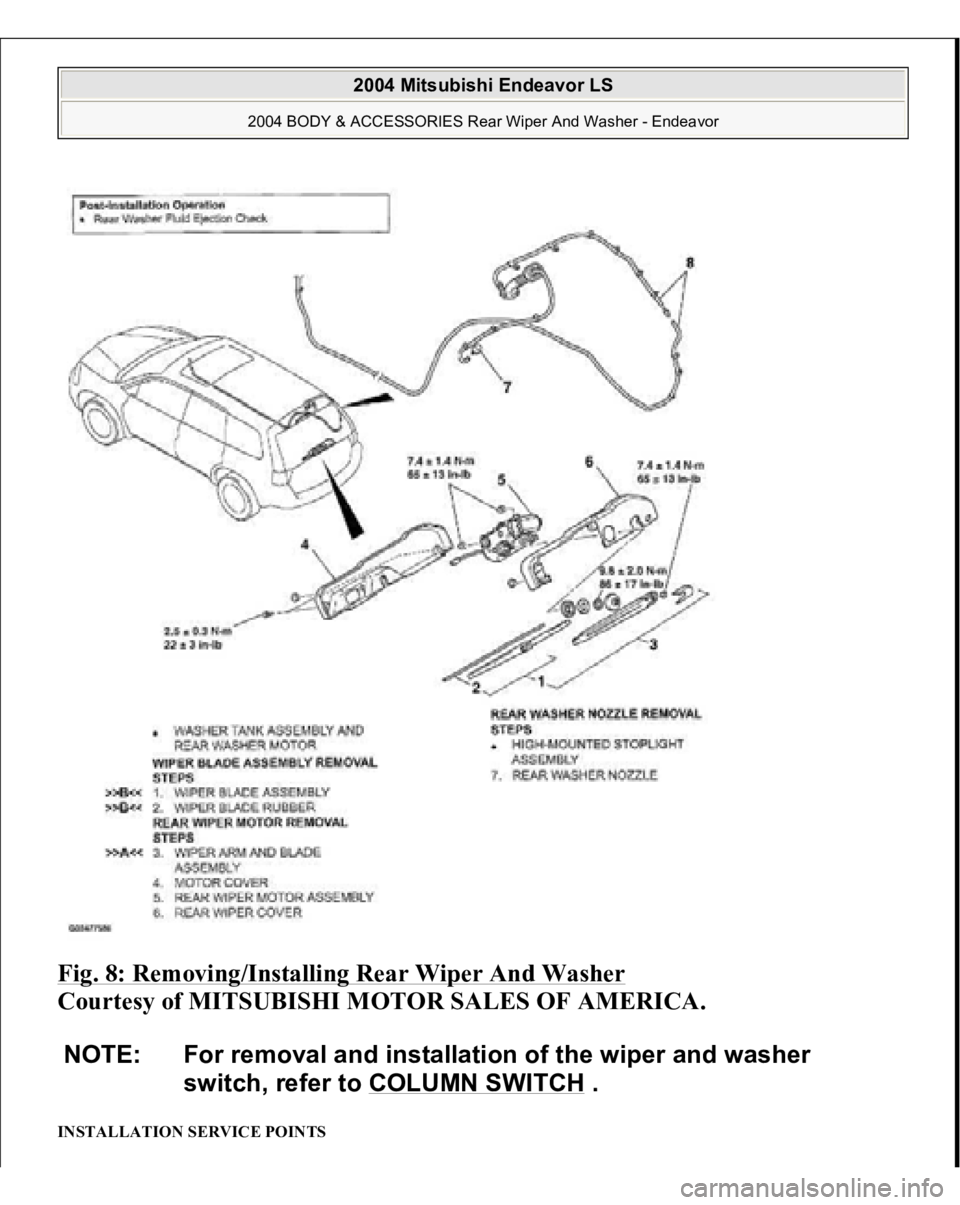

Fig. 8: Removing/Installing Rear Wiper And Washer

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSTALLATION SERVICE POINTS NOTE: For removal and installation of the wiper and washer
switch, refer to COLUMN SWITCH
.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Rear Wiper And Washer - Endeavor

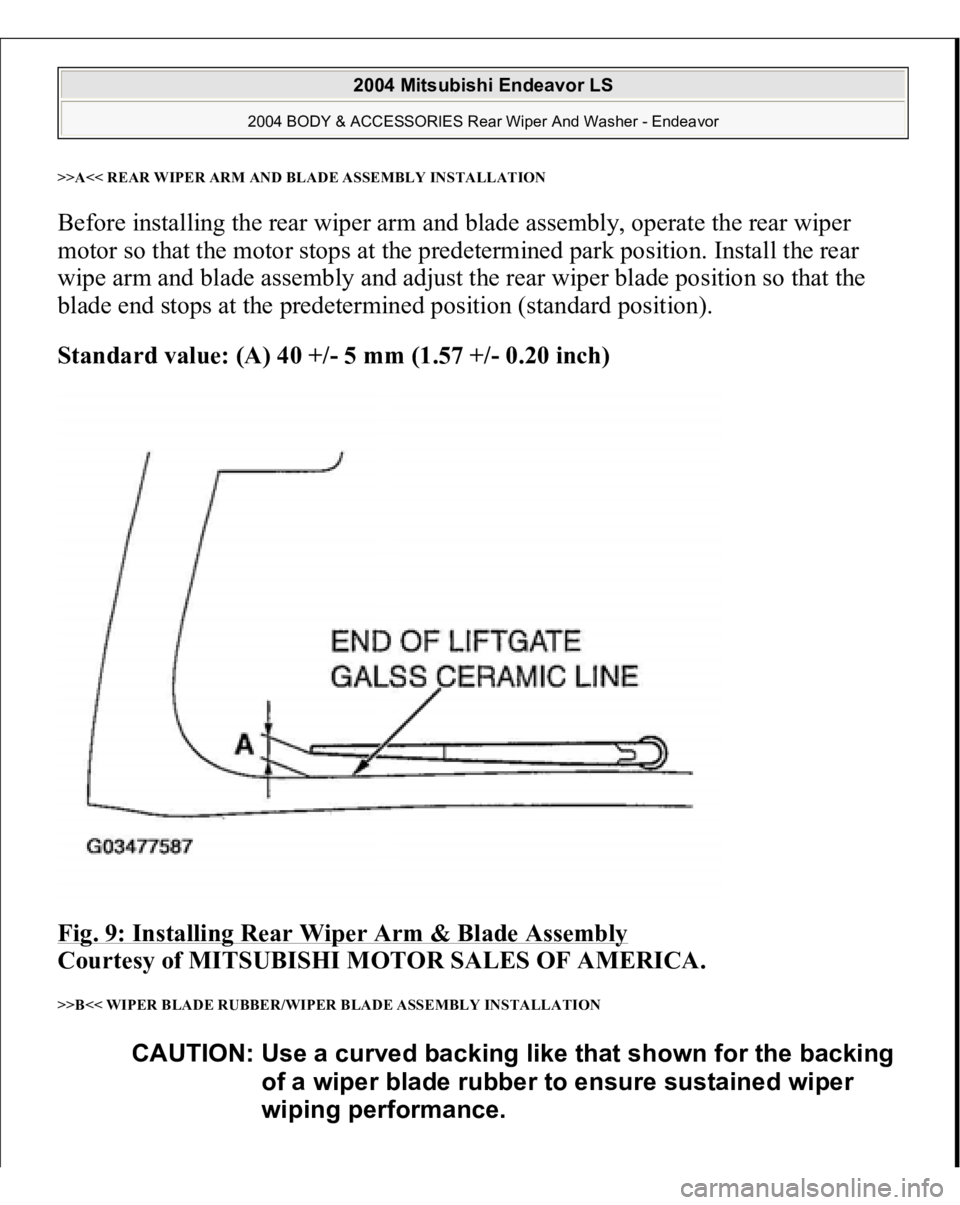

>>A<< REAR WIPER ARM AND BLADE ASSEMBLY INSTALLATIONBefore installing the rear wiper arm and blade assembly, operate the rear wiper
motor so that the motor stops at the predetermined park position. Install the rear
wipe arm and blade assembly and adjust the rear wiper blade position so that the
blade end stops at the predetermined position (standard position).
Standard value: (A) 40 +/- 5 mm (1.57 +/- 0.20 inch)
Fig. 9: Installing Rear Wiper Arm & Blade Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
>>B<< WIPER BLADE RUBBER/WIPER BLADE ASSEMBLY INSTALLATION
CAUTION: Use a curved backing like that shown for the backing
of a wiper blade rubber to ensure sustained wiper
wiping performance.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Rear Wiper And Washer - Endeavor

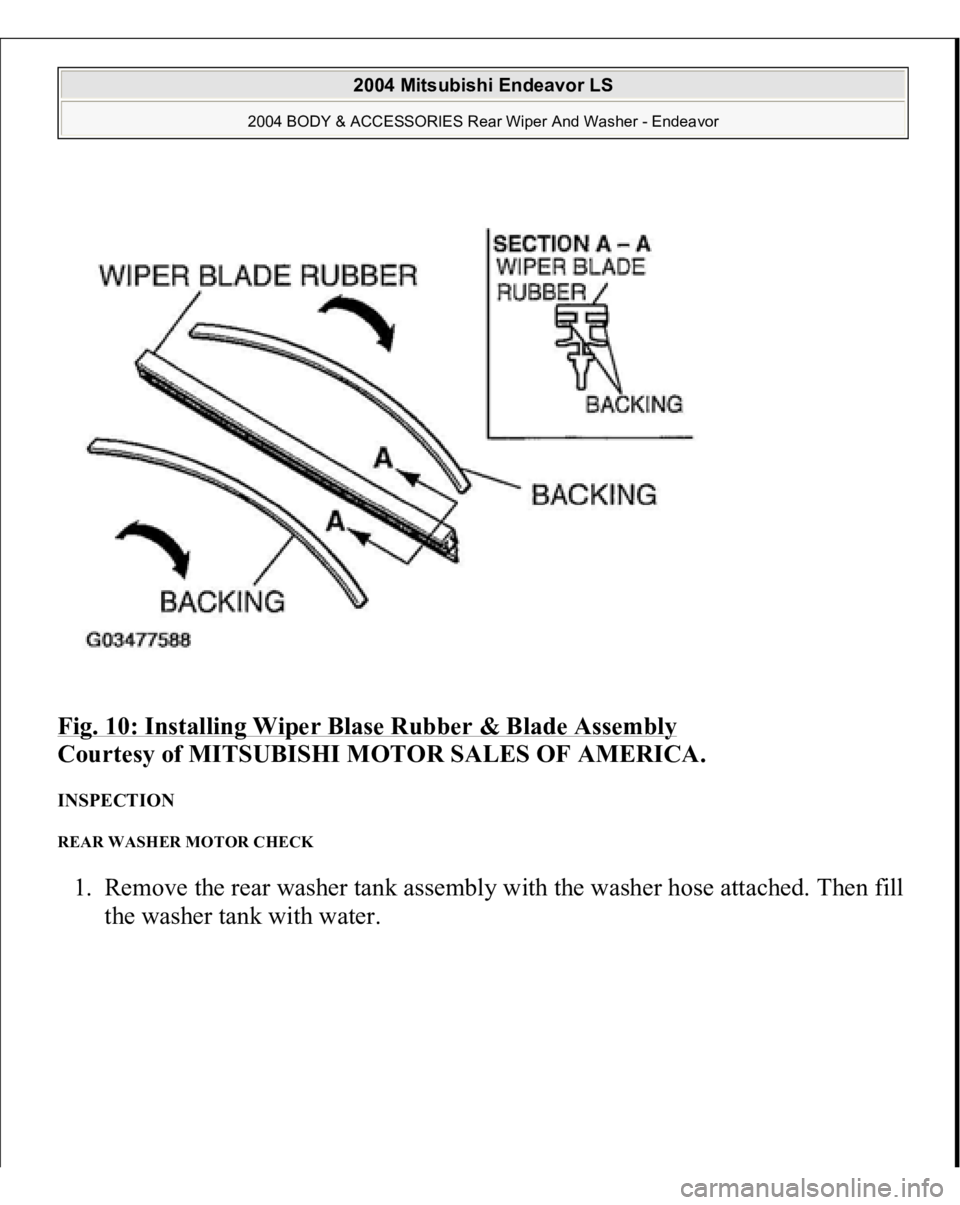

Fig. 10: Installing Wiper Blase Rubber & Blade Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSPECTION REAR WASHER MOTOR CHECK 1. Remove the rear washer tank assembly with the washer hose attached. Then fill
the washer tank with water.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Rear Wiper And Washer - Endeavor

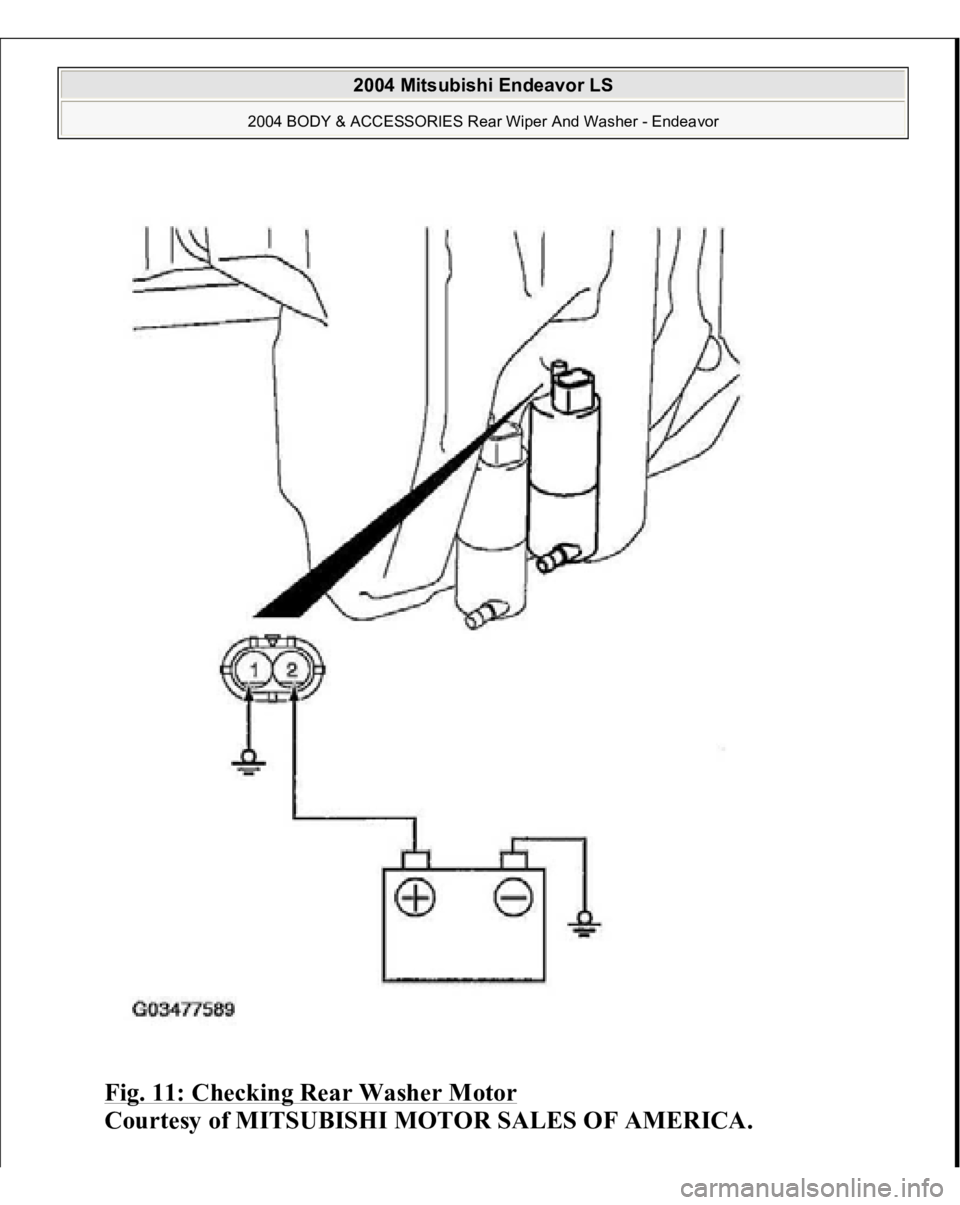

Fig. 11: Checking Rear Washer Motor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Rear Wiper And Washer - Endeavor

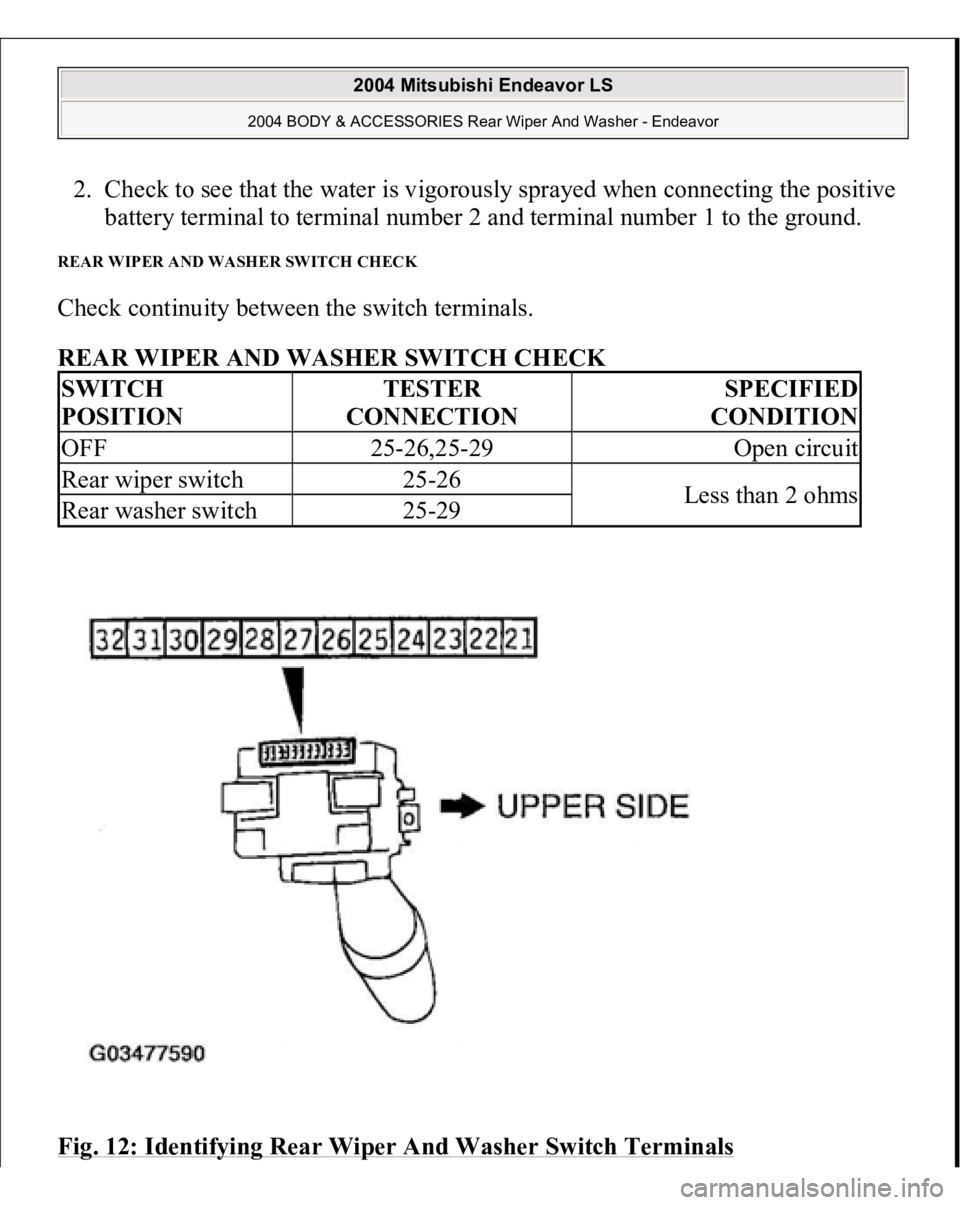

2. Check to see that the water is vigorously sprayed when connecting the positive
battery terminal to terminal number 2 and terminal number 1 to the ground. REAR WIPER AND WASHER SWITCH CHECK Check continuity between the switch terminals.
REAR WIPER AND WASHER SWITCH CHECK
Fig. 12: Identifying Rear Wiper And Washer Switch TerminalsSWITCH
POSITION
TESTER
CONNECTION
SPECIFIED
CONDITION
OFF
25-26,25-29
Open circuit
Rear wiper switch
25-26
Less than 2 ohms
Rear washer switch
25-29

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Rear Wiper And Washer - Endeavor

Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Rear Wiper And Washer - Endeavor

Fig. 57: Rear Washer/Wi
per Circui
t
