2004 MITSUBISHI ENDEAVOR Rear end

Fig. 6: Removing/Installing Sunroof Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Required Special Tool:
MB991223: Harness set

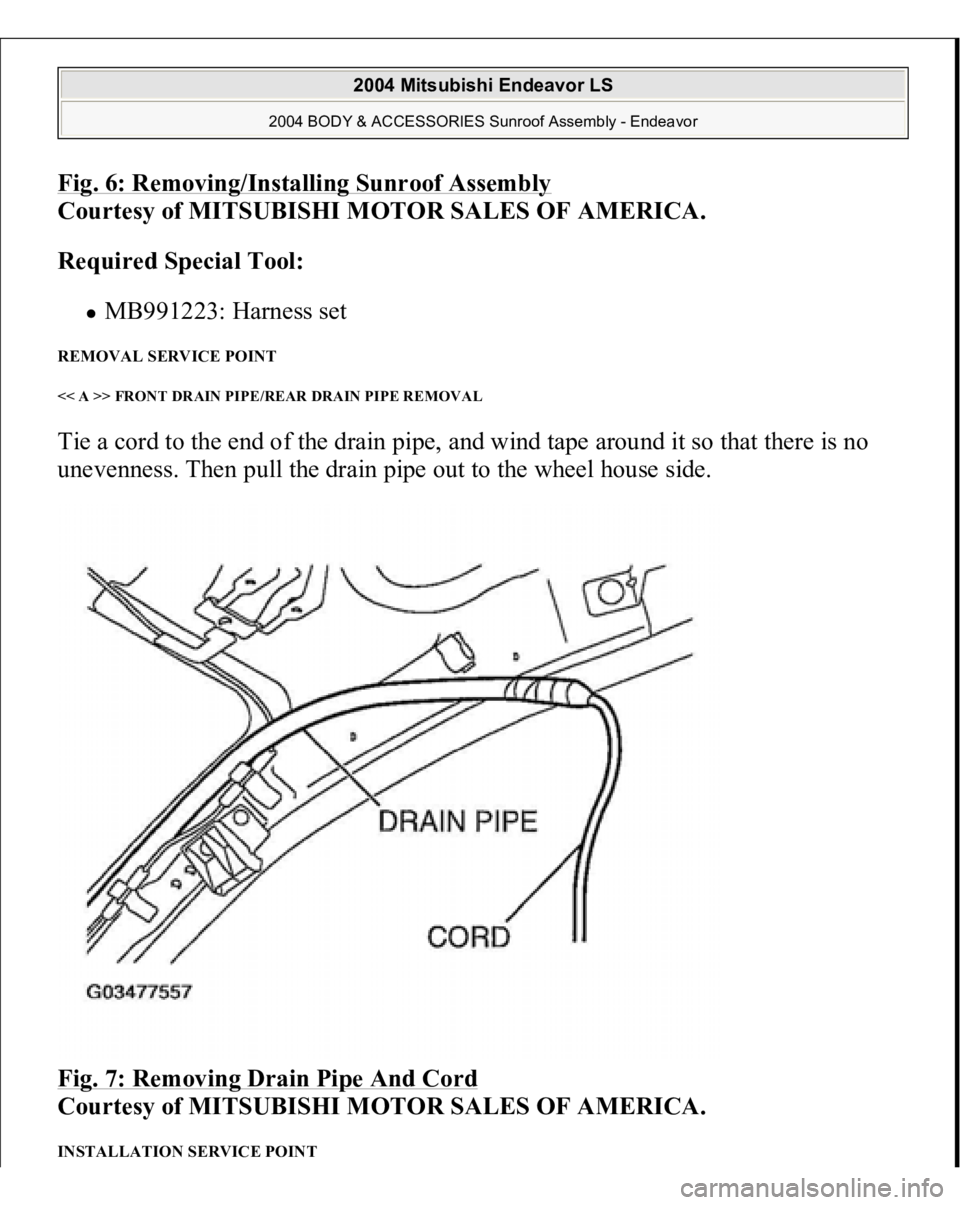

REMOVAL SERVICE POINT << A >> FRONT DRAIN PIPE/REAR DRAIN PIPE REMOVAL Tie a cord to the end of the drain pipe, and wind tape around it so that there is no
unevenness. Then pull the drain pipe out to the wheel house side.
Fig. 7: Removing Drain Pipe And Cord

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSTALLATION SERVICE POINT
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Sunroof Assembly - Endeavor

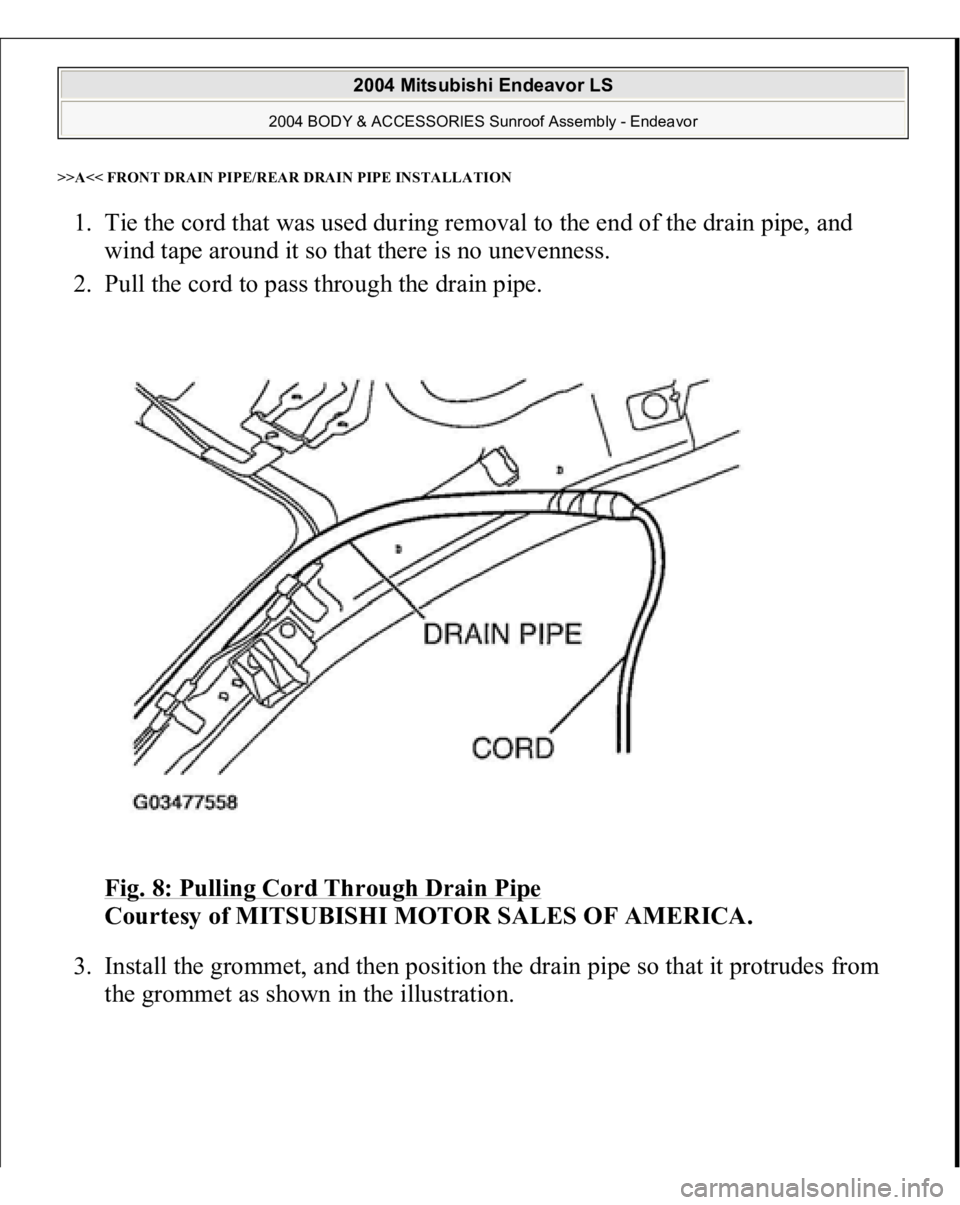

>>A<< FRONT DRAIN PIPE/REAR DRAIN PIPE INSTALLATION1. Tie the cord that was used during removal to the end of the drain pipe, and
wind tape around it so that there is no unevenness.
2. Pull the cord to pass through the drain pipe.
Fig. 8: Pulling Cord Through Drain Pipe

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Install the grommet, and then position the drain pipe so that it protrudes from
the grommet as shown in the illustration.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Sunroof Assembly - Endeavor

Fig. 58: Inspecting Harness Connector

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Check the resistance and continuity between the terminals indicated in the table
below.
3. The terminal layout is shown in the illustration.
CONNECTOR TERMINAL
CHECK AT TCL/ASC-ECU TERMINAL VOLTAGE & TERMINAL VOLTAGE CHECK CHART Required Special Tool:
MB991952: ABS check harness
1. Disconnect the TCL/ASC-ECU connector A-32 and connect special tool
MB991952 between the TCL/ASC-ECU and the body-side harness connector.
Then use special tool MB991952 to measure the voltage between terminal 12
and each terminal.
2. The terminal la
youts are shown in the illustrations below.
CONNECTOR
TERMINAL NO.
SIGNAL
NORMAL
CONDITION
2 - body ground
Ground
Less than 2 ohms
9 - 10
Front-right wheel speed
sensor
1.24 - 1.64 kohm
11 - 17
Rear-right wheel speed
sensor
1.24 - 1.64 kohm
16 - 26
Front-left wheel speed
sensor
1.24 - 1.64 kohm
18 - body ground
Ground
Less than 2 ohms
27 - 28
Rear-left wheel speed
sensor
1.24 - 1.64 kohm

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

Fig. 61: Checking Resistance And Continuity

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CONNECTOR TERMINAL
SPECIAL TOOLS CONNECTOR
TERMINAL NO.
SIGNAL
NORMAL
CONDITION
6 - 7
Rear-left wheel speed
sensor
1.24 - 1.64 kohm
8 - 9
Rear-right wheel speed
sensor
1.24 - 1.64 kohm
12 - body ground
Ground
Less than 2 ohms
21 - 30
Front-right wheel speed
sensor
1.24 - 1.64 kohm
22 - 31
Front-left wheel speed
sensor
1.24 - 1.64 kohm
34 - body ground
Ground
Less than 2 ohms

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

2004 Mitsubishi ENDEAVOR 04 - Engine > ENGINE AND ENGINE COOLING :
ENGINE [Part 061000 ]
TSB No: 0413004 NHTSA ID: , July 01, 2004 : Replacement: 0413004R
Summary: power train control module (pcm) reprogramming for spark knock / diagnostic
trouble code (dtc) 0171. *tt

2004 Mitsubishi ENDEAVOR 04 - Power Train > POWER TRAIN [Part 100000 ]
TSB No: 0423001 NHTSA ID: , July 01, 2004 : Replacement: 0423001R
Summary: power train control module (pcm) reprogramming for a/t shift delay. *tt

2004 Mitsubishi ENDEAVOR 04 - Equipment > EQUIPMENT [Part 350000 ]
TSB No: 0454004 NHTSA ID: , May 01, 2004 : Replacement:
Summary: overhead console service parts. *tt

2004 Mitsubishi ENDEAVOR 04 - Air Bag > AIR BAGS [Part 140000 ]
TSB No: 0452B002 NHTSA ID: , March 01, 2004 : Replacement:
Summary: corrected advanced air bag troubleshooting procedures - service manual
revision. *tt

2004 Mitsubishi ENDEAVOR 04 - Differential Unit > POWER TRAIN : DRIVELINE
: DIFFERENTIAL UNIT [Part 105500 ]
TSB No: 0427001 NHTSA ID: , February 01, 2004 : Replacement:
Summary: rear differential noise diagnosis. *mr

2004 Mitsubishi ENDEAVOR 04 - Electrical Equipment > EQUIPMENT :
ELECTRICAL [Part 353000 ]
TSB No: 0442A001 NHTSA ID: , February 01, 2004 : Replacement:
Summary: remote keyless entry (all 2004 models). *tt

2004 Mitsubishi ENDEAVOR 04 - ABS Antilock > SERVICE BRAKES,
HYDRAULIC : ANTILOCK [Part 036000 ]
TSB No: 0435002 NHTSA ID: , January 01, 2004 : Replacement:
Summary: abs and tcl diagnostic trouble codes - service manual revision. *tt

Summary: this bulletin contains repair procedures for possible conditions which may
cause water leakage into the vehicle's spare tire well, resulting in a musty smell. *tt

2004 Mitsubishi ENDEAVOR 04 - Air conditioner > EQUIPMENT : ELECTRICAL :
AIR CONDITIONER [Part 353600 ]
TSB No: 0355010 NHTSA ID: , October 01, 2003 : Replacement:
Summary: air conditioner expansion valve whooping noise coming from the passenger
side of the instrument panel which occurs during normal air conditioning operation. *tt

2004 Mitsubishi ENDEAVOR 04 - Side Rear Glass > VISIBILITY : GLASS,
SIDE/REAR [Part 132000 ]
TSB No: 0342A003 NHTSA ID: , September 01, 2003 : Replacement:
Summary: front door glass coming loose from regulator. *tt

2004 Mitsubishi ENDEAVOR 04 - Power Window > VISIBILITY : POWER
WINDOW DEVICES AND CONTROLS [Part 133000 ]
TSB No: 0342A001 NHTSA ID: , August 13, 2003 : Replacement:
Summary: front door glass coming loose from regulator. *tt

2004 Mitsubishi ENDEAVOR 04 - Differential Unit > POWER TRAIN : DRIVELINE
: DIFFERENTIAL UNIT [Part 105500 ]
TSB No: 94 NHTSA ID: , June 01, 2003 : Replacement:
Summary: rear differential noise. *tt

2004 Mitsubishi ENDEAVOR 04 - Bumper > STRUCTURE : BODY : BUMPERS
[Part 162200 ]
TSB No: 94 NHTSA ID: , June 01, 2003 : Replacement:
Summary: rear bumper poor fit. *tt

2004 Mitsubishi ENDEAVOR 04 - Windshield Wiper Washer > VISIBILITY :
WINDSHIELD WIPER/WASHER [Part 136000 ]
TSB No: 94 NHTSA ID: , June 01, 2003 : Replacement:
Summary: windshield washer spray. *tt

2004 Mitsubishi ENDEAVOR 04 - Electrical Equipment > EQUIPMENT :
ELECTRICAL [Part 353000 ]
TSB No: 94 NHTSA ID: , June 01, 2003 : Replacement:
Summary: power plant check harness mb991923 available for loan at no charge for a
limited time only. *tt

2004 Mitsubishi ENDEAVOR 04 - Door Hinge > STRUCTURE : BODY : DOOR :
HINGE AND ATTACHMENTS [Part 162310 ]
TSB No: 94 NHTSA ID: , June 01, 2003 : Replacement:
Summary: door panel / interior trim panels coming loose. *tt

2004 Mitsubishi ENDEAVOR 04 - Body > STRUCTURE : BODY [Part 162000 ]
TSB No: 94 NHTSA ID: , June 01, 2003 : Replacement:
Summary: roof crossbars. *tt

2004 Mitsubishi ENDEAVOR 04 - Side Rear Glass > VISIBILITY : GLASS,
SIDE/REAR [Part 132000 ]
TSB No: 94 NHTSA ID: , June 01, 2003 : Replacement:
Summary: front door glass coming loose from regulator. *tt

2004 Mitsubishi ENDEAVOR 04 - Engine > ENGINE AND ENGINE COOLING :
ENGINE [Part 061000 ]
TSB No: 94 NHTSA ID: , June 01, 2003 : Replacement:
Summary: oil drip on oil filter. *tt

2004 Mitsubishi ENDEAVOR 04 - Radio CD Player > EQUIPMENT : ELECTRICAL :
RADIO/TAPE DECK/CD ETC. [Part 353400 ]
TSB No: 0354006 NHTSA ID: , June 01, 2003 : Replacement:
Summary: condensed diagnostic information and quick-reference troubleshooting charts
for servicing the audio systems with multi-center display used in the 2004 endeavor. *tt

2004 BODY & ACCESSORIES
Rear Wiper And Washer - Endeavor
GENERAL DESCRIPTION REAR WIPER OPERATION
If the rear wiper and washer switch is turned to the "INT" position with the
ignition switch at "ACC" or "ON" position, the ETACS-ECU turns ON the rear
wiper drive signal for three seconds (approximately two cycles), then 7.4
seconds later the intermittent motion operates every eight seconds. If the
selector lever is moved to the "R" position when the rear wiper and washer
switch is turned to the "INT" position and the ignition switch is at the "ACC"
or "ON" position, the park/neutral position switch "R" turns ON. One second
later, the ETACS-ECU turns ON the rear wiper drive signal for three seconds
(approximately two cycles). Then, 7.4 seconds later, the intermittent operation
(eight second cycles) is restored.
REAR WASHER OPERATION
If the rear wiper and washer switch is turned to the ON (washer) position with
the ignition switch at the "ACC" or "ON" position, the rear washer ON signal
is sent to the ETACS-ECU, causing the rear wiper signal to turn on after 0.3
seconds. After the rear washer switch signal turns off, the rear wiper signal
turns off in three seconds. If the rear washer switch is turned to the ON
position while the rear wiper is in intermittent mode, the rear washer works for
that period when the washer switch remains on. Then the rear wiper returns to
the intermittent mode.
REAR WIPER AND WASHER DIAGNOSIS The rear wiper and washer are controlled by the Simplified Wiring System (SWS).
For troubleshooting, refer to SWS DIAGNOSIS
.
ON-VEHICLE SERVICE CHECK OF REAR WIPER OPERATION WHEN SELECTOR LEVER IS AT THE "R" POSITION
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Rear Wiper And Washer - Endeavor


2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Rear Wiper And Washer - Endeavor
