2004 MITSUBISHI ENDEAVOR Rear end

1. When the selector lever is moved to the "R" position with the rear wiper switch
at the "INT" position, the wiper should operate twice or three times at low
speed after approximately one second.
2. If not, troubleshoot (Refer to SWS DIAGNOSIS
).
REAR WIPER MOTOR CHECK Inspect the rear wiper motor by removing the harness connector with the motor still
installed in the vehicle. WIPER MOTOR OPERATION 1. Remove the motor cover (Refer to REAR WIPER AND WASHER
).
2. Connect the rear wiper motor connector terminal num
ber 1 to the ground.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Rear Wiper And Washer - Endeavor

Fig. 1: Connecting Rear Wiper Motor Connector Terminal Number 1 To Ground

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Check to see that the rear wiper motor run, when connecting the positive

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Rear Wiper And Washer - Endeavor

battery terminal to rear wiper motor connector terminal number 3.

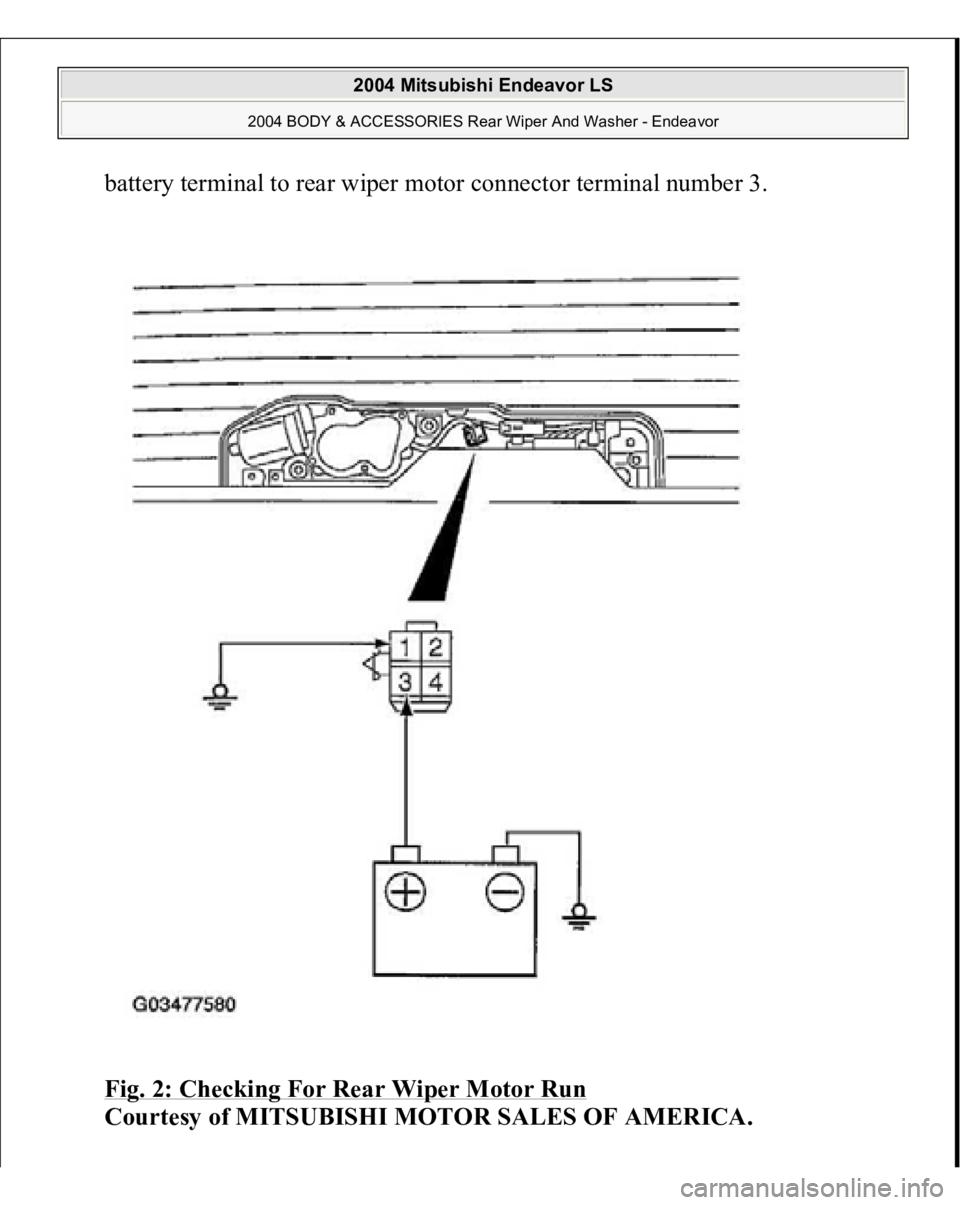

Fig. 2: Checking For Rear Wiper Motor Run

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Rear Wiper And Washer - Endeavor

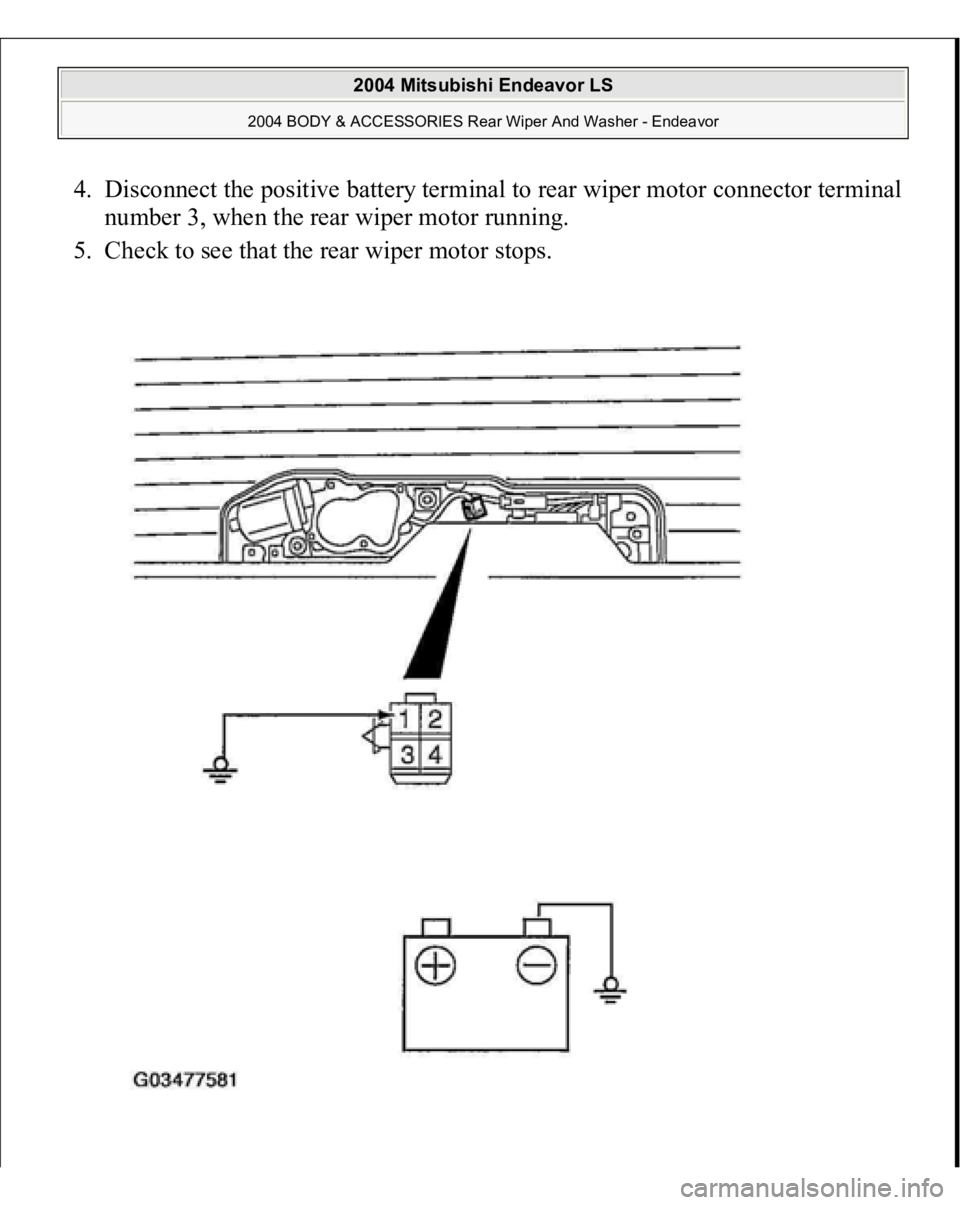

4. Disconnect the positive battery terminal to rear wiper motor connector terminal
number 3, when the rear wiper motor running.
5. Check to see that the rear wiper motor stops.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Rear Wiper And Washer - Endeavor

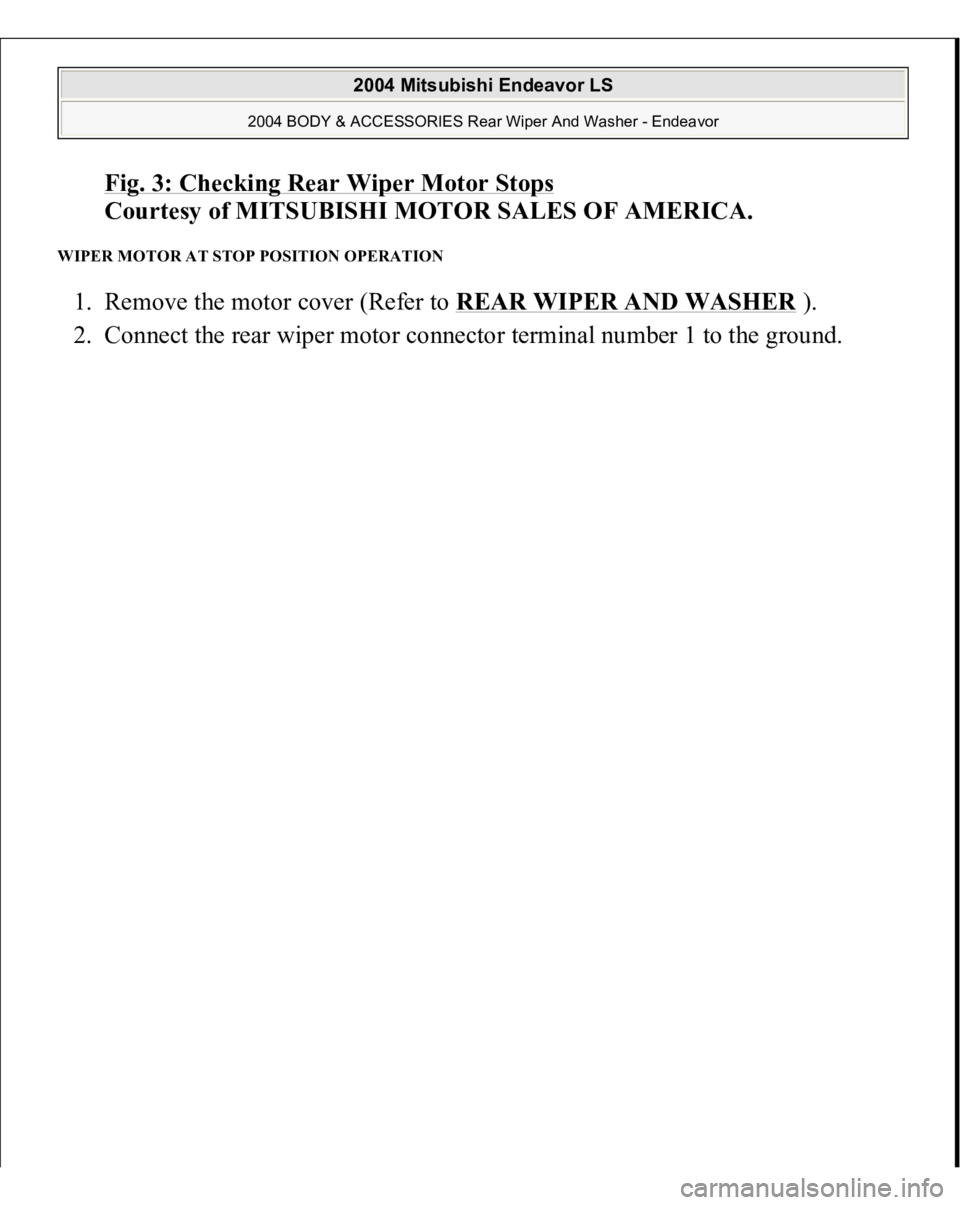

Fig. 3: Checking Rear Wiper Motor Stop
s
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
WIPER MOTOR AT STOP POSITION OPERATION 1. Remove the motor cover (Refer to REAR WIPER AND WASHER
).
2. Connect the rear wi
per motor connector terminal num
ber 1 to the
ground.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Rear Wiper And Washer - Endeavor

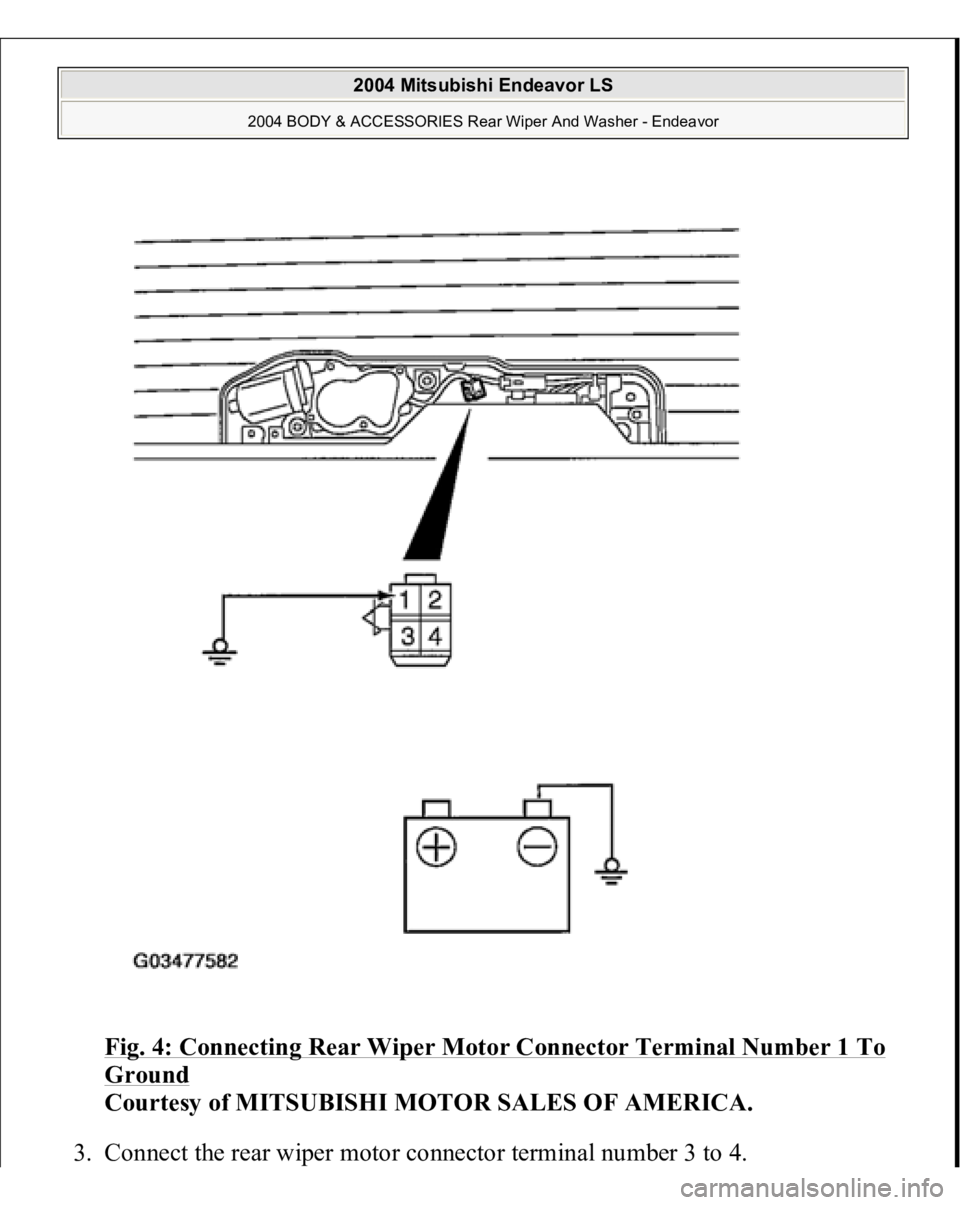

Fig. 4: Connecting Rear Wiper Motor Connector Terminal Number 1 To Ground

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Connect the rear wiper motor connector terminal num
ber 3 to 4.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Rear Wiper And Washer - Endeavor

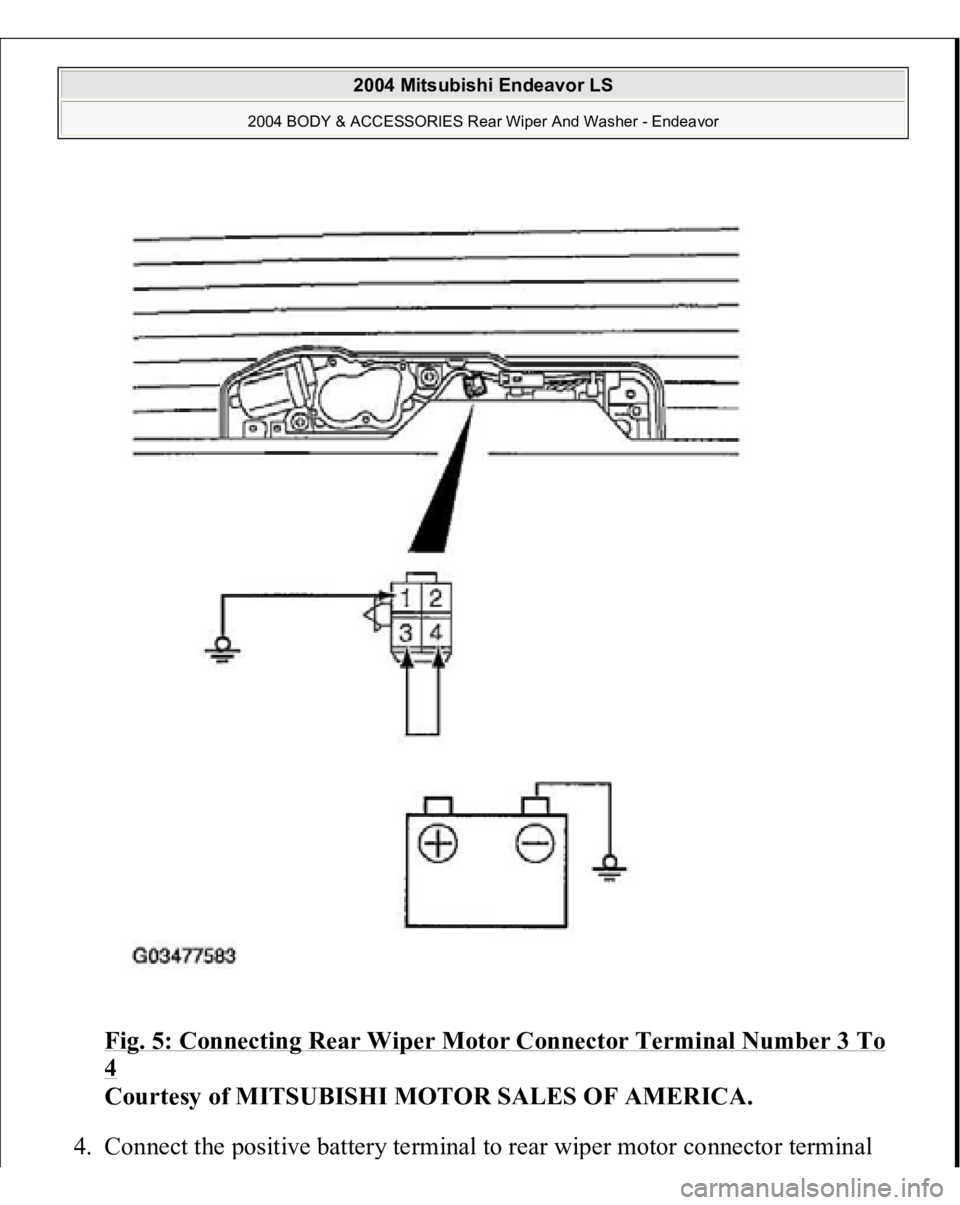

Fig. 5: Connecting Rear Wiper Motor Connector Terminal Number 3 To 4
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
4. Connect the
positive batter
y terminal to rear wi
per motor connector terminal

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Rear Wiper And Washer - Endeavor

number 2.
5. Check to see that the rear wiper motor runs and then stops at the automatic stop
position.

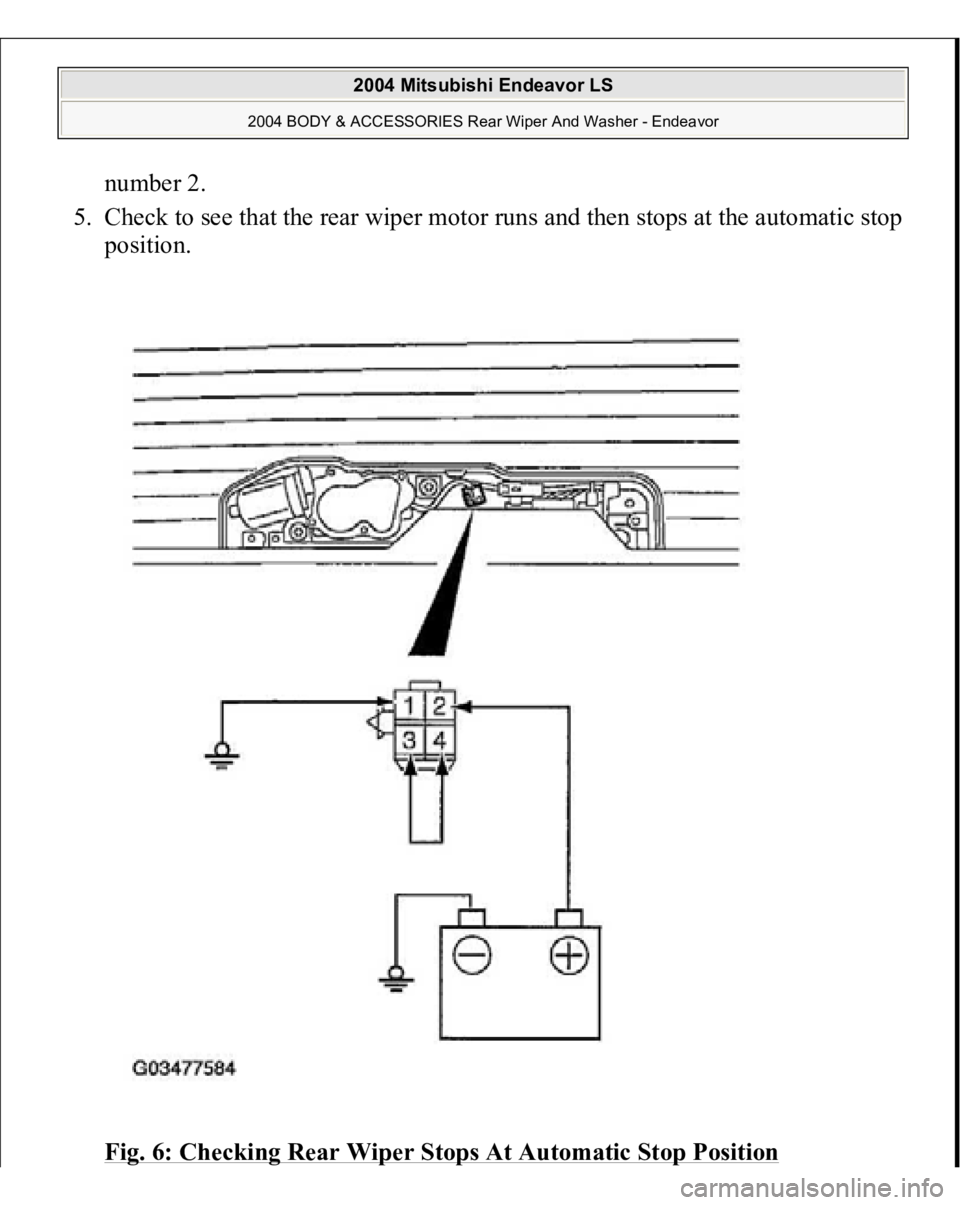

Fig. 6: Checking Rear Wiper Stops At Automatic Stop Position
