Fig. 108: Installing Drain Plug Gaske
t
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSPECTION OIL PUMP 1. Check the tip clearance.
Standard value: 0.06 - 0.18 mm (0.003 - 0.007 inch)
Fig. 109: Checking Tip Clearance

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Check the side clearance.
Standard value: 0.04 - 0.10 mm (0.002 - 0.003 inch)

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor

Fig. 110: Checking Side Clearance

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Check the body clearance.
Standard value: 0.10 - 0.18 mm (0.004 - 0.007 inch)
Limit: 0.35 mm (0.013 inch)

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor

Fig. 111: Checking Body Clearance

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
PISTON AND CONNECTING ROD REMOVAL AND INSTALLATION
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor

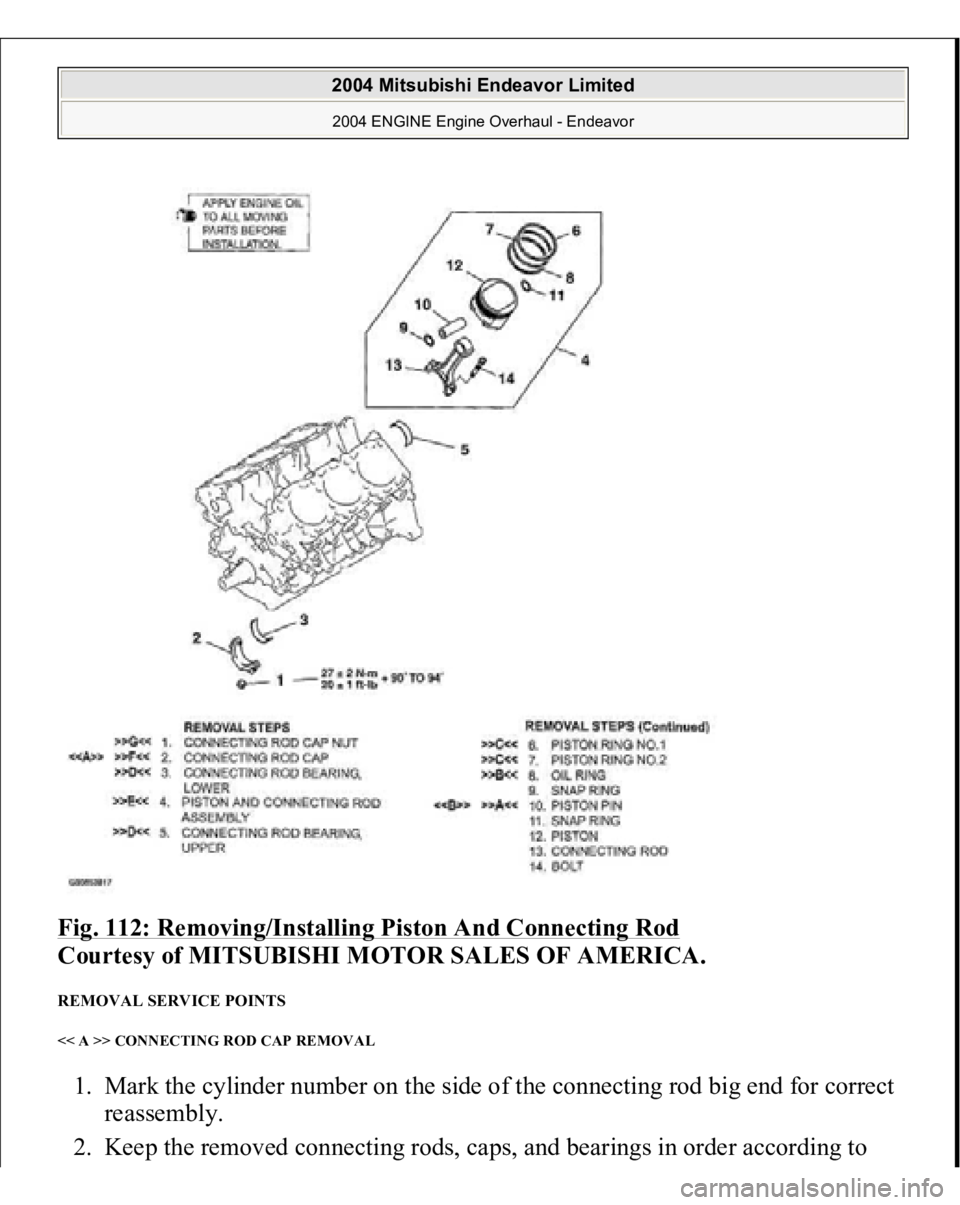

Fig. 112: Removing/Installing Piston And Connecting Rod

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
REMOVAL SERVICE POINTS << A >> CONNECTING ROD CAP REMOVAL 1. Mark the cylinder number on the side of the connecting rod big end for correct
reassembly.
2. Kee
p the removed connectin
g rods, ca
ps, and bearin
gs in order accordin
g to

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor

the cylinder number.

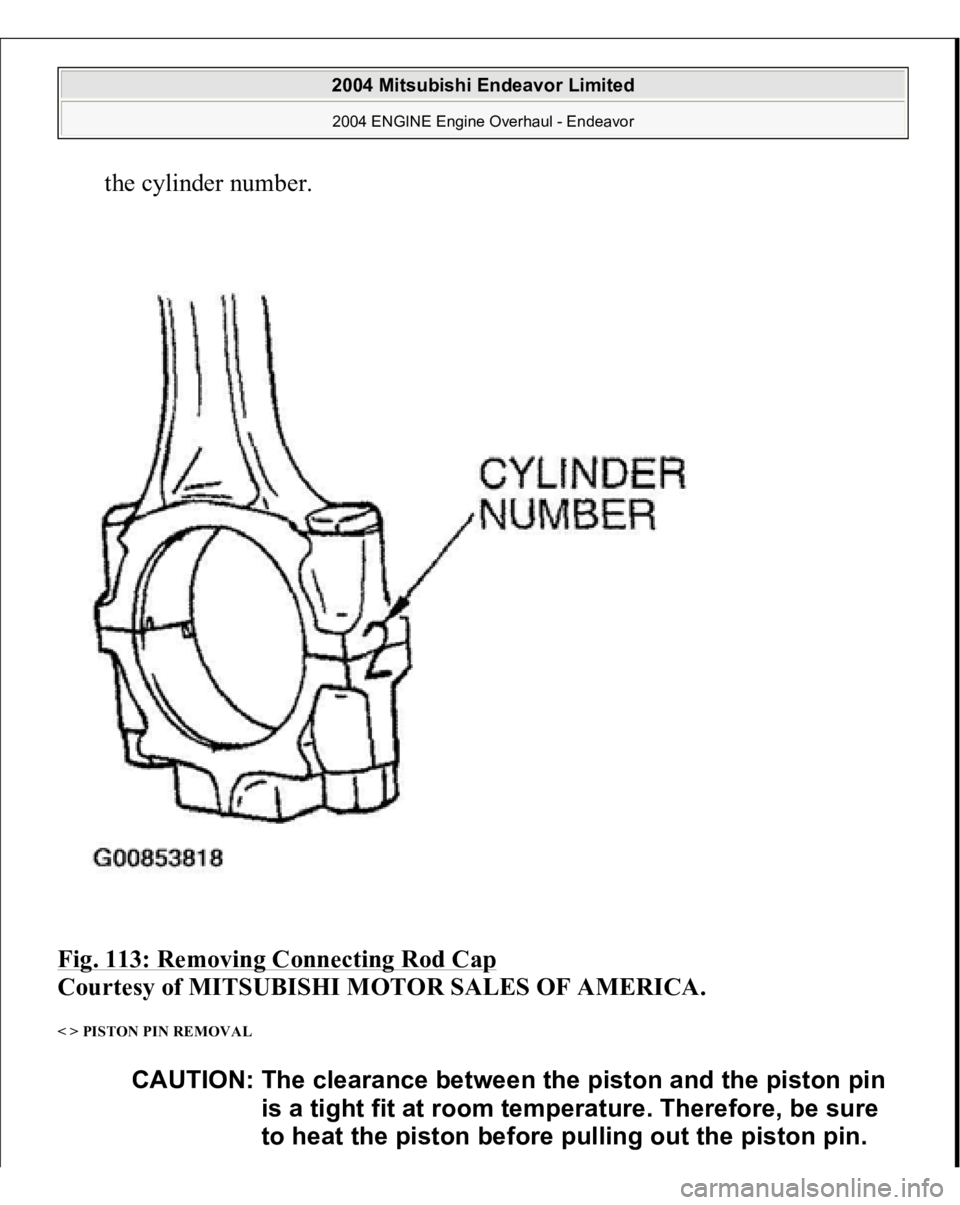

Fig. 113: Removing Connecting Rod Cap

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
< > PISTON PIN REMOVAL
CAUTION: The clearance between the piston and the piston pin
is a tight fit at room temperature. Therefore, be sure
to heat the piston before pulling out the piston pin.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor

1. Heat the piston approximately 70°C (158°F) and pull out the piston pin.

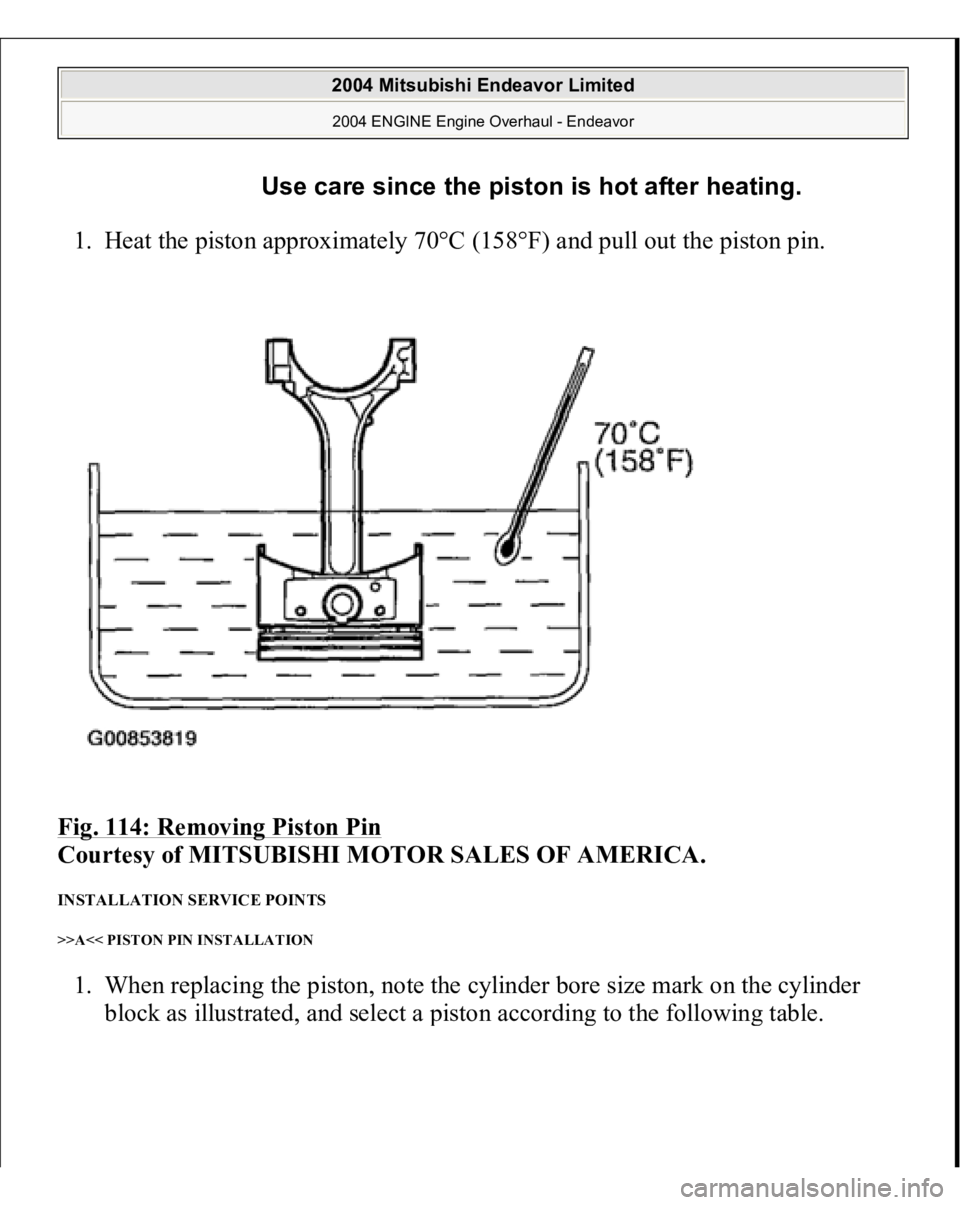

Fig. 114: Removing Piston Pin

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSTALLATION SERVICE POINTS >>A<< PISTON PIN INSTALLATION 1. When replacing the piston, note the cylinder bore size mark on the cylinder
block as illustrated, and select a
piston accordin
g to the followin
g table.
Use care since the piston is hot after heating.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor

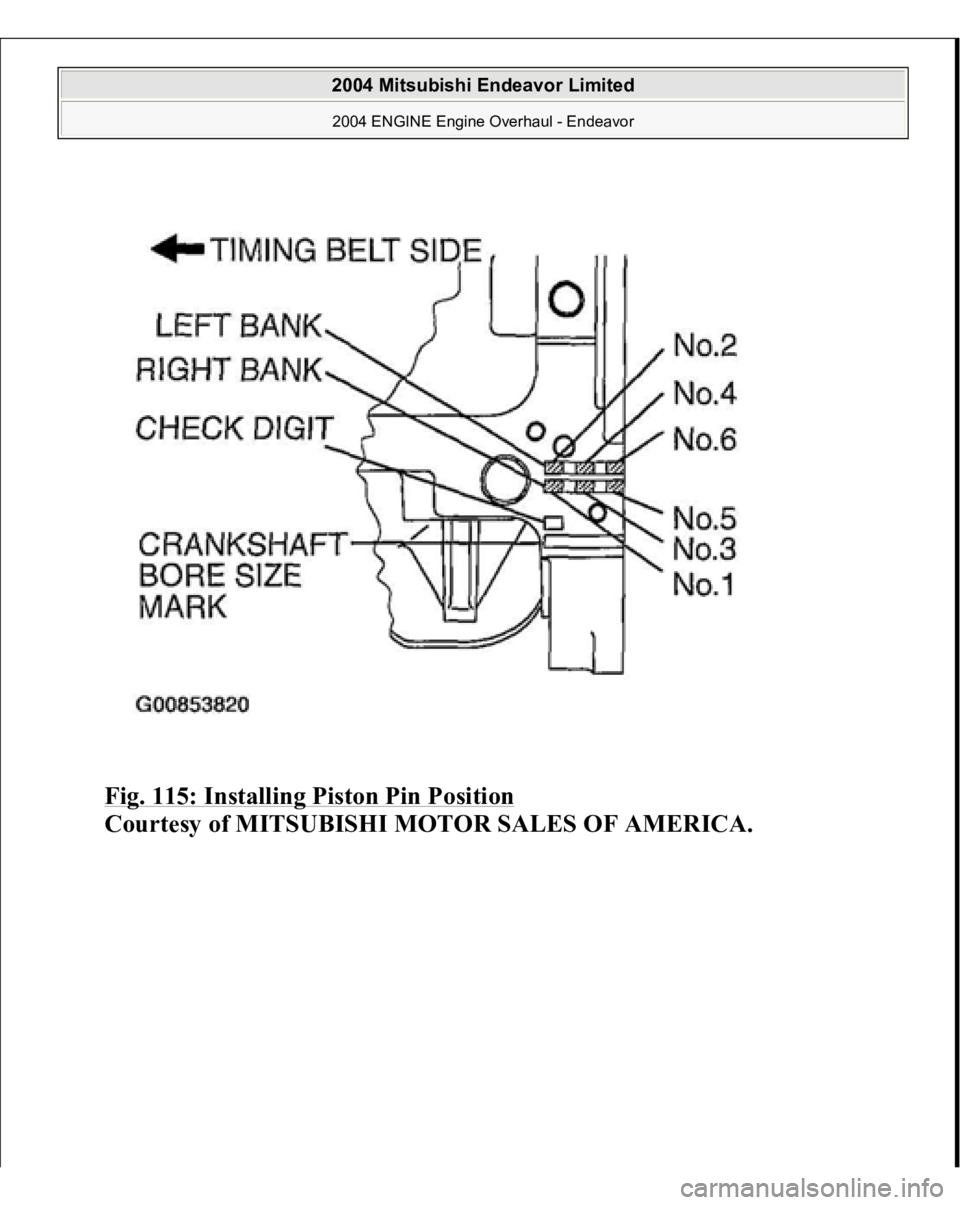

Fig. 115: Installing Piston Pin Position

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor

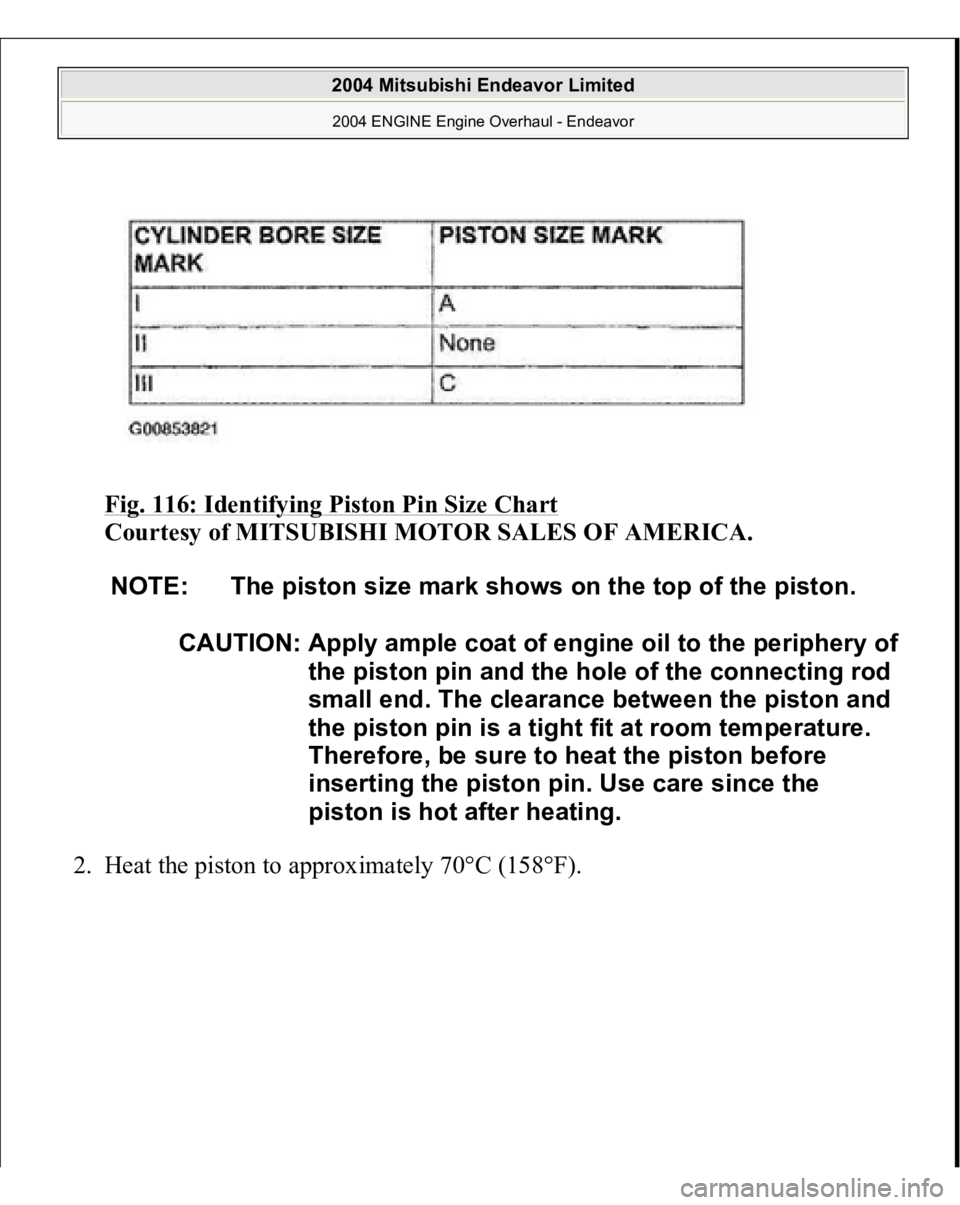

Fig. 116: Identifying Piston Pin Size Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Heat the piston to approximately 70°C (158°F).
NOTE: The piston size mark shows on the top of the piston.
CAUTION: Appl
y ample coat of en
gine oil to the peripher
y of
the piston pin and the hole of the connecting rod
small end. The clearance between the piston and
the piston pin is a tight fit at room temperature.
Therefore, be sure to heat the piston before
inserting the piston pin. Use care since the
piston is hot after heating.
