Page 1412 of 3870

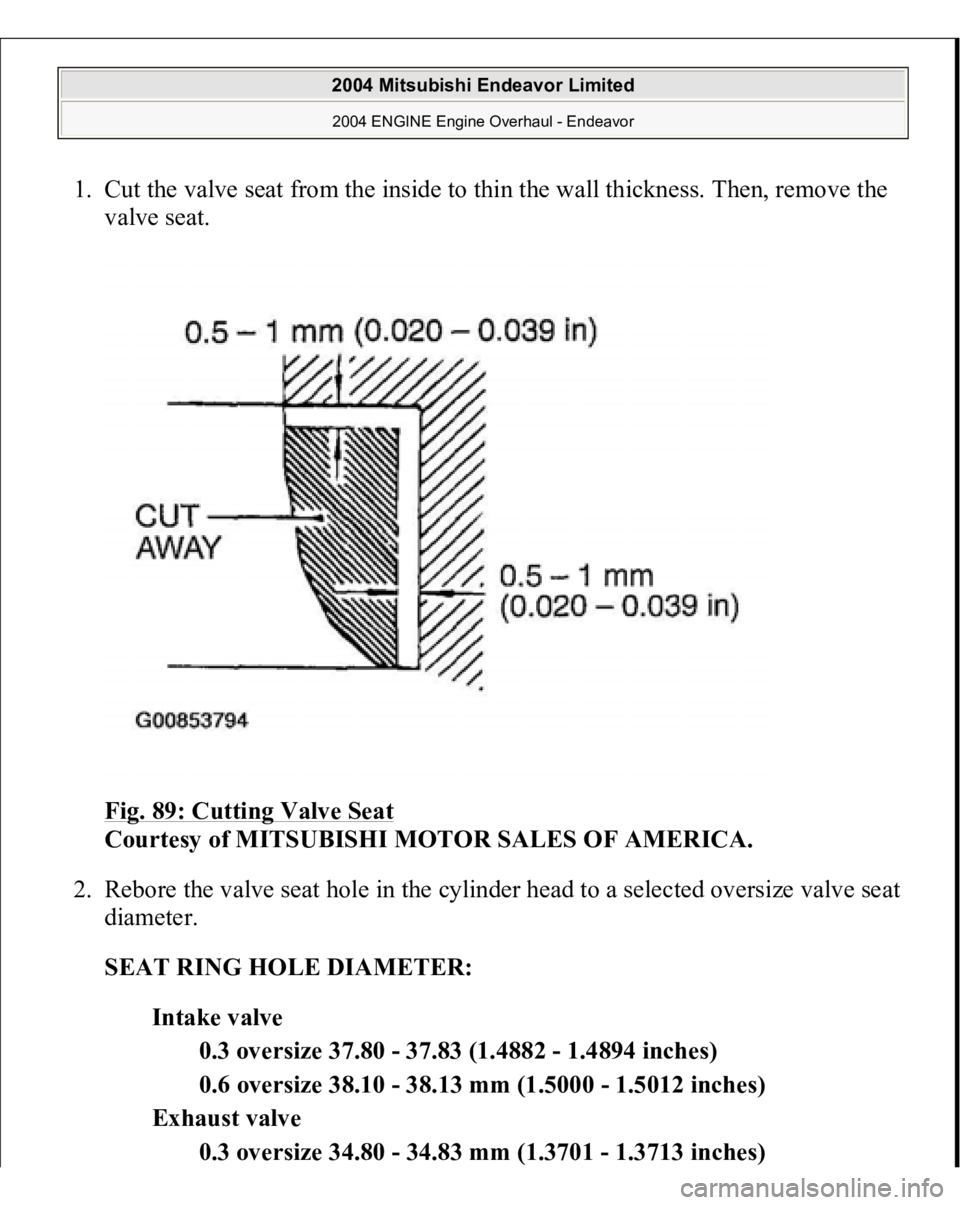

MITSUBISHI ENDEAVOR 2004  Service Repair Manual 1. Cut the valve seat from the inside to thin the wall thickness. Then, remove the
valve seat.
Fig. 89: Cutting Valve Seat

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Rebore the valve seat

Page 1413 of 3870

MITSUBISHI ENDEAVOR 2004  Service Repair Manual 0.6 oversize 35.10 - 35.13 mm (1.3819 - 1.3831 inches)
Fig. 90: Inspecting Seat Ring Hole Diameter

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Before fitting the valve seat, either heat the

Page 1414 of 3870

MITSUBISHI ENDEAVOR 2004  Service Repair Manual VALVE GUIDE REPLACEMENT PROCEDURE1. Remove the snap ring from the exhaust valve guide.
2. Using a press, remove the valve guide toward the cylinder head gasket surface.
Fig. 91: Identifying Valve G

Page 1415 of 3870

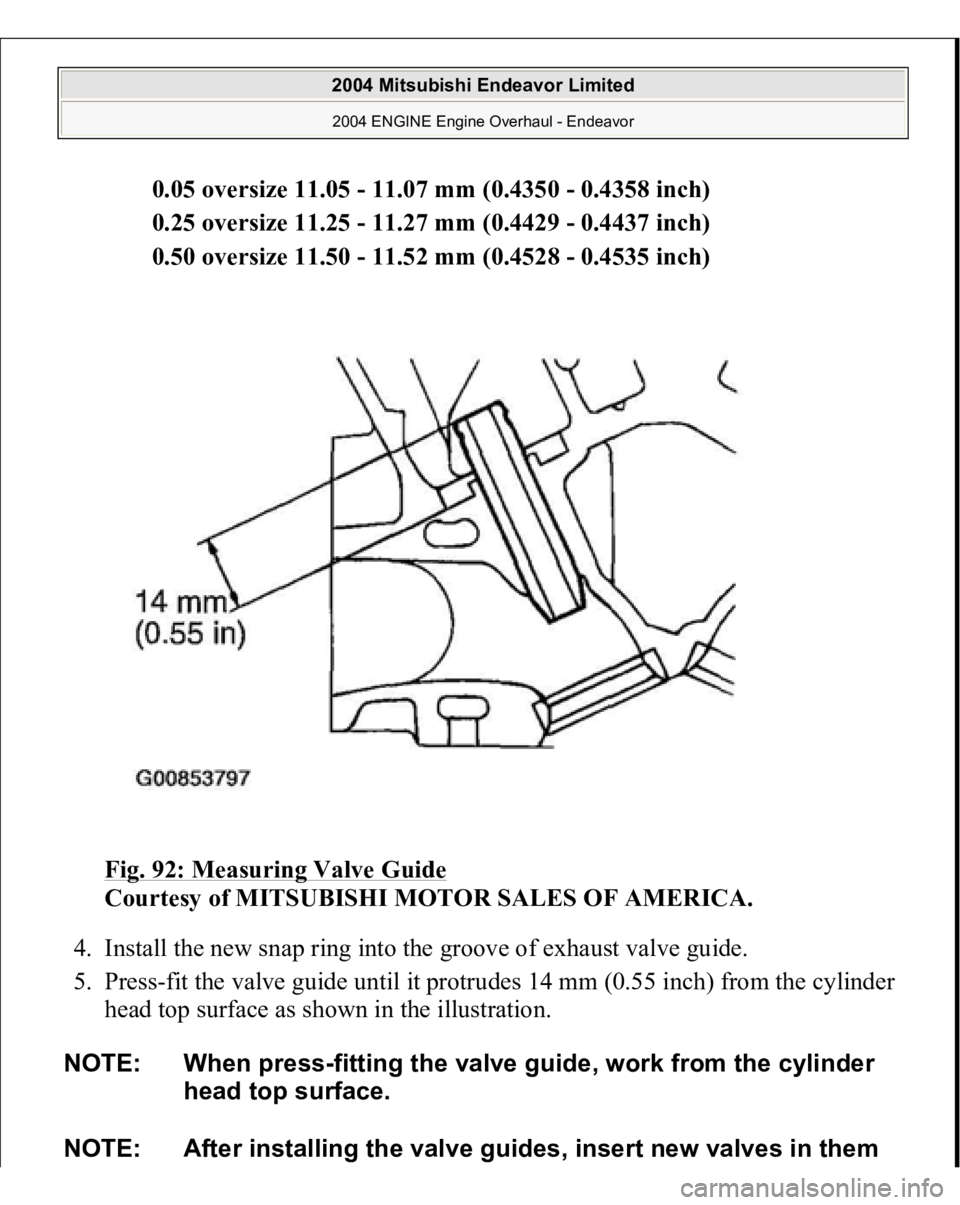

MITSUBISHI ENDEAVOR 2004  Service Repair Manual 0.05 oversize 11.05 - 11.07 mm (0.4350 - 0.4358 inch)
0.25 oversize 11.25 - 11.27 mm (0.4429 - 0.4437 inch)
0.50 oversize 11.50 - 11.52 mm (0.4528 - 0.4535 inch)
Fig. 92: Measuring Valve Guide

Page 1416 of 3870

MITSUBISHI ENDEAVOR 2004  Service Repair Manual OIL PAN AND OIL PUMP REMOVAL AND INSTALLATION Fig. 93: Removing/Installing Oil Pan And Oil Pump

to check for sliding condition.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endea

Page 1417 of 3870

MITSUBISHI ENDEAVOR 2004  Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
REQUIRED SPECIAL TOOL
MD998054: Oil Pressure Switch Socket Wrench  MD998717: Crankshaft Front Oil Seal Installer
REMOVAL SERVICE POINT << A >> OIL P

Page 1418 of 3870

MITSUBISHI ENDEAVOR 2004  Service Repair Manual Fig. 94: Identifying Long Bolt
s
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Remove all other bolts.
3. Remove the oil pan.
4. Screw M10 bolts into the two bolt holes in the oil pan to brea

Page 1419 of 3870

MITSUBISHI ENDEAVOR 2004  Service Repair Manual << C >> OUTER ROTOR/INNER ROTOR REMOVALMake alignment dots on the outer and inner rotors for ease of reassembly.
Fig. 96: Removing Outer Rotor/Inner Rotor

Courtesy of MITSUBISHI MOTOR SALES OF AMER
