2004 MITSUBISHI ENDEAVOR engine

Fig. 14: Identifying ILSAC Certification Symbol (From January 2004)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
If these oils are not available, an API classification SL, SL/CF can be used.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Lubrication - Endeavor

Fig. 15: Identifying API Service Symbol (From January 2004)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Lubrication - Endeavor

2004 ENGINE
Engine Overhaul - Endeavor
SPECIAL TOOLS
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor


2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor

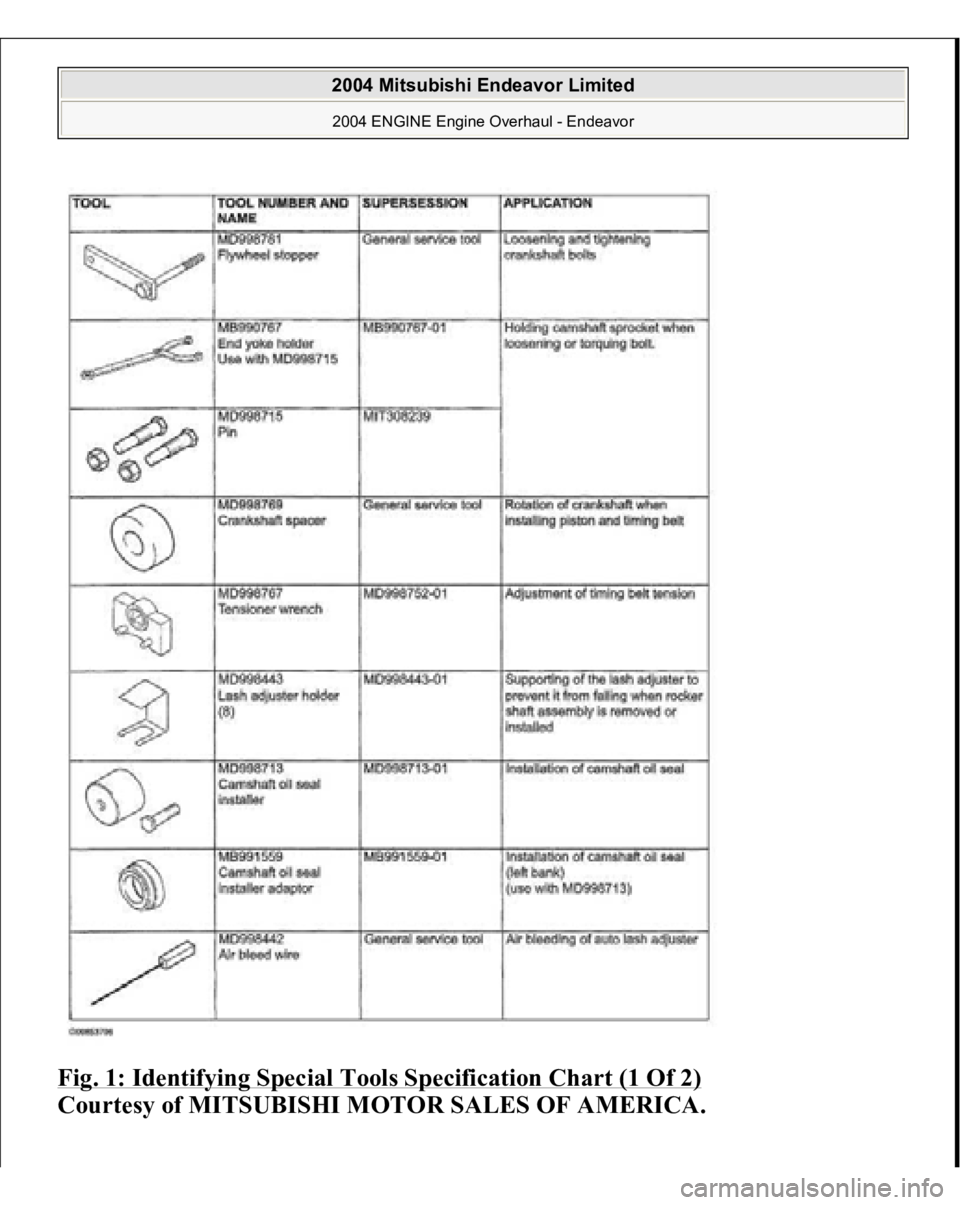

Fig. 1: Identifying Special Tools Specification Chart (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor

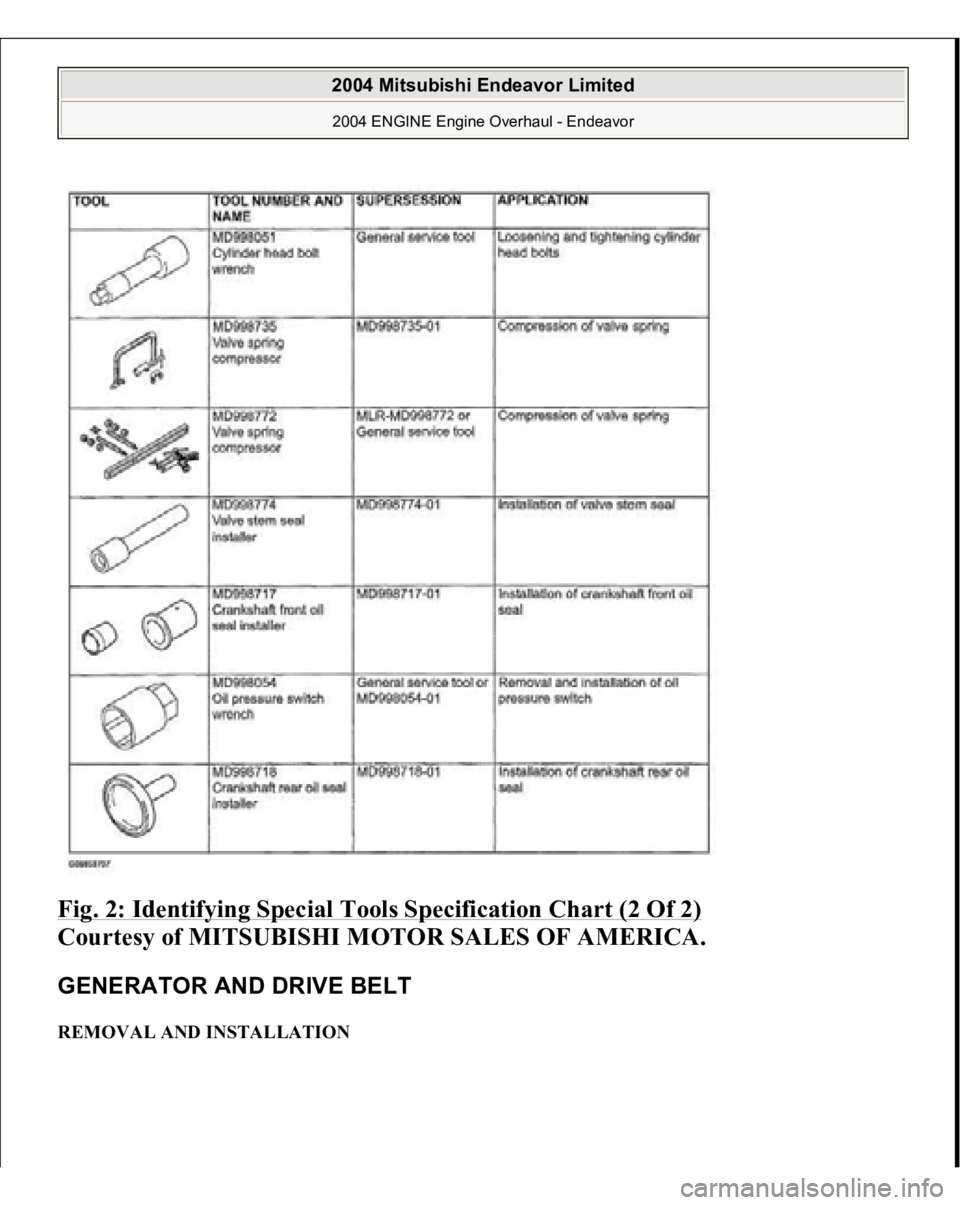

Fig. 2: Identifying Special Tools Specification Chart (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
GENERATOR AND DRIVE BELT REMOVAL AND INSTALLATION
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor

Fig. 3: Removing/Installing Generator And Drive Belt Component

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
REQUIRED SPECIAL TOOL:
MD998781: Flywheel Stopper
REMOVAL SERVICE POINT << A >> CRANKSHAFT BOLT LOOSENING
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor

1. Using special tool MD998781, hold the drive plate or flywheel.
2. Remove the crankshaft bolt.
Fig. 4: Removing Crankshaft Bolt Using Special Tool

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSTALLATION SERVICE POINT >>A<< CRANKSHAFT BOLT TIGHTENING 1. Usin
g special tool MD998781, hold the drive
plate or fl
ywheel.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor

Fig. 5: Holding The Drive Plate Or Flywheel Using Special Tool MD998781

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Clean the bolt hole in crankshaft bolt, damper pulley seating surface and the
washer.
3. Degrease the cleaned seating surface of the damper pulley.
4. Install the damper pulley.
5. Apply a minimum amount engine oil to the thread and lower flange of the
crankshaft bolt.
6. Install the washer to the crankshaft bolt with its inside chamfered side toward
the bolt head.
7. Tighten the crankshaft bolt to the specified torque.
Tightening torque: 185+/-5 N.m (137+/-3 ft-lb)

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor
