2004 MITSUBISHI ENDEAVOR engine

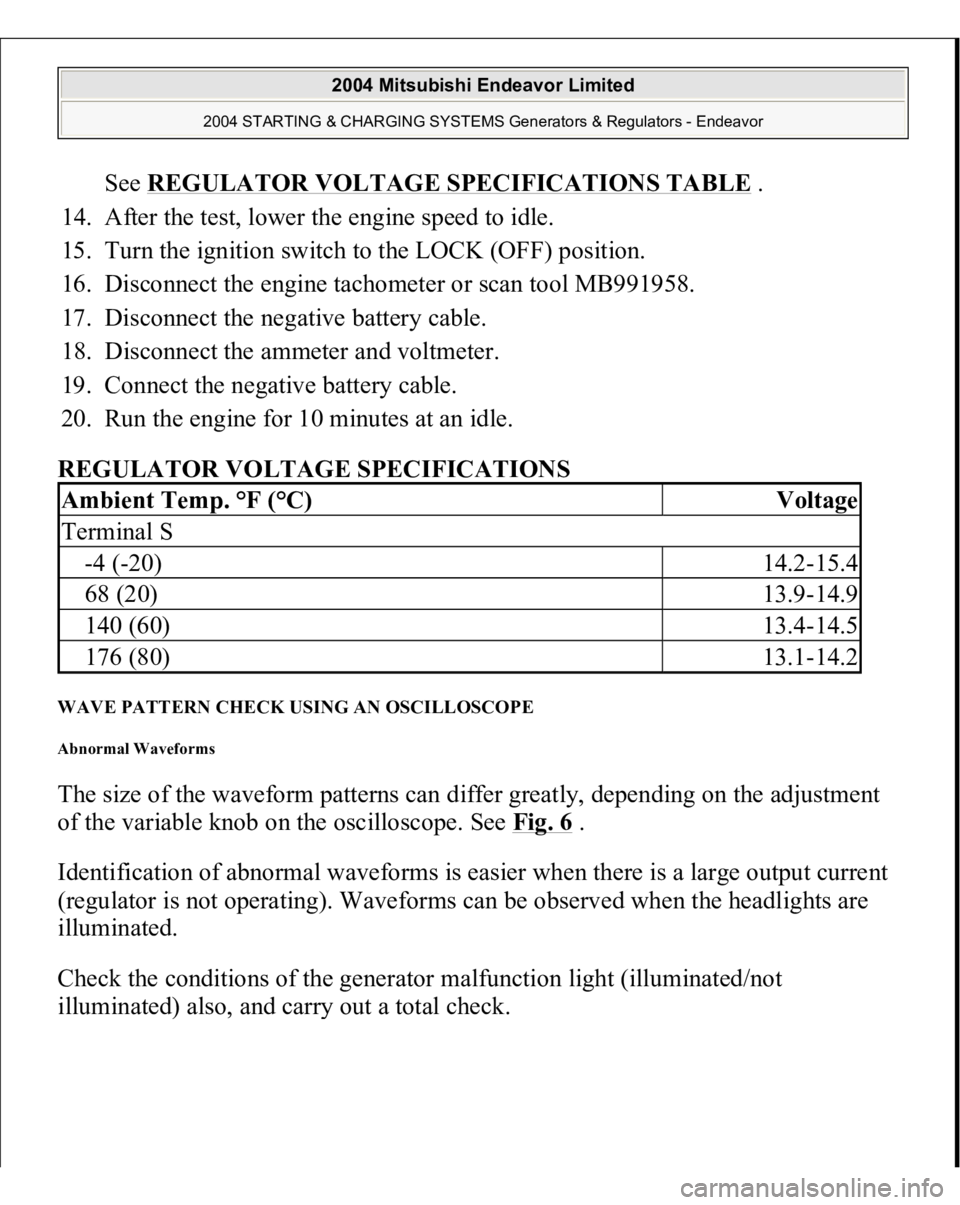

See REGULATOR VOLTAGE SPECIFICATIONS TABLE
.
14. After the test, lower the engine speed to idle.
15. Turn the ignition switch to the LOCK (OFF) position.
16. Disconnect the engine tachometer or scan tool MB991958.
17. Disconnect the negative battery cable.
18. Disconnect the ammeter and voltmeter.
19. Connect the negative battery cable.
20. Run the engine for 10 minutes at an idle.
REGULATOR VOLTAGE SPECIFICATIONS
WAVE PATTERN CHECK USING AN OSCILLOSCOPE Abnormal Waveforms The size of the waveform patterns can differ greatly, depending on the adjustment
of the variable knob on the oscilloscope. See Fig. 6
.
Identification of abnormal waveforms is easier when there is a large output current
(regulator is not operating). Waveforms can be observed when the headlights are
illuminated.
Check the conditions of the generator malfunction light (illuminated/not
illuminated
) also, and carr
y out a total check.
Ambient Temp. °F (°C)
Voltage
Terminal S-4 (-20)
14.2-15.4
68 (20)
13.9-14.9
140 (60)
13.4-14.5
176 (80)
13.1-14.2

2004 Mitsubishi Endeavor Limited
2004 STARTING & CHARGING SYSTEMS Generators & Regulators - Endeavor

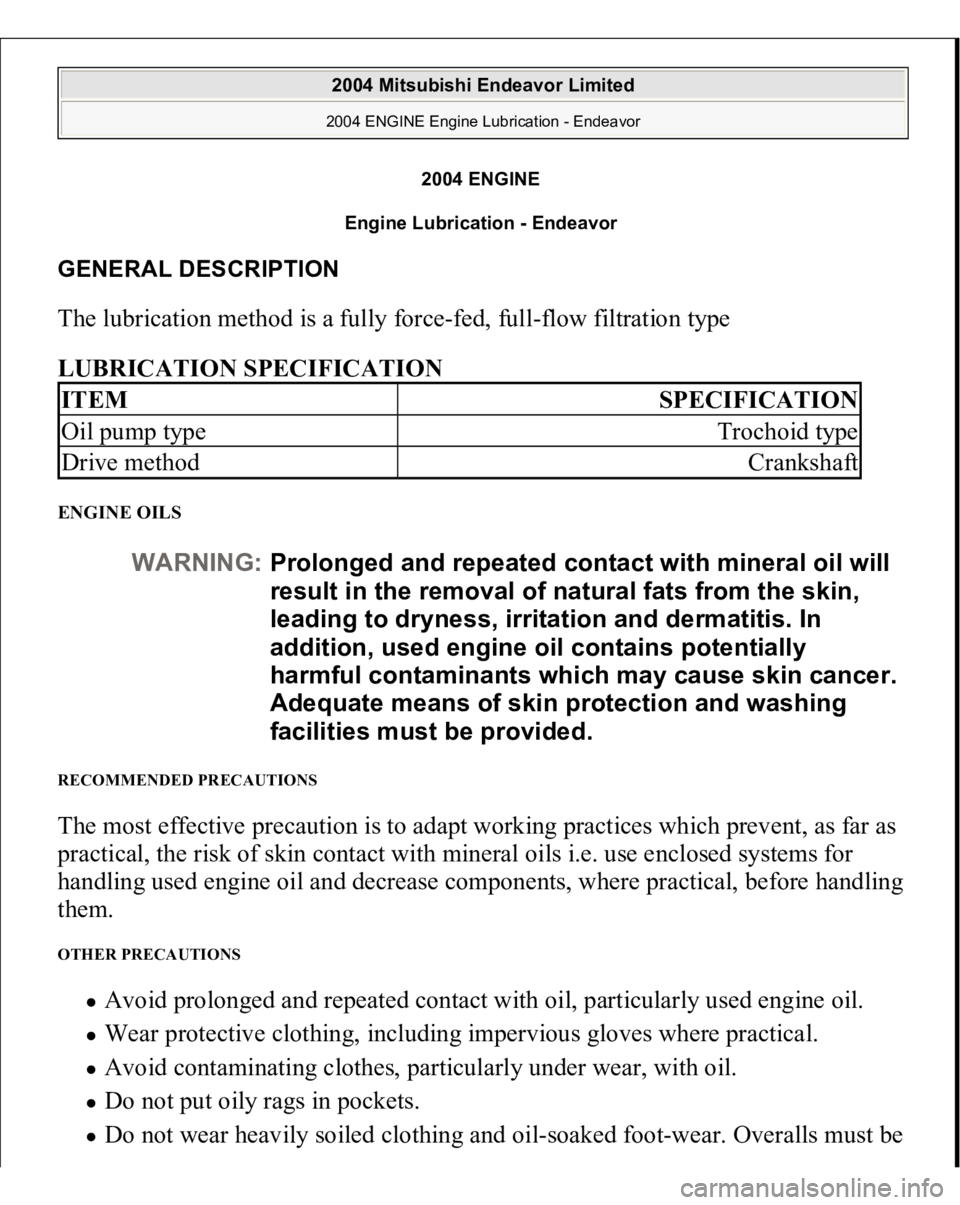

2004 ENGINE
Engine Lubrication - Endeavor
GENERAL DESCRIPTION The lubrication method is a fully force-fed, full-flow filtration type
LUBRICATION SPECIFICATION ENGINE OILS RECOMMENDED PRECAUTIONS The most effective precaution is to adapt working practices which prevent, as far as
practical, the risk of skin contact with mineral oils i.e. use enclosed systems for
handling used engine oil and decrease components, where practical, before handling
them. OTHER PRECAUTIONS
Avoid prolonged and repeated contact with oil, particularly used engine oil. Wear protective clothing, including impervious gloves where practical. Avoid contaminating clothes, particularly under wear, with oil. Do not put oily rags in pockets. Do not wear heavily soiled clothing and oi
l-soaked foo
t-wear. Overalls must be
ITEM
SPECIFICATION
Oil pump type
Trochoid type
Drive method
Crankshaft
WARNING:Prolonged and repeated contact with mineral oil will
result in the removal of natural fats from the skin,
leading to dryness, irritation and dermatitis. In
addition, used engine oil contains potentially
harmful contaminants which may cause skin cancer.
Adequate means of skin protection and washing
facilities must be provided.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Lubrication - Endeavor


2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Lubrication - Endeavor

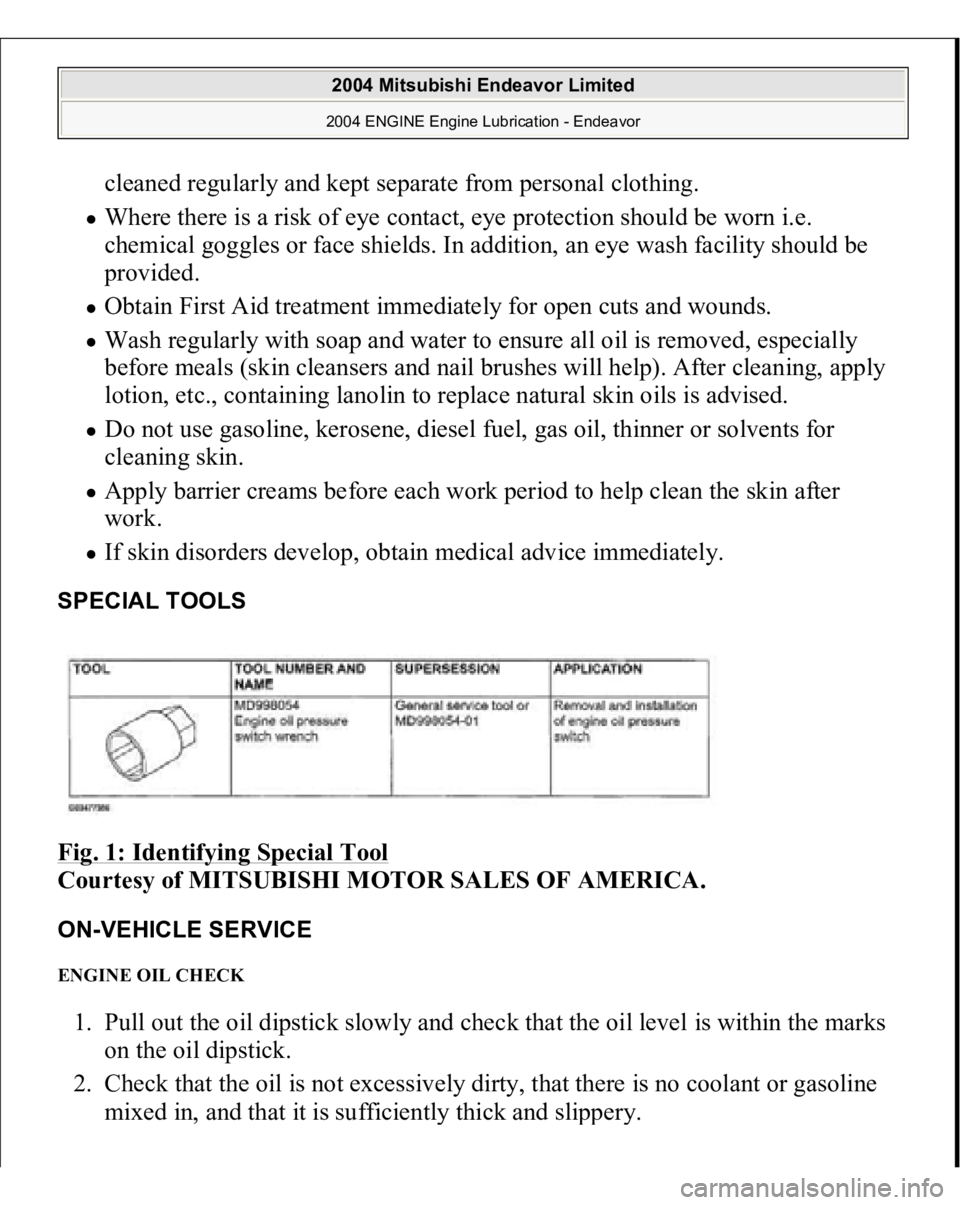

cleaned regularly and kept separate from personal clothing. Where there is a risk of eye contact, eye protection should be worn i.e.
chemical goggles or face shields. In addition, an eye wash facility should be
provided. Obtain First Aid treatment immediately for open cuts and wounds. Wash regularly with soap and water to ensure all oil is removed, especially
before meals (skin cleansers and nail brushes will help). After cleaning, apply
lotion, etc., containing lanolin to replace natural skin oils is advised. Do not use gasoline, kerosene, diesel fuel, gas oil, thinner or solvents for
cleaning skin. Apply barrier creams before each work period to help clean the skin after
work. If skin disorders develop, obtain medical advice immediately.
SPECIAL TOOLS Fig. 1: Identifying Special Tool

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
ON-VEHICLE SERVICE ENGINE OIL CHECK 1. Pull out the oil dipstick slowly and check that the oil level is within the marks
on the oil dipstick.
2. Check that the oil is not excessively dirty, that there is no coolant or gasoline
mixed in, and that it is sufficientl
y thick and sli
ppery.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Lubrication - Endeavor

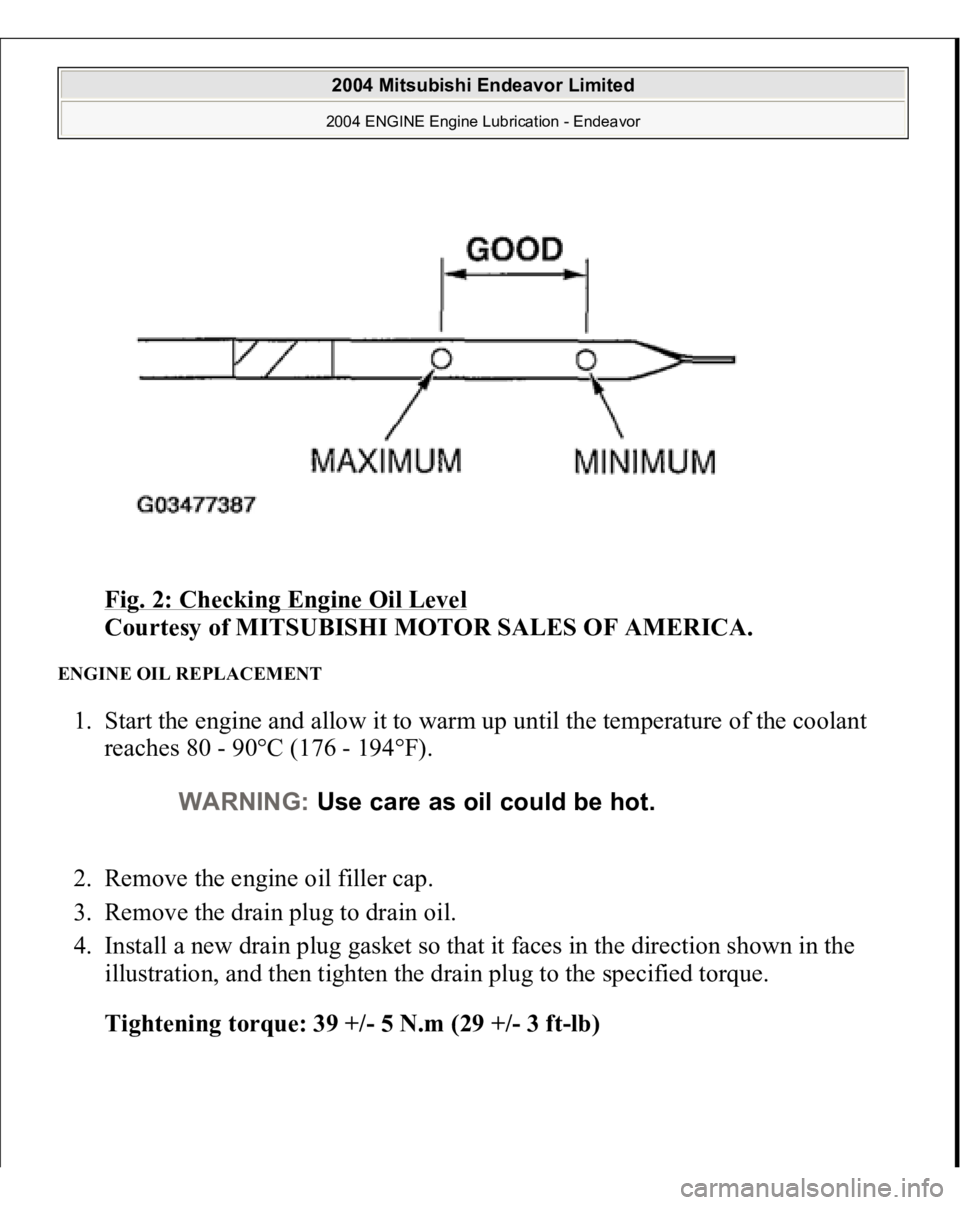

Fig. 2: Checking Engine Oil Level

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
ENGINE OIL REPLACEMENT 1. Start the engine and allow it to warm up until the temperature of the coolant
reaches 80 - 90°C (176 - 194°F).
2. Remove the engine oil filler cap.
3. Remove the drain plug to drain oil.
4. Install a new drain plug gasket so that it faces in the direction shown in the
illustration, and then tighten the drain plug to the specified torque.
Tightening torque: 39 +/- 5 N.m (29 +/- 3 ft-lb)
WARNING:Use care as oil could be hot.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Lubrication - Endeavor

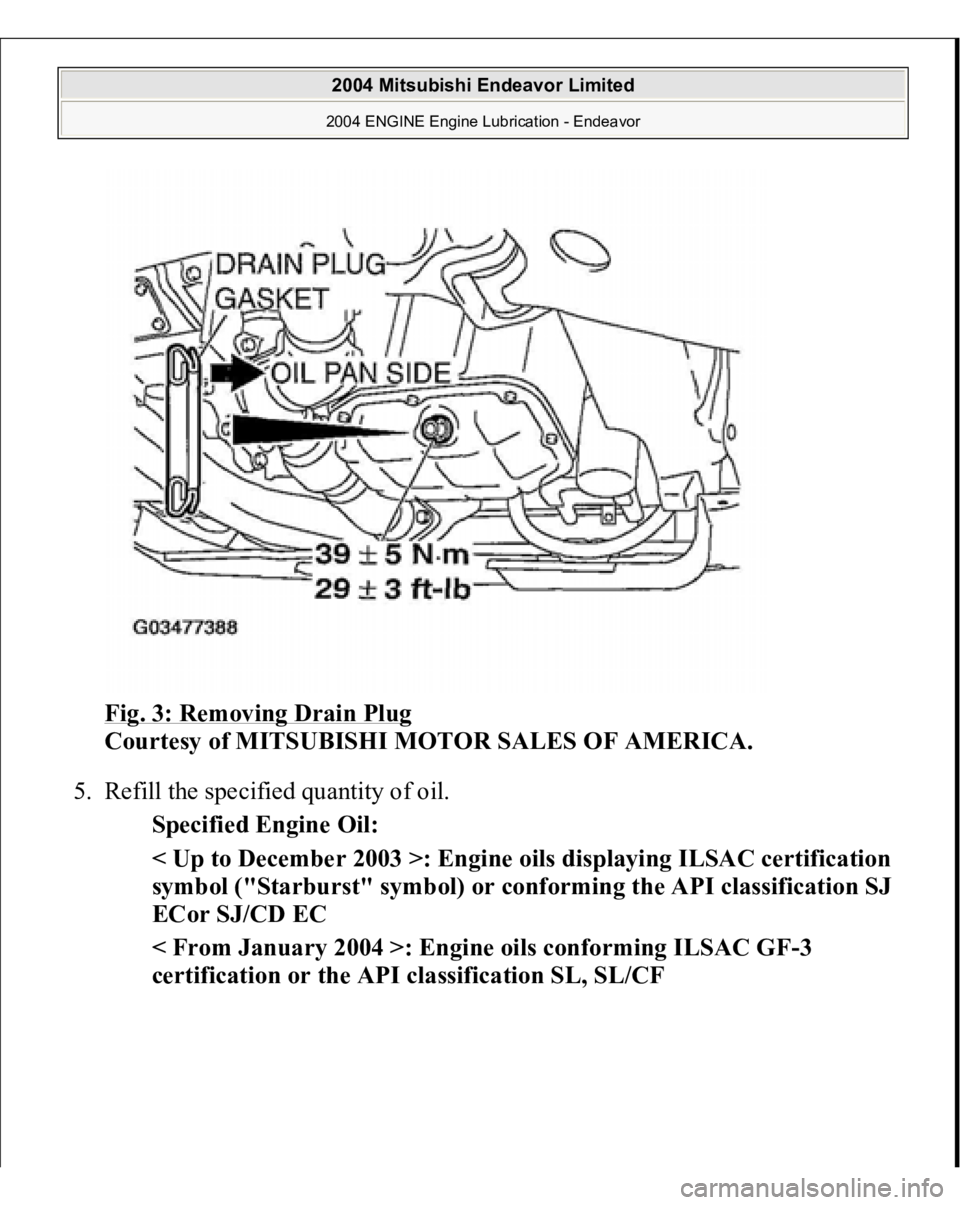

Fig. 3: Removing Drain Plug

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
5. Refill the specified quantity of oil.
Specified Engine Oil:
< Up to December 2003 >: Engine oils displaying ILSAC certification
symbol ("Starburst" symbol) or conforming the API classification SJ
ECor SJ/CD EC
< From January 2004 >: Engine oils conforming ILSAC GF-3
certification or the API classification SL, SL/CF

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Lubrication - Endeavor

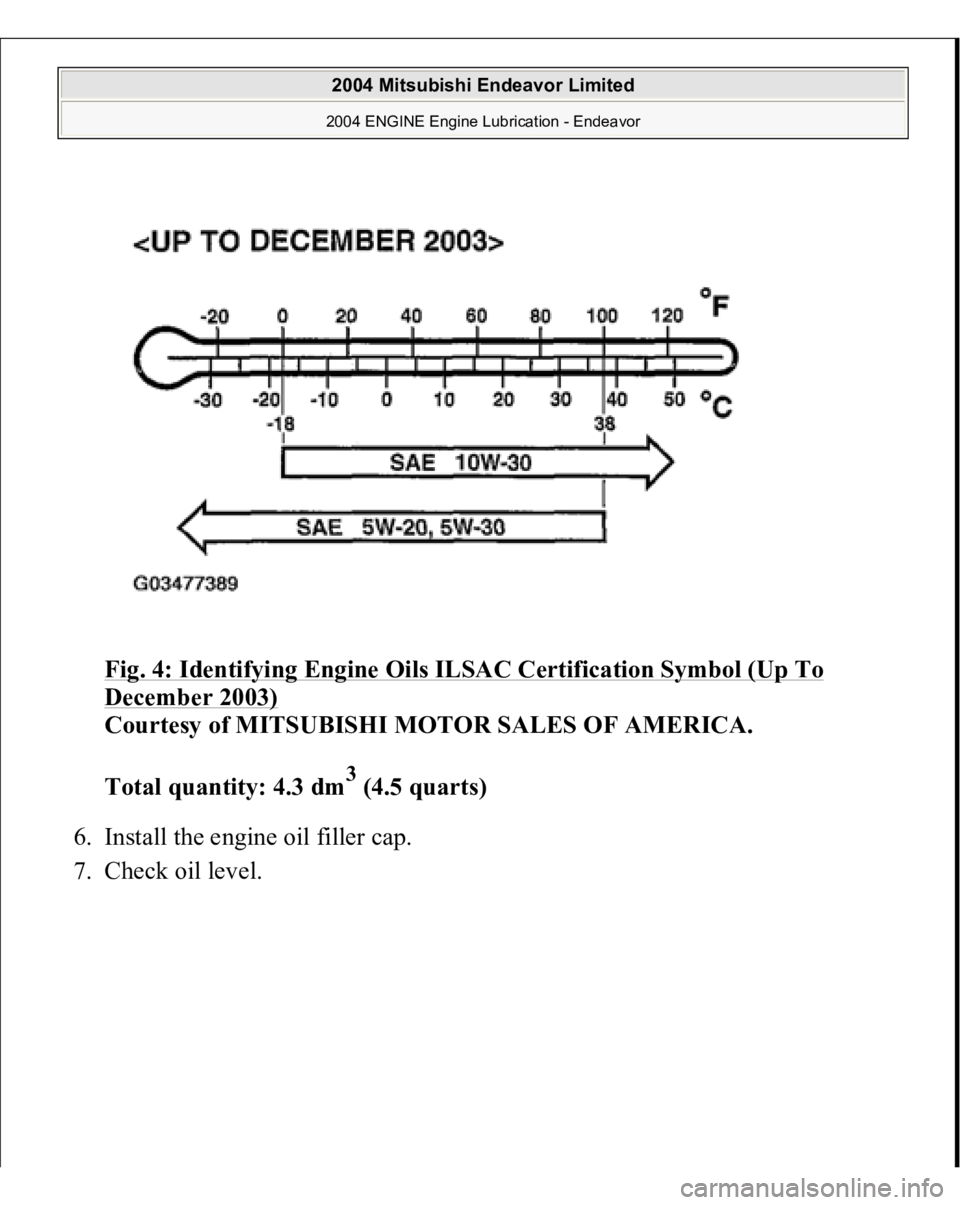

Fig. 4: Identifying Engine Oils ILSAC Certification Symbol (Up To December 2003)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Total quantity: 4.3 dm
3 (4.5 quarts)
6. Install the engine oil filler cap.
7. Check oil level.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Lubrication - Endeavor

Fig. 5: Identifying Engine Oils ILSAC Certification Symbol (From January 2004)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
ENGINE OIL FILTER REPLACEMENT 1. Start the engine and allow it to warm up until the temperature of the coolant
reaches 80 - 90°C (176 - 194°F).
2. Remove the engine oil filler cap.
3. Remove the drain plug to drain oil.
4. Use the commercially-available tool to remove the engine oil filter.
5. Clean the filter bracket side mounting surface and ensure the old O-ring has
been removed.
WARNING:Use care as oil could be hot.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Lubrication - Endeavor

Fig. 6: Removing Engine Oil Filter

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
6. Apply a small amount of engine oil to the O-ring of the new oil filter.
7. Where the oil filter O-ring touches the oil pan flange, tighten the oil filter to the
s
pecified tor
que usin
g the commerciall
y-available tool.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Lubrication - Endeavor
