2004 MITSUBISHI ENDEAVOR engine

Fig. 7: Applying Small Amount Of Engine Oil To O
-Ring Of New Oil
Filter

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Tightening torque: Approximately 1 turn [14 +/- 2 N m (124 +/-18 in-lb)]
8. Install the drain plug and refill engine oil. (Refer to ENGINE OIL
REPLACEMENT
.)
9. Rev the engine a few times, and check to be sure that no engine oil leaks from
the installation section of the oil filter.
ENGINE OIL PRESSURE CHECK
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Lubrication - Endeavor

Required Special Tool
:
MD998054: Engine Oil Pressure Switch Wrench
Fig. 8: Identifying Engine Oil Pressure Switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
1. Check engine oil quantity.
2. Use special tool MD998054 to remove the engine oil pressure switch.
CAUTION: Since sealant is applied to the thread of the
engine oil pressure switch, take care not to
damage the engine oil pressure switch when
removing it.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Lubrication - Endeavor

3. Install the engine oil pressure gauge.
Fig. 9: Removing Terminal Of Oil Pressure Switch With Special Tool
(MD998054)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
4. Run the engine to warm it.
5. After the engine has been warmed up, check that engine oil pressure is within
NOTE: Remove the terminal of oil pressure switch where
special tool MD998054 is not fitted.NOTE: Use a 1/8 pipe thread adapter.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Lubrication - Endeavor

the standard value.
Standard value:
At idle: 29 kPa (4.2 psi) or more
At 3,500 r/min: 294 - 686 kPa (43 - 100 psi)
6. Remove the engine oil pressure gauge.
7. Apply the specified sealant 3M
TM
AAD Part number 8672 or equivalent to the
threads of the engine oil pressure switch.
Fig. 10: Applying Specified Sealant To Threads Of Engine Oil Pressure
Switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. CAUTION: Do not start the engine within one hour after the

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Lubrication - Endeavor

8. Use special tool MD998054 to tighten the engine oil pressure switch to the
specified torque.
Fig. 11: Tightening Engine Oil Pressure Switch With Special Tool
(MD998054)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Tightening torque: 10 +/- 2 N.m (87 +/- 17 in-lb)
SPECIFICATIONS FASTENER TIGHTENING SPECIFICATIONS
engine oil pressure switch has been installed.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Lubrication - Endeavor

FASTENER TIGHTENING SPECIFICATIONS SERVICE SPECIFICATIONS SERVICE SPECIFICATIONS SEALANT SEALANT SPECIFICATIONS LUBRICANT LUBRICANT SPECIFICATIONS ENGINE OIL < UP TO DECEMBER 2003 > ITEM
SPECIFICATION
Engine oil pan drain plug
39 +/-; 5 N.m (29 +/-; 3 ft-lb)
Engine oil filter
14 +/- 2 N.m(124 +/- 18 in-lb)
Engine oil pressure switch
10 +/- 2 N.m (87 +/- 17 in-lb)
ITEM
STANDARD VALUE
Engine oil pressure kPa (psi)
at idle
29 (4.2) or more
at 3,500 r/min
294 - 686 (43 - 100)
ITEM
SPECIFIED SEALANT
Engine oil pressure switch
3M
TM
AAD Part No. 8672 or equivalent
ITEM
ENGINE OIL
QUANTITY
dm
3 (qt)
Oil filter
Up to December 2003: Engine oils displaying
ILSAC certification symbol ("Starburst" symbol) or
conforming to the API classification SJ EC or
SJ/CD EC
From January 2004: Engine oils conforming ILSAC
GF-3 certification or the API classification SL,
SL/CF
0.3 (0.32)
Total
quantity
4.3 (4.5)
CAUTION: Never use nondetergent or straight mineral oil.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Lubrication - Endeavor

Use only engine oils displaying the ILSAC certification symbol ("Starburst"
symbol) on the container.
Fig. 12: Identifying ILSAC Certification Symbol (Up To December 2003)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
If these oils are not available, an API classification SJ EC or SJ/CD EC can be used.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Lubrication - Endeavor

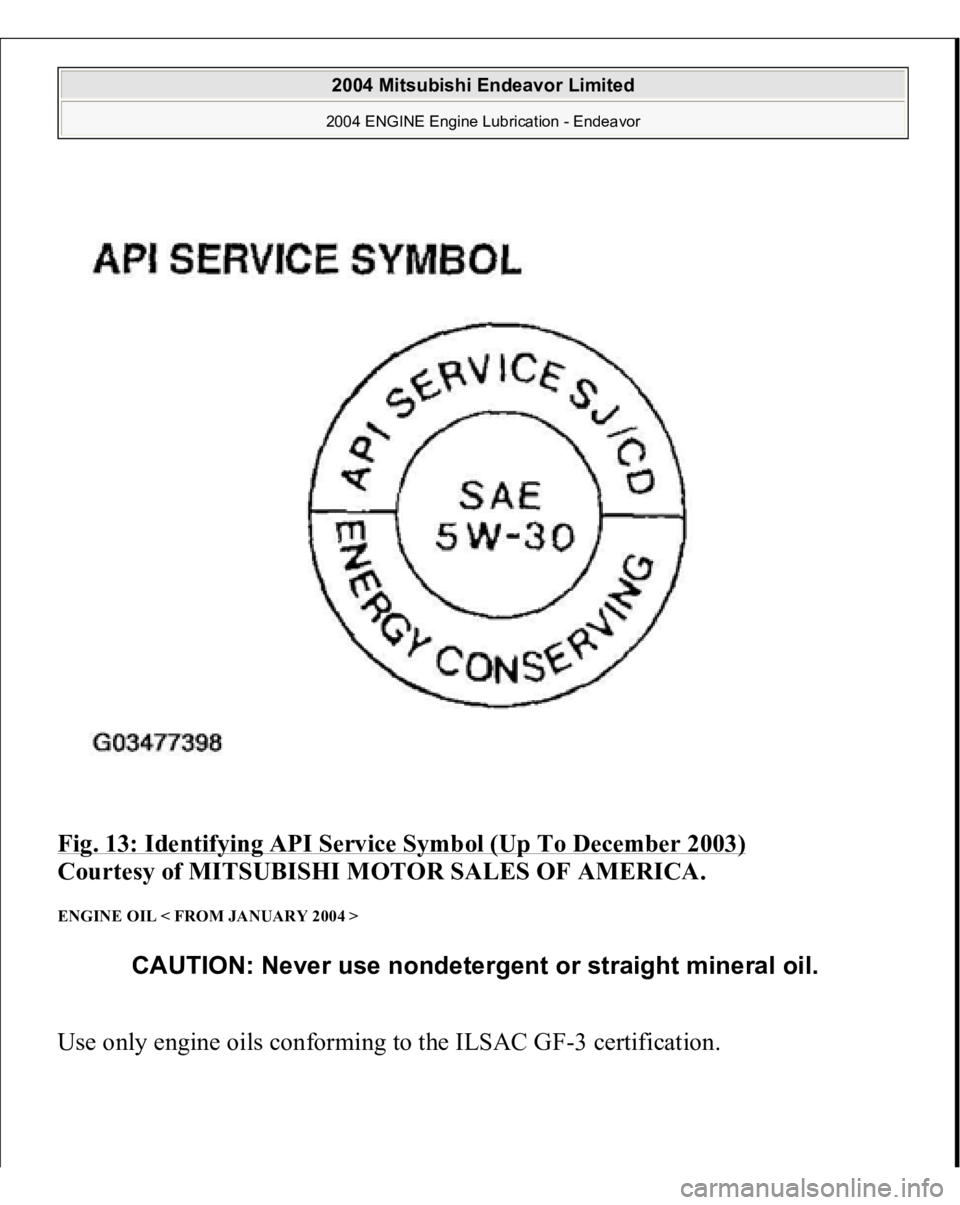

Fig. 13: Identifying API Service Symbol (Up To December 2003)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
ENGINE OIL < FROM JANUARY 2004 > Use onl
y en
gine oils conformin
g to the ILSAC G
F-3 certification.
CAUTION: Never use nondetergent or straight mineral oil.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Lubrication - Endeavor
