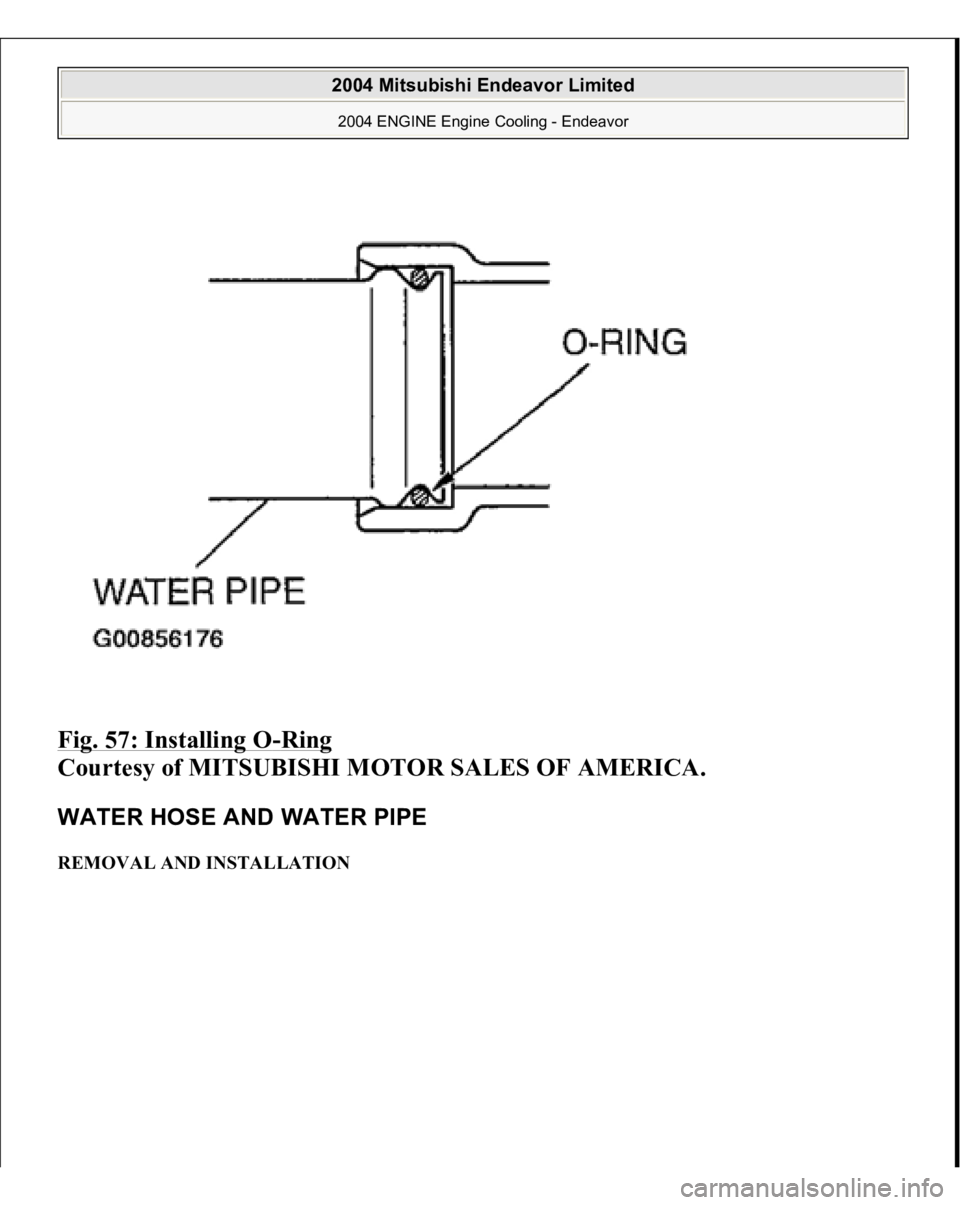

Fig. 57: Installing O
-Ring

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
WATER HOSE AND WATER PIPE REMOVAL AND INSTALLATION
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Cooling - Endeavor

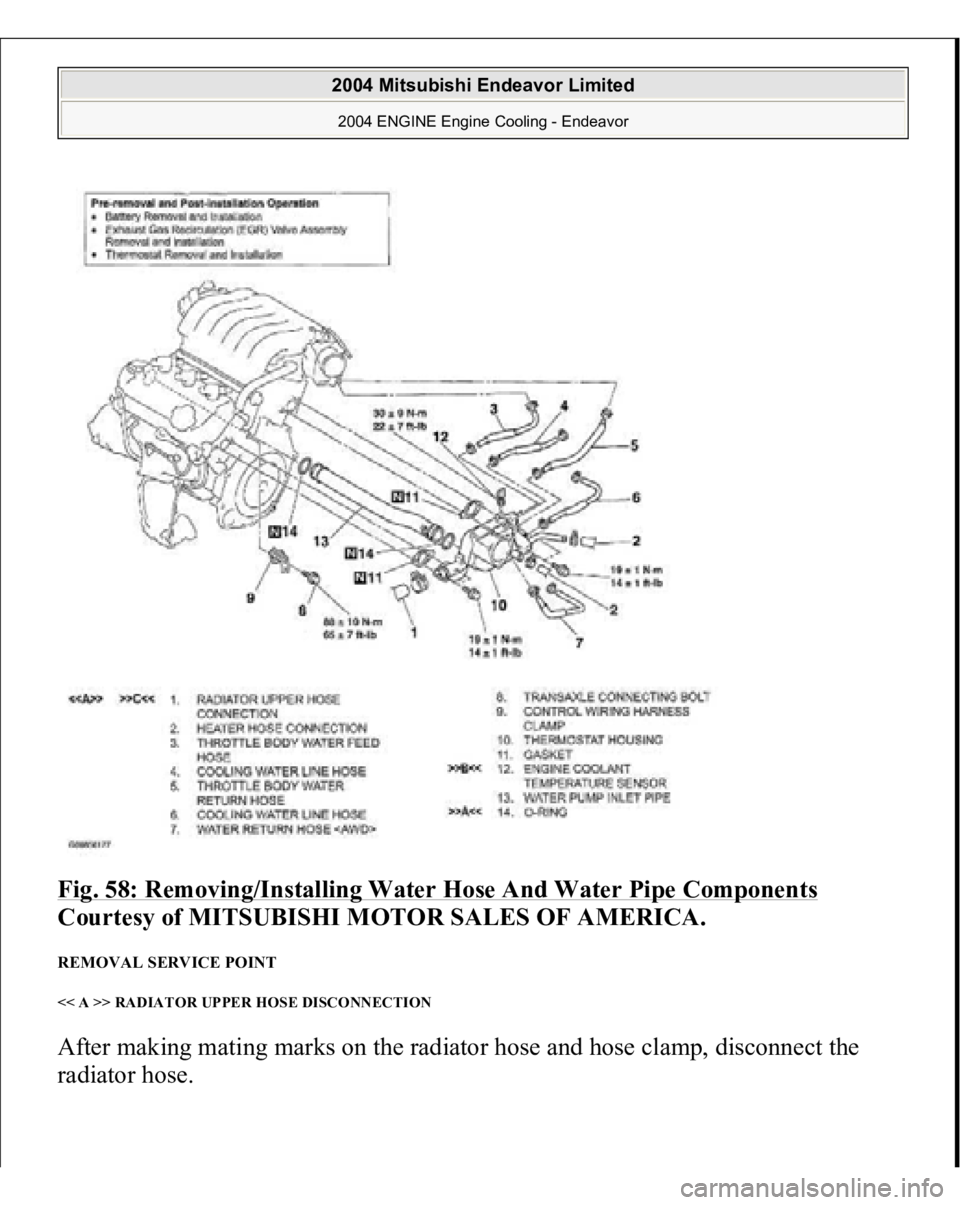

Fig. 58: Removing/Installing Water Hose And Water Pipe Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
REMOVAL SERVICE POINT << A >> RADIATOR UPPER HOSE DISCONNECTION After making mating marks on the radiator hose and hose clamp, disconnect the
radiator hose.
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Cooling - Endeavor

Fig. 59: Disconnecting Radiator Upper Hose

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSTALLATION SERVICE POINTS > >A<< O-RING INSTALLATION Insert the O-ring to the water pipe, and coat the outer portion of the O-ring with
water or en
gine coolant.
CAUTION: Do not allow engine oil or other grease to adhere to
the O-ring

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Cooling - Endeavor

Fig. 60: Installing O
-Ring

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
> >B<< ENGINE COOLANT TEMPERATURE SENSOR INSTALLATION Apply the specified sealant to the thread of the engine coolant temperature sensor,
and then tighten it to the specified torque.
Specified Sealant:3M(tm) AAD part number 8371 or equivalent
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Cooling - Endeavor

Fig. 61: Installing Engine Coolant Temperature Sensor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
> >C<< RADIATOR UPPER HOSE CONNECTION 1. Insert each hose as far as the projection of the water outlet fitting.
2. Align the mating marks on the radiator hose and hose clamp, and then connect
the radiator hose.
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Cooling - Endeavor

Fig. 62: Connecting Radiator Upper Hose

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSPECTION Water Pipe and Hose Check Check the water pipe and hose for cracks, damage and clogs. Replace them if
necessary. SPECIFICATIONS FASTENER TIGHTENING SPECIFICATION
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Cooling - Endeavor

Fig. 63: Fastener Tightening Specification Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
SERVICE SPECIFICATION Fig. 64: Service Specification Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAPACITIES
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Cooling - Endeavor

Fig. 65: Capacities Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
SEALANT Fig. 66: Sealant Table

Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.
