2004 MITSUBISHI ENDEAVOR engine

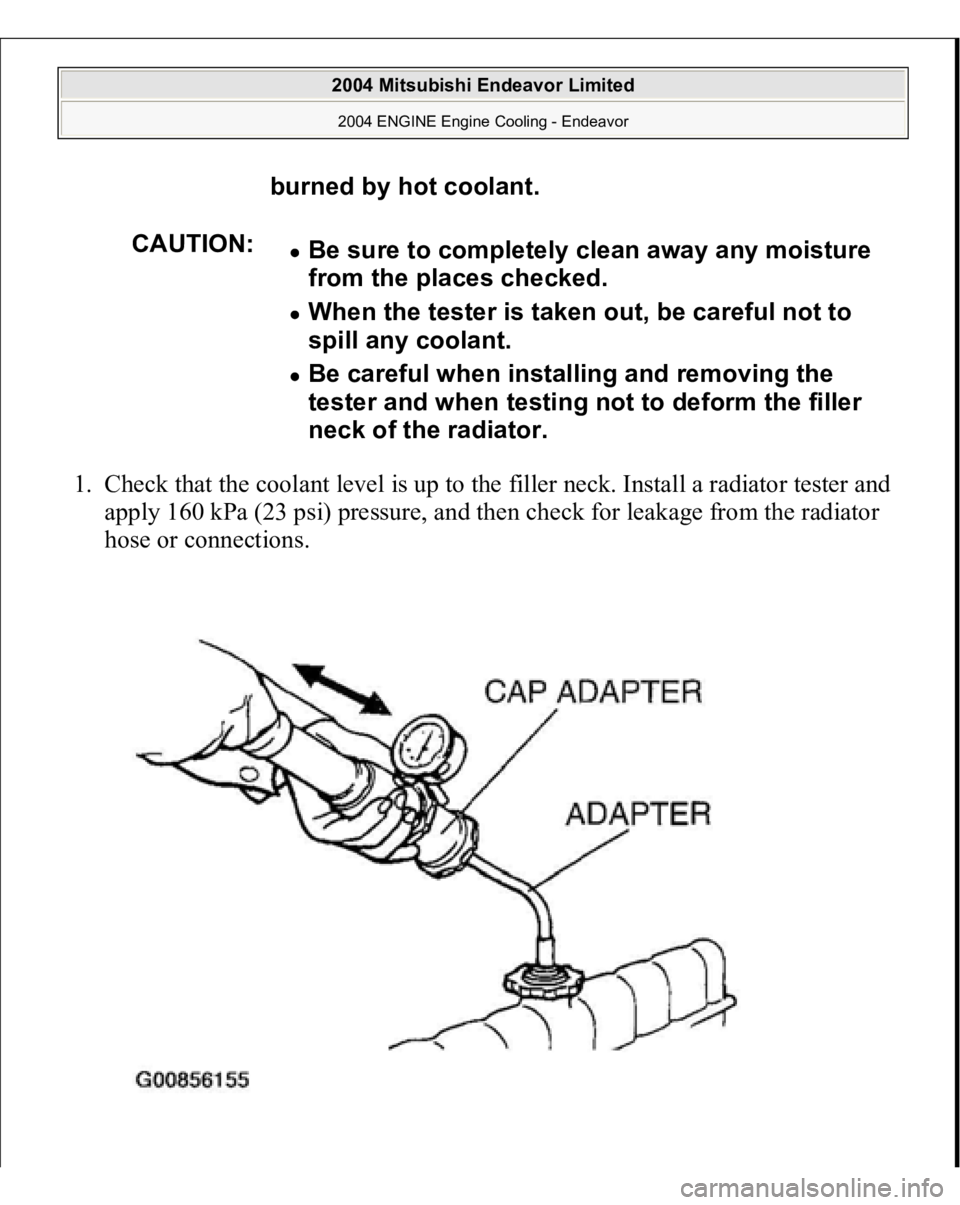

1. Check that the coolant level is up to the filler neck. Install a radiator tester and
apply 160 kPa (23 psi) pressure, and then check for leakage from the radiator
hose or connections.
burned by hot coolant.
CAUTION:
Be sure to completely clean away any moisture
from the places checked. When the tester is taken out, be careful not to
spill any coolant. Be careful when installing and removing the
tester and when testing not to deform the filler
neck of the radiator.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Cooling - Endeavor

Fig. 36: Checking For Coolent Leak
s
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. If there is leakage, repair or replace the appropriate part.
RADIATOR CAP PRESSURE CHECK 1. Use a cap adapter to attach the cap to the tester.
2. Increase the pressure until the indicator of the gauge stops moving.
Minimum limit: 83 kPa (12 psi)
Standard value: 93 - 123 kPa (14 - 18 psi)

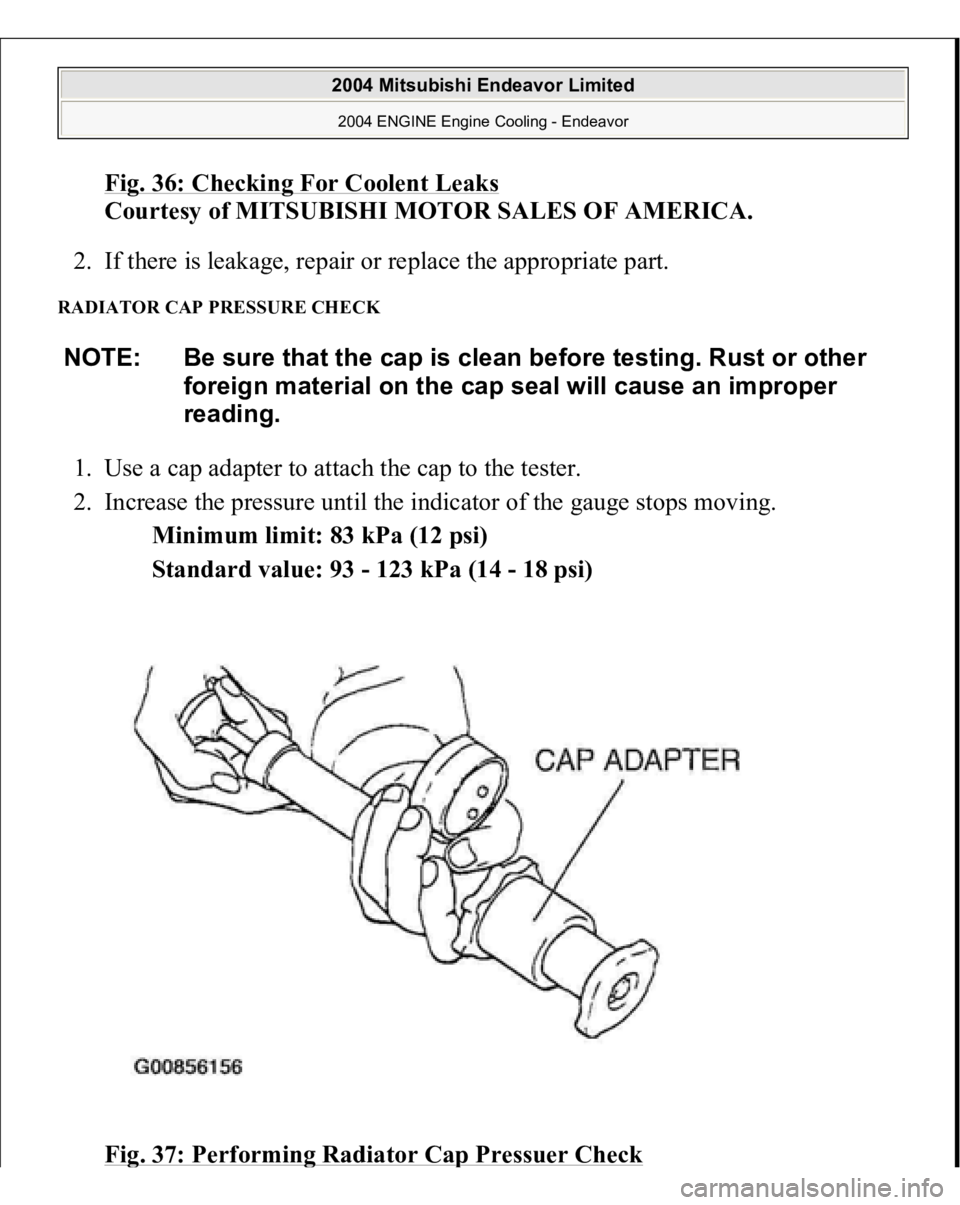

Fi
g. 37: Performin
g Radiator Ca
p Pressuer Check
NOTE: Be sure that the cap is clean before testing. Rust or other
foreign material on the cap seal will cause an improper
reading.
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Cooling - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
3. Replace the radiator cap if the reading does not remain at or above the limit.
ENGINE COOLANT REPLACEMENT 1. Drain the water from the radiator, heater core and engine after unplugging the
radiator drain plug and removing the radiator cap.
2. Drain the water in the water jacket by unplugging the drain plug of the cylinder
block. For the right bank side on AWD vehicles, drain the engine coolant from
the water feed tube assembly of the transfer box.
3. Remove the radiator condenser tank assembly and drain the coolant.
4. Drain the coolant then clean the path of the coolant by injecting water into the
radiator from the radiator cap area.
WARNING:When removing the radiator cap, use care to avoid
contact with hot coolant or steam. Place a shop
towel over the cap and turn the cap
counterclockwise a little to let the pressure escape
through the vinyl tube. After relieving the steam
pressure, remove the cap by slowly turning it
counterclockwise.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Cooling - Endeavor

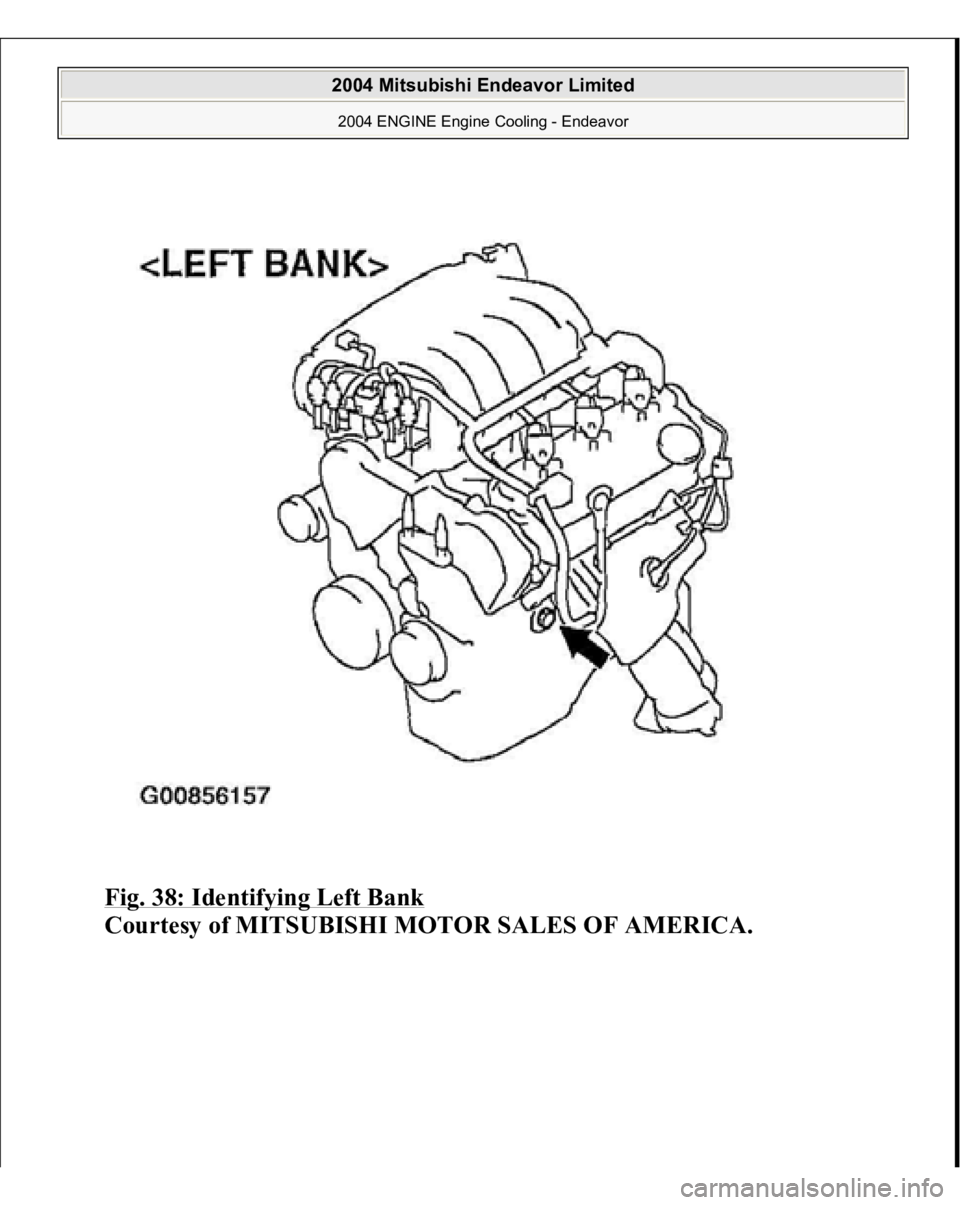

Fig. 38: Identifying Left Bank

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Cooling - Endeavor

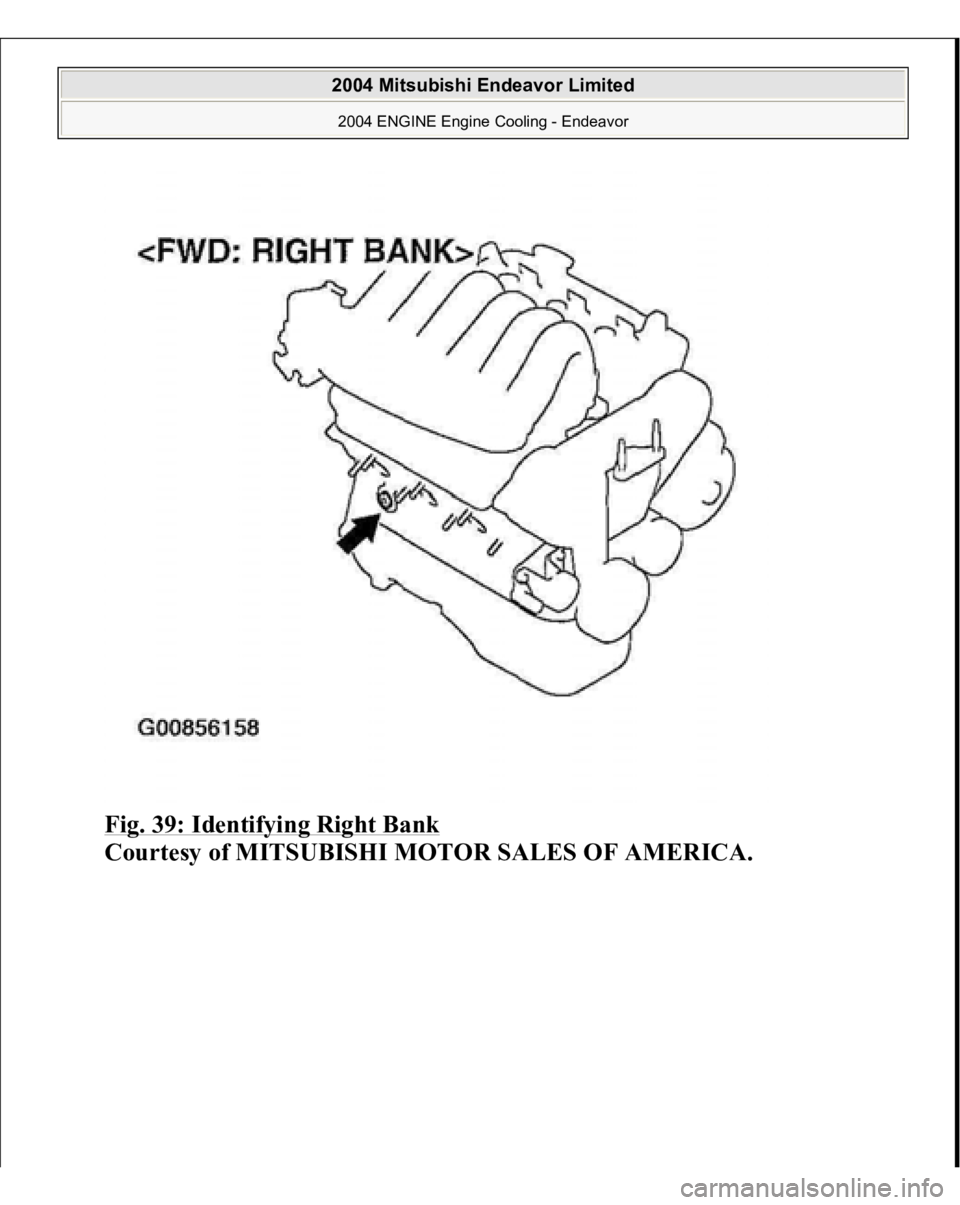

Fig. 39: Identifying Right Bank

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Cooling - Endeavor

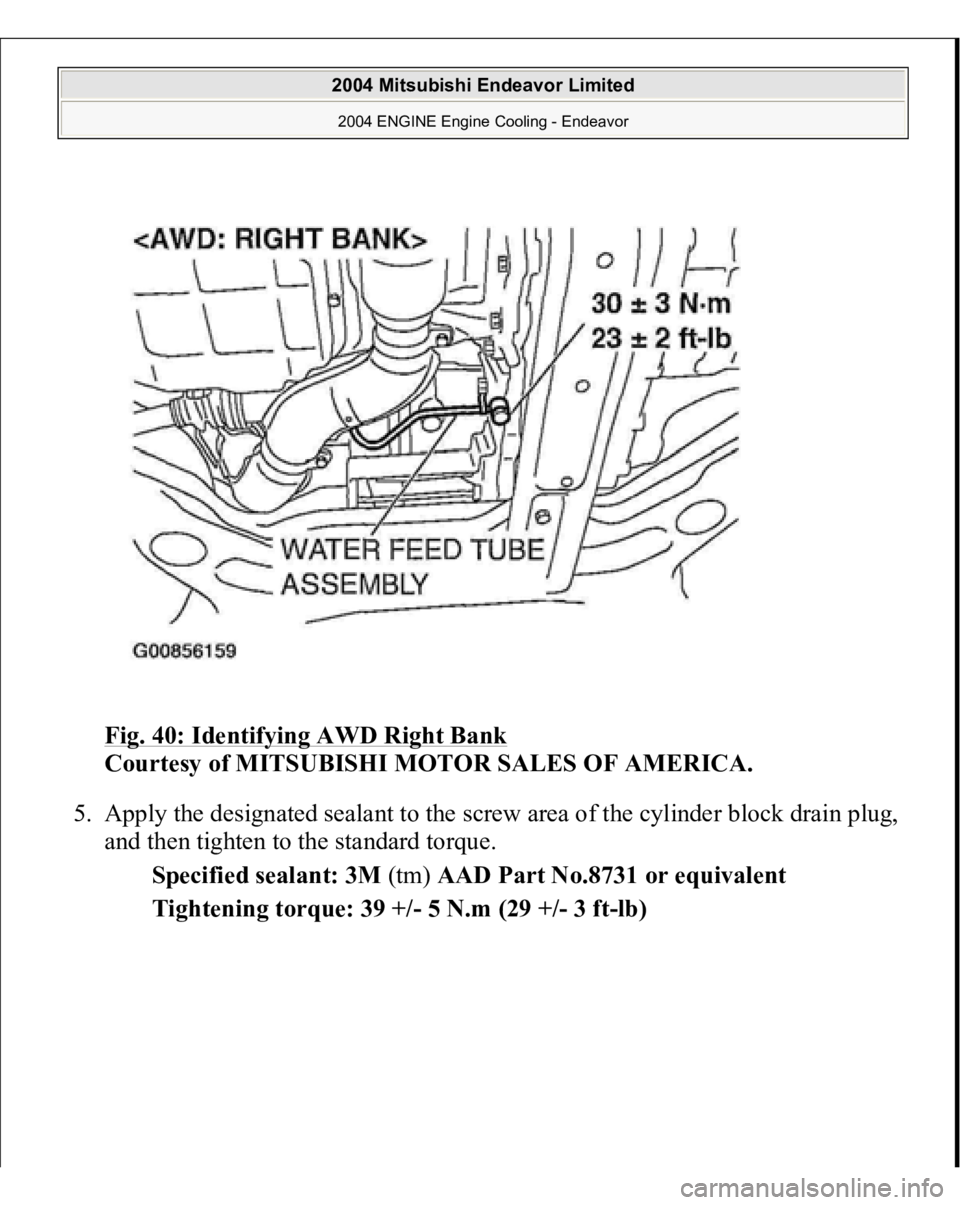

Fig. 40: Identifying AWD Right Bank

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
5. Apply the designated sealant to the screw area of the cylinder block drain plug,
and then tighten to the standard torque.
Specified sealant: 3M (tm) AAD Part No.8731 or equivalent
Tightening torque: 39 +/- 5 N.m (29 +/- 3 ft-lb)

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Cooling - Endeavor

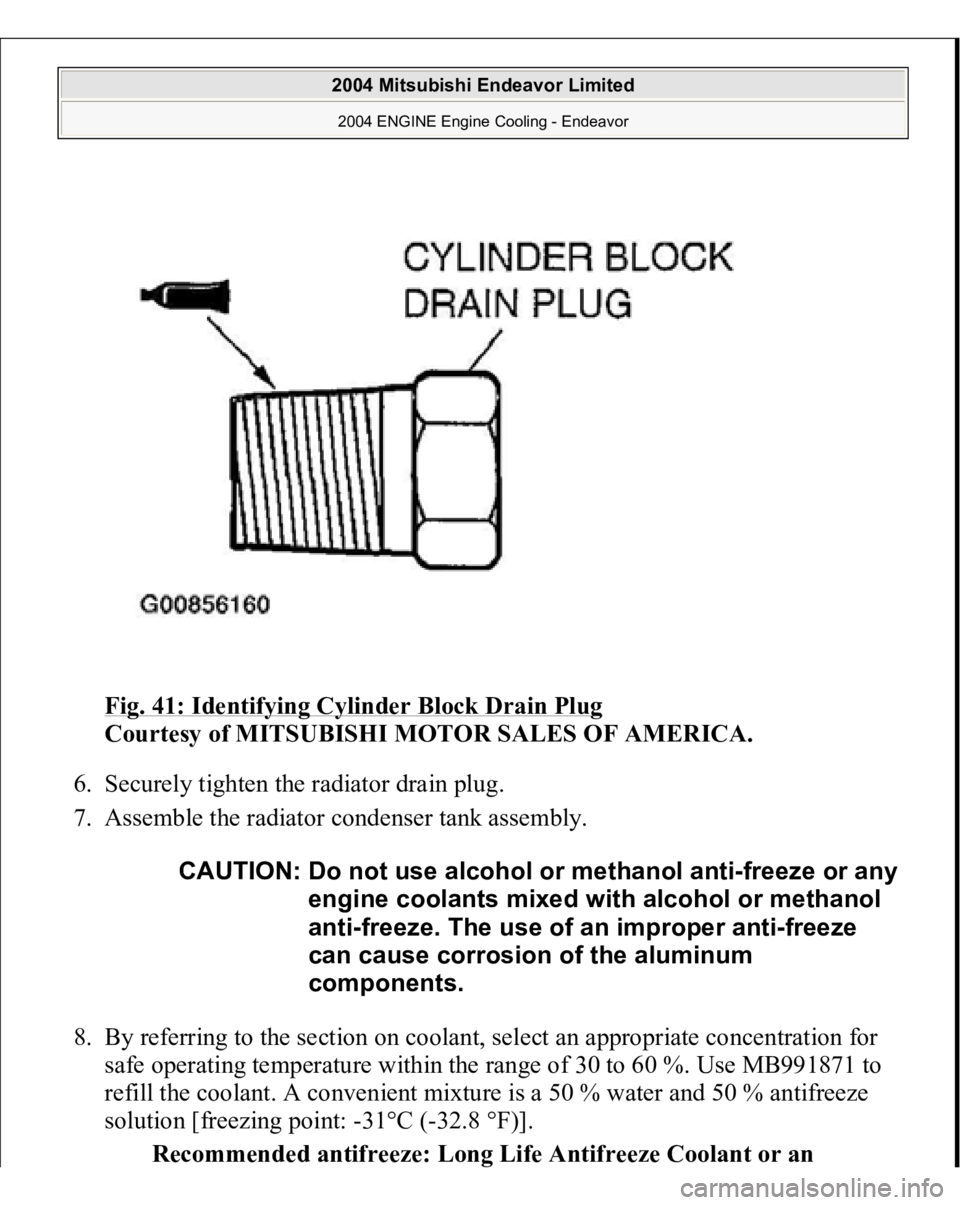

Fig. 41: Identifying Cylinder Block Drain Plug

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
6. Securely tighten the radiator drain plug.
7. Assemble the radiator condenser tank assembly.
8. By referring to the section on coolant, select an appropriate concentration for
safe operating temperature within the range of 30 to 60 %. Use MB991871 to
refill the coolant. A convenient mixture is a 50 % water and 50 % antifreeze
solution [freezing point: -31°C (-32.8 °F)].
Recommended antifreeze: Lon
g Life Antifreeze Coolant or an
CAUTION: Do not use alcohol or methanol anti-freeze or any
engine coolants mixed with alcohol or methanol
anti-freeze. The use of an improper anti-freeze
can cause corrosion of the aluminum
components.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Cooling - Endeavor

equivalen
t
Quantity:
< FWD, AWD without Towing kit > 9.0 dm
3 (9.5 quarts)
< AWD with Towing kit > 9.6 dm
3 (10.1 quarts)
Fig. 42: Identifying Air Hose

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
9. Reinstall the radiator cap.
10. Start the en
gine and let it warm u
p until the thermostat o
pens.
NOTE: For how to use special tool MB991871, refer to its
manufacturer's instructions.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Cooling - Endeavor
