2004 MAZDA MODEL MPV Owners Manual (in English)

3-22
Knowing Your Mazda
Doors and Locks
Form No. 8S06-EA-03H
Open or close a swing-out rear quarter
window by releasing the latch and moving
the window.

Opening a Window
Pull the latch inward and then push the
window outward.

Closing a Window
Pull the latch inward and then push it
backward until it snaps shut. Make sure
the window is securely closed.
Rear Quarter Windows
NOTE
When parked in public areas, it is best
to keep the rear quarter windows
closed for security.
J16R_8S06-EA-03H_Edition1.book Page 22 Wednesday, July 9, 2003 4:19 PM

3-23
Knowing Your Mazda
Doors and Locks
Form No. 8S06-EA-03H

Fuel-Filler Lid
To open, pull up the remote fuel-filler lid
release.

Fuel-Filler Cap
To remove the filler cap, turn it
counterclockwise.
To close the filler cap, turn it clockwise
until it clicks.
Fuel-Filler Lid and Cap
Fuel Spray:
Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness
when ingested. Fuel spray is released
when there is pressure in the fuel
tank and the fuel cap is removed too
quickly. When removing the fuel cap,
loosen the cap slightly and wait for
any hissing to stop. Then remove it.
Fuel Vapor:
Fuel vapor is dangerous. It could be
ignited by sparks or flames causing
serious burns and injuries. Before
refueling, stop the engine, and always
keep sparks and flames away from the
filler neck. Additionally, use of the
incorrect fuel filler cap or not using a
fuel filler cap may result in fuel leak,
which could result in serious burns or
death in an accident.
Always use only a genuine Mazda fuel
cap or an approved equivalent,
available at Authorized Mazda
Dealers. The wrong cap can result in a
serious malfunction of the fuel and
emission control systems. It may also
cause the check engine light in the
instrument cluster to illuminate.
WARNING
CAUTION
NOTE
The fuel-filler lid cannot be opened
when the left-side sliding door is open.
Close the sliding door to open the fuel-
filler lid.
Remote fuel-filler
lid release
Open
Close
J16R_8S06-EA-03H_Edition1.book Page 23 Wednesday, July 9, 2003 4:19 PM

3-24
Knowing Your Mazda
Doors and Locks
Form No. 8S06-EA-03H

Opening the Hood
1. With the vehicle parked, pull the
release handle to unlock the hood. Make sure the fuel-filler cap is
tightened securely. The check engine
light may illuminate on when the cap
isn’t tightened securely. If the light
remains on (even after you have
tightened the cap securely, driven, and
restarted the engine several times), it
may indicate a different problem.
Contact an Authorized Mazda Dealer
as soon as possible.
CAUTIONHood
Closed and Securely Locked Hood:
A hood that is not closed and securely
locked is dangerous as it could fly
open while the vehicle is moving and
block the driver’s vision which could
result in a serious accident. Always
check that the hood is closed and
securely locked.
WARNING
J16R_8S06-EA-03H_Edition1.book Page 24 Wednesday, July 9, 2003 4:19 PM

3-25
Knowing Your Mazda
Doors and Locks
Form No. 8S06-EA-03H
2. Pull the hood latch up and lift the hood.
3. Use the support rod to hold the hood
open.

Closing the Hood
1. Check under the hood area to make
certain all filler caps are in place and
all loose items (e.g. tools, oil
containers, etc.) have been removed.
2. Insert the support rod in its clip while
holding up the hood. Verify that the
support rod is secured in the clip before
closing the hood.
3. Close the hood so that it locks securely.The moonroof can be opened or closed
electrically only when the ignition switch
is in the ON position.
Support
rod
Clip
Moonroof*
Extending the Head or Arms
Through the Moonroof:
Extending the head, arms, or other
parts of the body through the
moonroof is dangerous. The head or
arms could hit something while the
vehicle is moving. This could cause
death or serious injury. Don’t let
passengers stand up or extend
anything through the open moonroof
while the vehicle is moving.
Closing the Moonroof:
A closing moonroof is dangerous.
The hands, head, or even neck of a
person —especially a child— could
be caught in it as it closes, causing
serious injury or even death. Make
sure the opening is clear before
closing the moonroof.
Slide switch
Tilt switch
WARNING
*Some models.
J16R_8S06-EA-03H_Edition1.book Page 25 Wednesday, July 9, 2003 4:19 PM

3-26
Knowing Your Mazda
Doors and Locks
Form No. 8S06-EA-03H

Tilt Operation
The rear of the moonroof can be tilted
open to provide more ventilation.
To tilt, push the rear of the tilt switch.
To close, push the front of the tilt switch.

Slide Operation
To open to any position, press the rear of
the slide switch.
To close, press the front of the slide
switch.
NOTE
After washing your Mazda or after a
rain, wipe the water off the moonroof
before operating it to avoid water
penetration which could cause rust and
water damage to your headliner.
Tilt up
Close
NOTE
For safety reasons, the moonroof stops
moving approximately 20 cm (8 in)
prior to completely closing. After you
are sure it is unobstructed, resume
closing the moonroof by pressing the
switch again.
Open
Close
J16R_8S06-EA-03H_Edition1.book Page 26 Wednesday, July 9, 2003 4:19 PM

3-27
Knowing Your Mazda
Doors and Locks
Form No. 8S06-EA-03H

Sunshade
The sunshade can be opened and closed
by hand.
The sunshade opens automatically when
the moonroof is opened, but must be
closed by hand.
The sunshade doesn’t tilt. To avoid
damaging the sunshade, don’t push up
on it.
Sunshade
CAUTION
J16R_8S06-EA-03H_Edition1.book Page 27 Wednesday, July 9, 2003 4:19 PM

3-28
Knowing Your Mazda
Form No. 8S06-EA-03H

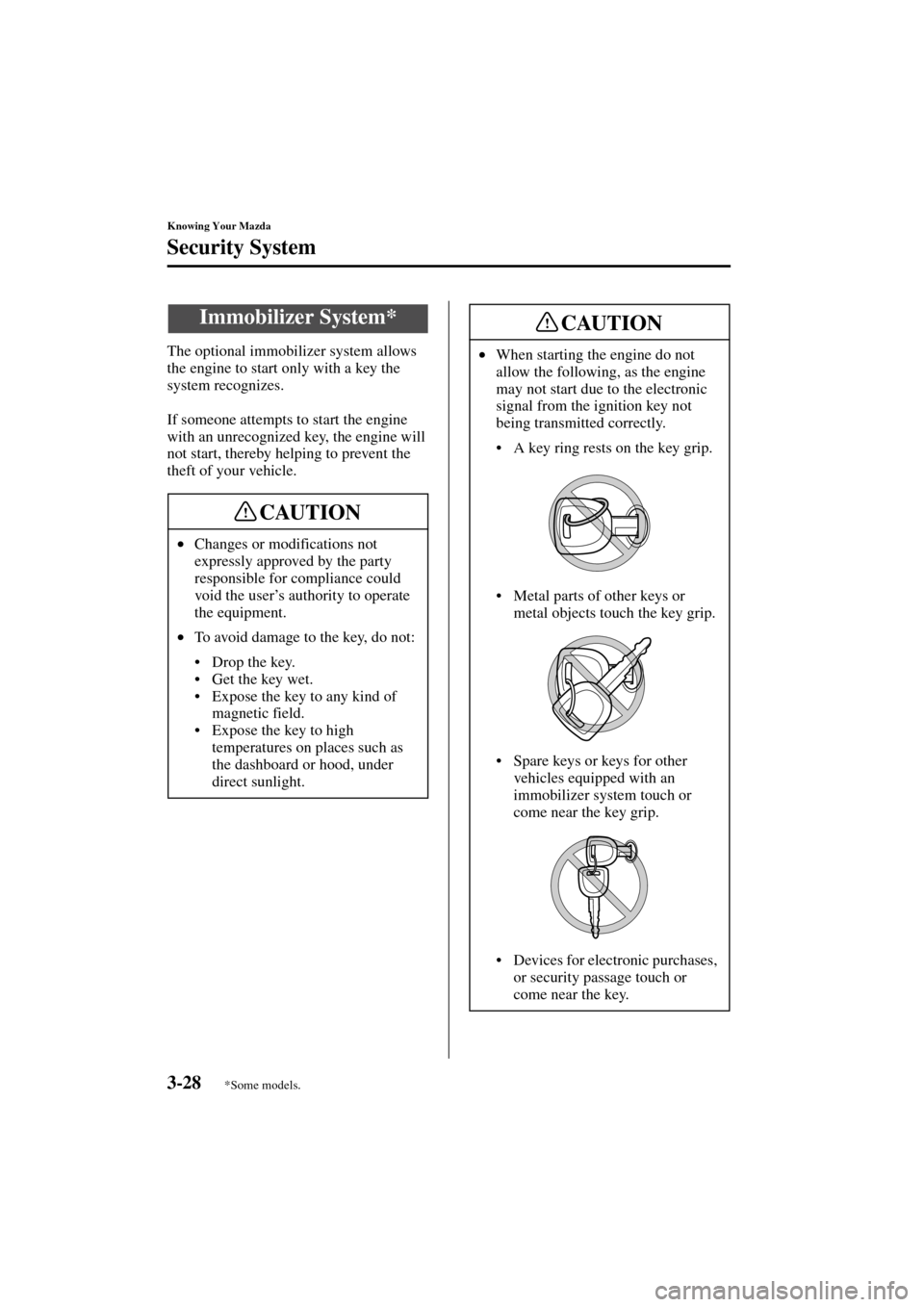

Security System
The optional immobilizer system allows
the engine to start only with a key the
system recognizes.
If someone attempts to start the engine
with an unrecognized key, the engine will
not start, thereby helping to prevent the
theft of your vehicle.
Immobilizer System*
•Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user’s authority to operate
the equipment.
•To avoid damage to the key, do not:
Drop the key.
Get the key wet.
Expose the key to any kind of
magnetic field.
Expose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
CAUTION
•When starting the engine do not
allow the following, as the engine
may not start due to the electronic
signal from the ignition key not
being transmitted correctly.
A key ring rests on the key grip.
Metal parts of other keys or
metal objects touch the key grip.
Spare keys or keys for other
vehicles equipped with an
immobilizer system touch or
come near the key grip.
Devices for electronic purchases,
or security passage touch or
come near the key.
CAUTION
*Some models.
J16R_8S06-EA-03H_Edition1.book Page 28 Wednesday, July 9, 2003 4:19 PM

3-29
Knowing Your Mazda
Security System
Form No. 8S06-EA-03H

Immobilizer System Warning
Light
If the immobilizer system is working
properly, the light will come on when the
ignition switch is turned to the ON or
START position. The light will go out
when confirmation by the immobilizer
system is completed.
If the light flashes rapidly, fails to come
on, or comes on and stays on, it indicates
a system malfunction. If any of these
occur, contact an Authorized Mazda
Dealer as soon as possible.
NOTE
•(U.S.A.)

This device complies with part 15
of the FCC Rules. Operation is
subject to the following two
conditions: (1) This device may not
cause harmful interference, and (2)
this device must accept any
interference received, including
interference that may cause
undesired operation.
•(CANADA)

This device complies with RSS-210
of Industry CANADA. Operation is
subject to the following two
conditions: (1) this device may not
cause interference, and (2) this
device must accept any interference,
including interference that may
cause undesired operation of the
device.
J16R_8S06-EA-03H_Edition1.book Page 29 Wednesday, July 9, 2003 4:19 PM
