2004 MAZDA MODEL MPV Owners Manual (in English)

3-6
Knowing Your Mazda
Doors and Locks
Form No. 8S06-EA-03H
Panic button
You can use the button to turn on the
alarm, which allows you to signal for
attention in an emergency.
Turning on the alarm
Pressing the button once will trigger the
alarm for about 2 minutes and 30 seconds,
and do the following:
•The horn sounds intermittently.
•The hazard warning lights flash.
Turning off the alarm
Press any button on the transmitter.

Transmitter MaintenanceNOTE
•When a power sliding door is not
completely closed, pressing the
power sliding door open/close
transmitter button for 1 second or
more will open the door completely.
•Press the button to stop the power
sliding doors while they are
opening/closing.
NOTE
The alarm will work whether any door
or the liftgate is open or closed.
•Make sure the battery is installed
with the correct pole facing upward.
Battery leakage could occur if it is
not installed correctly.
•When replacing the battery, be
careful not to bend the electrical
terminals or get oil on them. Also
be careful not to get dirt in the
transmitter as it could damage it.
•Danger of battery explosion if it is
incorrectly replaced.
•Replace only with the same type
battery (CR2025 or the equivalent).
•Dispose of used batteries according
to the following instructions.
Insulate the plus and minus
terminals of the battery using
cellophane or equivalent tape.
Never disassemble.
Never throw the battery into fire
and/or water.
Never deform or crush.
CAUTION
J16R_8S06-EA-03H_Edition1.book Page 6 Wednesday, July 9, 2003 4:19 PM

3-7
Knowing Your Mazda
Doors and Locks
Form No. 8S06-EA-03H
Replacing the transmitter battery
1. Insert a small screwdriver into the slot
and gently pry open the transmitter.
2. Remove the battery.3. Put in the new battery (CR2025 or the
equivalent) with the positive pole ( )
facing down.
4. Align the front and back covers and
snap the transmitter shut.
Back cover Slot
Do not press any buttons when
replacing the battery. The electronic
code could be altered and cause the
keyless entry system to malfunction.
If the keyless entry system fails to
operate, contact an Authorized Mazda
Dealer.
LOCK
UNLOCK
CAUTION
J16R_8S06-EA-03H_Edition1.book Page 7 Wednesday, July 9, 2003 4:19 PM

3-8
Knowing Your Mazda
Doors and Locks
Form No. 8S06-EA-03H

Service
If you have a problem with the keyless
entry system, consult an Authorized
Mazda Dealer.
If your transmitter is lost or stolen, bring
all remaining transmitters to an
Authorized Mazda Dealer as soon as
possible for a replacement and to make
the lost or stolen transmitter inoperative.
Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user’s authority to operate the
equipment.
CAUTION
Door Locks
Unattended Children and Pets:
Leaving a child or an animal
unattended in a parked vehicle is
dangerous. In hot weather,
temperatures inside a vehicle can
become high enough to cause brain
damage or even death. Always take all
children and animals with you or
leave a responsible person with them.
Keys and Children:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. They could play with power
windows or other controls, or even
make the vehicle move. Don’t leave
the keys in your vehicle with children
and keep them in a place where your
children will not find or play with
them.
Unlocked Doors:
Unlocked doors in a moving vehicle
are dangerous. Passengers can fall
out if a door is accidentally opened
and can more easily be thrown out in
an accident. So keep all doors locked
when driving.
NOTE
Always remove the key from the
ignition switch, close all windows, and
lock all doors when leaving your
vehicle unattended. This discourages
intruders and thieves.
WARNING
J16R_8S06-EA-03H_Edition1.book Page 8 Wednesday, July 9, 2003 4:19 PM

3-9
Knowing Your Mazda
Doors and Locks
Form No. 8S06-EA-03H

Locking, Unlocking with Key
Either front door can be locked/unlocked
with the key.
Turn the key toward the front to unlock,
toward the back to lock.

Locking, Unlocking with
Transmitter*
The doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to keyless entry system
(page 3-3).

Locking, Unlocking with Door-
Lock Knob
Front doors
To lock either front door from the inside,
push its door-lock knob.
To unlock, pull it out.
To lock either front door with the door-
lock knob from the outside, push its door-
lock knob to the lock position and close
the door.
Unlock
Lock
NOTE
When locking the doors this way, be
careful not to leave the key inside the
vehicle.
Lock
Unlock
*Some models.
J16R_8S06-EA-03H_Edition1.book Page 9 Wednesday, July 9, 2003 4:19 PM

3-10
Knowing Your Mazda
Doors and Locks
Form No. 8S06-EA-03H
Sliding doors
To lock a sliding door from the inside,
push down its door-lock knob.
To unlock, pull it up.
To lock a sliding door with the door-lock
knob from the outside, push down its
door-lock knob and close the door.

Power Door Locks*
Locking, unlocking with key
All doors and the liftgate lock
automatically when any front door is
locked with the key. All doors and the
liftgate unlock when the driver’s door is
unlocked and the key is held in the unlock
position a second longer. Also, all doors
and the liftgate unlock when the
passenger’s door is unlocked.
NOTE
The left-side sliding door cannot be
opened when the fuel-filler lid is open.
Close the fuel-filler lid to open the
sliding door.
Unlock
Lock
NOTE
Holding the key in the unlocked
position in the driver’s door lock for
about a second unlocks all doors and
the liftgate. To unlock only the driver’s
door, insert the key into the driver’s
door lock and turn the key briefly to
the unlock position and then
immediately return it to the center
position.
Unlock
Lock
*Some models.
J16R_8S06-EA-03H_Edition1.book Page 10 Wednesday, July 9, 2003 4:19 PM

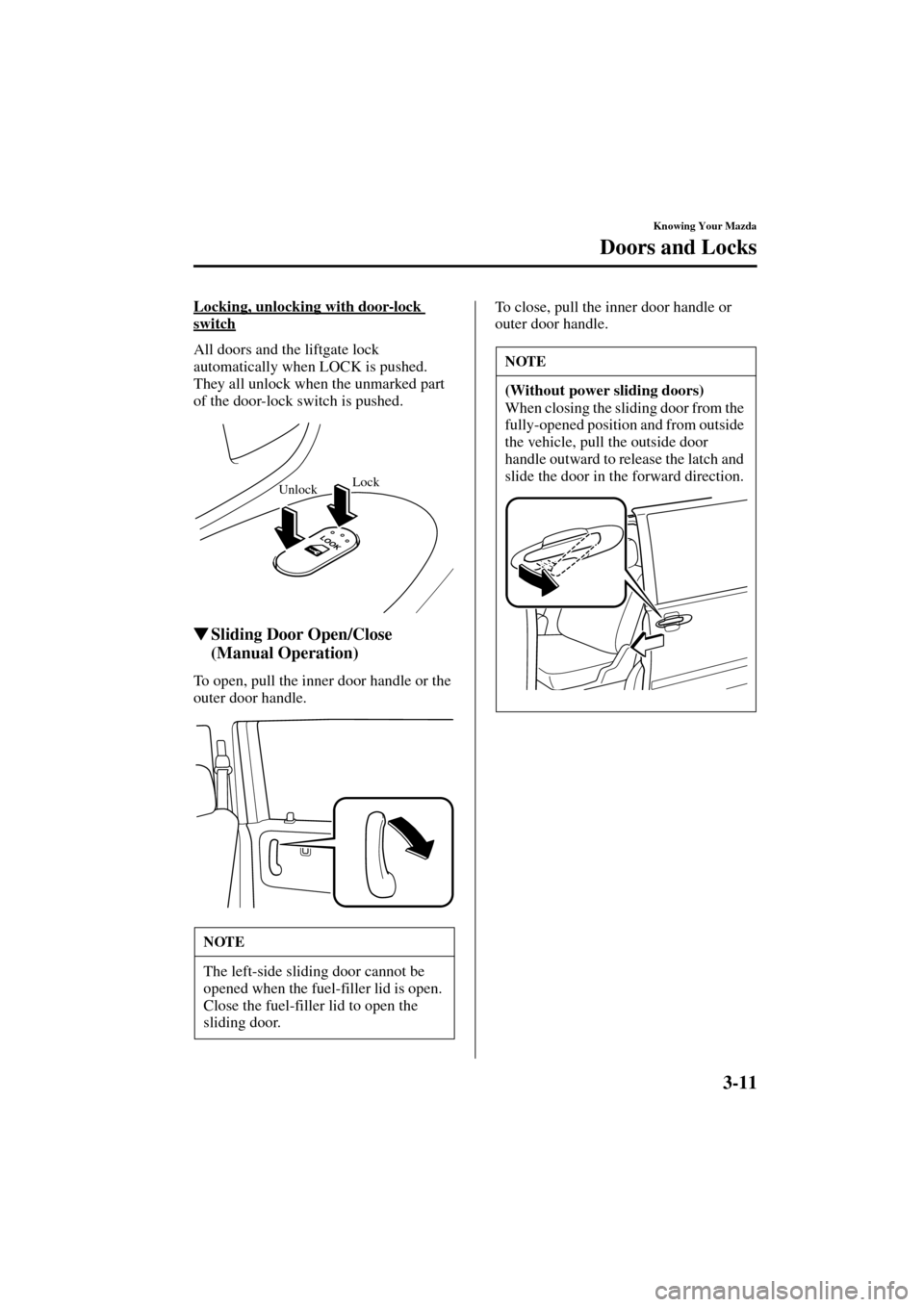

3-11
Knowing Your Mazda
Doors and Locks
Form No. 8S06-EA-03H
Locking, unlocking with door-lock
switch
All doors and the liftgate lock
automatically when LOCK is pushed.
They all unlock when the unmarked part
of the door-lock switch is pushed.

Sliding Door Open/Close
(Manual Operation)
To open, pull the inner door handle or the
outer door handle.To close, pull the inner door handle or
outer door handle.
NOTE
The left-side sliding door cannot be
opened when the fuel-filler lid is open.
Close the fuel-filler lid to open the
sliding door.
Lock
Unlock
NOTE
(Without power sliding doors)

When closing the sliding door from the
fully-opened position and from outside
the vehicle, pull the outside door
handle outward to release the latch and
slide the door in the forward direction.
J16R_8S06-EA-03H_Edition1.book Page 11 Wednesday, July 9, 2003 4:19 PM

3-12
Knowing Your Mazda
Doors and Locks
Form No. 8S06-EA-03H

Rear Door Child Safety Locks
These locks are intended to help prevent
children from accidentally opening the
sliding doors. Use them both whenever a
child rides in the vehicle.
To lock the sliding doors, slide the child
safety locks to the lock position before
closing the doors.
With power sliding doors
The doors cannot be opened using the
interior door handles or the power sliding
door switches in the rear.
To open a door, pull the door-lock knob
and do any one of the following:
•Pull the exterior door handle.
•Push the power sliding door button on
the transmitter for one second or more.
•Push the power sliding door switch
located at the driver’s seat for one
second or more (page 3-13).
Without power sliding doors
The doors cannot be opened from the
inside whether the door-lock knobs are in
the lock position or the unlock position.
To open a door, pull the door-lock knob
and pull the exterior handle.

Easy Closure (With Power
Sliding Doors)
The Easy Closure system automatically
closes the doors completely from the
near-shut position.
This system also operates when the doors
are closed manually.
Unlock
Lock
Hands and Fingers Pinched in
Closing Sliding Doors:
Placing hands or fingers around a
sliding door is dangerous because the
door closes automatically from the
near-shut position, hands and fingers
could get pinched and injured. When
closing a sliding door, always keep
hands and fingers away from the
door.
When closing a door, do not use
excessive force as it may damage the
system.
WARNING
CAUTION
J16R_8S06-EA-03H_Edition1.book Page 12 Wednesday, July 9, 2003 4:19 PM

3-13
Knowing Your Mazda
Doors and Locks
Form No. 8S06-EA-03H

Power Sliding Doors*
The power sliding doors open/close
electrically by operating switches in the
vehicle or on the keyless entry system
transmitter.
To operate the power sliding doors with
the keyless entry system transmitter, refer
to Keyless Entry System (page 3-3).
Electric power to the power sliding doors
can be switched on and off with the power
sliding doors main switch.
ON: Switches on electric power to power
sliding doors.
OFF: Switches off electric power to
power sliding doors.
OFFON
Power sliding
doors main switch
Operating Power Sliding Doors:
Opening or closing the power sliding
doors while not watching the doors
move is dangerous. People or animals
could be injured when the doors open
along the rear sides and back to the
rear fender, or in closing. Because of
unseen obstacles and the jam-safe
feature a door may not close
completely and, if left unnoticed,
could result in serious injury or death
if an occupant were to fall out of the
vehicle.
Always be sure that the doorway and
rear fender area is clear before
activating the power sliding doors. Be
sure to view the power sliding doors
opening or closing and make sure
that you watch them close completely.
Moving the Vehicle while Closing
Power Sliding Doors:
Shifting out of Park (P) while the
doors are moving is dangerous. The
doors will not close completely and
this could result in serious injury or
death if an occupant were to fall out
of the vehicle. Occupants in the
vehicle will also not have full
protection in a collision. Always be
sure the doors completely close before
you shift into gear and move the
vehicle.
WARNING
*Some models.
J16R_8S06-EA-03H_Edition1.book Page 13 Wednesday, July 9, 2003 4:19 PM
