2004 MAZDA MODEL MPV Owners Manual (in English)

5-30
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
Form No. 8S06-EA-03H

Low Fuel Warning Light
This warning light in the fuel gauge
signals that the fuel tank will soon be
empty.
Refuel as soon as possible.

Seat Belt Warning Light
If the driver’s seat belt is not fastened
when the ignition switch is turned to the
ON position, the seat belt warning light
will remain on until the belt is fastened.
If the system does not operate correctly,
consult an Authorized Mazda Dealer.

Door-Ajar Warning Light
This warning light comes on when any
door or liftgate isn’t securely closed.

Immobilizer System Warning/
Security Indicator Light*
Immobilizer system warning light
When the key is in the ignition switch,
this light serves as the immobilizer system
warning light.
If the immobilizer system is working
properly, the light will come on when the
ignition switch is turned to the ON or
START position. The light will go out
when confirmation by the immobilizer
system is completed.
If the light flashes rapidly, fails to come
on, or comes on and stays on, it indicates
a system malfunction. If any of these
occur, contact an Authorized Mazda
Dealer as soon as possible.
Self-Servicing the Air Bag/
Pretensioner Systems:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled. This
could cause serious injuries. Never
tamper with the systems and always
have an Authorized Mazda Dealer
performs all servicing and repairs.
WARNING
Low fuel
warning light
*Some models.
J16R_8S06-EA-03H_Edition1.book Page 30 Wednesday, July 9, 2003 4:19 PM

5-31
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
Form No. 8S06-EA-03H

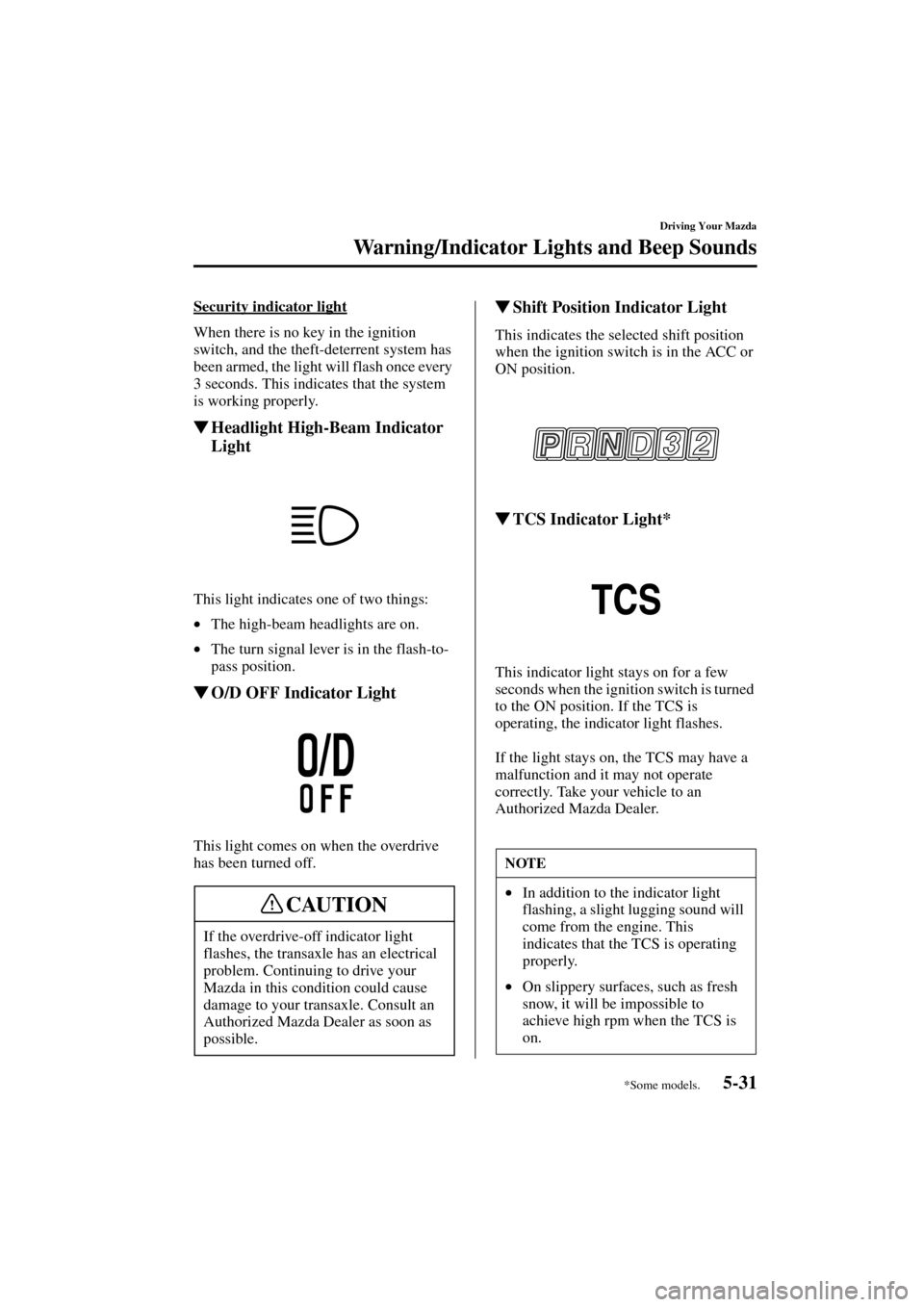

Security indicator light
When there is no key in the ignition
switch, and the theft-deterrent system has
been armed, the light will flash once every
3 seconds. This indicates that the system
is working properly.

Headlight High-Beam Indicator
Light
This light indicates one of two things:
•The high-beam headlights are on.
•The turn signal lever is in the flash-to-
pass position.

O/D OFF Indicator Light
This light comes on when the overdrive
has been turned off.

Shift Position Indicator Light
This indicates the selected shift position
when the ignition switch is in the ACC or
ON position.

TCS Indicator Light*
This indicator light stays on for a few
seconds when the ignition switch is turned
to the ON position. If the TCS is
operating, the indicator light flashes.
If the light stays on, the TCS may have a
malfunction and it may not operate
correctly. Take your vehicle to an
Authorized Mazda Dealer.
If the overdrive-off indicator light
flashes, the transaxle has an electrical
problem. Continuing to drive your
Mazda in this condition could cause
damage to your transaxle. Consult an
Authorized Mazda Dealer as soon as
possible.
CAUTION
NOTE
•In addition to the indicator light
flashing, a slight lugging sound will
come from the engine. This
indicates that the TCS is operating
properly.
•On slippery surfaces, such as fresh
snow, it will be impossible to
achieve high rpm when the TCS is
on.
*Some models.
J16R_8S06-EA-03H_Edition1.book Page 31 Wednesday, July 9, 2003 4:19 PM

5-32
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
Form No. 8S06-EA-03H

TCS OFF Indicator Light*
This light comes on when the ignition
switch is turned to the ON position.
It goes off when the engine is started. It
also comes on when you switch off the
traction control system or when the
system has a malfunction.

Cruise Main Indicator Light*
This light comes on when the ON/OFF
switch is pressed and the cruise control
system is activated.

Cruise Set Indicator Light*
This light comes on when a cruising speed
is set.

Turn-Signal/Hazard Warning
Indicator Lights
When operating the turn-signal lights, the
left or right turn-signal indicator light
flashes to indicate which turn-signal light
is operating (page 5-35).
When operating the hazard warning
lights, both turn-signal indicator lights
flash (page 5-39).
NOTE
After starting the engine on very cold
days, the TCS OFF indicator will
remain on and TCS will not operate
until the engine is warm.
NOTE
If an indicator light remains
illuminated (does not flash) or if it
flashes abnormally, the turn signal bulb
may be burned out.
*Some models.
J16R_8S06-EA-03H_Edition1.book Page 32 Wednesday, July 9, 2003 4:19 PM

5-33
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
Form No. 8S06-EA-03H

Seat Belt Warning Beep
If the driver’s seat belt is not fastened
when the ignition switch is turned to the
ON position, a beep sound will be heard
for about 6 seconds.

Ignition Key Reminder
If the ignition switch is in the LOCK or
ACC position, a beep sound will be heard
when the driver’s door is opened.

Lights-On Reminder
If lights are on and the key is removed
from the ignition switch, a beep sound
will be heard when the driver’s door is
opened.

Power Sliding Door Beep*
The beep sound will be heard according to
the power sliding door operation.
If there is a malfunction in the power
sliding door system, a beep sound will be
heard continuously. If this happens, press
the power sliding doors main switch to the
OFF position and the beep sound will
stop. Consult an Authorized Mazda
Dealer to have the power sliding doors
checked. Refer to Power Sliding Doors on
page 3-13.
Beep Sounds
*Some models.
J16R_8S06-EA-03H_Edition1.book Page 33 Wednesday, July 9, 2003 4:19 PM

5-34
Driving Your Mazda
Form No. 8S06-EA-03H
Switches and Controls

Headlights
To turn on the lights, turn the headlight
switch on the end of the control lever.

Lights-On Reminder
If lights are on and the key is removed
from the ignition switch, a beep sound
will be heard when the driver’s door is
opened.

Headlight High-Low Beam
Push the lever forward for high beam.
Pull it back for low.

Flashing the Headlights
To flash the headlights, pull the lever fully
toward you. The headlight switch need
not be on, and the lever will return to the
normal position when released.
Lighting Control
Switch Position OFF
Headlights Off Off On
Taillights
Parking lights
License lights
Side-marker lightsOff On On
NOTE
To prevent discharging the battery,
don’t leave the lights on while the
engine is off.
Low beamHigh beam
J16R_8S06-EA-03H_Edition1.book Page 34 Wednesday, July 9, 2003 4:19 PM

5-35
Driving Your Mazda
Switches and Controls
Form No. 8S06-EA-03H

Daytime Running Lights
(Canada Model)
In Canada, vehicles must be driven with
the headlights on during daytime
operation.
For that reason, the daytime running lights
automatically turn on when the ignition
switch is turned to the ON position.

Tu r n S i g n a l
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to flash
after a turn, manually return the lever to
its original position.
Green indicators on the dashboard show
which signal is working.
Lane-change signals
Move the lever slightly toward the
direction of the change—until the
indicator flashes—and hold it there. It
will return to the off position when
released.
NOTE
The running lights go off when the
parking brake is applied.
Turn and Lane-Change
Signals
NOTE
If an indicator light stays on without
flashing or if it flashes abnormally, the
turn signal bulb may be burned out.
Right turn
Left turn Right lane
change
Left lane
changeOFF
J16R_8S06-EA-03H_Edition1.book Page 35 Wednesday, July 9, 2003 4:19 PM

5-36
Driving Your Mazda
Switches and Controls
Form No. 8S06-EA-03H
Use this switch to turn on the fog lights.
They help you to see as well as to be seen.
To turn the front fog lights on, rotate the
fog light switch to the position.
The headlight switch must be in the
position to turn on the front fog lights.
To turn them off, rotate the fog light
switch to the OFF position or turn the
headlight switch to the or OFF
position.The ignition switch must be in the ON
position.
Fog Lights*
NOTE
The fog lights will turn off when the
headlights are set at high beam.
Fog light switch
Windshield Wipers and
Washer
Frozen Washer Fluid:
Using windshield washer fluid
without anti-freeze protection in
freezing temperatures is dangerous.
The washer fluid could freeze on the
windshield and block your vision. You
could have an accident. Don’t use the
washer without first warming the
windshield and never use plain tap
water.
NOTE
Because heavy ice and snow can jam
the wiper blades, the wiper motor is
protected from motor breakdown,
overheating and possible fire by a
circuit breaker. This mechanism will
automatically stop operation of the
blades, but only for about 5 minutes.
If this happens, turn off the wiper
switch and park off the right-of-way,
and remove the snow and ice.
After 5 minutes, turn on the switch and
the blades should operate normally. If
they don’t resume functioning, consult
an Authorized Mazda Dealer as soon
as possible.
WARNING
*Some models.
J16R_8S06-EA-03H_Edition1.book Page 36 Wednesday, July 9, 2003 4:19 PM

5-37
Driving Your Mazda
Switches and Controls
Form No. 8S06-EA-03H

Windshield Wipers
Turn the wipers on by pulling the lever
down.
INT
— Intermittent
1
— Normal
2
— Fast
Variable-speed intermittent wipers
Set the lever to INT and choose the
interval timing by rotating the ring.One-touch wipers
For a single wiping cycle, push the lever
up to MIST.

Windshield Washer
Pull the lever toward you and hold it to
spray washer fluid.
If the washer doesn’t work, inspect the
fluid level (page 8-18). If it’s OK, consult
an Authorized Mazda Dealer.
OFF
INT
1
2
OFF
INT
INT ring
NOTE
With the wiper lever in the OFF or INT
position, the wipers will operate
continuously until the lever is released.
OFF MIST
J16R_8S06-EA-03H_Edition1.book Page 37 Wednesday, July 9, 2003 4:19 PM
