2004 MAZDA MODEL MPV Owners Manual (in English)

2-8
Essential Safety Equipment
Seats
Form No. 8S06-EA-03H

Seat Slide (Driver’s Seat)
To slide the seat, move the slide lifter
switch on the outside of the seat to the
front or back and hold it. Release the
switch at the desired position.
Front Seats (Electrically
Operated Seats)
Modification of the Front Seats:
Modifying or replacing the front seats
such as replacing the upholstery or
loosening any bolts is dangerous. The
front seats contain air bag
components essential to the
supplemental restraint system. Such
modification could damage the
supplemental restraint system and
result in serious injury. Consult an
Authorized Mazda Dealer if there is
any need to remove or reinstall the
front seats.
Damaged Front Seats:
Driving with damaged front seats is
dangerous. A collision, even one not
strong enough to inflate the air bags,
could damage the front seats which
contain essential air bag components.
If there was a subsequent collision,
the air bag may not deploy which
could lead to injuries. Always have an
Authorized Mazda Dealer inspect the
front seats, front seat belt
pretensioners and air bags after a
collision.
WARNING
•The seat-bottom power adjustment
is operated by motors. Avoid
extended operation because
excessive use can damage the
motors.
•To prevent the battery from running
down, avoid using the power
adjustment when the engine is
stopped. The adjuster uses a large
amount of electric power.
•Don’t use the switch to make more
than one adjustment at a time.
CAUTION
J16R_8S06-EA-03H_Edition1.book Page 8 Wednesday, July 9, 2003 4:19 PM

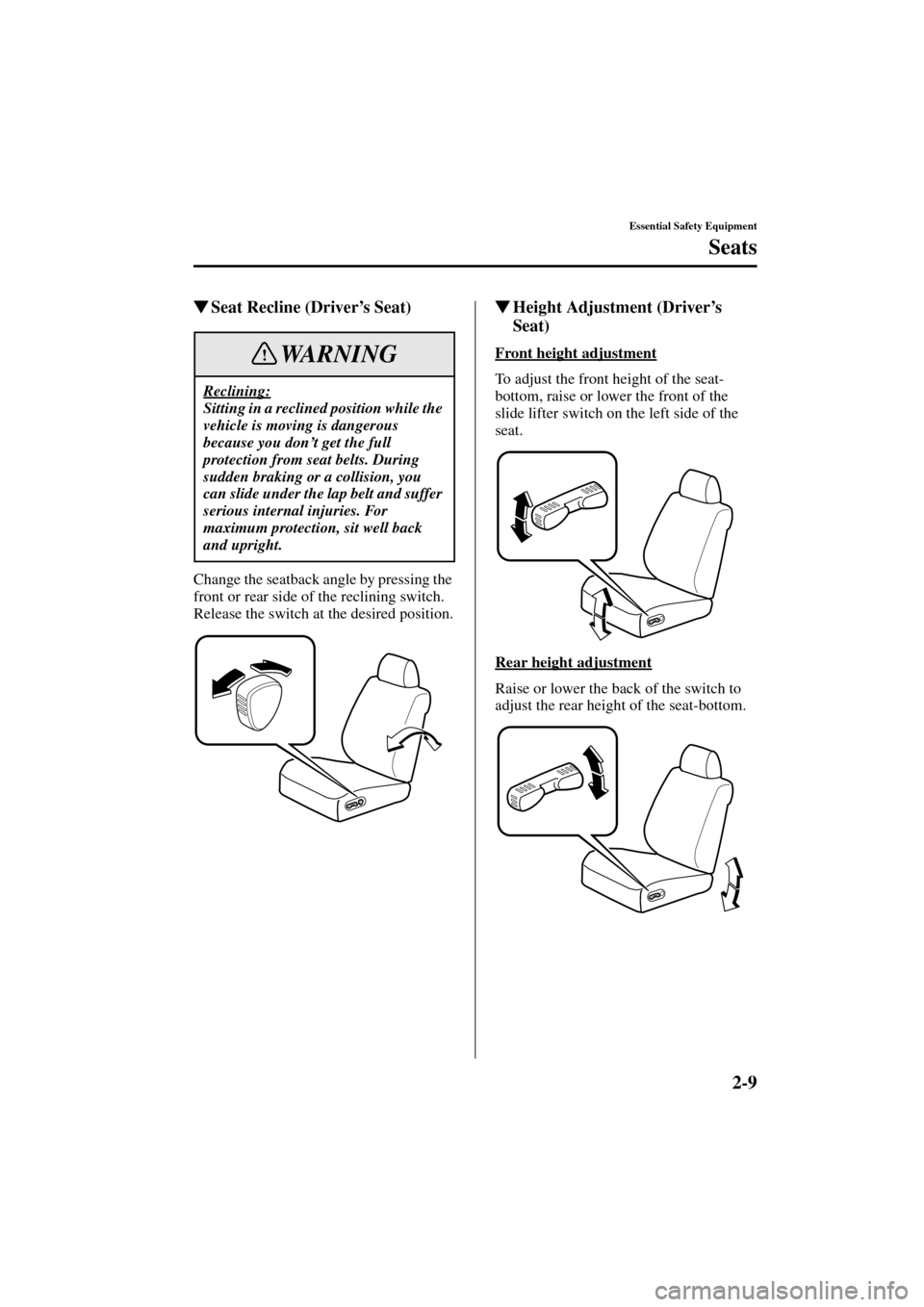

2-9
Essential Safety Equipment
Seats
Form No. 8S06-EA-03H

Seat Recline (Driver’s Seat)
Change the seatback angle by pressing the
front or rear side of the reclining switch.
Release the switch at the desired position.

Height Adjustment (Driver’s
Seat)
Front height adjustment
To adjust the front height of the seat-
bottom, raise or lower the front of the
slide lifter switch on the left side of the
seat.
Rear height adjustment
Raise or lower the back of the switch to
adjust the rear height of the seat-bottom.
Reclining:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you don’t get the full
protection from seat belts. During
sudden braking or a collision, you
can slide under the lap belt and suffer
serious internal injuries. For
maximum protection, sit well back
and upright.
WARNING
J16R_8S06-EA-03H_Edition1.book Page 9 Wednesday, July 9, 2003 4:19 PM

2-10
Essential Safety Equipment
Seats
Form No. 8S06-EA-03H
Height adjustment
Raise the seat-bottom by pulling up on the
center of the switch. Release the switch at
the desired position.
Lower the seat-bottom by pressing down
on the center of the switch. Release the
switch at the desired position.

Head Restraint
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top is
parallel with the top of the passenger’s
ears, never the passenger’s neck.
Head Restraints Adjustment:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.
Always drive with the head restraints
inserted when seats are being used
and make sure they are properly
adjusted.
WARNING
Stop-catch release
J16R_8S06-EA-03H_Edition1.book Page 10 Wednesday, July 9, 2003 4:19 PM

2-11
Essential Safety Equipment
Seats
Form No. 8S06-EA-03H
Removal
To remove the head restraint, press the
stop-catch release, then pull up on the
head restraint.

Front Passenger Seat Side Table
The pull-up table on the side of the front
passenger seat is collapsible. The table
can be used when the vehicle is safely
parked.
Pull up the table to use it. After pulling
the table up, push the table downward and
verify that it is locked.
Stop-catch releaseUsing Seat Side Table While Vehicle
is Moving:
Using the seat side table while the
vehicle is moving is dangerous. Hot
liquids could cause scalding if spilled,
or objects could fall causing injury.
Do not use the seat side table while
the vehicle is moving.
Adjusting Front Passenger Seat
While Seat Side Table is in Use:
Adjusting the front passenger seat
forward or rearward while the seat
side table is in use is dangerous. Hot
liquids could cause scalding if spilled,
or objects could fall causing injury.
Do not adjust the front passenger seat
while the seat side table is in use.
WARNING
J16R_8S06-EA-03H_Edition1.book Page 11 Wednesday, July 9, 2003 4:19 PM

2-12
Essential Safety Equipment
Seats
Form No. 8S06-EA-03H
When collapsing the table, pull the lever
under the table. After the table is
collapsed, press the table surface to lock it
in place.

Armrest
The armrest can be used or placed
upright.
NOTE
The table can be expanded rearward by
pulling out the rear end.
Lever
Positioning the Shoulder Belt Over
the Armrest:
Positioning the shoulder portion of a
front seat belt over the armrest is
dangerous as it cannot provide
adequate protection in a collision and
could result in serious injuries. Never
position the shoulder portion of a
front seat belt over the armrest.
Armrests
WARNING
J16R_8S06-EA-03H_Edition1.book Page 12 Wednesday, July 9, 2003 4:19 PM

2-13
Essential Safety Equipment
Seats
Form No. 8S06-EA-03H
Second-Row Seats
Stacking Cargo:
Stacking luggage or other cargo
higher than the seatback is
dangerous. During a sudden stop or
collision, objects can fly around and
become projectiles that could hit and
injure passengers. Don’t stack cargo
higher than the seatback.
Not Securing Luggage and Cargo:
Not securing cargo while driving is
dangerous as they could move or be
crushed in sudden braking or a
collision and cause injury. Make sure
luggage and cargo is secured before
driving.
Securing Seats:
Adjustable seats that are not securely
latched are dangerous. In a sudden
stop or collision, the seat or seatback
could move, causing injury. Make
sure the adjustable components of the
seat are locked in place by attempting
to slide the seat forward and
backward and rocking the seatback.
Seat Adjustment:
Adjusting the seat while the vehicle is
moving is dangerous. Sudden braking
or a collision could cause serious
injury. Adjust the seat only when the
vehicle is stopped.
WARNINGUnlocked Seatback:
The seatback plays an important role
in your protection in a vehicle.
Leaving the seatback unlocked is
dangerous as it can allow passengers
to be ejected or thrown around and
baggage to strike occupants in a
sudden stop or collision, resulting in
severe injury. After adjusting the
seatback at any time, even when there
are no other passengers, rock the
seatback to make sure it is locked in
place.
Passenger on the Folded Seatback:
Driving with a passenger on the
folded seatback is dangerous.
Allowing a child to sit on the folded
seatback while the vehicle is moving
is particularly dangerous. During
sudden braking or even a minor
collision, a child not restrained in a
proper seat or child-restraint system
and seat belt could be thrown
forward, back or even out of the car
resulting in serious injuries or death.
The child or other objects in the cargo
area could be thrown into other
occupants and cause serious injury.
Never allow a passenger to sit or
stand on the folded seatback while the
vehicle is moving.
NOTE
When returning a second-row seat to
its original position, also replace the
seat belt to its normal position. Verify
that the seat belt pulls and retracts.
WARNING
J16R_8S06-EA-03H_Edition1.book Page 13 Wednesday, July 9, 2003 4:19 PM

2-14
Essential Safety Equipment
Seats
Form No. 8S06-EA-03H

Seat Slide
To move the seat forward or backward,
raise the lever and slide the seat to the
desired position and release the lever.
Make sure the lever returns to its original
position and the seat is locked in place by
attempting to push it forward and
backward.

Side-Sliding Seat (right side)
The second-row seats can be put together
and used as a bench seat. Raise the side
seat-slide lever and slide the seat
sideways.
Make sure the lever returns to its original
position and the seat is locked in place by
attempting to push it from side to side.

Seat Recline
To change the seatback angle, lean
forward slightly while raising the lever.
Then lean back to the desired position and
release the lever.
Lever
Side seat-slide lever
Reclining:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you don’t get the full
protection from seat belts. During
sudden braking or a collision, you
can slide under the lap belt and suffer
serious internal injuries. For
maximum protection, sit well back
and upright.
Reclining the Second-Row Seatback:
Reclining the second-row seatback
when the third-row seat is occupied is
dangerous. The second-row seatback
may hit and injure the occupants in
the third-row seat. Don’t recline the
second-row seatback when the third-
row seat is occupied.
WARNING
Lever
J16R_8S06-EA-03H_Edition1.book Page 14 Wednesday, July 9, 2003 4:19 PM

2-15
Essential Safety Equipment
Seats
Form No. 8S06-EA-03H
Make sure the lever returns to its original
position and the seatback is locked in
place by attempting to push it forward and
backward.

Head Restraint
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top is
parallel with the top of the passenger’s
ears, never the passenger’s neck.
Removal
To remove the head restraint, press the
stop-catch release, then pull up on the
head restraint. When returning a rear-reclined
seatback to its upright position, make
sure you support the seatback while
operating the seatback lever. If the
seatback is not supported, it will flip
forward suddenly and could cause
injury.
Head Restraints Adjustment:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.
Always drive with the head restraints
inserted when seats are being used
and make sure they are properly
adjusted.
CAUTION
WARNING
Stop-catch release
Stop-catch release
J16R_8S06-EA-03H_Edition1.book Page 15 Wednesday, July 9, 2003 4:19 PM
