2004 MAZDA MODEL MPV Owners Manual (in English)

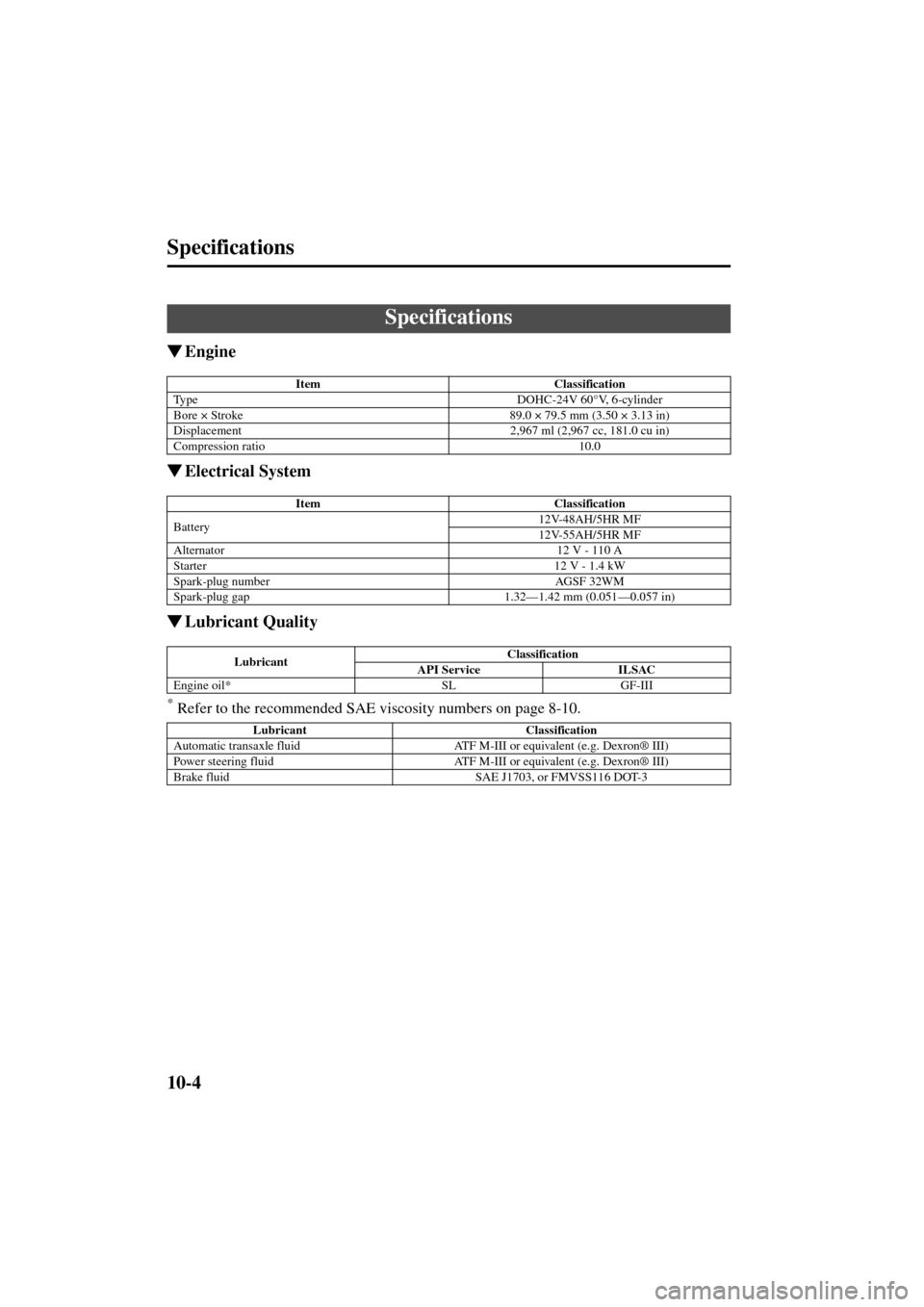

10-4
Form No. 8S06-EA-03H
Specifications

Engine

Electrical System

Lubricant Quality
* Refer to the recommended SAE viscosity numbers on page 8-10.
Specifications
Item Classification
Type DOHC-24V 60°
V, 6-cylinder
Bore × Stroke 89.0 × 79.5 mm (3.50 × 3.13 in)
Displacement 2,967 ml (2,967 cc, 181.0 cu in)
Compression ratio 10.0
Item Classification
Battery12V-48AH/5HR MF
12V-55AH/5HR MF
Alternator 12 V - 110 A
Starter 12 V - 1.4 kW
Spark-plug number AGSF 32WM
Spark-plug gap 1.32—1.42 mm (0.051—0.057 in)
LubricantClassification
API Service ILSAC
Engine oil* SL GF-III
Lubricant Classification
Automatic transaxle fluid ATF M-III or equivalent (e.g. Dexron® III)
Power steering fluid ATF M-III or equivalent (e.g. Dexron® III)
Brake fluid SAE J1703, or FMVSS116 DOT-3
J16R_8S06-EA-03H_Edition1.book Page 4 Wednesday, July 9, 2003 4:19 PM

10-5
Specifications
Form No. 8S06-EA-03H

Capacities
(Approximate Quantities)
Check oil and fluid levels with dipsticks or reservoir gauges.

Dimensions
*1With license plate holder*217 inch wheel vehicle*3Rear drum brake*4Rear disc brake

We i g h t s

Air Conditioner
ItemUnit
L US qt Imp qt
Engine oilWith oil filter replacement 5.7 6.0 5.0
Without oil filter replacement 5.2 5.5 4.6
CoolantWith rear heater 12.0 12.7 10.6
Without rear heater 10.2 10.8 9.3
Automatic transaxle fluid 9.7 10.3 8.5
Washer fluidWith 4-Seasons package 5.5 5.8 4.8
Without 4-Seasons package 2.2 2.3 1.9
Fuel tank 75 19.8 (US gal) 16.5 (Imp gal)
Item Model
Overall lengthWithout GFX Package
4,807mm (189.3 in), 4,821mm (189.8 in)
*1
With GFX Package
4,813mm (189.5 in), 4,833mm (190.3 in)*1
Overall width 1,830mm (72.1 in)
Overall height
1,745 mm (68.7 in), 1,755 mm (69.1 in)*2
Front tread 1,540mm (60.6 in)
Rear tread
1,545mm (60.8 in)*3, 1,550mm (61.0 in)*4
Wheelbase 2,840mm (111.8 in)
Item Weight
GVWR (Gross Vehicle Weight Rating) 2,386kg (5,260 lb)
GAWR (Gross Axle Weight Rating)Front 1,189kg (2,621 lb)
Rear 1,218kg (2,685 lb)
Refrigerant complies with SAE J639 Maximum operating charge
HFC134a (R-134a)Front air-conditioner 0.6 kg (21.2 oz)
Front and rear air-conditioner 0.8 kg (28.2 oz)
J16R_8S06-EA-03H_Edition1.book Page 5 Wednesday, July 9, 2003 4:19 PM

10-6
Specifications
Form No. 8S06-EA-03H

Light Bulbs
Exterior light
*1Bulb replacement is not possible because it is built into the unit. Replace the unit.
Interior light
Light bulbCategory
Wattage ECE R SAE
Headlights 60/55 HB2—
Front turn signal lights/Front side-marker lights 21/5—#1157NA
Fog lights
*55 H11—
Parking lights 5 W5W #168
Side turn signal lights
*15WY5W—
Rear turn signal lights 21 WY21W—
Brake lights/Taillights 21/5 W21/5W #7443
Taillights/Rear side-marker lights 5 W5W #168
High-mount brake light 5 W5W #168
Reverse lights 16 W16W #921
License plate lights 5 W5W—
Light bulbCategory
Wattage ECE R
Overhead lights/Map lights 5 W5W
Overhead light 8—
Luggage compartment light 8—
Courtesy lights 5 W5W
Vanity mirror lights
*3—
*Some models.
J16R_8S06-EA-03H_Edition1.book Page 6 Wednesday, July 9, 2003 4:19 PM

10-7
Specifications
Form No. 8S06-EA-03H

Tires
Check the tire pressure label for tire size and inflation pressure. Refer to Tire Inflation
Pressure on page 8-27.
Standard tire
*1Steel wheel*2Aloy wheel
Temporary spare tire

Fuses
Refer to the fuse rating on page 8-38.
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type
originally fitted to your vehicle. For details, contact an Authorized Mazda Dealer.
Item Model
Tire size 205/65R15 94H 215/60R16 95H P215/60R17 95H
Rim size
15×6JJ
*1, 15×6J*216×6-1/2J 17×7J
Inflation pressure
240 kPa (35 psi or lb/po2) 240 kPa (35 psi or lb/po2) 240 kPa (35 psi or lb/po2)
Tire size Inflation pressure
T135/90D15 420 kPa (60 psi)
J16R_8S06-EA-03H_Edition1.book Page 7 Wednesday, July 9, 2003 4:19 PM

10-8
Form No. 8S06-EA-03H
J16R_8S06-EA-03H_Edition1.book Page 8 Wednesday, July 9, 2003 4:19 PM

11-1
Form No. 8S06-EA-03H
11Index
J16R_8S06-EA-03H_Edition1.book Page 1 Wednesday, July 9, 2003 4:19 PM

11-2
Form No. 8S06-EA-03H
Index
A
Accessory Socket ............................. 6-52
Add-On Non-Genuine Parts and
Accessories
...................................... 9-13
Air Bag Systems
.............................. 2-56
Air Filter
.......................................... 8-19
Antenna
............................................ 6-14
Anti-Lock Brake System (ABS)
........ 5-7
Warning light
.............................. 5-8
Appearance Care
.............................. 8-43
Ashtray
............................................. 6-45
Audio System
................................... 6-14
Audio control switch
................ 6-38
Audio set
................................... 6-21
Operating tips for
audio system
............................. 6-14
Safety certification
.................... 6-40
Automatic Transaxle
Driving tips
............................... 5-13
Fluid
.......................................... 8-16
Overdrive
.................................. 5-12
Shift-lock override
.................... 5-12
Shift-lock system
...................... 5-11
Transaxle ranges
....................... 5-10
B
Battery
Emergency starting
................... 7-17
Maintenance
............................. 8-24
Specifications
........................... 10-4
Beep Sounds
Ignition key reminder
............... 5-33
Lights-on reminder
................... 5-33
Power sliding door beep
........... 5-33
Seat belt warning beep
.............. 5-33
Before Starting the Engine
................. 4-6
After getting in
........................... 4-6
Before getting in
......................... 4-6
B
Body Lubrication ............................. 8-19
Bottle Holder
.................................... 6-48
Brake
Fluid
.......................................... 8-15
Brakes
Anti-lock brake system (ABS)
....5-7
Foot brake
................................... 5-4
Pad wear indicator
...................... 5-8
Parking brake
.............................. 5-5
Warning light
.............................. 5-6
Break-In Period
.................................. 4-7
Bulb Replacement
............................ 8-31
C
Capacities ......................................... 10-5
Carbon Monoxide
.............................. 4-5
Cargo Securing Loops
...................... 6-51
Catalytic Converter
............................ 4-3
Cell Phones
...................................... 9-14
Child Restraint
Child restraint precautions
........ 2-41
Installing child-restraint
systems
...................................... 2-45
LATCH child-restraint
systems
...................................... 2-53
Child Safety Locks for Rear
Doors
................................................ 3-12
Cigarette Lighter
.............................. 6-44
Climate Control System
.....................6-2
Gas specifications
..................... 10-5
Courtesy Lights
................................ 6-44
Cruise Control
.................................. 5-14
Cup Holder
....................................... 6-46
Customer Assistance
.......................... 9-2
J16R_8S06-EA-03H_Edition1.book Page 2 Wednesday, July 9, 2003 4:19 PM

11-3
Index
Form No. 8S06-EA-03H
D
Dashboard Illumination ................... 5-23
Daytime Running Lights
.................. 5-35
Defroster
Rear window
............................. 5-38
Dimensions
...................................... 10-5
Door Locks
......................................... 3-8
Driving In Flooded Area
.................. 4-11
Driving Tips
....................................... 4-7
Automatic transaxle
.................. 5-13
Break-in period
........................... 4-7
Driving in flooded area
............. 4-11
Hazardous driving
....................... 4-8
Money-saving suggestions
.......... 4-7
Rocking the vehicle
.................... 4-9
Winter driving
............................. 4-9
E
Easy Closure .................................... 3-12
Emergency Starting
.......................... 7-17
Flooded engine
.......................... 7-17
Jump-starting
............................ 7-18
Push-starting
............................. 7-21
Emergency Towing
.......................... 7-22
Emission Control System
................... 4-3
Engine
Coolant
...................................... 8-12
Exhaust gas
................................. 4-5
Hood release
............................. 3-24
Oil
............................................. 8-10
Overheating
............................... 7-15
Starting
........................................ 5-3
Engine Compartment Overview
........ 8-9
Engine Coolant
Overheating
............................... 7-15
Engine Coolant Temperature
Gauge
............................................... 5-22
Exhaust Gas
....................................... 4-5
E
Exterior Care ....................................8-45
Eyeglass Holder
................................6-49
F
Flasher
Hazard warning
.........................5-39
Headlights
.................................5-34
Flat Tire
..............................................7-3
Changing
.....................................7-8
Spare tire and tool storage
...........7-3
Fluids
Classification
.............................10-4
Owner maintenance
.....................8-7
Fog Lights
........................................5-36
Foot Brake
..........................................5-4
Front Console
...................................6-50
Front Seats
(Electrically Operated Seats)
..............2-8
Front Seats
(Manually Operated Seats)
.................2-3
Fuel
Filler lid and cap
.......................3-23
Gauge
........................................5-23
Requirements
..............................4-2
Tank capacity
............................10-5
Fuses
.................................................8-38
Panel description
.......................8-40
Replacement
..............................8-38
G
Gauges ..............................................5-20
Glove Box
........................................6-50
J16R_8S06-EA-03H_Edition1.book Page 3 Wednesday, July 9, 2003 4:19 PM
