2004 MAZDA MODEL MPV Owners Manual (in English)

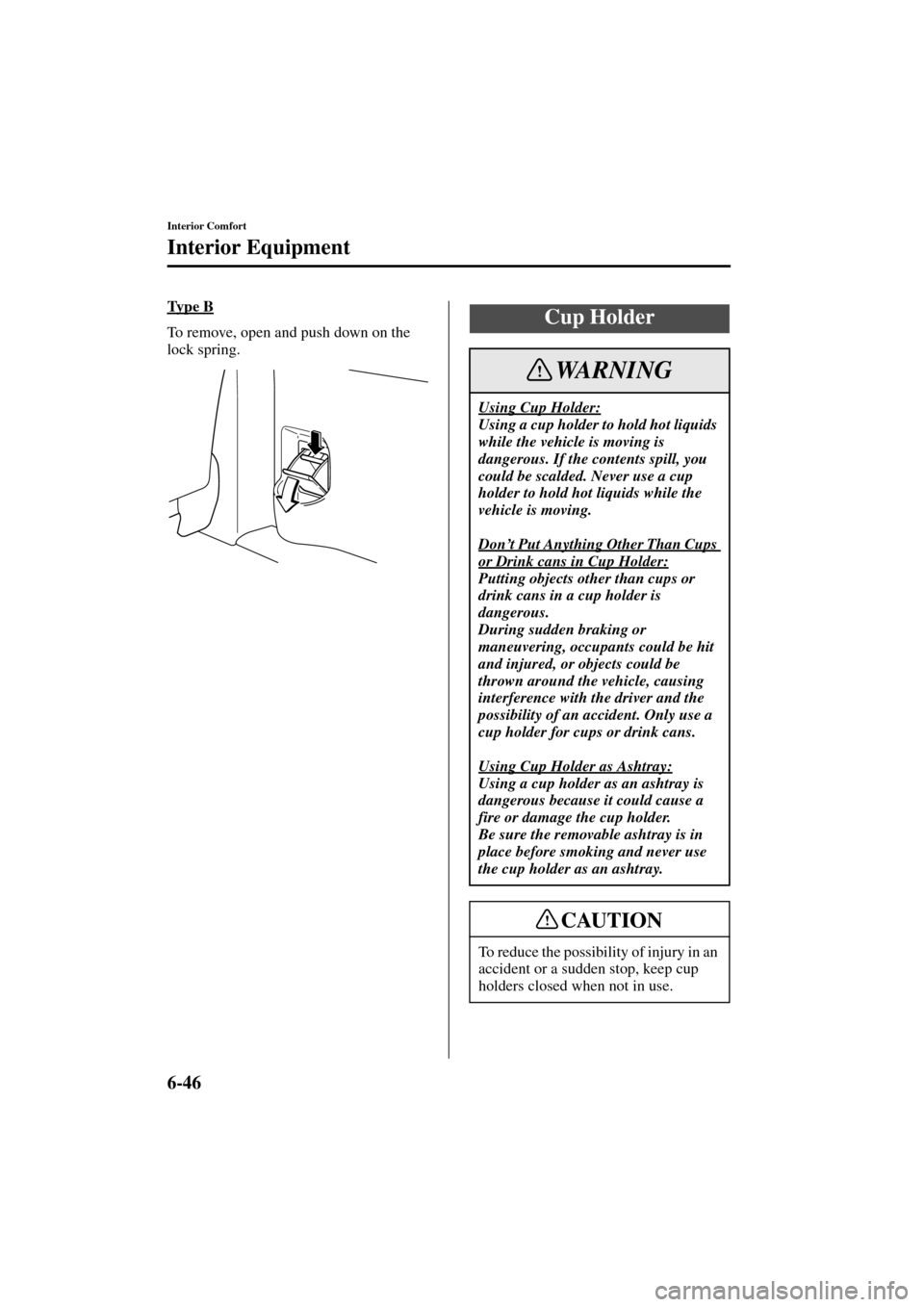

6-46
Interior Comfort
Interior Equipment
Form No. 8S06-EA-03H
Ty p e B
To remove, open and push down on the
lock spring.Cup Holder
Using Cup Holder:
Using a cup holder to hold hot liquids
while the vehicle is moving is
dangerous. If the contents spill, you
could be scalded. Never use a cup
holder to hold hot liquids while the
vehicle is moving.
Don’t Put Anything Other Than Cups
or Drink cans in Cup Holder:
Putting objects other than cups or
drink cans in a cup holder is
dangerous.
During sudden braking or
maneuvering, occupants could be hit
and injured, or objects could be
thrown around the vehicle, causing
interference with the driver and the
possibility of an accident. Only use a
cup holder for cups or drink cans.
Using Cup Holder as Ashtray:
Using a cup holder as an ashtray is
dangerous because it could cause a
fire or damage the cup holder.
Be sure the removable ashtray is in
place before smoking and never use
the cup holder as an ashtray.
To reduce the possibility of injury in an
accident or a sudden stop, keep cup
holders closed when not in use.
WARNING
CAUTION
J16R_8S06-EA-03H_Edition1.book Page 46 Wednesday, July 9, 2003 4:19 PM

6-47
Interior Comfort
Interior Equipment
Form No. 8S06-EA-03H

Front
To use, pull the tray out.

Rear
Second seat (Passenger seat only)
The cup holder is located on the outboard
side of the right second-row seats. To use
the cup holder, pull it out.Seat side table
To use the cup holder
1. Raise the table (page 2-6)(page 2-11).
2. Pull the cup holder end to extend it
rearwards.
To collapse the table
1. Push the cup holder back into the table.
2. Pull the lever under the table, then
lower it (page 2-6)(page 2-11). After
the table is collapsed, press the table
surface to lock it in place.NOTE
Replacement ashtrays are available
from an Authorized Mazda Dealer if
they are missing.
J16R_8S06-EA-03H_Edition1.book Page 47 Wednesday, July 9, 2003 4:19 PM

6-48
Interior Comfort
Interior Equipment
Form No. 8S06-EA-03H
Third seat
If an ashtray is equipped, pull it out and
use the hole for an additional cup holder.
Bottle holders are on the inside of the
sliding doors.
Ashtray
Bottle Holder
Don’t use the bottle holders for
containers without caps. The contents
may spill when the door is opened.
CAUTION
J16R_8S06-EA-03H_Edition1.book Page 48 Wednesday, July 9, 2003 4:19 PM

6-49
Interior Comfort
Interior Equipment
Form No. 8S06-EA-03H

Overhead Console*
This console box is designed to store a
garage door opener or other accessories.
Push and release to open.
To store the garage door opener:
1. Open the console box.2. Take out the urethane spacer.
3. Open the cap by pushing it from inside
the box.
4. Store the garage door opener by
adjusting the thickness with the
urethane spacers.

Eyeglass Holder*
Push the lid to open.
Storage Compartments
Open Storage Boxes:
Driving with the storage boxes open is
dangerous. To reduce the possibility
of injury in an accident or a sudden
stop, keep the storage boxes closed
when driving.
Don’t leave eyeglasses or lighters in
the storage boxes while parked under
the sun. A lighter could explode or the
plastic material in eyeglasses could
deform and crack from high
temperature.
WARNING
CAUTIONCap
*Some models.
J16R_8S06-EA-03H_Edition1.book Page 49 Wednesday, July 9, 2003 4:19 PM

6-50
Interior Comfort
Interior Equipment
Form No. 8S06-EA-03H

Glove Box
To open the glove box, pull the latch
toward you.
Insert the key and turn it clockwise to
lock, counterclockwise to unlock.

Front Console
Pull the latch to open.

Under Seat Tray (Front
Passenger Seat Only)
Lift the latch and pull the tray forward.

Storage Box (In Seat Side Table)
To use the storage box
1. Raise the table (page 2-6)(page 2-11).
2. Push the button to open.
Unlock
Lock
Button
J16R_8S06-EA-03H_Edition1.book Page 50 Wednesday, July 9, 2003 4:19 PM

6-51
Interior Comfort
Interior Equipment
Form No. 8S06-EA-03H
To collapse the table
1. Close the lid on the storage box.
2. Pull the lever under the table, then
lower it (page 2-6)(page 2-11). After
the table is collapsed, press the table
surface to lock it in place.

Rear Console*
Push the knob and open the cover.

Cargo Securing Loops
Use the loops in the luggage compartment
to secure cargo with a rope or net. The
tensile strength of the loops is 196N (20
kgf, 44 lbf). Do not apply excessive force
to the loops as it will damage them.
Not Securing Luggage and Cargo:
Not securing cargo while driving is
dangerous as they could move or be
crushed in sudden braking or a
collision and cause injury. Make sure
luggage and cargo is secured before
driving.
WARNING
Floor
Rear side trim
*Some models.
J16R_8S06-EA-03H_Edition1.book Page 51 Wednesday, July 9, 2003 4:19 PM

6-52
Interior Comfort
Interior Equipment
Form No. 8S06-EA-03H

Shopping Bag Hooks
The shopping bag hooks can be used for
hanging shopping bags.The ignition switch must be in the ACC or
ON position.
Only use genuine Mazda accessories or
the equivalent requiring no greater than
120 W (DC12 V, 10 A).
Do not hang excessive weight on the
shopping bag hooks as they could be
damaged.
CAUTION
Shopping bag hook
(tensile strength:
3 kg (6.6 lb))
Accessory Sockets*
Cap
Front
Rear
*Some models.
J16R_8S06-EA-03H_Edition1.book Page 52 Wednesday, July 9, 2003 4:19 PM

6-53
Interior Comfort
Interior Equipment
Form No. 8S06-EA-03H
To prevent accessory socket damage or
electrical failure, pay attention to the
following:
•Don’t use accessories that require
more than 120 W (DC12 V, 10 A).
•Don’t use accessories that are not
genuine Mazda accessories or the
equivalent.
•Close the cover when the accessory
socket is not in use.
•Correctly insert the plug into the
accessory socket.
NOTE
To prevent discharging the battery,
don’t use the socket for long periods
with the engine off or idling.
CAUTION
