2004 MAZDA MODEL MPV light

1-2
Your Vehicle at a Glance
Form No. 8S06-EA-03H
Dashboard Overview
Hood release handle
Climate control systemCup holder/Ashtray
Glove box Shift lever
Audio system
Passenger-side air bag
Hazard warning flasher Lighting control/Turn signals Instrument cluster
Driver-side air bag
Wiper and washer lever
Power window switches*
Cruise control switches*
Ignition switchLighter
Tilt wheel release lever Power window
lock switch*
Audio control switches* Outside mirror switch
Power door lock switch*
Power sliding door switch*Front console
TCS OFF switch*
(page 5-20)
(page 5-34)
(page 3-19)
(page 3-21)
(page 3-24) (page 5-18)
(page 3-33)
(page 6-38)(page 5-2) (page 5-14) (page 6-50)(page 6-2) (page 6-46)/(page 6-45)(page 6-44) (page 6-50) (page 2-56) (page 6-14) (page 5-39)(page 5-9) (page 5-36)
(page 2-56) (page 3-13)
(page 3-33) (page 3-8)
*Some models.
J16R_8S06-EA-03H_Edition1.book Page 2 Wednesday, July 9, 2003 4:19 PM

1-3
Your Vehicle at a Glance
Form No. 8S06-EA-03H
Interior Overview
Rearview mirrorSeat beltsInterior light
Sunvisors
Front seats
Side air bags*
Second-row seat
Power seat
switches
Third-row seat
Parking brake
Rear climate control panel*
Rear vents*
(page 6-41)(page 2-30)
(page 3-34)
(page 5-5)
(page 2-56)(page 6-42)
(page 6-10)
(page 2-20)
(page 6-12)
(page 2-13) (page 2-8)
(page 2-3)
*Some models.
J16R_8S06-EA-03H_Edition1.book Page 3 Wednesday, July 9, 2003 4:19 PM

1-4
Your Vehicle at a Glance
Form No. 8S06-EA-03H
Exterior Overview
Windshield wiper blades
Power windows
Hood
Fog lights*
Front turn signal lights/Front side-marker lights
Headlights
Fuel-filler lid
Doors and keys
Rear windshield
wiper blades
Liftgate
License plate
lights
Reverse lights
Rear turn signal lights
Tires
Rear window defrosterChild safety lock
Outside mirrors Brake lights/Taillights
Parking lights
Moonroof*
High-mount brake light
Side turn signal lights Taillights/Rear side-marker lights
(page 8-31)
(page 8-31)
(page 5-38)(page 3-12)
(page 8-22)
(page 3-18)
(page 8-31)
(page 8-31)
(page 8-31)
(page 8-20)
(page 3-24)
(page 8-31)
(page 8-31)(page 3-33)
(page 8-27)
(page 3-25)
(page 3-23) (page 3-19)
(page 3-2)
(page 8-31)
(page 8-31) (page 8-31)
(page 8-31)
*Some models.
J16R_8S06-EA-03H_Edition1.book Page 4 Wednesday, July 9, 2003 4:19 PM

2-1
Form No. 8S06-EA-03H
2Essential Safety Equipment
Use of safety equipment, including seats, seat belt system, SRS air bags and
child-restraint systems.
Seats
................................................................................................ 2-2
Seat Arrangements .................................................................... 2-2
Front Seats (Manually Operated Seats) ..................................... 2-3
Front Seats (Electrically Operated Seats) .................................. 2-8
Second-Row Seats ................................................................... 2-13
Third-Row Seat ....................................................................... 2-20
Flat Folding ............................................................................. 2-28
Seat Belt Systems
......................................................................... 2-30
Seat Belt Precautions ............................................................... 2-30
3-Point Type Seat Belt ............................................................. 2-33
Front Seat Belt Pretensioner and Load Limiting Systems ...... 2-35
2-Point Type Seat Belt ............................................................. 2-37
Seat Belt Extender ................................................................... 2-39
Seat Belt Warning Light .......................................................... 2-40
Seat Belt Warning Beep ........................................................... 2-40
Child Restraint
............................................................................ 2-41
Child Restraint Precautions ..................................................... 2-41
Installing Child-Restraint Systems .......................................... 2-45
LATCH Child-Restraint Systems ............................................ 2-53
SRS Air Bags
............................................................................... 2-56
Supplemental Restraint Systems (SRS) Precautions ............... 2-56
Supplemental Restraint System Components .......................... 2-60
How the Air Bags Work .......................................................... 2-63
J16R_8S06-EA-03H_Edition1.book Page 1 Wednesday, July 9, 2003 4:19 PM

2-4
Essential Safety Equipment
Seats
Form No. 8S06-EA-03H
Make sure the lever returns to its original
position and the seat is locked in place by
attempting to push it forward and
backward.

Seat Recline
To change the seatback angle, lean
forward slightly while raising the lever.
Then lean back to the desired position and
release the lever.
Make sure the lever returns to its original
position and the seatback is locked in
place by attempting to push it forward and
backward.
Reclining:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you don’t get the full
protection from seat belts. During
sudden braking or a collision, you
can slide under the lap belt and suffer
serious internal injuries. For
maximum protection, sit well back
and upright.
Unlocked Seatback:
The seatback plays an important role
in your protection in a vehicle.
Leaving the seatback unlocked is
dangerous as it can allow passengers
to be ejected or thrown around and
baggage to strike occupants in a
sudden stop or collision, resulting in
severe injury. After adjusting the
seatback at any time, even when there
are no other passengers, rock the
seatback to make sure it is locked in
place.
WARNING
When returning a rear-reclined
seatback to its upright position, make
sure you support the seatback while
operating the seatback lever. If the
seatback is not supported, it will flip
forward suddenly and could cause
injury.
Lever
CAUTION
J16R_8S06-EA-03H_Edition1.book Page 4 Wednesday, July 9, 2003 4:19 PM

2-14
Essential Safety Equipment
Seats
Form No. 8S06-EA-03H

Seat Slide
To move the seat forward or backward,
raise the lever and slide the seat to the
desired position and release the lever.
Make sure the lever returns to its original
position and the seat is locked in place by
attempting to push it forward and
backward.

Side-Sliding Seat (right side)
The second-row seats can be put together
and used as a bench seat. Raise the side
seat-slide lever and slide the seat
sideways.
Make sure the lever returns to its original
position and the seat is locked in place by
attempting to push it from side to side.

Seat Recline
To change the seatback angle, lean
forward slightly while raising the lever.
Then lean back to the desired position and
release the lever.
Lever
Side seat-slide lever
Reclining:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you don’t get the full
protection from seat belts. During
sudden braking or a collision, you
can slide under the lap belt and suffer
serious internal injuries. For
maximum protection, sit well back
and upright.
Reclining the Second-Row Seatback:
Reclining the second-row seatback
when the third-row seat is occupied is
dangerous. The second-row seatback
may hit and injure the occupants in
the third-row seat. Don’t recline the
second-row seatback when the third-
row seat is occupied.
WARNING
Lever
J16R_8S06-EA-03H_Edition1.book Page 14 Wednesday, July 9, 2003 4:19 PM

2-21
Essential Safety Equipment
Seats
Form No. 8S06-EA-03H

Seat Recline
To change seatback angle, lean forward
slightly while pulling the flat-folding
strap. Then lean back to the desired
position and release the strap. Make sure
the seat is securely latched.
Unlocked Seatback:
The seatback plays an important role
in your protection in a vehicle.
Leaving the seatback unlocked is
dangerous as it can allow passengers
to be ejected or thrown around and
baggage to strike occupants in a
sudden stop or collision, resulting in
severe injury. After adjusting the
seatback at any time, even when there
are no other passengers, rock the
seatback to make sure it is locked in
place.
Passenger on the Folded Seatback:
Driving with a passenger on the
folded seatback is dangerous.
Allowing a child to sit up on the
folded seatback while the vehicle is
moving is particularly dangerous. In
a sudden stop or even a minor
collision, a child not in a proper seat
or child-restraint system and seat belt
could be thrown forward, back or
even out of the car resulting in
serious injuries or death. The child or
other objects in the baggage area
could be thrown into other occupants
and cause serious injury. Never allow
a passenger to sit or stand on the
folded seatback while the vehicle is
moving.
WARNINGNOTE
•The third-row seat cannot be
removed.
•When returning the third-row seat
to its original position, also place
the seat belt in its normal position.
Verify that the seat belt pulls and
retracts.
Reclining:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you don’t get the full
protection from seat belts. During
sudden braking or a collision, you
can slide under the lap belt and suffer
serious internal injuries. For
maximum protection, sit well back
and upright.
WARNING
Flat-folding strap
J16R_8S06-EA-03H_Edition1.book Page 21 Wednesday, July 9, 2003 4:19 PM

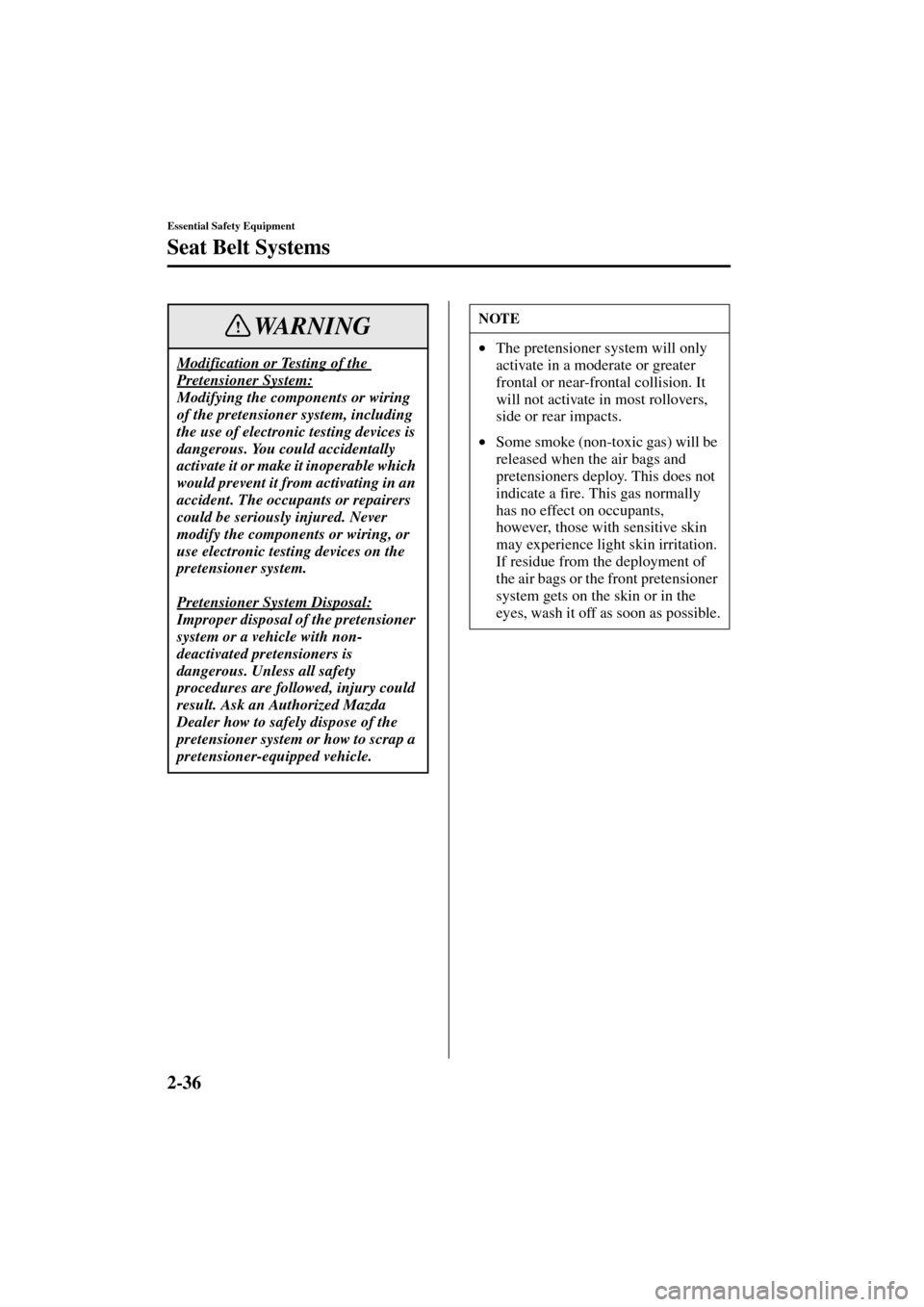

2-36
Essential Safety Equipment
Seat Belt Systems
Form No. 8S06-EA-03H
Modification or Testing of the
Pretensioner System:
Modifying the components or wiring
of the pretensioner system, including
the use of electronic testing devices is
dangerous. You could accidentally
activate it or make it inoperable which
would prevent it from activating in an
accident. The occupants or repairers
could be seriously injured. Never
modify the components or wiring, or
use electronic testing devices on the
pretensioner system.
Pretensioner System Disposal:
Improper disposal of the pretensioner
system or a vehicle with non-
deactivated pretensioners is
dangerous. Unless all safety
procedures are followed, injury could
result. Ask an Authorized Mazda
Dealer how to safely dispose of the
pretensioner system or how to scrap a
pretensioner-equipped vehicle.
WARNINGNOTE
•The pretensioner system will only
activate in a moderate or greater
frontal or near-frontal collision. It
will not activate in most rollovers,
side or rear impacts.
•Some smoke (non-toxic gas) will be
released when the air bags and
pretensioners deploy. This does not
indicate a fire. This gas normally
has no effect on occupants,
however, those with sensitive skin
may experience light skin irritation.
If residue from the deployment of
the air bags or the front pretensioner
system gets on the skin or in the
eyes, wash it off as soon as possible.
J16R_8S06-EA-03H_Edition1.book Page 36 Wednesday, July 9, 2003 4:19 PM
