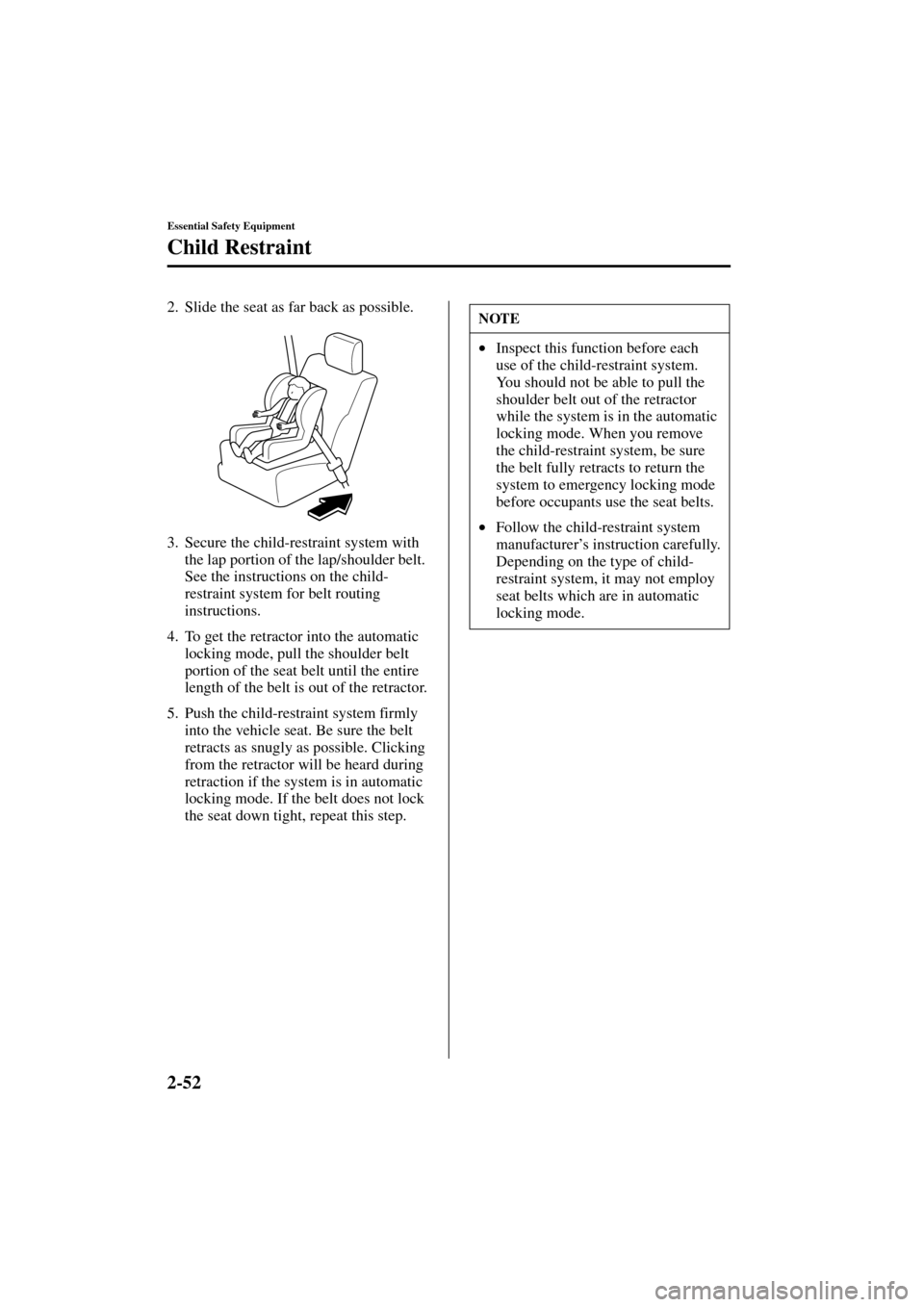

2004 MAZDA MODEL MPV tire type

2-52
Essential Safety Equipment
Child Restraint
Form No. 8S06-EA-03H
2. Slide the seat as far back as possible.
3. Secure the child-restraint system with
the lap portion of the lap/shoulder belt.
See the instructions on the child-
restraint system for belt routing
instructions.
4. To get the retractor into the automatic
locking mode, pull the shoulder belt
portion of the seat belt until the entire
length of the belt is out of the retractor.
5. Push the child-restraint system firmly
into the vehicle seat. Be sure the belt
retracts as snugly as possible. Clicking
from the retractor will be heard during
retraction if the system is in automatic
locking mode. If the belt does not lock
the seat down tight, repeat this step.NOTE
•Inspect this function before each
use of the child-restraint system.
You should not be able to pull the
shoulder belt out of the retractor
while the system is in the automatic
locking mode. When you remove
the child-restraint system, be sure
the belt fully retracts to return the
system to emergency locking mode
before occupants use the seat belts.
•Follow the child-restraint system
manufacturer’s instruction carefully.
Depending on the type of child-
restraint system, it may not employ
seat belts which are in automatic
locking mode.
J16R_8S06-EA-03H_Edition1.book Page 52 Wednesday, July 9, 2003 4:19 PM

4-10
Before Driving Your Mazda
Driving Tips
Form No. 8S06-EA-03H

Snow Tires
Use snow tires on all four wheels
Don’t go faster than 120 km/h (75 mph)
while driving with snow tires. Inflate
snow tires 30 kPa (0.3 kgf/cm
2, 4.3 psi)
more than recommended on the tire
pressure label (driver’s door), but never
more than the maximum cold-tire
pressure shown on the tires.
Your vehicle is originally equipped with
all season radials designed to be used all
year around. In some extreme climates
you may find it necessary to replace them
with snow tires during the winter months
to further improve traction on snow and
ice covered roads.

Tire Chains
Check local regulations before using tire
chains.
Install the chains on the front tires.
Don’t use chains on the rear tires.
Use only SAE Class "S" chains, and make
sure they fit.
Installing the chains
1. Remove the wheel covers, or the chain
bands will scratch them.
2. Secure the chains on the front tires as
tightly as possible. Always follow the
chain manufacturer’s instructions.
3. Retighten the chains after driving
1/2—1 km (1/4—1/2 mile).
Mixing Tire Types:
Using tires different in size or type is
dangerous. Your vehicle’s handling
could be greatly affected and result in
an accident. Use only the same size
and type tires (snow, radial, or non-
radial) on all four wheels.
Check local regulations before using
studded tires.
WARNING
CAUTION
•Chains may scratch or chip
aluminum wheels. Install tire chains
on steel wheels only.
•Chains may affect handling.
•Don’t go faster than 50 km/h (30
mph) or the chain manufacturer’s
recommended limit, whichever is
lower.
•Drive carefully and avoid bumps,
holes, and sharp turns.
•Avoid locked-wheel braking.
•Don’t use chains on a temporary
spare tire; it may result in damage to
the vehicle and to the tire.
•Don’t use chains on roads that are
free of snow or ice. The tires and
chains could be damaged.
CAUTION
J16R_8S06-EA-03H_Edition1.book Page 10 Wednesday, July 9, 2003 4:19 PM

8-4
Maintenance and Care
Scheduled Maintenance
Form No. 8S06-EA-03H

Schedule 1
I:
Inspect and repair, clean, adjust, or replace if necessary.
R:
Replace
L:
Lubricate
ENGINE
IGNITION SYSTEM
FUEL SYSTEM
COOLING SYSTEM
CHASSIS and BODY
AIR CONDITIONER SYSTEM (if equipped)
*1 According to state / provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or mileage / kilometer period to ensure long-term reliability. Maintenance Interval
(Number of months or kilometers
(miles), whichever comes first)Months 6 12182430364248
×1000 km 12 24 36 48 60 72 84 96
×1000 miles 7.5 15 22.5 30 37.5 45 52.5 60
Engine oilRRRRRRRR
Engine oil filterRRRRRRRR
Drive belts II
PCV valve
*1I
Spark plugs (Platinum tipped type)Replace every 160,000 km (100,000 miles)
Air filterR
Fuel lines and hoses
*1II
Cooling systemII
Engine coolantReplace at first 96,000 km (60,000 miles) or
48 months ; after that, every 24 months
Brake lines, hoses and connectionsII
Disc brakesIIII
Drum brakesII
Tire (Rotation)Rotate every 12,000km (7,500miles)
Steering operation and linkagesII
Front suspension ball jointsII
Driveshaft dust bootsII
Exhaust system and heat shieldsInspect every 72,000km (45,000miles) or 60 months
All locks and hingesLLLLLLLL
Cabin air filter (if equipped)Replace every 40,000 km (25,000 miles) or 24 months
J16R_8S06-EA-03H_Edition1.book Page 4 Wednesday, July 9, 2003 4:19 PM

8-27
Maintenance and Care
Owner Maintenance
Form No. 8S06-EA-03H
For reasons of proper performance, safety,
and better fuel economy, always maintain
recommended tire inflation pressures and
stay within the recommended load limits
and weight distribution.

Tire Inflation Pressure
Inspect all tire pressures monthly
(including the spare) when the tires are
cold. Maintain recommended pressures
for the best ride, top handling, and
minimum tire wear.
Refer to the specification charts
(page 10-7).
Tires
Using Different Tire Types:
Driving your vehicle with different
types of tires is dangerous. It could
cause poor handling and poor
braking; leading to loss of control.
Except for the limited use of the
temporary spare tire, use only the
same type tires (radial, bias-belted,
bias-type) on all four wheels.
Using Wrong-Sized Tires:
Using any other tire size than what is
specified for your Mazda (page 10-7)
is dangerous. It could seriously affect
ride, handling, ground clearance, tire
clearance, and speedometer
calibration. This could cause you to
have an accident. Use only tires that
are the correct size specified for your
Mazda.
WARNING
Incorrect Tire Inflation:
Overinflation or underinflation of
tires is dangerous. Adverse handling
or unexpected tire failure could result
in a serious accident. Always inflate
the tires to the correct pressure (page
10-7).
WARNING
J16R_8S06-EA-03H_Edition1.book Page 27 Wednesday, July 9, 2003 4:19 PM

8-29
Maintenance and Care
Owner Maintenance
Form No. 8S06-EA-03H

Replacing a Tire
If a tire wears evenly, a wear indicator will
appear as a solid band across the tread.
Replace the tire when this happens.
You should replace it before the band is
across the entire tread.

Temporary Spare Tire
Inspect the temporary spare tire at least
monthly to make sure it’s properly
inflated and stored.
The temporary spare tire is easier to
handle because of its construction. It is
lighter and smaller than a conventional
tire and should be used only for an
emergency and only for a short distance.
Use the temporary only until the
conventional tire is repaired, which should
be as soon as possible.
Maintain its pressure at 420 kPa
(4.2 kgf/cm
2 or bar, 60 psi). Rotate unidirectional tires and radial
tires that have an asymmetrical tread
pattern or studs only from front to rear,
not from side to side. Tire performance
will be weakened if rotated from side
to side.Worn Tires:
Driving with worn tires is dangerous.
Reduced braking, steering, and
traction could result in an accident.
Always use tires that are in good
condition.
CAUTION
WARNING
New tread Worn treadTread wear indicator
•Don’t use your temporary spare tire
rim with a snow tire or a
conventional tire. Neither will
properly fit and could damage both
tire and rim.
•The temporary spare tire has a tread
life of up to 5,000 km (3,000 miles),
depending on road conditions and
driving habits.
•The temporary spare tire is for
limited use, however, if the tread
wear solid-band indicator appears,
replace the tire with the same type
of temporary spare (page 8-29).
CAUTION
J16R_8S06-EA-03H_Edition1.book Page 29 Wednesday, July 9, 2003 4:19 PM

10-7
Specifications
Form No. 8S06-EA-03H

Tires
Check the tire pressure label for tire size and inflation pressure. Refer to Tire Inflation
Pressure on page 8-27.
Standard tire
*1Steel wheel*2Aloy wheel
Temporary spare tire

Fuses
Refer to the fuse rating on page 8-38.
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type
originally fitted to your vehicle. For details, contact an Authorized Mazda Dealer.
Item Model
Tire size 205/65R15 94H 215/60R16 95H P215/60R17 95H
Rim size
15×6JJ
*1, 15×6J*216×6-1/2J 17×7J
Inflation pressure
240 kPa (35 psi or lb/po2) 240 kPa (35 psi or lb/po2) 240 kPa (35 psi or lb/po2)
Tire size Inflation pressure
T135/90D15 420 kPa (60 psi)
J16R_8S06-EA-03H_Edition1.book Page 7 Wednesday, July 9, 2003 4:19 PM

11-5
Index
Form No. 8S06-EA-03H
O
Odometer and Trip Meter ................ 5-21
Outside Mirrors
................................ 3-33
Overhead Console
............................ 6-49
Overhead Lights
............................... 6-42
Overheating
...................................... 7-15
Overloading
...................................... 4-11
P
Paint Damage ................................... 8-43
Parking Brake
..................................... 5-5
Parking in an Emergency
................... 7-2
Power Door Locks
........................... 3-10
Power Sliding Doors
........................ 3-13
Power Steering
................................. 5-14
Fluid
.......................................... 8-16
Power Windows
............................... 3-19
Push-Starting
.................................... 7-21
R
Rear Console .................................... 6-51
Rear Door Child Safety Locks
......... 3-12
Rear Quarter Windows
.................... 3-22
Rear Window Defroster
................... 5-38
Rear Window Washer
...................... 5-38
Rear Window Wiper
........................ 5-38
Rearview Mirror
............................... 3-34
Recreational Towing
........................ 7-23
Registering Your Vehicle in
A Foreign Country
........................... 9-12
Rocking the Vehicle
........................... 4-9
S
Safety Defects, Reporting ................9-17
Seat Belt System
2-point type
...............................2-37
3-point type
...............................2-33
Automatic locking
.....................2-32
Emergency locking
...................2-32
Extender
....................................2-39
Pregnant women
........................2-31
Pretensioner and load
limiting
......................................2-35
Seat belt precautions
.................2-30
Warning beep
............................2-40
Warning light
............................2-40
Seats
Flat folding
................................2-28
Front seat
(Electrically operated seats)
........2-8
Front seat
(Manually operated seats)
...........2-3
Second-row seats
.......................2-13
Third-Row Seat
.........................2-20
Second-row seats
..............................2-13
Security System
Immobilizer system
...................3-28
Theft-deterrent system
..............3-31
Service Publications
.........................9-18
Shopping Bag Hooks
........................6-52
Side Extention Sunvisors
.................6-41
Spare Tire and Tool Storage
...............7-3
Specifications
...................................10-4
Speedometer
.....................................5-21
SRS Air Bags
How the Air Bags Work
............2-63
Supplemental restraint systems
precautions
................................2-56
Starting the Engine
.............................5-3
Steering Wheel
.................................3-33
Horn
..........................................5-39
J16R_8S06-EA-03H_Edition1.book Page 5 Wednesday, July 9, 2003 4:19 PM
