8-8
Maintenance and Care
Owner Maintenance
Form No. 8S06-EA-03H
Improper or incomplete service may result in problems. This section gives instructions
only for items that are easy to perform.
As explained in the Introduction (page 8-2), several procedures can be done only by a
qualified service technician with special tools.
Improper owner maintenance during the warranty period may affect warranty coverage.
For details, read the separate Mazda Warranty statement provided with the vehicle. If
you’re unsure about any servicing or maintenance procedure, have it done by an
Authorized Mazda Dealer.
There are strict environmental laws regarding the disposal of waste oil and fluids. Please
dispose of your waste properly and with due regard to the environment.
We recommend that you entrust the oil and fluid changes of your vehicle to an Authorized
Mazda Dealer.
Owner Maintenance Precautions
Maintenance Procedures:
Performing maintenance work on a vehicle is dangerous if not done properly. You can
be seriously injured while performing some maintenance procedures. If you lack
sufficient knowledge and experience or the proper tools and equipment to do the
work, have it done by a qualified technician.
Running the Engine:
Working under the hood with the engine running is dangerous. It becomes even more
dangerous when you wear jewelry or loose clothing.
Either can become entangled in moving parts and result in injury.
Therefore, if you must run the engine while working under the hood, make certain
that you remove all jewelry (especially rings, bracelets, watches, and necklaces) and
all neckties, scarves, and similar loose clothing before getting near the engine or
cooling fan which may turn on unexpectedly.
Electrical Fan and Engine Inspection:
Inspecting the engine with the ignition switch in the ON position is dangerous. The
cooling fan could come on unexpectedly even when the engine isn’t running. You
could be seriously injured by the fan. Turn the ignition switch off and remove the key
from the ignition switch when you inspect the engine.
WARNING
J16R_8S06-EA-03H_Edition1.book Page 8 Wednesday, July 9, 2003 4:19 PM

8-9
Maintenance and Care
Owner Maintenance
Form No. 8S06-EA-03H
Engine Compartment Overview
Automatic transaxle fluid-level dipstick
Cooling system cap
Engine coolant reservoir
Power steering
fluid reservoir
Windshield washer
fluid reservoir
Engine oil dipstick Engine oil-filler cap
Engine oil filterBatteryFuse blockAir filter Brake fluid reservoir
J16R_8S06-EA-03H_Edition1.book Page 9 Wednesday, July 9, 2003 4:19 PM

8-10
Maintenance and Care
Owner Maintenance
Form No. 8S06-EA-03H

Recommended Oil
Oil container labels provide important
information.
The quality designation SL
or ILSAC

must be on the label.
Energy conserving oils are recommended.
A chief contribution they make to fuel
economy is reducing the amount of fuel
necessary to overcome engine friction.

Inspecting Engine Oil Level
1. Be sure the vehicle is on a level
surface.
2. Warm up the engine to normal
operating temperature.
3. Turn it off and wait 5 minutes for the
oil to return to the oil pan.
4. Pull out the dipstick, wipe it clean, and
reinsert it fully.
5. Pull it out again and examine the level.
It’s OK between MIN and MAX.
But if it’s near or below MIN, add
enough oil to bring the level to MAX.
6. Make sure the O-ring is positioned
properly before reinserting the
dipstick.
Engine Oil
FORGASOLINEENGINES
(ILSAC)
–30–20–100 1020304050
–20 0 20 40 60 80 100 120
5W-20Don’t add engine oil over MAX. This
may cause engine damage.
MIN MAX
Full
LowOK
CAUTION
J16R_8S06-EA-03H_Edition1.book Page 10 Wednesday, July 9, 2003 4:19 PM

8-11
Maintenance and Care
Owner Maintenance
Form No. 8S06-EA-03H

Changing Engine Oil and Filter
Change engine oil and filter according to
Scheduled Maintenance (page 8-3).
Please act responsibly—protect the
environment and take used oil to a
recycling facility. Ask your dealer or a
service station for information.
Changing engine oil
1. Warm up the engine for a few minutes
and turn it off. Remove the oil-filler
cap.2. Remove the drain plug and drain the oil
into a suitable container.
3. Replace the plug tightly after the oil
has thoroughly drained.
4. Fill the engine with new oil to the
MAX mark on the dipstick.
5. Securely reinstall the oil-filler cap.
6. Start the engine and inspect around the
drain plug for leaks.
7. Turn it off and wait 5 minutes for the
oil to return to the oil pan.
Check the oil level and fill to the MAX
mark if necessary.
Oil capacity (General reference only,
refer to Specifications section for
capacities.)
Handling Used Engine Oil:
Continuous contact with used engine
oil is dangerous. It could cause skin
cancer. Always wash with soap and
water immediately after changing oil
and filter.
Remove any oil splatter from the
exhaust manifold, the exhaust pipe and
the shield. Oil left on these areas will
smoke when the engine is running.
Checking or Changing Engine Oil:
Hot engine oil is dangerous. If the
engine has been running, the engine
oil becomes very hot. You could be
seriously burned. Don’t check or
change the engine oil when the
engine is hot.
WARNING
CAUTION
WARNING
NOTE
•The indicated engine oil capacities
are for general reference purposes
only. When adding or changing oil,
verify the engine oil level with the
oil dipstick.
•Use only specified engine oil (page
10-4).
Tighten
Loosen
Front
Drain plug
J16R_8S06-EA-03H_Edition1.book Page 11 Wednesday, July 9, 2003 4:19 PM

8-12
Maintenance and Care
Owner Maintenance
Form No. 8S06-EA-03H
Changing oil filter
Because you need a special tool to
retighten the filter, an Authorized Mazda
Dealer should do the work.

Inspecting Coolant Level
Engine Coolant
Hot Engine:
A hot engine is dangerous. If the
engine has been running, parts of the
engine compartment can become very
hot. You could be burned. Carefully
inspect the engine coolant in the
coolant reservoir, but do not open it.
Do not use a match or live flame in
the engine compartment. DO NOT
ADD COOLANT WHEN THE
ENGINE IS HOT.
Cooling Fan and Engine
Inspection:
Inspecting the engine with the
ignition switch in the ON position is
dangerous. The cooling fan could
turn on unexpectedly even when the
engine isn’t running. You could be
seriously injured by the fan. Turn the
ignition switch off and remove the key
from the ignition switch when you
inspect the engine.
Cooling System Cap:
When the engine and radiator are
hot, scalding coolant and steam may
shoot out under pressure and cause
serious injury. Don’t remove the
cooling system cap when the engine
and radiator are hot.
WARNING
J16R_8S06-EA-03H_Edition1.book Page 12 Wednesday, July 9, 2003 4:19 PM

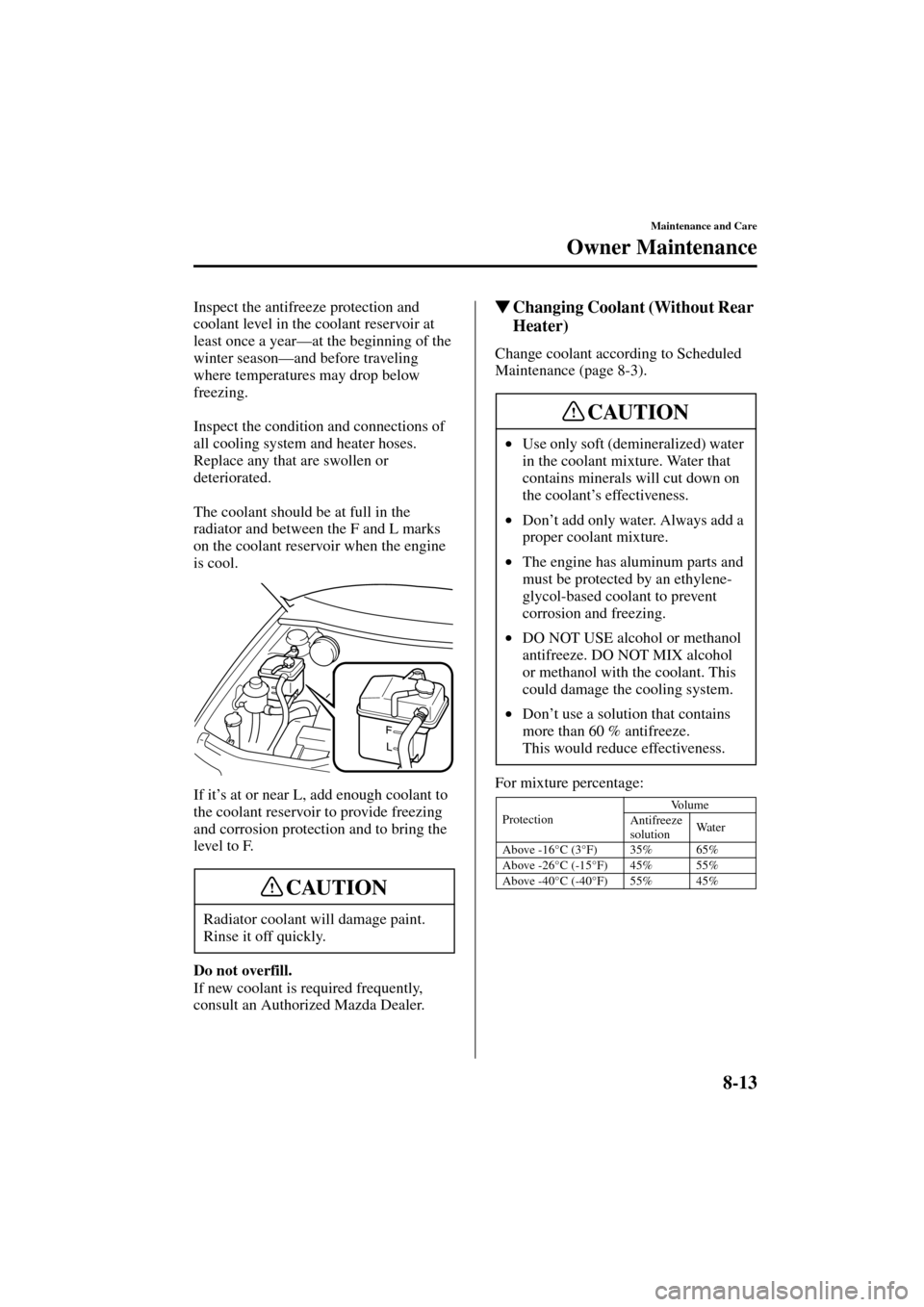

8-13
Maintenance and Care
Owner Maintenance
Form No. 8S06-EA-03H
Inspect the antifreeze protection and
coolant level in the coolant reservoir at
least once a year—at the beginning of the
winter season—and before traveling
where temperatures may drop below
freezing.
Inspect the condition and connections of
all cooling system and heater hoses.
Replace any that are swollen or
deteriorated.
The coolant should be at full in the
radiator and between the F and L marks
on the coolant reservoir when the engine
is cool.
If it’s at or near L, add enough coolant to
the coolant reservoir to provide freezing
and corrosion protection and to bring the
level to F.
Do not overfill.
If new coolant is required frequently,
consult an Authorized Mazda Dealer.
Changing Coolant (Without Rear
Heater)
Change coolant according to Scheduled
Maintenance (page 8-3).
For mixture percentage:
Radiator coolant will damage paint.
Rinse it off quickly.
CAUTION
•Use only soft (demineralized) water
in the coolant mixture. Water that
contains minerals will cut down on
the coolant’s effectiveness.
•Don’t add only water. Always add a
proper coolant mixture.
•The engine has aluminum parts and
must be protected by an ethylene-
glycol-based coolant to prevent
corrosion and freezing.
•DO NOT USE alcohol or methanol
antifreeze. DO NOT MIX alcohol
or methanol with the coolant. This
could damage the cooling system.
•Don’t use a solution that contains
more than 60 % antifreeze.
This would reduce effectiveness.
ProtectionVo l u m e
Antifreeze
solutionWa t e r
Above -16°C (3°F) 35% 65%
Above -26°C (-15°F) 45% 55%
Above -40°C (-40°F) 55% 45%
CAUTION
J16R_8S06-EA-03H_Edition1.book Page 13 Wednesday, July 9, 2003 4:19 PM

8-14
Maintenance and Care
Owner Maintenance
Form No. 8S06-EA-03H
To change coolant
1. Remove the cooling system cap.
2. Only when the engine is cool, remove
the radiator drain plug and drain the
coolant into a suitable container.
Properly dispose of the used coolant.
3. Flush out the system with running
water.4. Drain the system completely. Insert
and tighten the plug. Add as much
ethylene-glycol-based coolant and
water as necessary to provide freezing
and corrosion protection.
5. In extremely cold climates, add the
amount recommended in the coolant
manufacturer’s instructions.
6. Run the engine at idle with the cooling
system cap off. Slowly add additional
coolant if necessary.
7. At this point, wait until the engine
reaches normal operating temperature;
then depress the accelerator two or
three times. Add more coolant, if
necessary, until the system is full.
8. Install the cooling system cap. Inspect
all connections for leaks. Inspect the
level in the coolant reservoir one more
time.
Changing Coolant (With Rear
Heater)
Have an Authorized Mazda Dealer change
the coolant according to the Scheduled
Maintenance (page 8-3).
Removing the Cooling System Cap:
Removing the cooling system cap
while the engine is running or hot is
dangerous. This might lead to cooling
system and engine damage and could
result in serious injury from escaping
hot coolant or steam. Turn off the
engine and wait until it’s cool. Even
then, be very careful when removing
the cap. Wrap a thick cloth around
the cap and slowly turn it
counterclockwise to the first stop.
Step back while the pressure escapes.
When you’re sure all the pressure is
gone, press down on the cap — still
using a cloth — turn the cap, and
remove it.
WARNING
F
L
Tighten Loosen
TightenLoosen
J16R_8S06-EA-03H_Edition1.book Page 14 Wednesday, July 9, 2003 4:19 PM

8-15
Maintenance and Care
Owner Maintenance
Form No. 8S06-EA-03H

Inspecting Brake Fluid Level
Inspect the fluid level in the reservoir
regularly. It should be kept at MAX.
The level normally drops with
accumulated distance, a condition
associated with wear of brake linings. If it
is excessively low, have the brake system
inspected by an Authorized Mazda
Dealer.

Adding Brake Fluid
If the fluid level is low, add fluid until it
reaches MAX.
Before adding fluid, thoroughly clean the
area around the cap.
Brake Fluid
Spilled Brake Fluid:
Spilled brake fluid is dangerous. If it
gets in your eyes, they could be
seriously injured. If this happens,
immediately flush your eyes with
water and get medical attention.
Brake fluid spilled on a hot engine
could cause a fire. Be careful not to
spill brake fluid on yourself or on the
engine.
Low Brake Fluid Levels:
Low brake fluid levels are dangerous.
Low levels could signal brake lining
wear or a brake system leak. Your
brakes could fail and cause an
accident. If you find a low fluid level,
have the brakes inspected.
•Brake fluid will damage painted
surfaces. If brake fluid does get on a
painted surface, wipe it off
immediately.
•Using nonspecified brake fluids
(page 10-4) will damage the system.
Mixing different fluids will also
damage it.
If the brake system frequently
requires new fluid, consult an
Authorized Mazda Dealer.
WARNING
CAUTION
J16R_8S06-EA-03H_Edition1.book Page 15 Wednesday, July 9, 2003 4:19 PM
