IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
PG-25
C
D
E
F
G
H
I
J
L
MA
B
PG

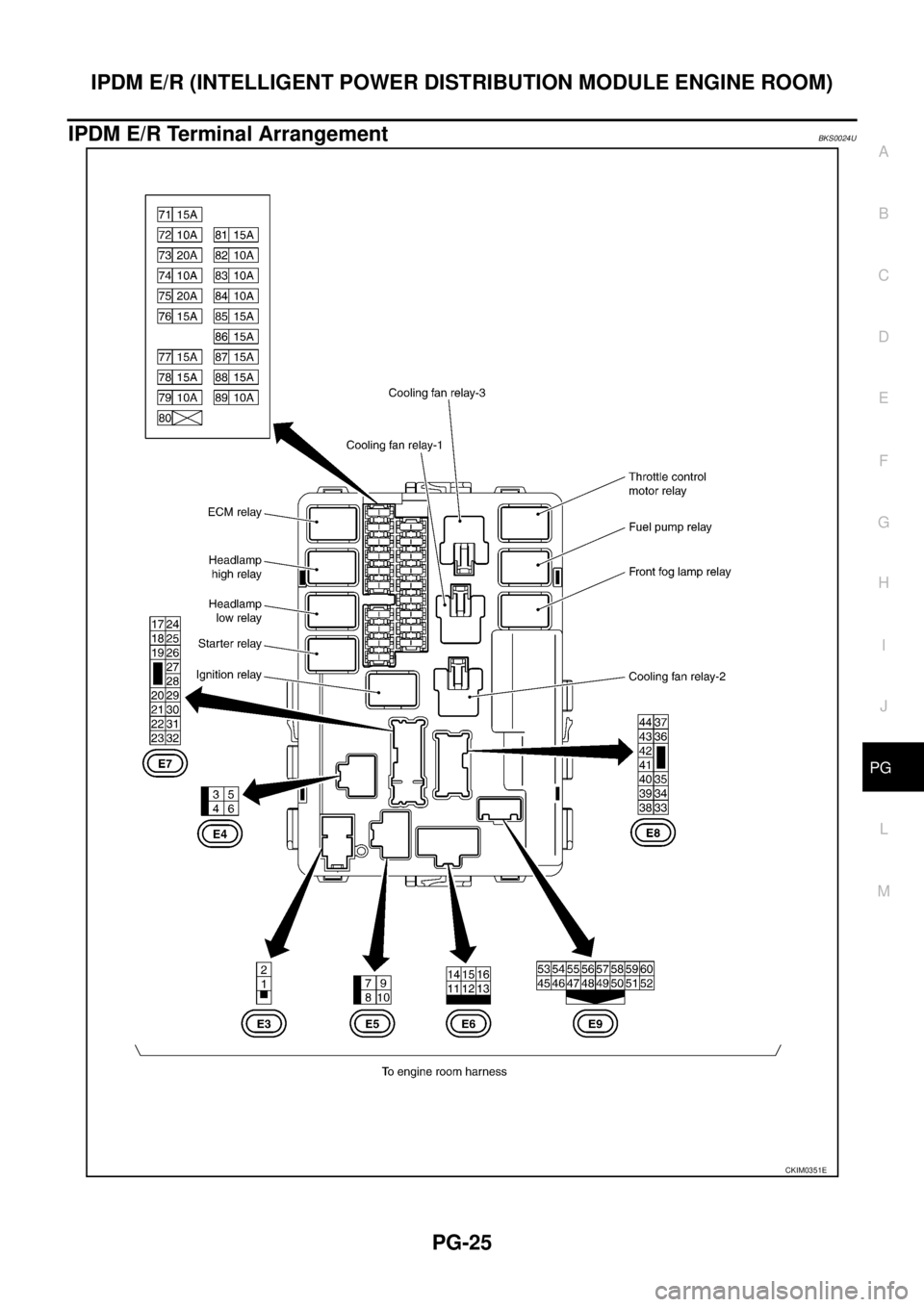

IPDM E/R Terminal ArrangementBKS0024U
CKIM0351E

PG-26
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

Check IPDM E/R Power Supply and Ground CircuitBKS002F3
1. CHECK FUSES AND FUSIBLE LINK
Check for blown fuses and fusible link.
OK or NG
OK >> GO TO 2.
NG >> If fuse or fusible link is blown, be sure to eliminate cause of malfunction before installing new fuse
or fusible link.
2. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R harness connector.
3. Check voltage between IPDM E/R harness connector and
ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3. CHECK GROUND CIRCUIT
1. Disconnect IPDM E/R harness connectors.
2. Check continuity between IPDM E/R harness connectors and
ground.
OK or NG
OK >> INSPECTION END
NG >> Repair harness or connector.
Terminal No. Power source Fuse and fusible link No.
1
BatteryE
2C
—71
78
Terminals
Vo l ta g e (+) (-)
IPDM E/R connector Terminal
Ground
E31
Battery voltage
2
PKIB6562E
IPDM E/R connector Terminal
GroundContinuity
E8 38
E950
Ye s
60
SKIB8836E

SC-14
STARTING SYSTEM

STARTING SYSTEMPFP:23300
System Description BKS001ME
Power is supplied at all times:

through 40A fusible link (letter F , located in the fuse and fusible link block)

to ignition switch terminal 1,

through 15A fuse (No. 71, located in the IPDM E/R)

to CPU of IPDM E/R,

through 15A fuse (No. 78, located in the IPDM E/R)

to CPU of IPDM E/R.
With the ignition switch in the ON or START position, power is supplied:
[A/T models]

from ignition relay

through 10A fuse (No. 83, located in the IPDM E/R)

through IPDM E/R terminal 26

to park/neutral position switch terminal 1.
[CVT models]

through ignition relay ( within the IPDM E/R )

to CPU of IPDM E/R.
When the selector lever in the “P” or “N” position, power is supplied:
[A/T models]

through park/neutral position switch terminal 2

to IPDM E/R terminal 53.
[CVT models]

from TCM terminal 24

to IPDM E/R terminal 53.
Ground is supplied:

to IPDM E/R terminals 38, 50 and 60

from grounds E1 and E31.
Then starter relay is turn ON.
With the ignition switch in the START position, IPDM E/R is energized and power is supplied:

from ignition switch terminal 5

to IPDM E/R terminal 4 and

through IPDM E/R terminal 3

to starter motor terminal 1.
The starter motor plunger closes and provides a closed circuit between the battery and starter motor. The
starter motor is grounded to the engine block. With power and ground supplied, cranking occurs and the
engine starts.

SC-32
CHARGING SYSTEM

QR20DE MODELS
Removal
1. Disconnect negative battery cable.
2. Remove drive belt. Refer to EM-14, "
Removal and Installation" .
3. Remove IPDM E/R bracket mounting bolts.
4. Slide IPDM E/R to the direction of arrow.
5. Disconnect alternator connector.
6. Remove B terminal nut.
7. Remove ground harness clip and ground harness bolt.
8. Remove alternator mounting bolts, using power tools.
9. Remove alternator to the direction of upper side the vehicle.
Installation
Note the following, and install in the reverse order of removal.

Install alternator, and check tension of belt. Refer to EM-14, "Checking Drive Belts" in “ENGINE
MECHANICAL (EM)” section.
CAUTION:
Be sure to tighten B terminal nut carefully.
1. Alternator bracket 2. Alternator mounting bolt (upper) 3. Alternator mounting bolt (lower)
4. Alternator 5. B terminal harness 6. B terminal nut
7. Alternator connector
PKIA2930J
PKIA4811E
PKIA4812E

WW-1
WIPER, WASHER & HORN
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION WW
A
B
WW

WIPER, WASHER & HORN
PRECAUTION ............................................................ 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
FRONT WIPER AND WASHER SYSTEM .................. 4
Components Parts and Harness Connector Loca-
tion ........................................................................... 4
System Description .................................................. 4
LOW SPEED WIPER OPERATION ...................... 5
HIGH SPEED WIPER OPERATION ..................... 5
INTERMITTENT OPERATION .............................. 5
AUTO STOP OPERATION .................................... 6
WASHER OPERATION ......................................... 6
MIST OPERATION ................................................ 7
FAIL-SAFE FUNCTION ......................................... 7
COMBINATION SWITCH READING FUNCTION ..... 7
CAN Communication System Description ................ 9
CAN Communication Unit ........................................ 9
Schematic .............................................................. 10
Wiring Diagram — WIPER — ................................. 11
Terminals and Reference Values for BCM ............. 14
Terminals and Reference Values for IPDM E/R ..... 17
How to Perform Trouble Diagnoses ....................... 18
Preliminary Check .................................................. 18
CHECK POWER SUPPLY AND GROUND CIR-
CUIT .................................................................... 18
CONSULT-II Functions (BCM) ............................... 19
CONSULT-II OPERATION .................................. 19
WORK SUPPORT ............................................... 19
DATA MONITOR ................................................. 19
ACTIVE TEST ..................................................... 20
CONSULT-II Functions (IPDM E/R) ....................... 21
CONSULT-II OPERATION .................................. 21
DATA MONITOR ................................................. 21
ACTIVE TEST ..................................................... 21
Front Wiper Does Not Operate .............................. 22
Front Wiper Does Not Return to Stop Position (After
Front Wipers Operate for 10 Seconds, They Stop
for 20 Seconds, and after repeating the operations five times, they become inoperative) ...................... 25
Front Wiper Does Not Operate Both in Low and Inter-
mittent ..................................................................... 27
Front Wiper Does Not Operate Only in Low ........... 28
Front Wiper Does Not Operate Only in Intermittent ... 28
Front Wiper Does Not Operate Only in High .......... 28
Front Wiper Intermittent Operation Switch Position
Cannot Be Adjusted ................................................ 30
Front Wiper Interval Time Is Not Controlled by Vehi-
cle Speed ................................................................ 31
Wipers Does Not Wipe When Front Washer Oper-
ates ......................................................................... 32
Front Wiper Dose Not Stop ..................................... 32
Removal and Installation of Front Wiper Arms,
Adjustment of Wiper Arms Stop Location ............... 34
REMOVAL ........................................................... 34
INSTALLATION ................................................... 34
Removal and Installation of Front Wiper Drive
Assembly ................................................................ 34
REMOVAL ........................................................... 34
INSTALLATION ................................................... 35
Disassembly and Assembly of Front Wiper Drive
Assembly ................................................................ 35
DISASSEMBLY ................................................... 35
ASSEMBLY ......................................................... 35
Washer Nozzle Adjustment .................................... 36
Washer Tube Layout .............................................. 36
Removal and Installation of Front Washer Nozzle ... 37
REMOVAL ........................................................... 37
INSTALLATION ................................................... 37
Inspection for Washer Nozzle ................................. 37
CHECK VALVE INSPECTION ............................. 37
Inspection of Front Wiper and Washer Switch Circuit ... 37
Removal and Installation of Front Wiper and Washer
Switch ..................................................................... 37
REMOVAL ........................................................... 37
INSTALLATION ................................................... 37
Removal and Installation of Washer Tank .............. 38
REMOVAL ........................................................... 38

WW-2 INSTALLATION .................................................... 38
Removal and Installation of Front Washer Pump ... 39
REMOVAL ........................................................... 39
INSTALLATION .................................................... 39
HEADLAMP WASHER .............................................. 40
Components Parts and Harness Connector Loca-
tion .......................................................................... 40
System Description ................................................. 40
OUTLINE ............................................................. 40
HEADLAMP WASHER OPERATION .................. 41
INTERLOCKED OPERATION WITH FRONT
WINDOW WASHER ............................................ 41
COMBINATION SWITCH READING FUNCTION ... 41
Schematic ............................................................... 42
Wiring Diagram — HLC — ..................................... 43
Terminals and Reference Values for BCM .............. 46
Terminals and Reference Values for IPDM E/R ...... 48
How to Proceed with Trouble Diagnosis ................. 48
Preliminary Check .................................................. 49
CHECK POWER SUPPLY AND GROUND CIR-
CUIT .................................................................... 49
CONSULT-II Functions (BCM) ................................ 50
CONSULT-II BASIC OPERATION ....................... 50
DATA MONITOR .................................................. 50
ACTIVE TEST ..................................................... 51
CONSULT-II Functions (IPDM E/R) ........................ 52
CONSULT-II BASIC OPERATION ....................... 52
DATA MONITOR .................................................. 52
ACTIVE TEST ..................................................... 52Headlamp Washer Does Not Operate .................... 53
Removal and Installation of Headlamp Washer Noz-
zle ........................................................................... 57
REMOVAL ............................................................ 57
INSTALLATION .................................................... 57
Adjustment .............................................................. 57
Removal and Installation of Washer Tank ............... 58
Removal and Installation of Headlamp Washer
Tube Connector ...................................................... 58
REMOVAL ........................................................... 58
INSTALLATION ................................................... 58
Removal and Installation of Headlamp Washer
Pump ....................................................................... 58
REMOVAL ........................................................... 58
INSTALLATION ................................................... 58
Removal and Installation of Headlamp Washer
Switch ..................................................................... 58
Washer Tube Layout ............................................... 59
CIGARETTE LIGHTER ............................................. 60
Wiring Diagram — CIGAR — .................................. 60
Removal and Installation ......................................... 61
REMOVAL ............................................................ 61
INSTALLATION .................................................... 61
HORN ........................................................................ 62
Wiring Diagram — HORN — .................................. 62
Removal and Installation ......................................... 63
REMOVAL ............................................................ 63
INSTALLATION .................................................... 63

WW-4
FRONT WIPER AND WASHER SYSTEM

FRONT WIPER AND WASHER SYSTEMPFP:28810

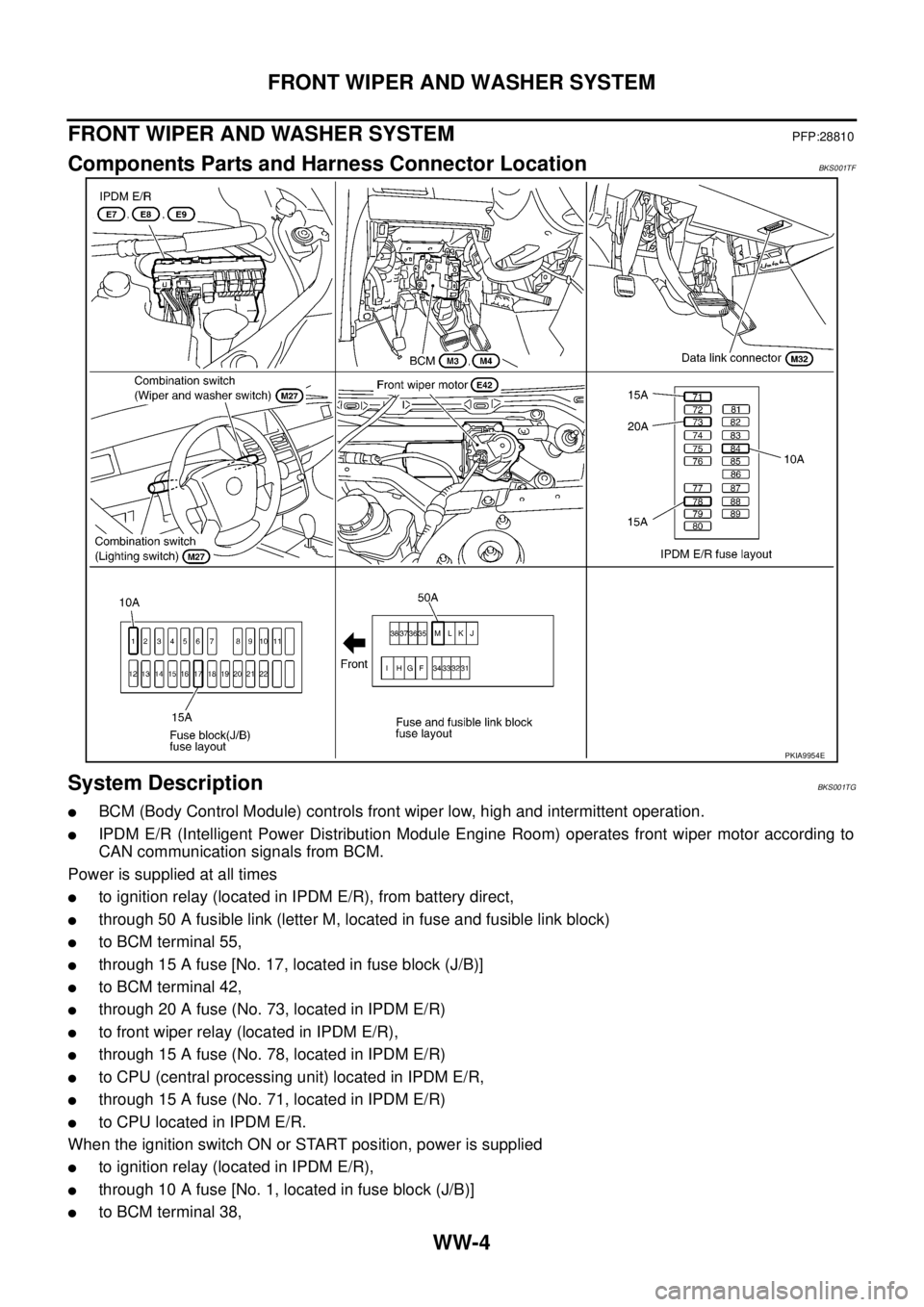

Components Parts and Harness Connector LocationBKS001TF
System DescriptionBKS001TG

BCM (Body Control Module) controls front wiper low, high and intermittent operation.

IPDM E/R (Intelligent Power Distribution Module Engine Room) operates front wiper motor according to
CAN communication signals from BCM.
Power is supplied at all times

to ignition relay (located in IPDM E/R), from battery direct,

through 50 A fusible link (letter M, located in fuse and fusible link block)

to BCM terminal 55,

through 15 A fuse [No. 17, located in fuse block (J/B)]

to BCM terminal 42,

through 20 A fuse (No. 73, located in IPDM E/R)

to front wiper relay (located in IPDM E/R),

through 15 A fuse (No. 78, located in IPDM E/R)

to CPU (central processing unit) located in IPDM E/R,

through 15 A fuse (No. 71, located in IPDM E/R)

to CPU located in IPDM E/R.
When the ignition switch ON or START position, power is supplied

to ignition relay (located in IPDM E/R),

through 10 A fuse [No. 1, located in fuse block (J/B)]

to BCM terminal 38,
PKIA9954E

FRONT WIPER AND WASHER SYSTEM
WW-5
C
D
E
F
G
H
I
J
L
MA
B
WW


through 10 A fuse (No. 84, located in IPDM E/R)

to front washer pump terminal 1.
Ground is supplied

to BCM terminal 52 and

to combination switch terminal 12

through grounds M71 and M72,

to IPDM E/R terminals 38 and 60

through grounds E1 and E31.
LOW SPEED WIPER OPERATION
When the front wiper switch is in LO position, BCM detects the FR WIPER LOW (ON) by BCM combination
switch reading function. BCM sends front wiper request signal (LO) through CAN communication.
When receiving front wiper request signal (LO), IPDM E/R turns ON front wiper relay in IPDM E/R. IPDM E/R
supplies power

through IPDM E/R terminal 21, front wiper high relay and front wiper relay

to front wiper motor terminal 1.
Ground is supplied

to front wiper motor terminal 2

through grounds E1 and E31.
With power and ground is supplied, the front wiper motor operates at low speed.
HIGH SPEED WIPER OPERATION
When the front wiper switch is in HI position, BCM detects the FR WIPER HI (HI) by BCM combination switch
reading function. BCM sends front wiper request signal (HI) through CAN communication.
When receiving front wiper request signal (HI), IPDM E/R turns ON front wiper relay and front wiper high relay
in IPDM E/R. IPDM E/R supplies power

through IPDM E/R terminal 31, front wiper high relay and front wiper relay

to front wiper motor terminal 4.
Ground is supplied

to front wiper motor terminal 2

through grounds E1 and E31.
With power and ground is supplied, the front wiper motor operates at high speed.
INTERMITTENT OPERATION
Front wiper intermittent operation is determined from a combination of 3 switches (INT VOLUME 1, 2, and 3)
and vehicle speed signal*.
When the front wiper switch is in INT position, BCM detects the FR WIPER INT (ON) and ON/OFF status of
the INT VOLUME 1, 2, and 3 by BCM combination switch reading function. BCM judges the condition of wiper
intermittent dial position by ON/OFF status of INT VOLUME 1, 2, and 3 .
BCM sends front wiper request signal (1LOW) at certain intervals through CAN communication. The interval is
calculated by wiper intermittent dial position and vehicle speed signal received from combination meter
through CAN communication.
When receiving front wiper request signal (1LOW), IPDM E/R turns ON front wiper relay in IPDM E/R, and
operates front wiper motor at low speed. Then IPDM E/R detects front wiper arms reach to the stop position
via wiper auto stop signal from front wiper motor, IPDM E/R turns OFF front wiper relay, and sends front wiper
auto stop signal (ON) to BCM through CAN communication, and controls intermittent operation.
