2003 LEXUS LS430 engine

3.REMOVE ENGINE UNDER COVER NO.2
4.REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.2 (SEE REPLACEMENT
)
5.REMOVE INSTRUMENT PANEL GARNISH SUB-ASSY LH (SEE REPLACEMENT
)
6.REMOVE INSTRUMENT PANEL FINISH PANEL (SEE REPLACEMENT
)
7.REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.1 (SEE REPLACEMENT
)
8.REMOVE SWITCH BRACE HOLE COVER (SEE REPLACEMENT
)
9.REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY NO.1 (SEE REPLACEMENT
)
10.REMOVE INSTRUMENT PANEL CUP HOLDER ASSY (SEE REPLACEMENT
)
11.REMOVE CONSOLE UPPER REAR PANEL SUB-ASSY (SEE REPLACEMENT
)
12.REMOVE CONSOLE BOX CARPET (SEE REPLACEMENT
)
13.REMOVE REAR CONSOLE ARMREST ASSY (SEE REPLACEMENT
)
14.REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER (SEE REPLACEMENT
)
15.REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (SEE
REPLACEMENT
)
16.REMOVE CONSOLE PANEL SUB-ASSY UPPER (SEE REPLACEMENT
)
17.REMOVE CONSOLE BOX (SEE REPLACEMENT
)
18.SEPARATE OXYGEN SENSOR (SEE REPLACEMENT
)
a. Separate the 2 heated oxygen sensors.
19.REMOVE FRONT FLOOR BRACE CENTER (SEE REPLACEMENT
)
20.REMOVE EXHAUST PIPE ASSY (SEE REPLACEMENT
)
21.REMOVE FRONT FLOOR HEAT INSULATOR NO.1 (SEE OVERHAUL
)
22.REMOVE PROPELLER W/CENTER BEARING SHAFT ASSY (SEE OVERHAUL
)
SST 09922-10010
23.DRAIN AUTOMATIC TRANSMISSION FLUID
a. Remove the drain plug, gasket and drain the ATF.
b.Install a new gasket and the drain plug.
Torque: 20 N.m (205 kgf.cm, 15 ft.lbf)
24.REMOVE EXHAUST PIPE NO.1 SUPPORT BRACKET SUB-ASSY
a. Remove the 2 bolts and exhaust pipe No.1 support bracket sub-ass
y.

Fig. 27: Removing 2 Bolts And Clamps
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Loosen the union nut and separate the oil cooler inlet tube No.1.
26.SEPARATE OIL COOLER OUTLET TUBE NO.1
a. Loosen the union nut and separate the oil cooler outlet tube No.1
27.SEPARATE FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSY
a. Remove the nut and separate the floor shift gear shifting rod.
Fig. 28: Removing Nut And Separating Floor Shift Gear Shifting Rod

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
28.SUPPORT AUTOMATIC TRANSMISSION ASSY
a. Support the automatic transmission assy with a transmission jack.
29.REMOVE ENGINE REAR MOUNTING MEMBER
a. Remove the 4 bolts and separate the engine rear mounting member.

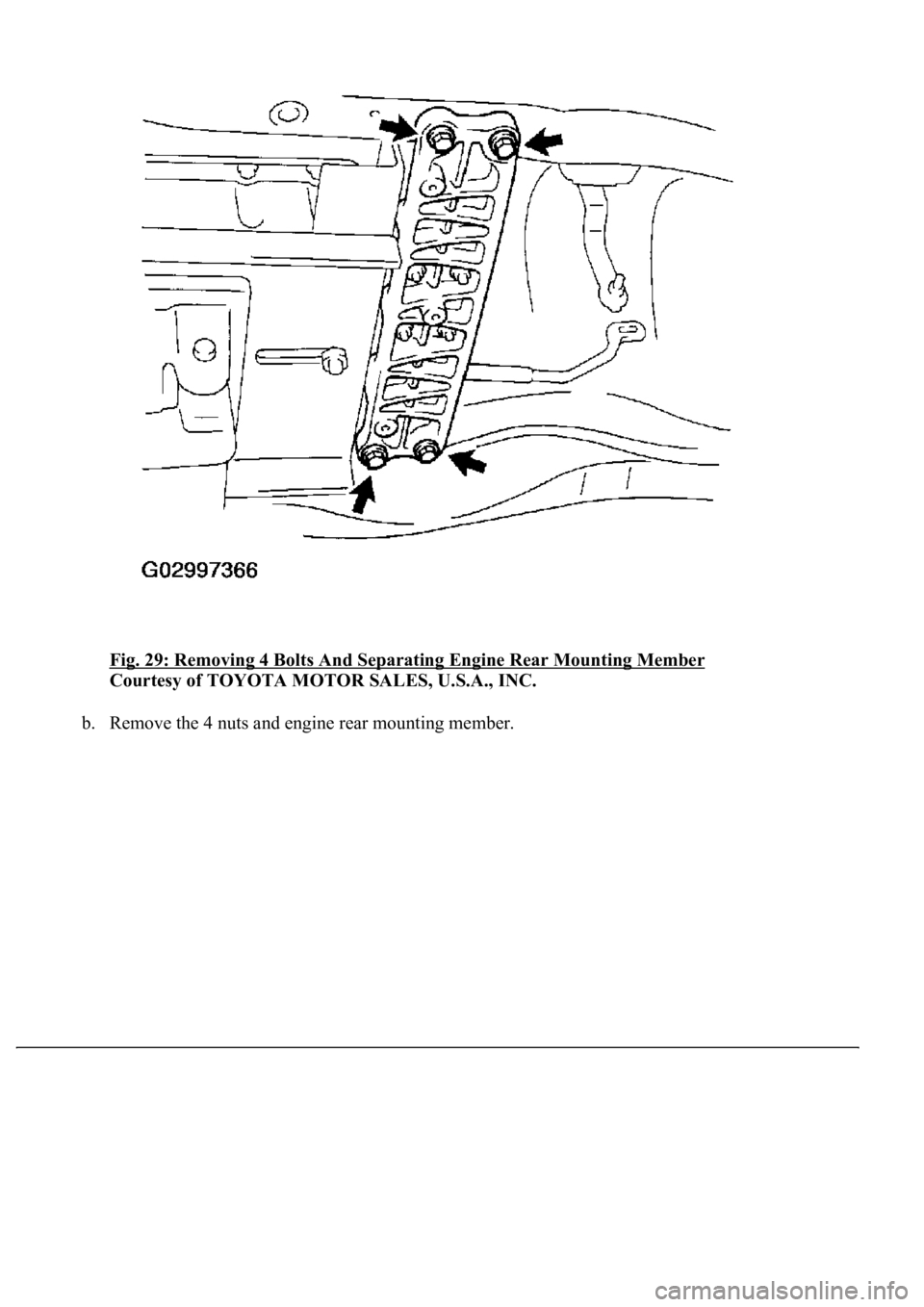

Fig. 29: Removing 4 Bolts And Separating Engine Rear Mounting Member
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Remove the 4 nuts and engine rear mounting member.

Fig. 30: Removing 4 Nuts And Engine Rear Mounting Member
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
30.DISCONNECT CONNECTOR
a. Tilt down the automatic transmission.
b. Disconnect the park/neutral position switch connector.
c. Disconnect the transmission wire connector.
d. Disconnect the 2 speed sensor connectors.
31.DISCONNECT WIRE HARNESS
a. Remove the 5 bolts and wire harness clamps.
b. Separate the wire harness from the automatic transmission assy.
HINT:
Bolt (a) is ti
ghtened to the transmission housing.

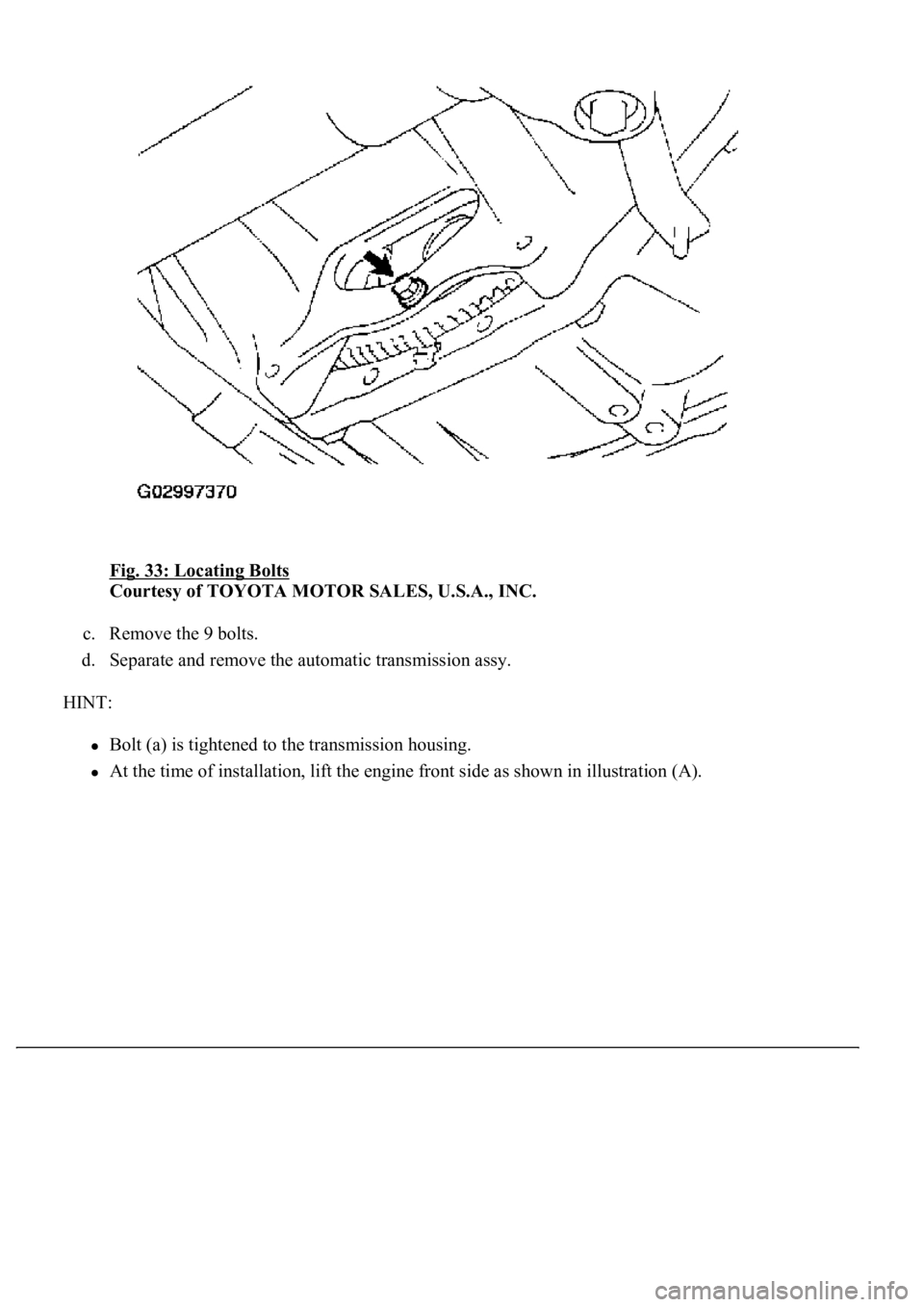

Fig. 33: Locating Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Remove the 9 bolts.
d. Separate and remove the automatic transmission assy.
HINT:
Bolt (a) is tightened to the transmission housing.
At the time of installation, lift the engine front side as shown in illustration (A).

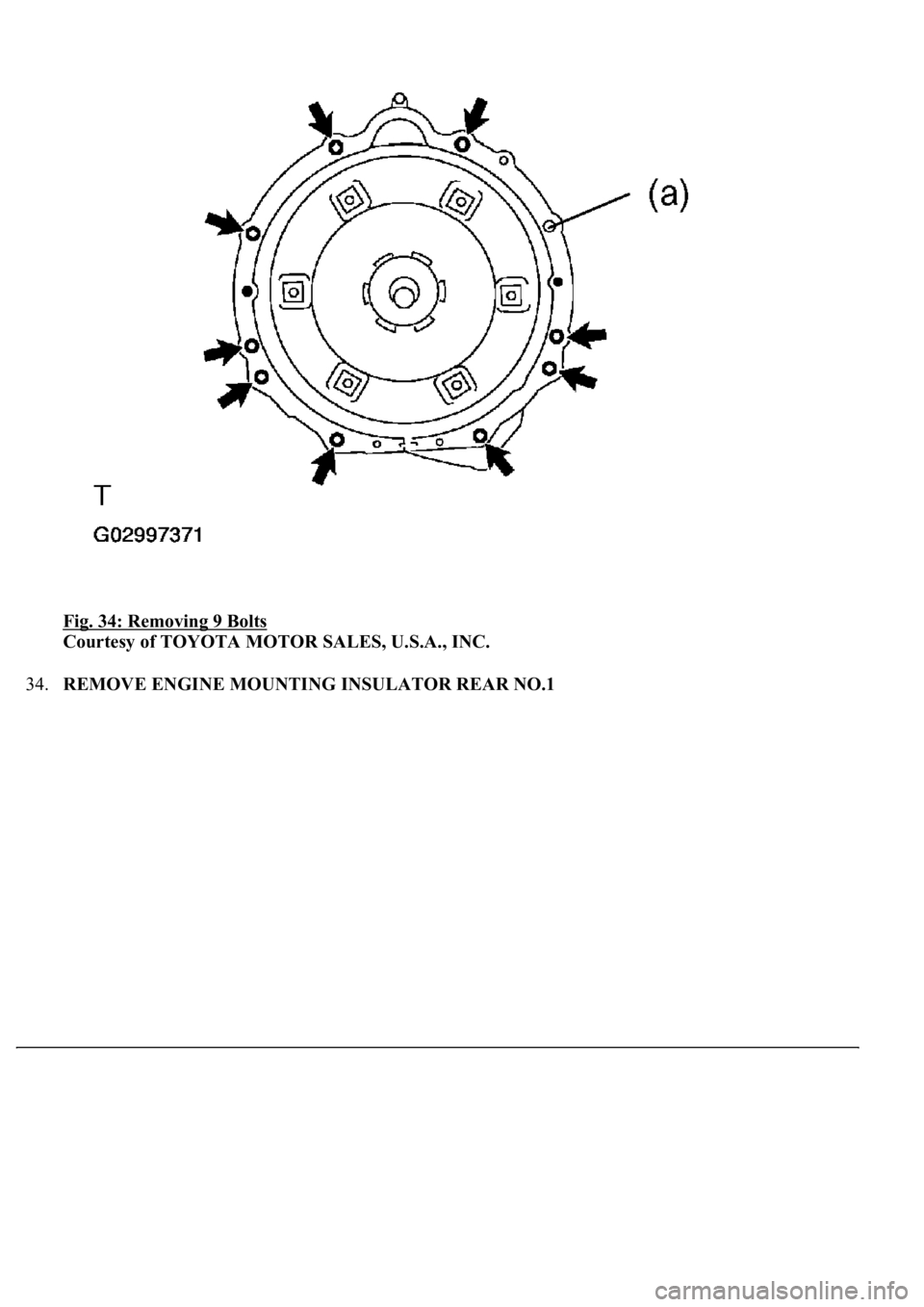

Fig. 34: Removing 9 Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
34.REMOVE ENGINE MOUNTING INSULATOR REAR NO.1

Fig. 35: Lifting Engine Front Side
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Remove the 4 bolts and engine mounting insulator rear No.1.

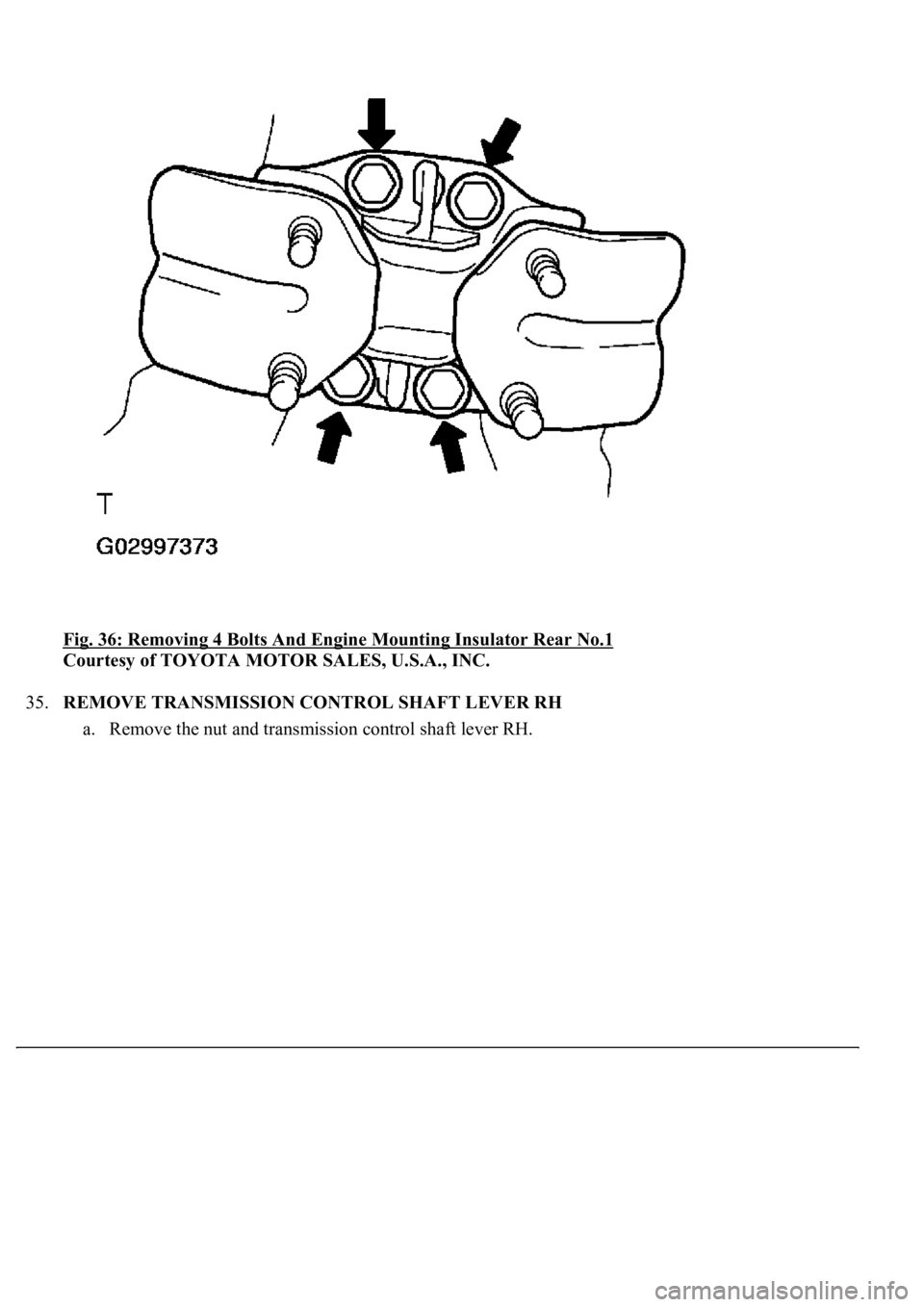

Fig. 36: Removing 4 Bolts And Engine Mounting Insulator Rear No.1
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
35.REMOVE TRANSMISSION CONTROL SHAFT LEVER RH
a. Remove the nut and transmission control shaft lever RH.
