2003 LEXUS LS430 Identifying ac

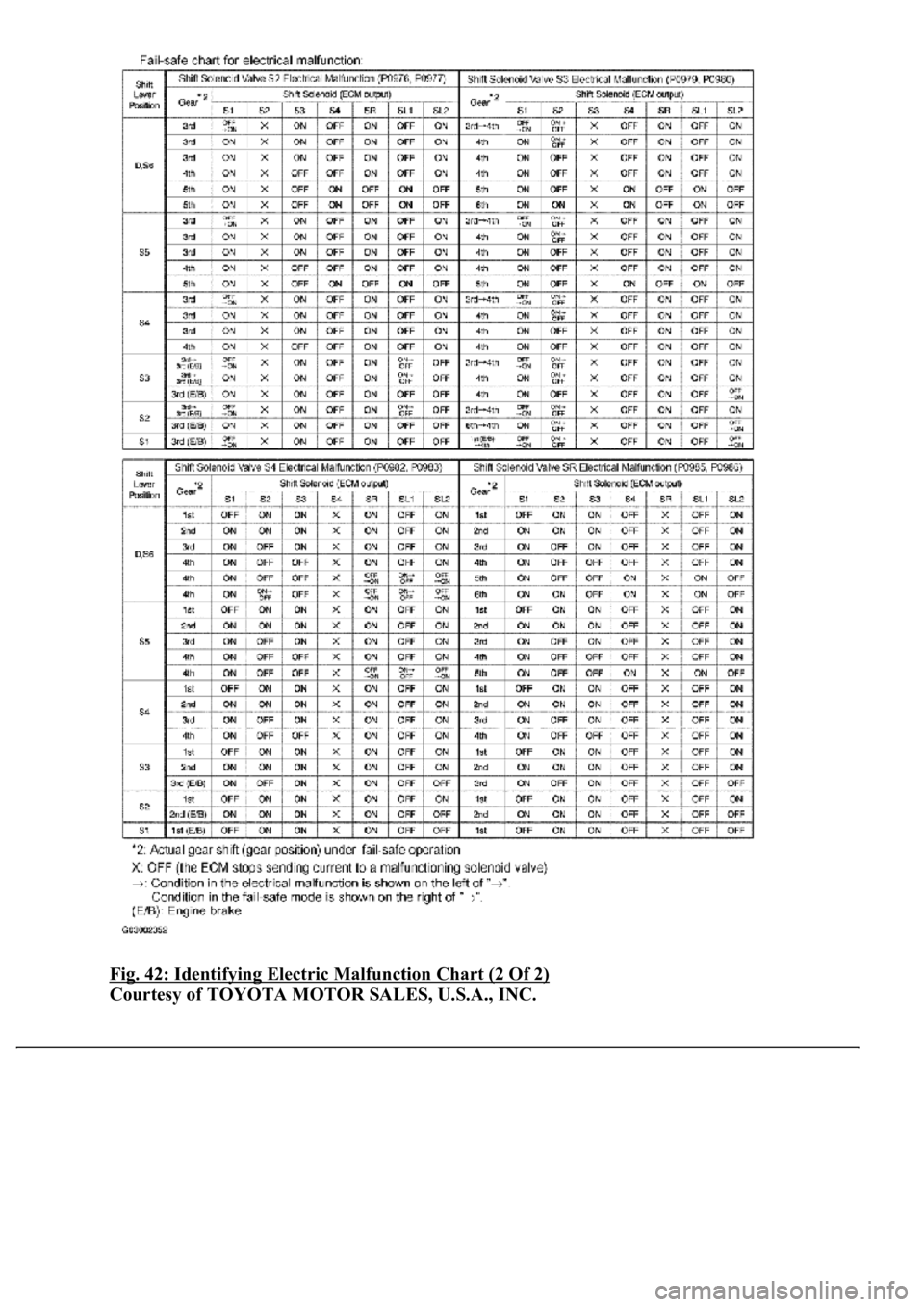

Fig. 42: Identifying Electric Malfunction Chart (2 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

b. Fail-safe operation for mechanically malfunction:
HINT:
Fail-safe operation in the event of a mechanical system malfunction.
Fail safe function:
The ECM controls the gear position as shown in the table below when malfunctions occur.
Fig. 43: Identifying Mechanical Malfunction Chart

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
DATA LIST/ACTIVE TEST
1.DATA LIST
HINT:
According to the DATA LIST displayed by the hand-held tester, you can read the value of the switch,
sensor, actuator and so on without parts removal. Reading the DATA LIST as the first step of
troubleshooting is one method to shorten labor time.

a. Warm up the engine.
b. Turn the ignition switch off.
c. Connect the hand-held tester together with the CAN VIM (controller area network vehicle interface
module) to the DLC3.
d. Turn the ignition switch to the ON position.
e. Push the "ON" button of the hand-held tester.
f. Select the item "DIAGNOSIS/ENHANCED OBD II/DATA LIST".
g. According to the display on tester, read the "DATA LIST".
Fig. 44: Identifying Data List Reference (1 Of 2)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Fig. 45: Identifying Data List Reference (2 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
2.ACTIVE TEST
HINT:
Performing the ACTIVE TEST using the hand-held tester allows the relay, VSV, actuator and so on to
operate without parts removal. Performing the ACTIVE TEST as the first step of troubleshooting is one
method to shorten labor time.
It is possible to display the DATA LIST during the ACTIVE TEST.
a. Warm up the engine.
b. Turn the ignition switch off.
c. Connect the hand-held tester together with the CAN VIM (controller area network vehicle interface
module) to the DLC3.
d. Turn the ignition switch to the ON position.
e. Push the "ON" button of the hand-held tester.
f. Select the item "DIAGNOSIS/ENHANCED OBD II/ACTIVE TEST".
g. According to the display on tester, perform the "ACTIVE TEST".

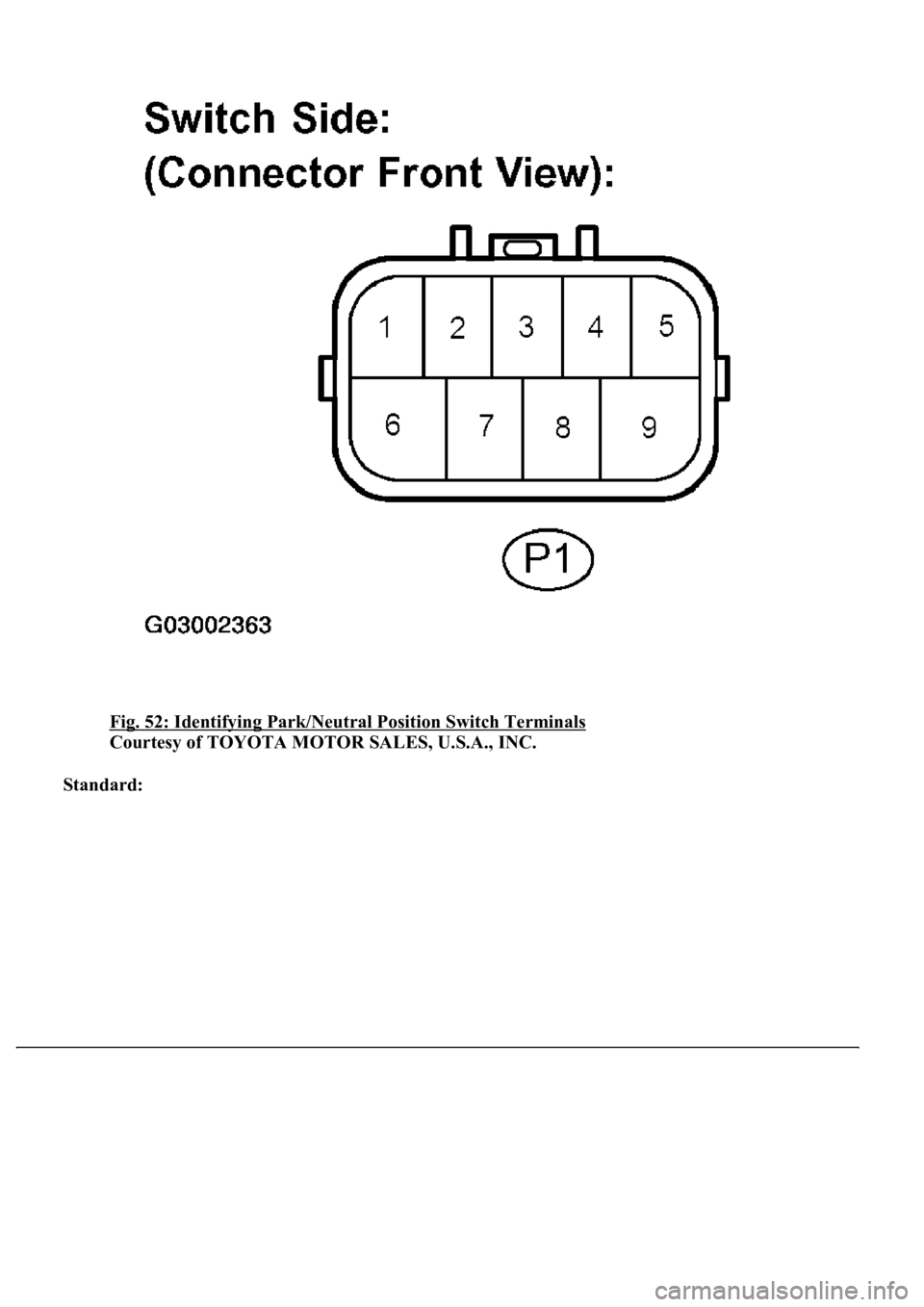

Fig. 52: Identifying Park/Neutral Position Switch Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Standard:

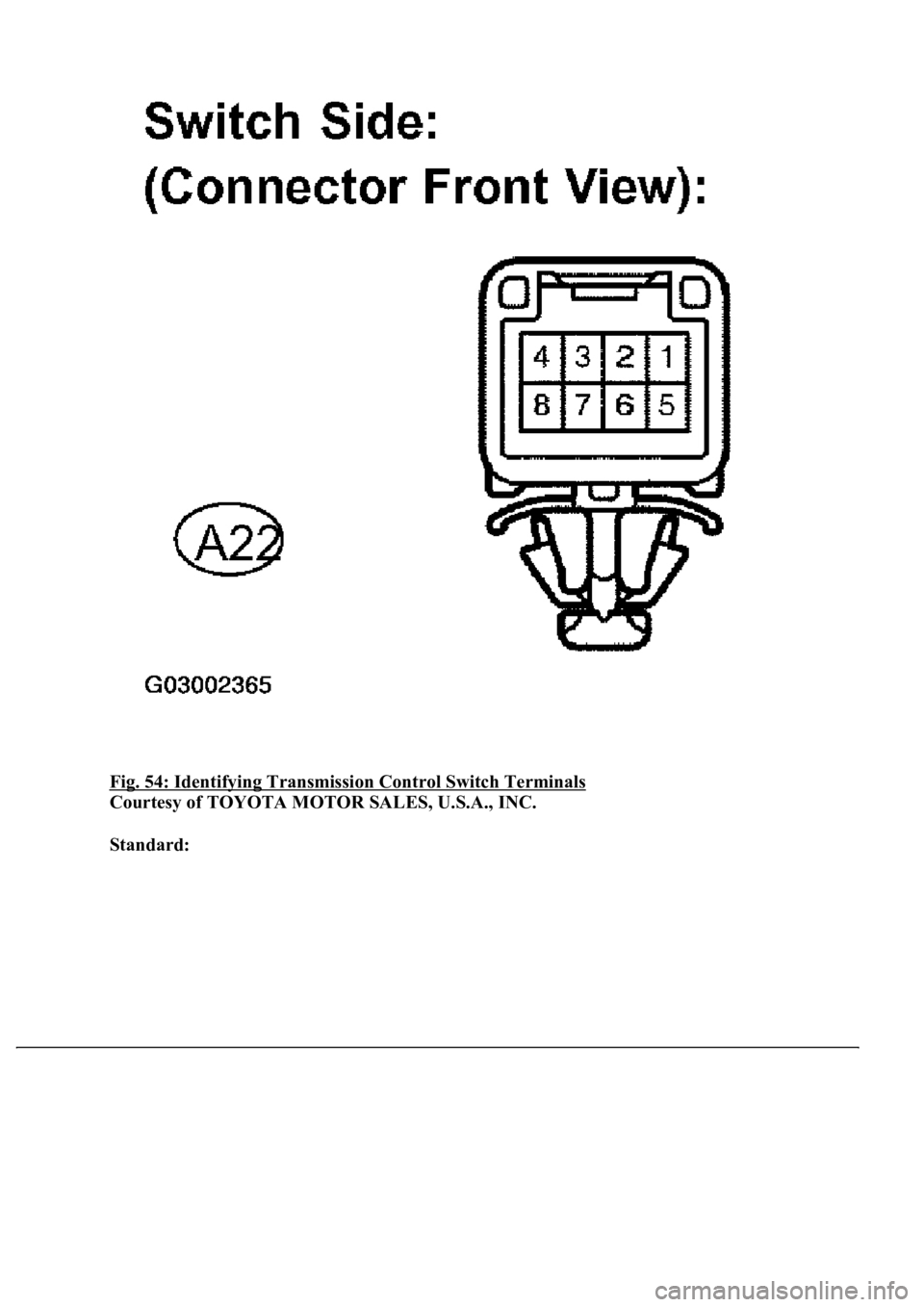

Fig. 54: Identifying Transmission Control Switch Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Standard:

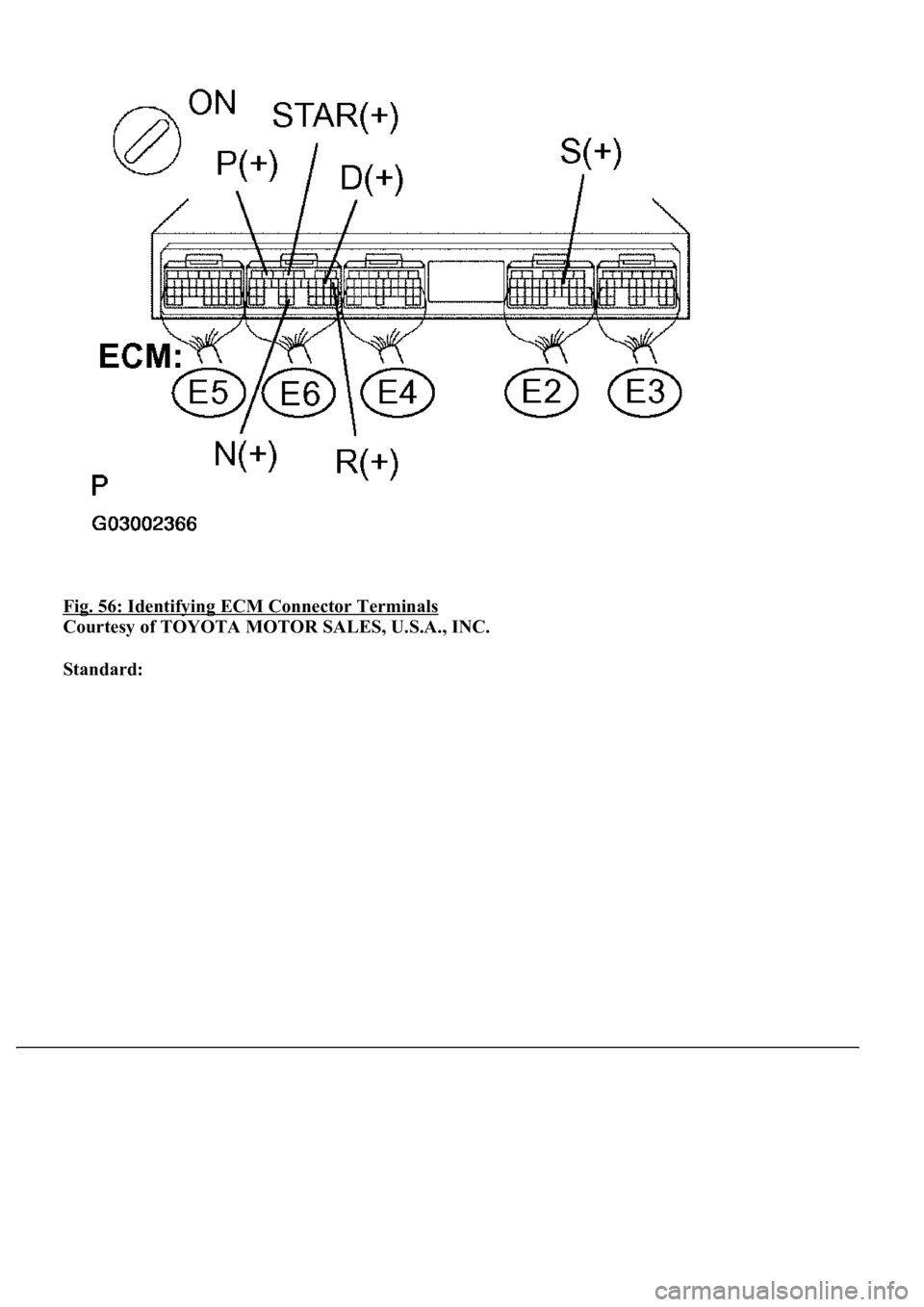

Fig. 56: Identifying ECM Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Standard:

Fig. 62: Identifying Transmission Wire Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Standard:
ATF TEMPERATURE SENSOR - RESISTANCE TABLE
c. Measure the resistance according to the value(s) in the table below.
Standard (Check for short):
Tester ConnectionSpecified Condition
1 (OT-) - 9 (OT+)79ohms to 156kohms
