Fig. 83: Identifying Cruise Control Main Switch Position
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
CC (ECM):
DATA LIST (CC (ECM))
OK: When cruise control main switch operation is performed, the standard values will be above.
Item
Measurement Item / Display
(Range)
Normal ConditionDiagnostic Note
MAI NSW
(MAIN)Main SW signal (Main CPU) /
ON or OFFON: Main SW ON (Pushed
on) OFF: Main SW OFF
(Pushed off)-
MAI NSW (SUB)Main SW signal (Sub CPU) /
ON or OFFON: Main SW ON (Pushed
on)OFF: Main SW OFF
(Pushed off)
CANCEL SWCANCEL SW signal / ON or
OFFON: CANCEL SW ON OFF:
CANCEL SW OFF-
SET/COAST SWSET/COAST SW signal / ON or
OFFON: SET/COAST SW ON
OFF: SET/COAST SW OFF-
RES/ACC SWRES/ACC SW signal / ON or
OFFON: RES/ACC SW ON
OFF: RES/ACC OFF-

Fig. 85: Identifying Spiral Cable Sub-Assy Connector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: REPLACE SPIRAL CABLE SUB-ASSY (SEE REPLACEMENT
)

OK: Go To Next Step.
4.CHECK HARNESS AND CONNECTOR (SPIRAL CABLE SUB-ASSY - ECM)
a. Measure the resistance according to the value(s) in the table below.
Standard:
SPIRAL CABLE SUB-ASSY AND ECM TERMINALS RESISTANCE

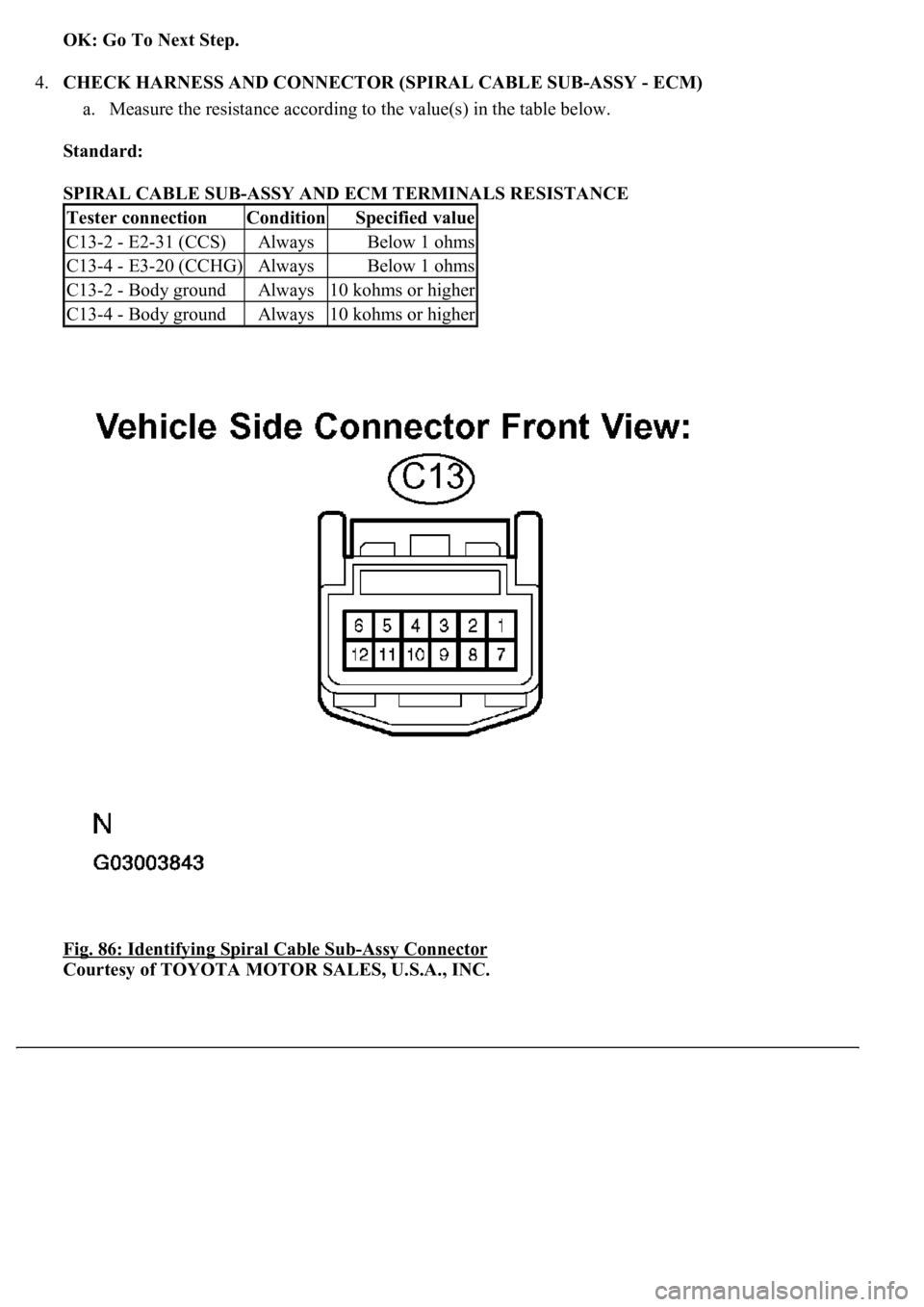

Fig. 86: Identifying Spiral Cable Sub
-Assy Connector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Tester connectionConditionSpecified value
C13-2 - E2-31 (CCS)AlwaysBelow 1 ohms
C13-4 - E3-20 (CCHG)AlwaysBelow 1 ohms
C13-2 - Body groundAlways10 kohms or higher
C13-4 - Body groundAlways10 kohms or higher

Fig. 87: Disconnecting ECM Connector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go To Next Step.
5.CHECK HARNESS AND CONNECTOR (SPIRAL CABLE SUB-ASSY - BODY GROUND)
a. Measure the resistance according to the value(s) in the table below.
Standard:
SPIRAL CABLE SUB-ASSY CONNECTOR TERMINALS RESISTANCE
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

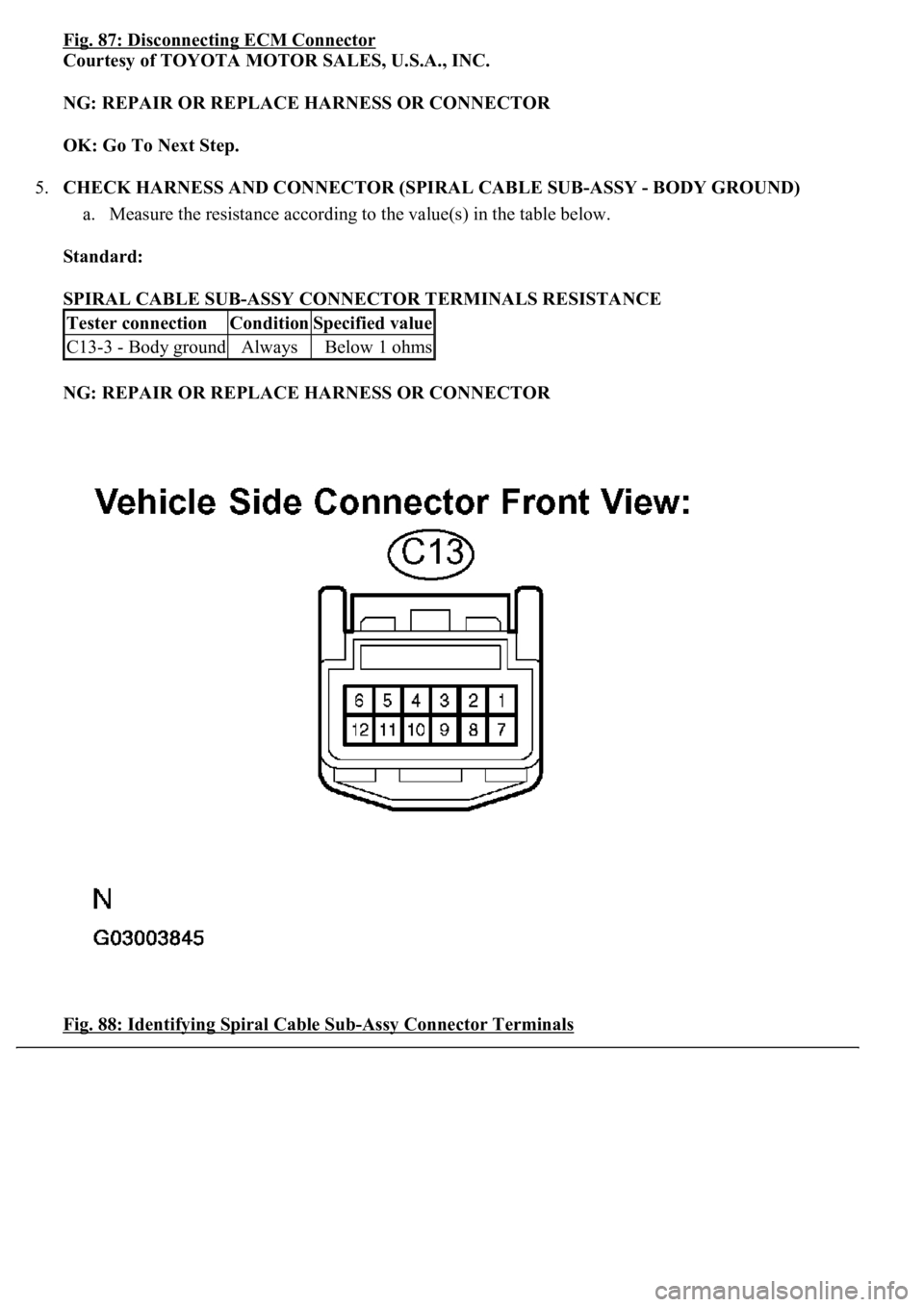

Fig. 88: Identifying Spiral Cable Sub
-Assy Connector Terminals
Tester connectionConditionSpecified value
C13-3 - Body groundAlwaysBelow 1 ohms

Fig. 89: Wiring Diagram - Diagnosis Circuit
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
HINT:
When a particular warning light stays blinking, a ground short in the wiring of terminal TC of the DLC3 or an
internal ground short in the relevant ECU is suspected.
INSPECTION PROCEDURE
1.CHECK HARNESS AND CONNECTOR (TC of DLC3 - ECM)
a. Disconnect the E2 connector from the ECM.
b. Measure the resistance according to the value(s) in the table below.
Standard:
ECM CONNECTOR TERMINALS RESISTANCE
Fig. 90: Identifying DLC3 Connector (TC) Terminals

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Tester connectionConditionSpecified condition
TC (E2-3) - TC (D1 - 13)AlwaysBelow 1 ohms

Fig. 91: Disconnecting E2 Connector From ECM
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (DLC3 - ECM)
OK: Go To Next Step.
2.CHECK HARNESS AND CONNECTOR (CG of DLC3 - BODY GROUND)
a. Measure the resistance according to the value(s) in the table below.
Standard:
ECM CONNECTOR TERMINALS RESISTANCE
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (DLC3 - BODY GROUND)

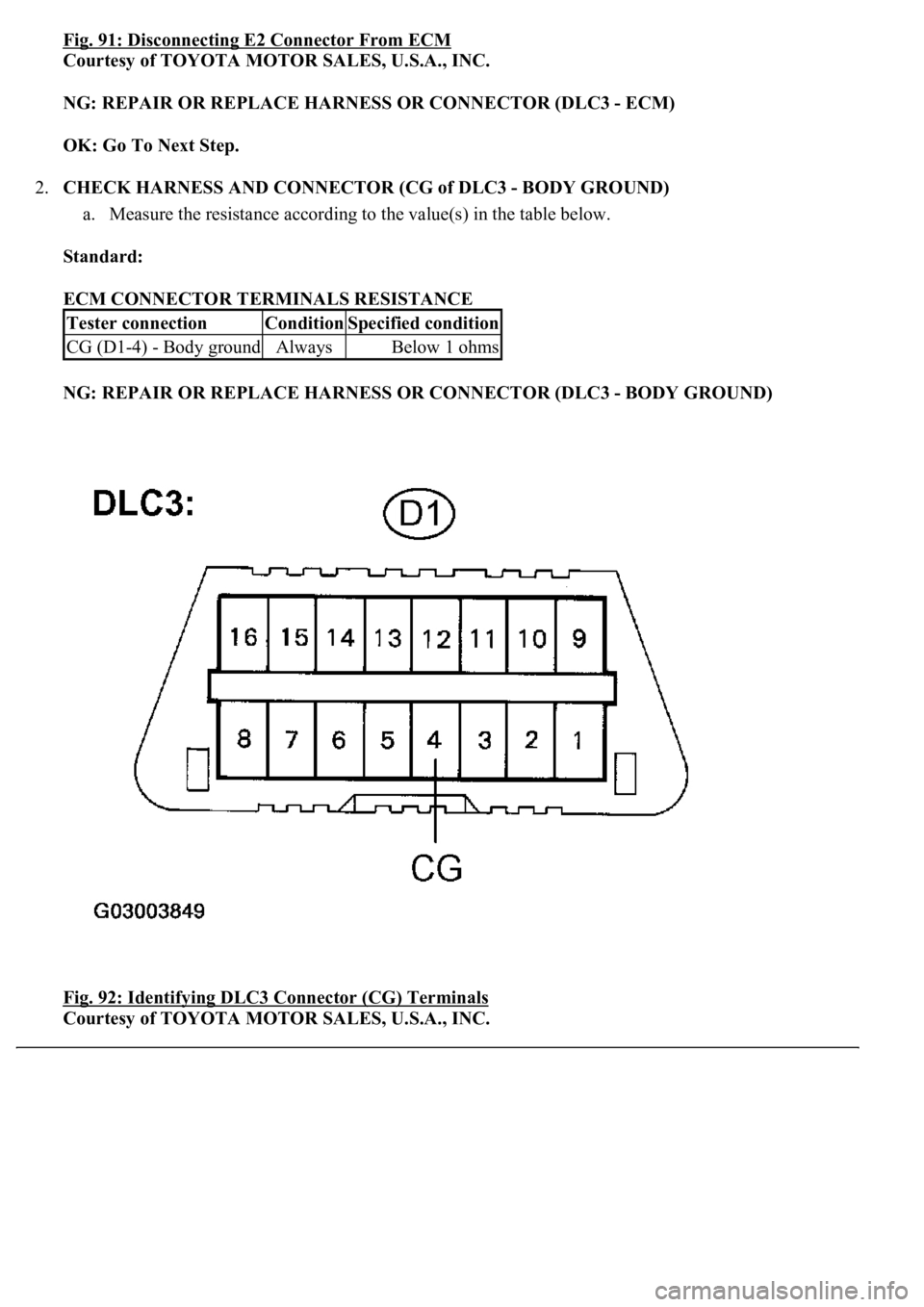

Fig. 92: Identifying DLC3 Connector (CG) Terminals

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Tester connectionConditionSpecified condition
CG (D1-4) - Body groundAlwaysBelow 1 ohms

OK: Go To Next Step.
3.CHECK HARNESS AND CONNECTOR (TC of DLC3 - BODY GROUND)
a. Measure the resistance according to the value(s) in the table below.
Standard:
ECM CONNECTOR TERMINALS RESISTANCE
NG: REPAIR OR REPLACE WIRE HARNESS AND EACH ECU

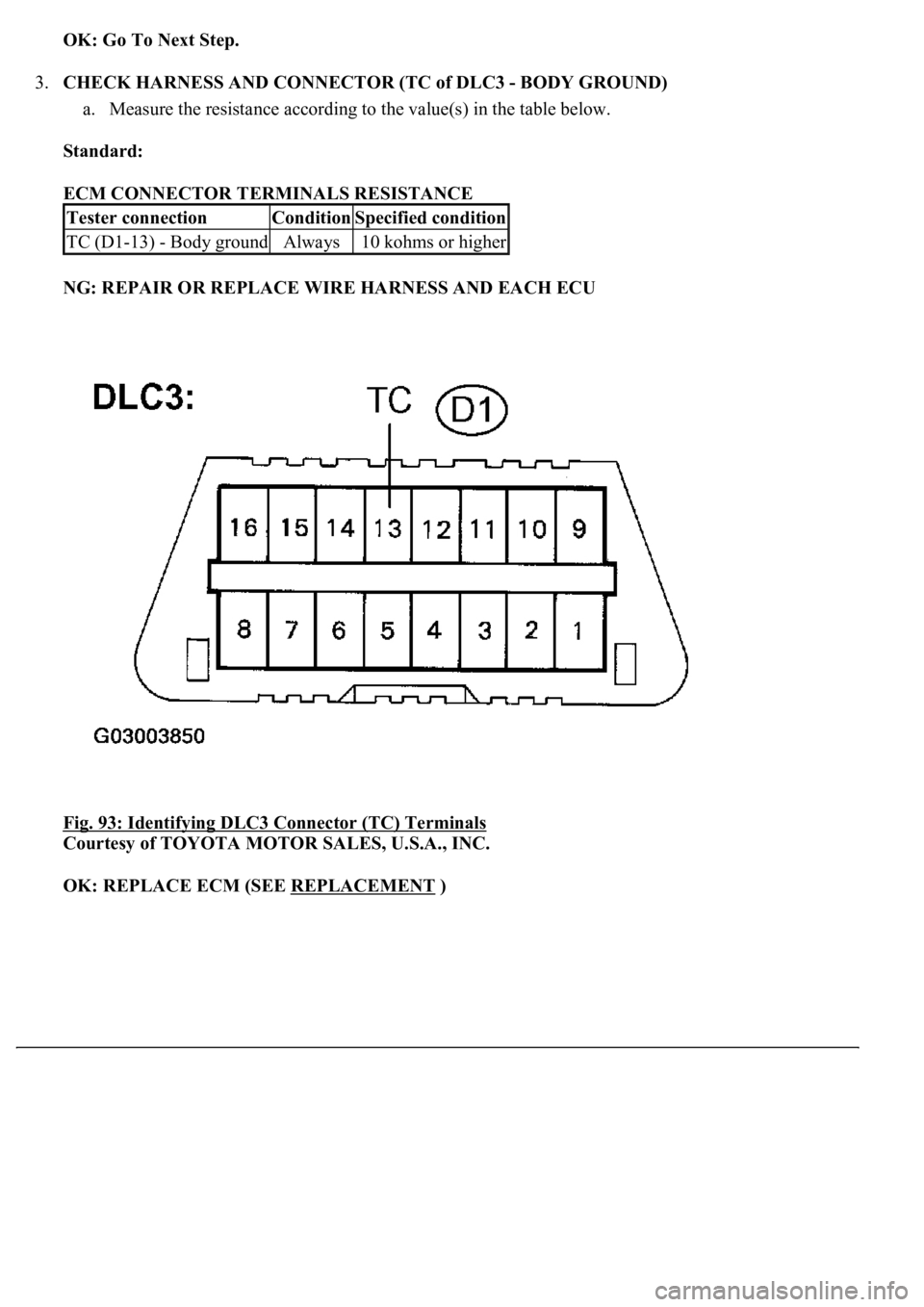

Fig. 93: Identifying DLC3 Connector (TC) Terminals

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OK: REPLACE ECM (SEE REPLACEMENT
)
Tester connectionConditionSpecified condition
TC (D1-13) - Body groundAlways10 kohms or higher

LOCATION
Fig. 1: Identifying Electronic Controlled Automatic Transmission Components Location (1 Of 2)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
PNP switch, NSWPark/neutral position switch
Pressure control solenoidTransmission pressure control solenoid
Shift solenoidTransmission shift solenoid valve
Transmission control switch, Shift lock control unitShift lock control module
Engine immobilizer system, Immobilizer systemVehicle anti-theft system
