2003 LEXUS LS430 torque

20.REMOVE REAR BUMPER SIDE MOUNTING BRACKET LH
a. Remove the screw and bracket.
21.REMOVE REAR BUMPER SIDE MOUNTING BRACKET RH
a. Remove the screw and bracket.
22.REMOVE REAR BUMPER ARM SUPPORT REINFORCE SUB-ASSY LH
a. Remove the 2 bolts, nut and arm support.
23.REMOVE REAR BUMPER ARM SUPPORT REINFORCE SUB-ASSY RH
a. Remove the 2 bolts, nut and arm support.
24.REMOVE REAR BUMPER RETAINER LOWER LH
a. Remove the 3 screws and retainer lower.
25.REMOVE REAR BUMPER RETAINER LOWER RH
a. Remove the 3 screws and retainer lower.
26.REMOVE ULTRASONIC SENSOR NO. 1 (w/ CLEARANCE SONAR SYSTEM)
a. Remove the 4 retainers and 4 sensors.
27.REMOVE REAR BUMPER molding
HINT:
Remove the double-sided tape completely from the bumper. Double-sided tape interferes with the
installation of the molding to the bumper.
28.REMOVE REAR BUMPER SIDE RETAINER NO. 3 LH
a. Remove the 2 clips and side retainer.
29.REMOVE REAR BUMPER SIDE RETAINER NO. 3 RH
a. Remove the 2 clips and side retainer.
30.INSTALL REAR BUMPER ARM SUPPORT REINFORCE SUB-ASSY LH
a. Install the arm support with the 2 bolts and nut.
Torque: 20 N.m (200 kgf.cm, 15 ft.lbf)
31.INSTALL REAR BUMPER ARM SUPPORT REINFORCE SUB-ASSY RH
a. Install the arm support with the 2 bolts and nut.
Torque: 20 N.m (200 kgf.cm, 15 ft.lbf)
32.INSTALL REAR BUMPER REINFORCEMENT SUB-ASSY
a. Install the reinforcement with the 2 bolts and nut.
Torque: 20 N.m (200 kgf.cm, 15 ft.lbf)
33.INSTALL REAR BUMPER SIDE RETAINER LH
a. Using an air riveter or hand riveter with nose piece, strike waterproof rivets of phis 4.9 mm (0.19
in.) into the side retainer to install the rivet to the bumper cover.

Fig. 19: Installing Rear Bumper Side Retainer LH
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
34.INSTALL REAR BUMPER SIDE RETAINER RH
HINT:
Use the same procedures described for the LH side.
REPLACEMENT
HINT:
The installation procedures are the removal procedures in reverse order. However, only installation
procedures requiring additional information are included.
A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE
FOR STANDARD BOLTS ).

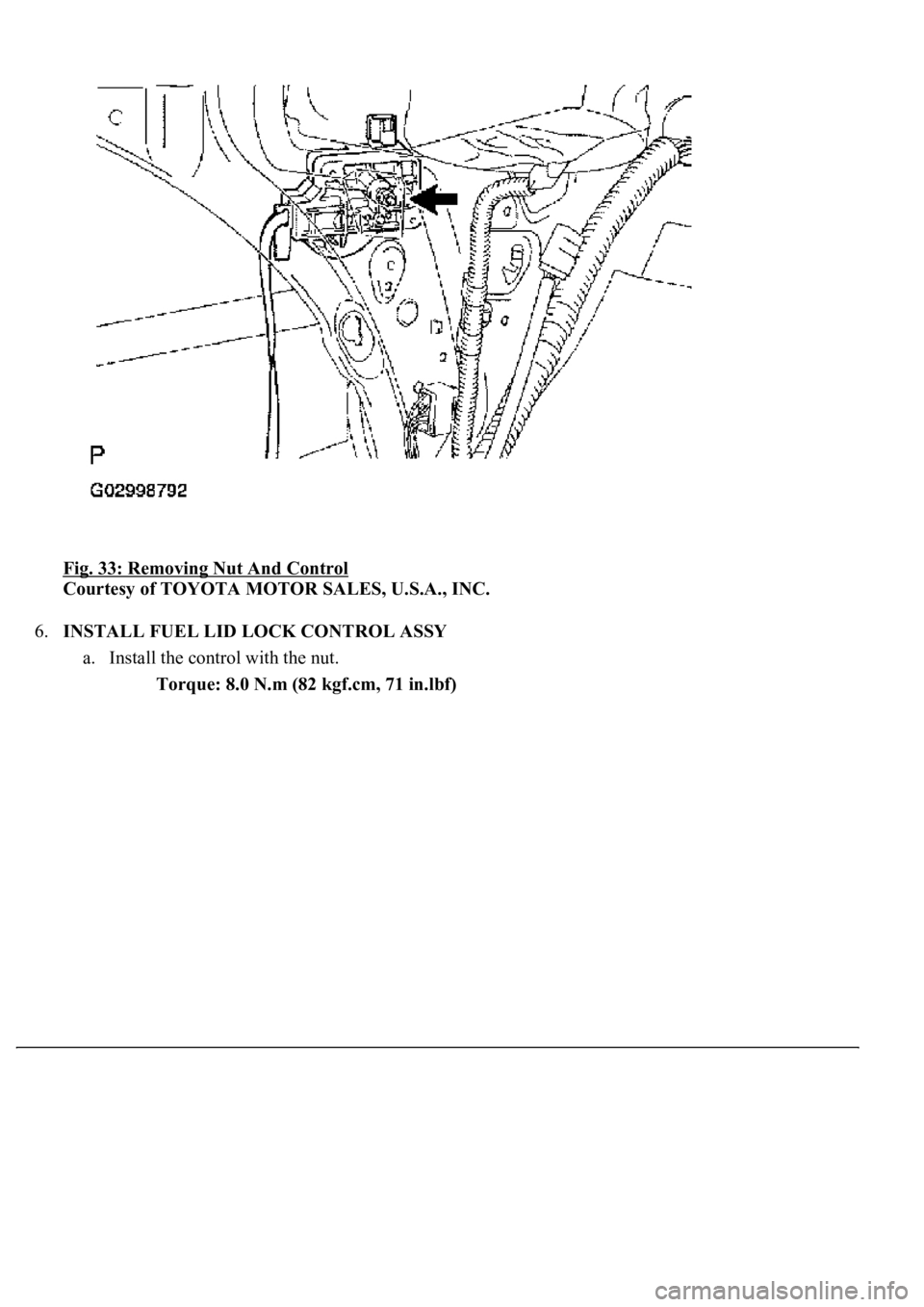

Fig. 33: Removing Nut And Control
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
6.INSTALL FUEL LID LOCK CONTROL ASSY
a. Install the control with the nut.
Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

Fig. 34: Installing Control With Nut
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Connect the connector.
c. Tighten the nut.
Torque: 11.5 N.m (117 kgf.cm, 8 ft.lbf)

A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE
FOR STANDARD BOLTS ).

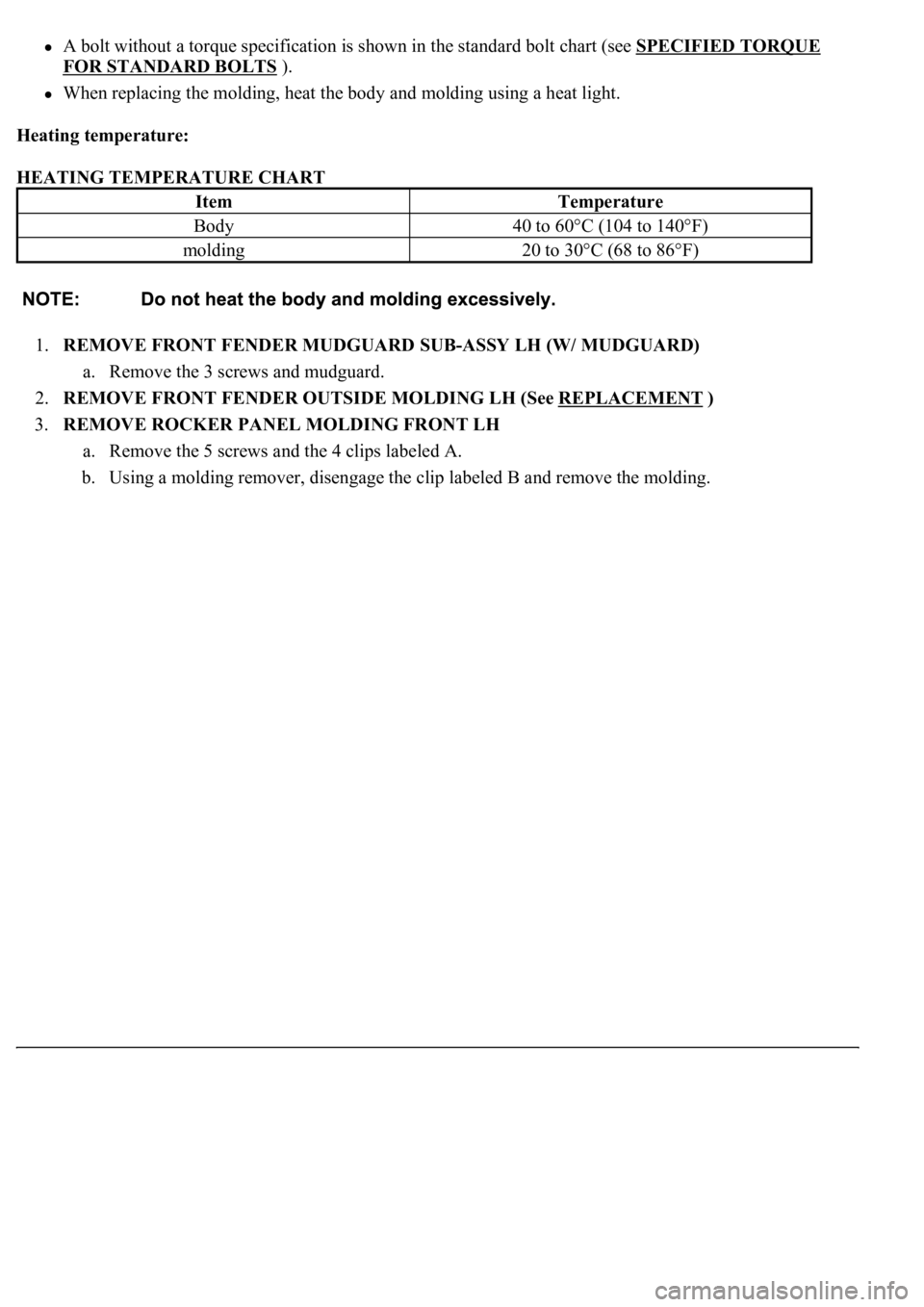

When replacing the molding, heat the body and molding using a heat light.
Heating temperature:
HEATING TEMPERATURE CHART
1.REMOVE FRONT FENDER MUDGUARD SUB-ASSY LH (W/ MUDGUARD)
a. Remove the 3 screws and mudguard.
2.REMOVE FRONT FENDER OUTSIDE MOLDING LH (See REPLACEMENT
)
3.REMOVE ROCKER PANEL MOLDING FRONT LH
a. Remove the 5 screws and the 4 clips labeled A.
b.Using a molding remover, disengage the clip labeled B and remove the molding.
ItemTemperature
Body40 to 60°C (104 to 140°F)
molding20 to 30°C (68 to 86°F)

REPLACEMENT
HINT:
The installation procedures are the removal procedures in reverse order.
A bolt without torque specification is a standard bolt (see SPECIFIED TORQUE FOR STANDARD
BOLTS ).
1.REMOVE REAR COMBINATION LAMP SERVICE COVER RH (See OVERHAUL
)
2.REMOVE REAR COMBINATION LAMP SERVICE COVER LH (See OVERHAUL
)
3.REMOVE LUGGAGE COMPARTMENT LAMP ASSY NO. (See step 4 in OVERHAUL
)
4.REMOVE BACK DOOR TRIM COVER (See step 5 in OVERHAUL
)
5.REMOVE LUGGAGE COMPARTMENT DOOR GARNISH SUB-ASSY OUTSIDE
a. Remove the 6 nuts and key cylinder. Then remove the luggage compartment door opener switch.
b.Disengage the 4 clips and remove the garnish from the luggage compartment door.

Fig. 99: Connecting Battery Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Reverse the polarity and check that the rear sunshade moves down.
If all the check results are as specified above and normal wire harness is confirmed, replace the rear
sunshade control relay (see REPLACEMENT
).
REPLACEMENT
HINT:
The installation procedures are the removal procedures in reverse order. However, only installation
procedures requiring additional information are included.
A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE
FOR STANDARD BOLTS ).

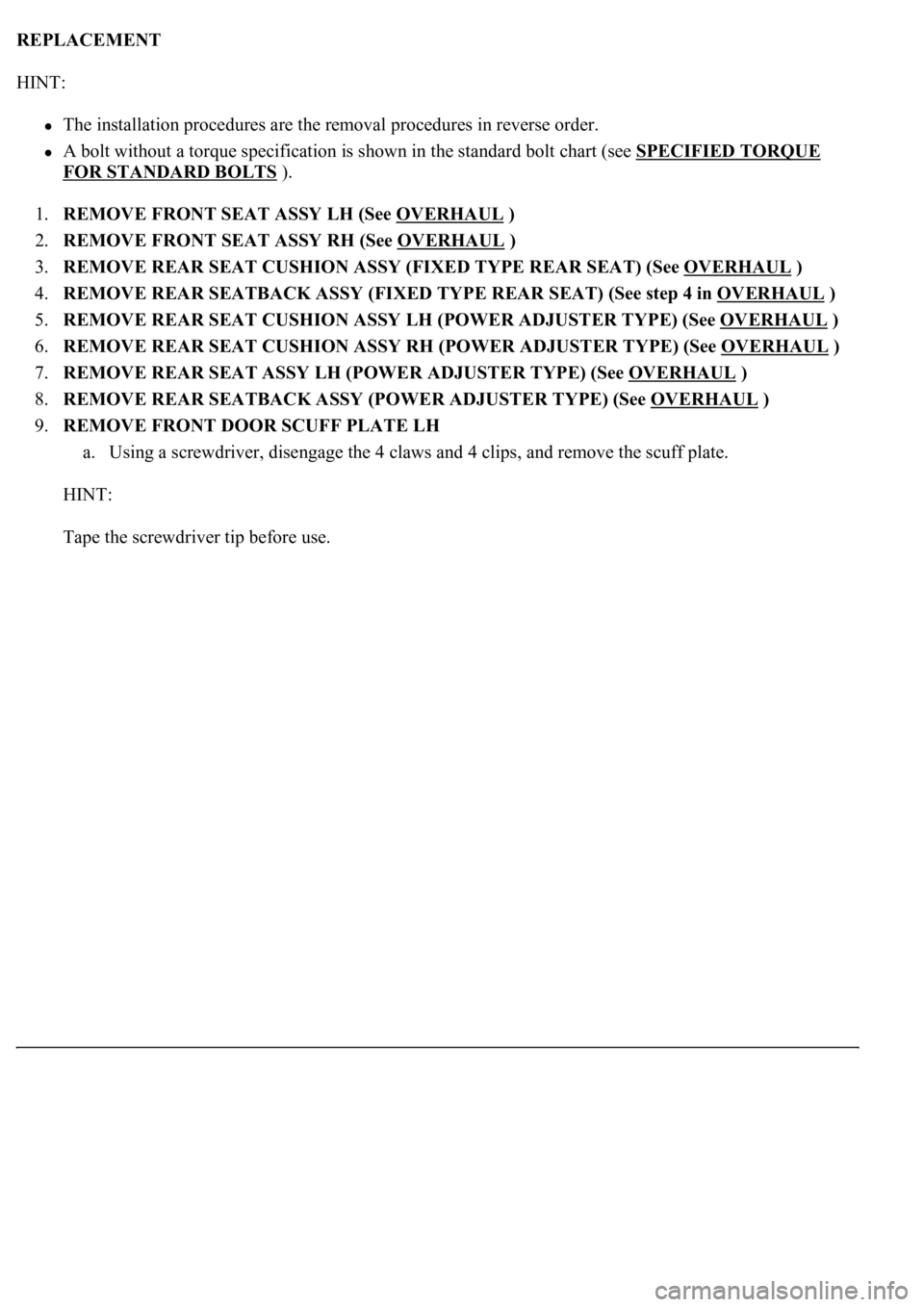

REPLACEMENT
HINT:
The installation procedures are the removal procedures in reverse order.
A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE
FOR STANDARD BOLTS ).
1.REMOVE FRONT SEAT ASSY LH (See OVERHAUL
)
2.REMOVE FRONT SEAT ASSY RH (See OVERHAUL
)
3.REMOVE REAR SEAT CUSHION ASSY (FIXED TYPE REAR SEAT) (See OVERHAUL
)
4.REMOVE REAR SEATBACK ASSY (FIXED TYPE REAR SEAT) (See step 4 in OVERHAUL
)
5.REMOVE REAR SEAT CUSHION ASSY LH (POWER ADJUSTER TYPE) (See OVERHAUL
)
6.REMOVE REAR SEAT CUSHION ASSY RH (POWER ADJUSTER TYPE) (See OVERHAUL
)
7.REMOVE REAR SEAT ASSY LH (POWER ADJUSTER TYPE) (See OVERHAUL
)
8.REMOVE REAR SEATBACK ASSY (POWER ADJUSTER TYPE) (See OVERHAUL
)
9.REMOVE FRONT DOOR SCUFF PLATE LH
a. Using a screwdriver, disengage the 4 claws and 4 clips, and remove the scuff plate.
HINT:
Tape the screwdriver tip before use.
