2003 LEXUS LS430 torque

Fig. 61: Aligning Matchmarks On Camber Adjust Cam & Suspension Member
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
d. Temporarily install camper adjust cam bolt with the nut.
e. Fully tighten the 2 bolts.
Torque:
Vehicle inside: 60 N.m (612 kgf.cm, 44 ft.lbf)
Vehicle outside: 137 N.m (1,395 kgf.cm, 101 ft.lbf)

<0029004c004a0011000300190016001d0003002c0047004800510057004c0049005c004c0051004a00030036004b00520046004e0003002400450056005200550045004800550003002400560056005c000300250052004f00570003002400510047000300
3100580057[
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
8.INSTALL HEIGHT CONTROL SENSOR LINK SUB-ASSY FRONT (AIR SUSPENSION)
a. Install the height control sensor link sub-assy front with the nut.
Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

Fig. 64: Installing Height Control Sensor Link Sub-Assy Front (Air Suspension)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
9.INSTALL LOWER BALL JOINT ASSY FRONT LH (See LOWER BALL JOINT ASSY FRONT
LH REPLACEMENT )
10.STABILIZE SUSPENSION (See REPLACEMENT
or REPLACEMENT )
11.FULLY TIGHTEN FRONT SUSPENSION LOWER ARM ASSY LH
a. Fully tighten the nut.
Torque: 137 N.m (1,395 kgf.cm, 101 ft.lbf)

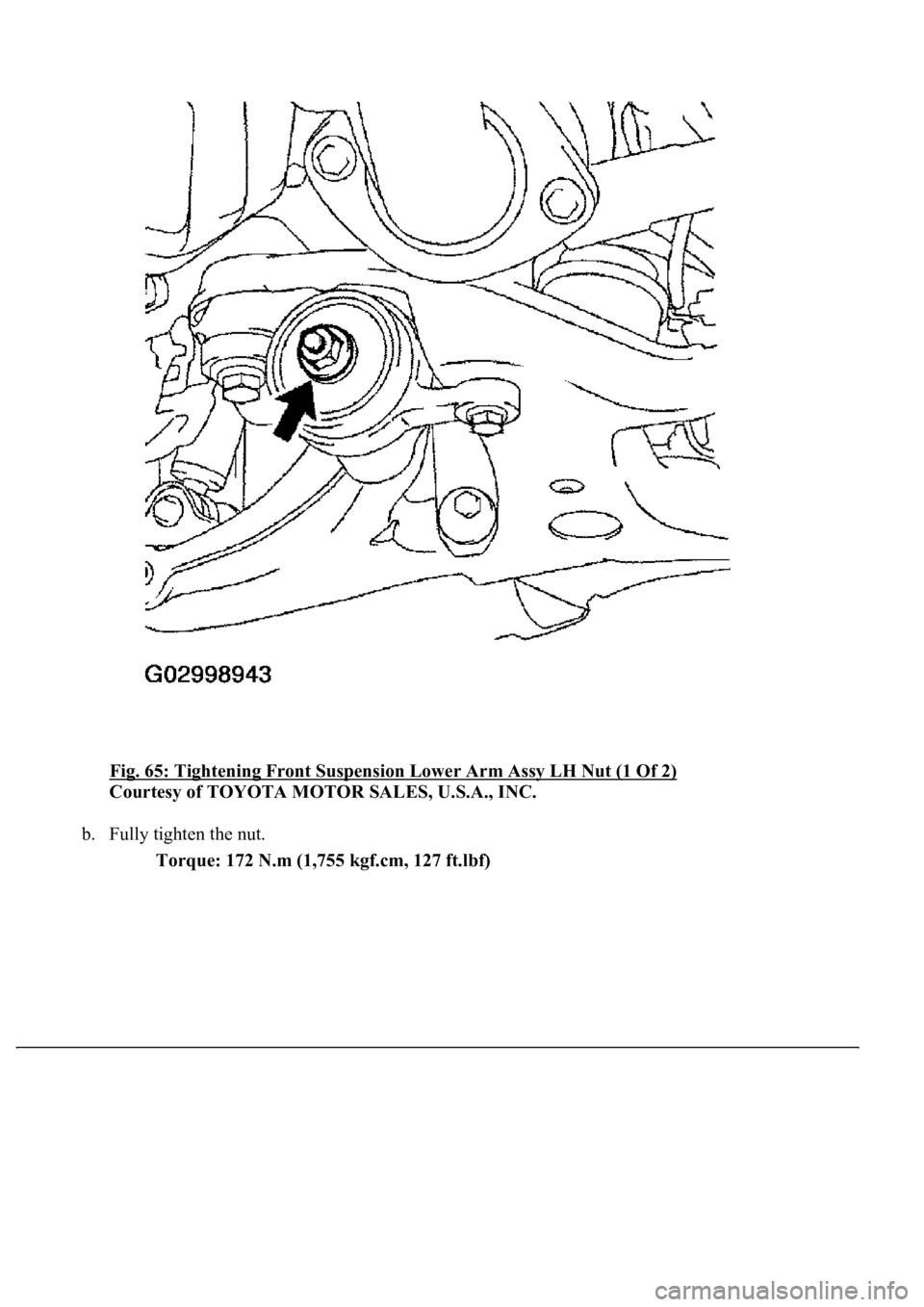

Fig. 65: Tightening Front Suspension Lower Arm Assy LH Nut (1 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Fully tighten the nut.
Torque: 172 N.m (1,755 kgf.cm, 127 ft.lbf)

Fig. 66: Tightening Front Suspension Lower Arm Assy LH Nut (2 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Fully tighten the bolt.
Torque: 157 N.m (1,600 kgf.cm, 116 ft.lbf)

Fig. 67: Tightening Front Suspension Lower Arm Assy LH Bolt
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
12.INSTALL FRONT WHEELS
Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
13.ADJUST FRONT WHEEL ALIGNMENT (See ADJUSTMENT
)
14.ADJUST VEHICLE HEIGHT (AIR SUSPENSION) (See ON
-VEHICLE INSPECTION )
15.CHECK ABS SPEED SENSOR SIGNAL (See TEST MODE PROCEDURE
)
REPLACEMENT
HINT:
Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.
1.REMOVE FRONT WHEELS
2.SEPARATE FRONT STABILIZER LINK ASSY LH (See REPLACEMENT
)

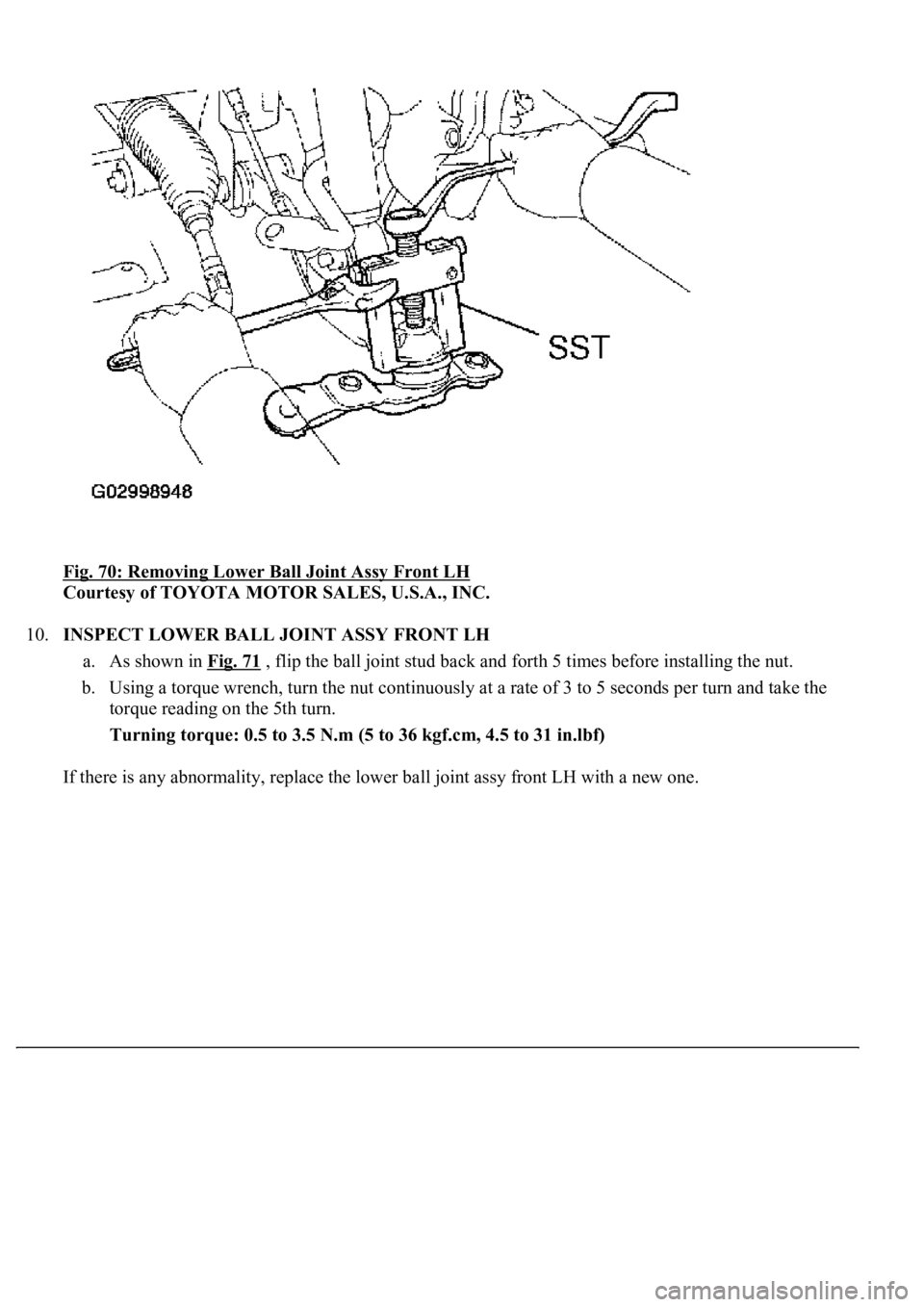

Fig. 70: Removing Lower Ball Joint Assy Front LH
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
10.INSPECT LOWER BALL JOINT ASSY FRONT LH
a. As shown in Fig. 71
, flip the ball joint stud back and forth 5 times before installing the nut.
b. Using a torque wrench, turn the nut continuously at a rate of 3 to 5 seconds per turn and take the
torque reading on the 5th turn.
<0037005800550051004c0051004a0003005700520055005400580048001d0003001300110018000300570052000300160011001800030031001100500003000b00180003005700520003001600190003004e004a0049001100460050000f00030017001100
180003005700520003001600140003004c00510011004f0045[f)
If there is an
y abnormality, replace the lower ball joint assy front LH with a new one.

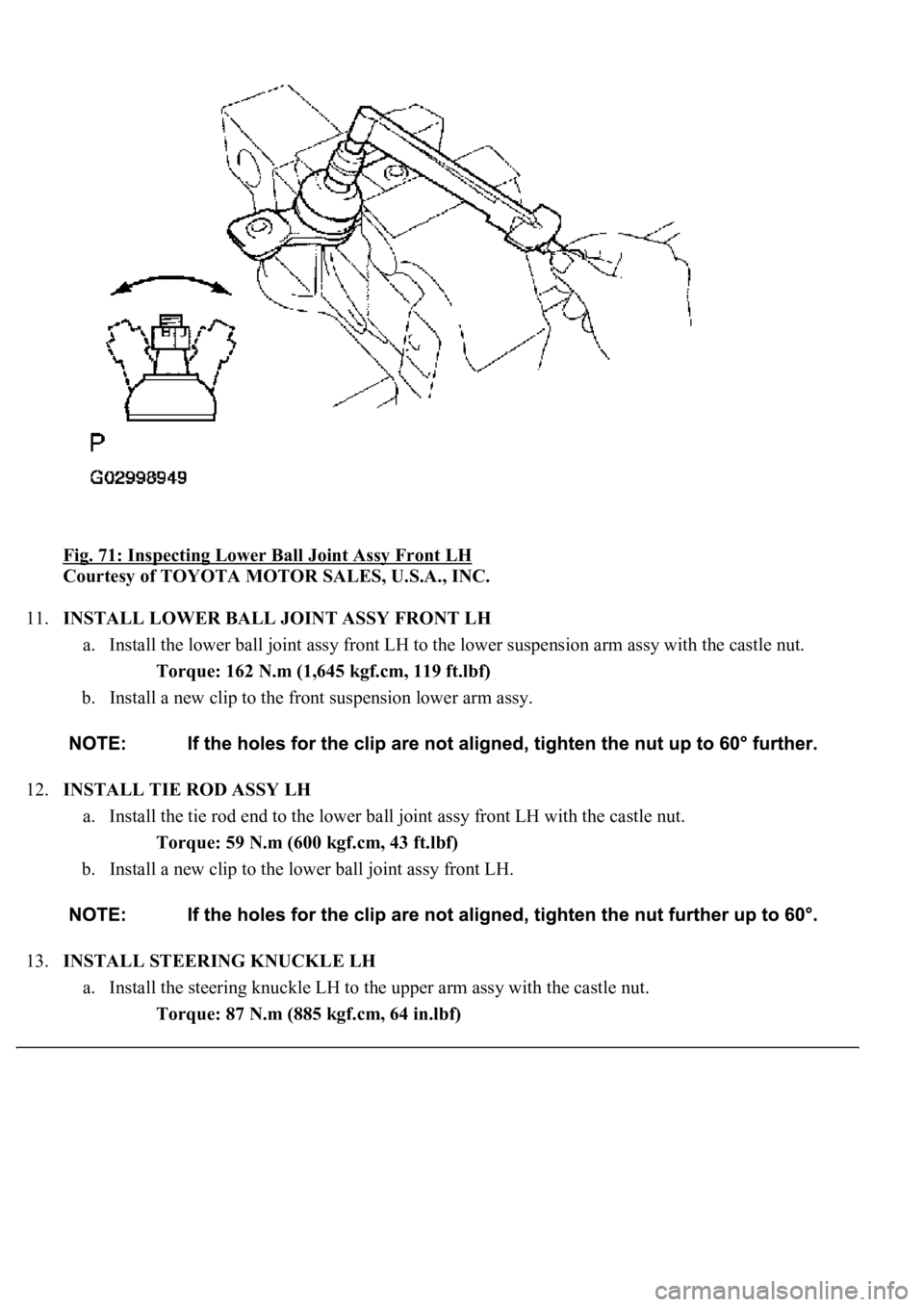

Fig. 71: Inspecting Lower Ball Joint Assy Front LH
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
11.INSTALL LOWER BALL JOINT ASSY FRONT LH
a. Install the lower ball joint assy front LH to the lower suspension arm assy with the castle nut.
Torque: 162 N.m (1,645 kgf.cm, 119 ft.lbf)
b. Install a new clip to the front suspension lower arm assy.
12.INSTALL TIE ROD ASSY LH
a. Install the tie rod end to the lower ball joint assy front LH with the castle nut.
Torque: 59 N.m (600 kgf.cm, 43 ft.lbf)
b. Install a new clip to the lower ball joint assy front LH.
13.INSTALL STEERING KNUCKLE LH
a. Install the steering knuckle LH to the upper arm assy with the castle nut.
Torque: 87 N.m (885 kgf.cm, 64 in.lbf)
