Page 633 of 4500
Fig. 151: Identifying DLC3 Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE SUSPENSION CONTROL ECU (SEE REPLACEMENT
)
Page 635 of 4500
Fig. 1: Identifying Component Locations (1 Of 3)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Page 636 of 4500

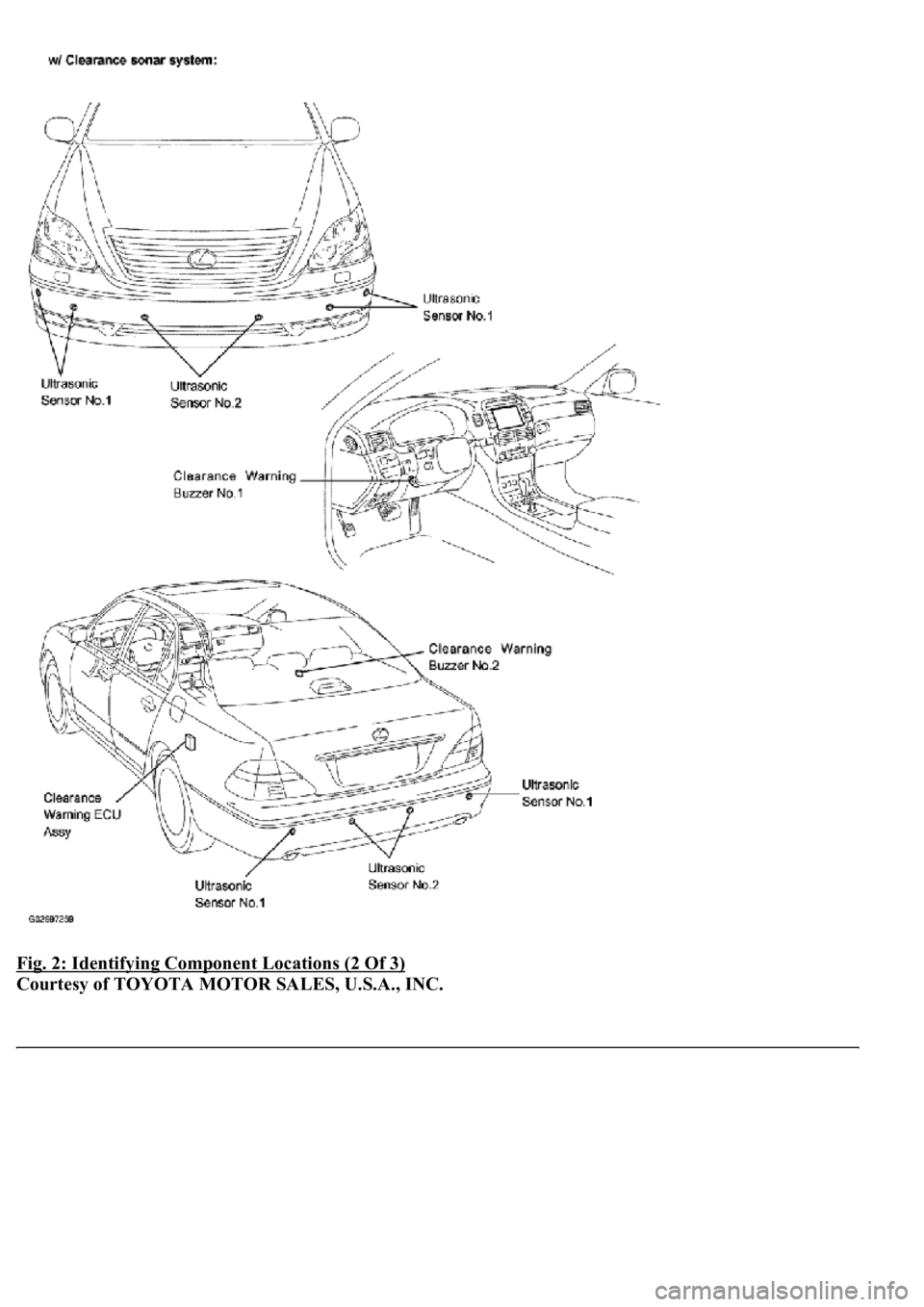

Fig. 2: Identifying Component Locations (2 Of 3)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Page 637 of 4500

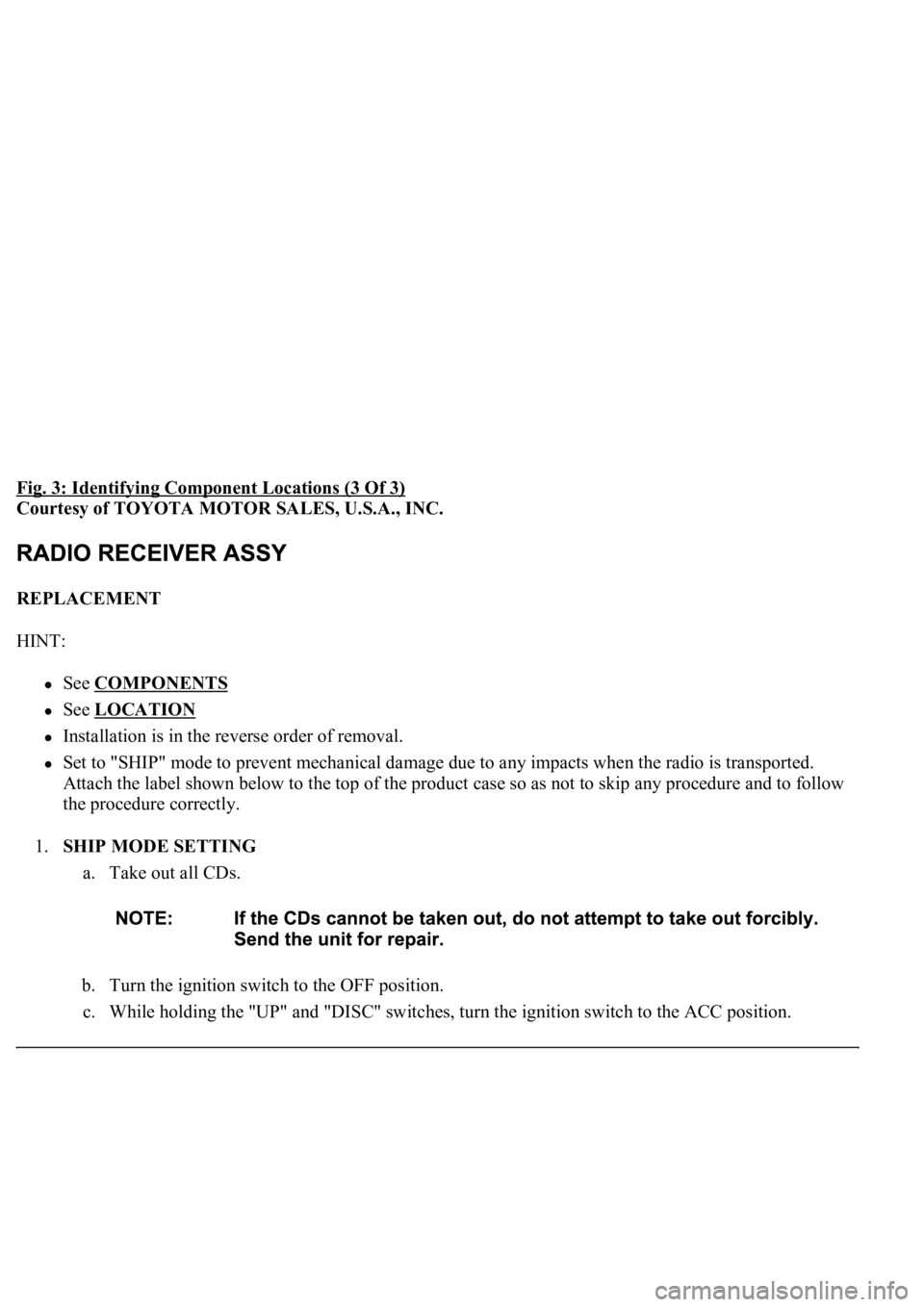

Fig. 3: Identifying Component Locations (3 Of 3)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
REPLACEMENT
HINT:
See COMPONENTS
See LOCATION
Installation is in the reverse order of removal.
Set to "SHIP" mode to prevent mechanical damage due to any impacts when the radio is transported.
Attach the label shown below to the top of the product case so as not to skip any procedure and to follow
the procedure correctly.
1.SHIP MODE SETTING
a. Take out all CDs.
b. Turn the ignition switch to the OFF position.
c. While holdin
g the "UP" and "DISC" switches, turn the ignition switch to the ACC position.
Page 638 of 4500
HINT:
The CD indicator light blinks during the mode setting and remains lit after the setting is
completed.
w/o Multi-display:
When the mode setting is completed, "SHIP" appears on the display.
d. Turn the ignition switch to the OFF position and disconnect the battery negative terminal.
Fig. 4: Identifying Radio Receiver Assy (W/O Multi
-Display)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Page 639 of 4500
Fig. 5: Identifying Radio Receiver Assy (W/ Multi-Display)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Page 640 of 4500
Fig. 6: Identifying CD Indicator Blinking Light
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
2.REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER (See step 26 on
REPLACEMENT
)
3.REMOVE PANEL INSTRUMENT CLUSTER FINISH LOWER (See step 27 on
REPLACEMENT
)
4.REMOVE RADIO RECEIVER ASSEMBLY W/BRACKET
a. w/o Multi-display:
Remove the 2 bolts and disengage the 5 clips.
Page 643 of 4500

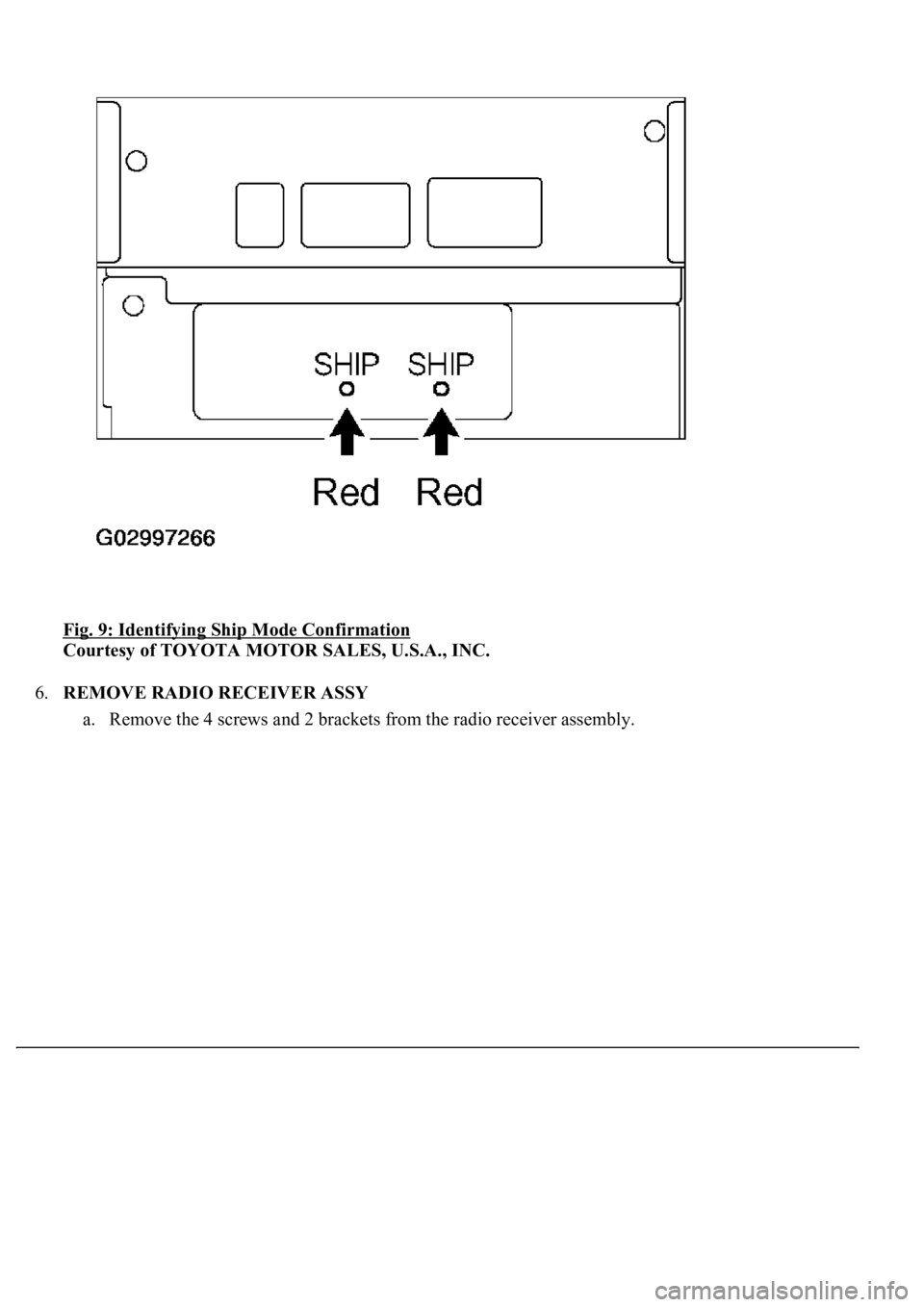

Fig. 9: Identifying Ship Mode Confirmation
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
6.REMOVE RADIO RECEIVER ASSY
a. Remove the 4 screws and 2 brackets from the radio receiver assembly.
