2003 FORD MUSTANG sensor

REMOVAL AND INSTALLATION

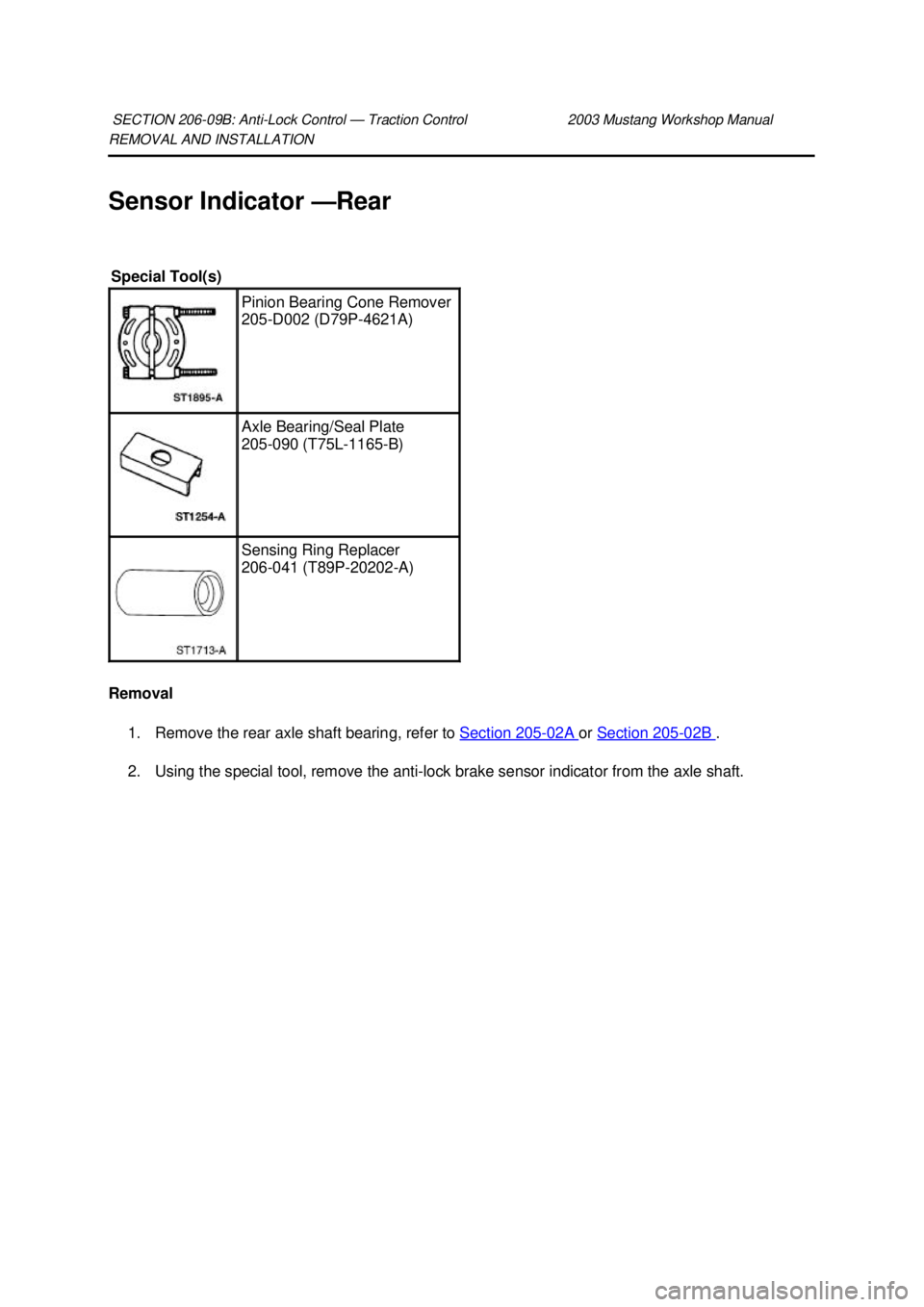

Sensor Indicator —
Rear
Removal 1. Remove the rear axle shaft bearing, refer to Section 205 - 02A or
Section 205 - 02B .
2. Using the special tool, remove the anti- lock brake sensor indicator from the axle shaft.
SECTION 206-
09B: Anti-Lock Control — Traction Control 2003 Mustang Workshop Manual Special Tool(s)
Pinion Bearing Cone Remover
205-
D002 (D79P- 4621A) Axle Bearing/Seal Plate
205-
090 (T75L-1165- B) Sensing Ring Replacer
206-
041 (T89P-20202- A) Klj . 1 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Installation
1. Using the special tools, align the rear anti- lock brake sensor indicator to the rear axle shaft.
2. Using the special tools, press the rear anti- lock brake sensor on the rear axle shaft to
specification. Klj . 2 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Sensor —
Front
Removal 1. Remove the wheel and tire assembly. For additional information, refer to Section 204 - 04 .
2. Remove the inner fender splash shield. 1. Remove the inner fender splash shield push pins.
2. Remove the inner fender splash shield screw.
3. Remove the inner fender splash shield.
3. Remove the front anti- lock brake sensor electrical connector.
4. Remove the front anti- lock brake sensor harness from the anti- lock brake sensor harness clips.
5. Remove the front anti- lock brake sensor.
1. Remove the front anti- lock brake sensor bolt.
2. Remove the anti- lock brake sensor harness from the harness clips.
3. Remove the front anti- lock brake sensor.
SECTION 206-
09B: Anti-Lock Control — Traction Control 2003 Mustang Workshop Manual Klj . 1 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Sensor —
Rear
Removal 1. Remove the rear passenger seat.
2. Disconnect the rear anti- lock brake sensor electrical connector.
3. Raise and support the vehicle. For additional information, refer to Section 100 - 02 .
4. Remove the rear anti- lock brake sensor harness from the floor pan.
5. Remove the anti- lock brake sensor harness bracket bolt.
6. NOTE: The sensor may be siezed to the axle. Use Rust Penetrant and Inhibitor F2AZ-19A501-
A meeting Ford specification ESR- M99C56-A to loosen the sensor for removal.
Remove the rear anti- lock brake sensor.
SECTION 206-
09B: Anti-Lock Control — Traction Control 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

1. Remove the rear anti-
lock brake sensor bolt.
2. Remove the rear anti- lock brake sensor.
Installation 1. NOTE: Be sure to apply High Temperature Nickel Anti- Sieze Lubricant F6AZ-9L494-AA
meeting Ford specification ESE-M124A- A to the sensor body where it will make contact when
installed.
To install, reverse the removal procedure. Klj . 2 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

4 N805572-
S36 Air bag module retaining screws (2 req'd)
5 3L518 Steering wheel spoke cover
(2 req'd)
6 — Lock tabs
7 14A664 Clockspring
8 13318 Turn indicator cancel cam
9 3C610 Snap ring
10 3520 Bearing spring
11 3518 Upper bearing sleeve
12 3517 Upper bearing (small)
13 3517 Lower bearing (large)
14 3524 Shaft assembly
15 390345-
S36 Screw
16 13K359 Multi-
function switch 17 3E695 Lock cam
18 3F609 Tilt wheel handle
19 N806157 Lock cam pivot pin
20 3530 Lower shroud
21 55929 Shroud retaining screws
22 3D544 Release lever
23 3B661 Lock actuator lever (RH)
24 N805856 Lock actuator lever pin
25 3D653 Lock actuator lever (LH)
26 3B664 Lock lever spring (2 req'd)
27 14A099 Wiring shield
28 3D655 Lock lever spring return
29 3E715 Lock lever upper actuator
30 3E696 Lock spring (shaft)
31 11572 Ignition switch
32 N806423-
S56 Steering column mounting lower nuts
33 N806584 Screw
34 3E660 Mounting bracket
35 3D681 Bearing retaining
36 3518 Bearing sleeve
37 3517 Lower bearing
38 3L539 Lower bearing tolerance ring
39 3C131 Sensor ring
40 3520 Bearing spring
41 N808349 Bolt —
flange yoke 42 3N725 Coupling
43 3C611 Tube boot
44 3B676 Intermediate shaft Klj . 2 ba
42003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

GENERAL PROCEDURES
Supplemental Restraint System (SRS) Deactivation and
Reactivation
Deactivation
WARNING: Always wear safety glasses when repairing an air bag supplemental restraint
system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury
in the event of an accidental deployment.
WARNING: After deployment, the air bag surface can contain deposits of sodium
hydroxide, a product of the gas generant combustion that is irritating to the skin. Wash your
hands with soap and water afterwards.
WARNING: Never probe the connectors on the air bag module. Doing so can result in air
bag deployment, which can result in personal injury.
WARNING: Air bag modules with discolored or damaged trim covers must be installed
new, not repainted.
WARNING: The restraint system diagnostic tool is for restraint system service only.
Remove from vehicle prior to road use. Failure to remove could result in injury and possible
violation of vehicle safety standards.
1. WARNING: To avoid accidental deployment and possible personal injury, the
backup power supply must be depleted before repairing or replacing any front or side air
bag supplemental restraint system (SRS) components and before servicing, replacing,
adjusting or striking components near the front or side air bag sensors, such as doors,
instrument panel, console, door latches, strikers, seats and hood latches.
Please refer to the appropriate vehicle shop manual to determine location of the front air
bag sensors.
The side air bag sensors are located at or near the base of the B- pillar.
To deplete the backup power supply energy, disconnect the battery ground cable and
wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped). SECTION 211-
04: Steering Column 2003 Mustang Workshop Manual Special Tool(s)
Diagnostic Tool, Restraint
System (2 Req'd)
418-
F088 (105- R0012) Klj . 1 ba
62003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

4. Remove the lock housing bearing (3E700).
5. Remove the lock gear (3E717).
6. Remove the sensor ring.
1. Remove the lower bearing spring.
2. Remove the sensor ring.
7. Remove the lower bearing tolerance ring from the shaft. Klj . 2 ba
182003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
