2003 FORD MUSTANG sensor

63. Connect the engine oil pressure sender electrical connector.
64. Connect the camshaft position (CMP) sensor electrical connector.
65. Connect the cylinder head temperature (CHT) sensor.
66. Install the fuel injectors and the fuel injection supply manifold as an assembly. For additional
information, refer to Section 303 - 04A .
67. Install a new upper intake manifold gasket. Klj . 21 ba
282003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

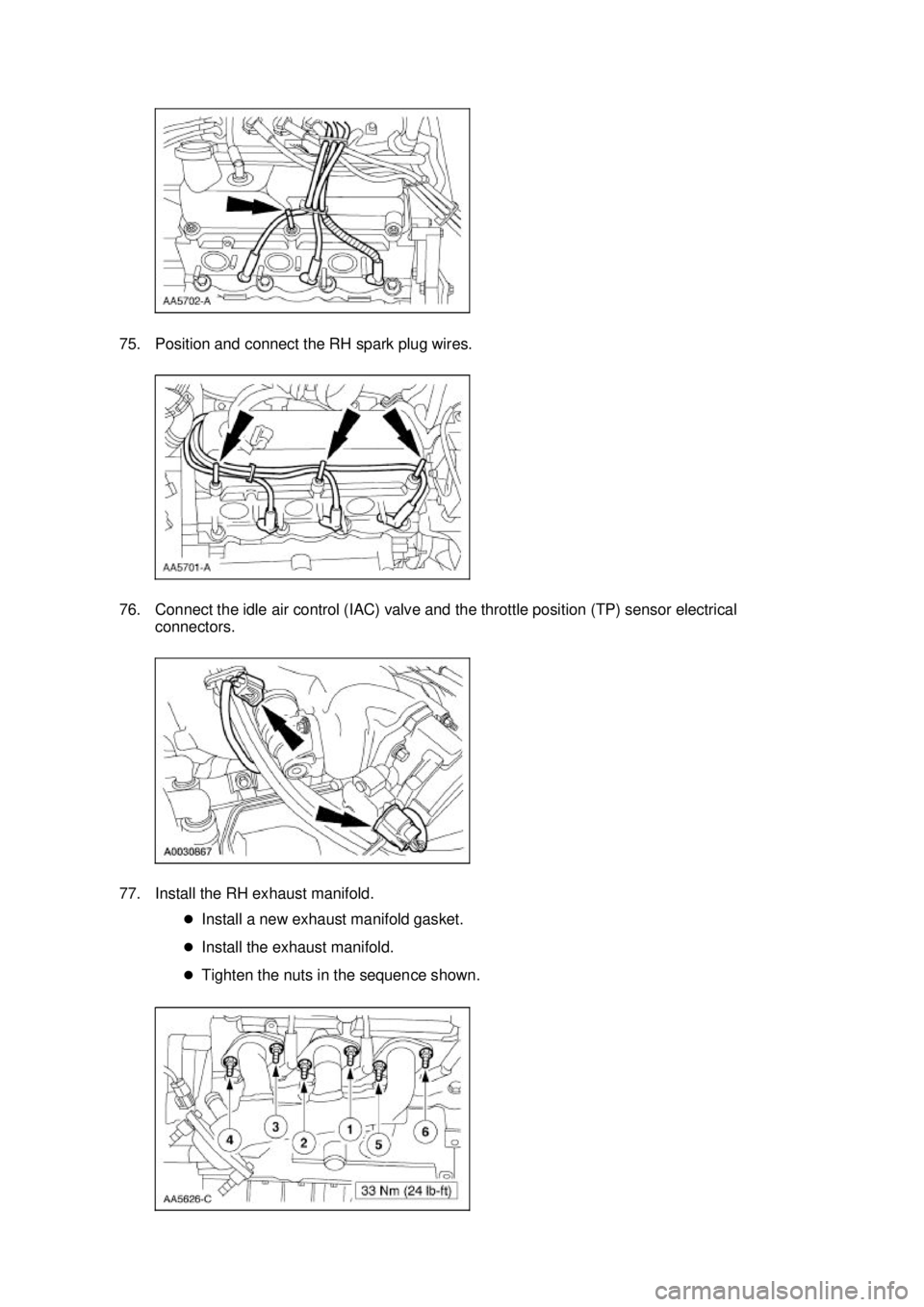

75. Position and connect the RH spark plug wires.
76. Connect the idle air control (IAC) valve and the throttle position (TP) sensor electrical
connectors.
77. Install the RH exhaust manifold. zInstall a new exhaust manifold gasket.
z Install the exhaust manifold.
z Tighten the nuts in the sequence shown. Klj . 24 ba
282003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

e
Specification in 90.200 mm diameter gauge.
f If applicable, measured vertically, +0.030- 0.050 mm (0.001-0.002 inch) measured horizontally (oval
pin bore).
g Pin bore and crank bearing bore must be parallel and in same vertical plane within the specified total
difference when measured at the ends of a 203 mm bar, 101.5 mm on each side of rod centerline.
Torque Specifications Description Nm lb-
ft lb-
in Main bearing cap adjusting bolts
a — — —
EGR sensor bracket 10 — 89
Belt idler pulley 25 18 —
Oil filter 15 11 —
Oil filter adapter insert 58 43 —
Camshaft sprocket bolt
a — — —
Connecting rod bolt
a — — —
Engine mount nuts 150 111 —
Engine mount-
to-cylinder block bolts 70 52 —
Exhaust manifolds
a — — —
Engine front cover bolts
a — — —
Drive belt tensioner bolts 25 18 —
A/C muffler 20 15 —
Battery cable support brackets 20 15 —
Cylinder head bolt
a — — —
Pulley-
to-crankshaft bolt a — — —
EGR valve to intake manifold 25 18 —
EGR valve tube to exhaust manifold fittings 40 30 —
Intake manifold-
to-cylinder head bolt 25 18 —
Main bearing cap bolt
a — — —
Oil filter adapter bolts 25 18 —
Oil level indicator tube bolt 10 — 89
Oil pump screen cover and tube-
to-oil pump bolt 10 — 89
Oil pan-to-
cylinder block bolt a — — —
Flywheel 80 59
Oil pan-to-
engine front cover bolts a — — —
Oil pump-
to-cylinder block bolt 10 — 89
Oil pump screen cover and tube-
to-main bearing cap stud spacer bolt 25 18 —
Water pump pulley bolts 25 18 —
Cam cover bolt
a — — —
Water pump-
to-cylinder block bolt 25 18 —
Water bypass tube 25 18 —
EGR tube nuts (2 req'd) 40 30 —
Power steering pump to engine 25 18 — Klj . 4 ba
62003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

a
Refer to the procedure in this section. Power steering reservoir bolts 10 — 89
Water outlet connector bolts 25 18 —
Camshaft cap cluster to cylinder head bolts 10 — 89
Torque converter nuts 25 18 —
Timing chain tensioner bolts 25 18 —
Transmission filler tube bolt 47 35 —
A/C compressor bolts 25 18 —
Ignition coil bolts 6 — 53
Generator brace bolts 10 — 89
Primary timing chain guide-
to-engine bolts 10 — 89
Accelerator cable bracket bolts 10 — 89
Rear seal retainer bolts 10 — 89
Pressure plate bolts 2 — 47
Spark plugs 18 13 —
Crankshaft timing bolt sensor assembly 10 — 89
Camshaft timing bolt sensor assembly 10 — 89
Fuel rail studs 10 — 89
Engine coolant sensor 15 11 —
Exhaust manifold—
stud to cylinder head 10-
13 7-10 —
Throttle body adaptor bolts
a — — —
Throttle body bolts 10 — 89
Idle air control valve 10 — 89
RFI capacitor nut 10 — 89
Generator bolts 25 18 —
Oil pan drain plug 14 10 —
Water bypass tube bracket bolt 25 18 —
Subframe bolts 115 85 —
Battery lead to generator 10 — 89
EGR vacuum regulator solenoid bracket 10 — 89
Pipe plug—
water drain 20 15 —
Screen and cover assembly to main bearing cap stud spacer 25 18 —
Wiring harness retainer nut 10 — 89
Oil pressure switch
a — — —
A/C muffler stud to cylinder head 10 — 89
EGR tube to exhaust manifold connector 50 37 — Klj . 5 ba
62003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

9 6161 Piston ring
10 6200 Connecting rod assy.
11 6100 Piston and rod assy (8 req'd)
12 N806164 Washer
13 6256 Camshaft sprocket
14 6265 Camshaft sprocket spacer
15 6766 Oil filler cap
16 6C324 Crankcase vent connector and hose
17 6582 Valve cover
18 6B280 Camshaft bearing cap
19 6250 Camshaft
20 9H308 Idle air control valve inlet tube
21 N806155 Bolt (2 req'd)
22 9F715 Idle air control valve
23 N806154 Bolt (4 req'd)
24 9F670 Idle air control gasket
25 9E926 Throttle body
26 9E936 Throttle body gasket
27 9A589 Throttle body gasket
28 N807309 Bolt (3 req'd)
29 9728 Bracket
30 N806154 Bolt (5 req'd)
31 9D476 EGR valve gasket
32 9D460 EGR valve
33 W701625 Bolt (2 req'd)
34 N811017 Stud bolt (4 req'd)
35 9F792 Fuel injection supply manifold
36 9D477 EGR valve to exhaust manifold tube
37 9E498 Main emission vacuum control connector
38 12A522 Engine control sensor extension wire
39 N806459 Dowel (4 req'd)
40 8555 Water bypass tube
41 N646419 Dowel (2 req'd)
42 W623454 Washer (2 req'd)
43 N806040 Dowel (2 req'd)
44 N806007 Dowel (2 req'd)
45 6A636 Oil filter adapter gasket
46 6881 Oil filter adapter (manual transmission)
47 N806156 Bolt (4 req'd)
48 6714 Oil bypass filter
49 N87838 Dowel
50 Klj . 4 ba
92003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

N806155 Bolt (2 req'd)
92 6C315 Crankshaft position sensor
93 N806300 Stud bolt (5 req'd)
94 6C086 Engine front cover
95 N806155 Bolt
96 6B288 Camshaft position sensor
97 N606543 Bolt (4 req'd)
98 6L266 Timing chain tensioner
99 6268 Timing chain belt
100 6K297 Timing chain cover
101 6M269 Timing chain tensioner
102 6L253 Timing chain tensioner arm
103 N806184 Bolt (3 req'd)
104 19D629 A/C compressor
105 8501 Water pump
106 N806177 Bolt (4 req'd)
107 N806183 Bolt (4 req'd)
108 6621 Oil pump
109 N806201 Woodruff key
110 6333 Crankshaft main bearing (5 req'd)
111 6A341 Crankshaft thrust washer (3 req'd)
112 6C357 Crankshaft main bearing side bolt (10 req'd)
113 6010 Cylinder block
114 9439 Intake manifold gasket (2 req'd)
115 6083 Head gasket
116 6505 Exhaust valve (8 req'd)
117 6507 Intake valve (8 req'd)
118 87838 Pipe plug (8 req'd)
119 12405 Spark plug (8 req'd)
120 6F087 Dowel
121 9431 Exhaust manifold
122 6C501 Valve tappet (16 req'd)
123 6529 Rocker arm (16 req'd)
124 6049 Cylinder head, RH
125 W701681 Stud (8 req'd)
126 9Y431 Exhaust manifold gasket
127 9F485 EGR valve tube to manifold connector
128 W701706 Nut (8 req'd)
129 181198A Engine lifting eye
130 6A517 Valve stem seal (16 req'd)
131 6513 Valve spring (16 req'd)
132 Klj . 6 ba
92003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

20. Disconnect the main vacuum supply from the base of the throttle body adapter.
21. Disconnect the throttle position sensor (TPS) electrical connector.
22. Remove the bolts.
23. Remove the throttle body and adapter as an assembly.
zInspect and clean the sealing surfaces.
„The gasket is reusable if not damaged. Klj . 5 ba
202003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

24. Disconnect the fuel pressure sensor electrical connector and the vacuum hose.
25. Disconnect the fuel charging ground wire.
26. Disconnect the ignition coils and the fuel injectors.
27. Disconnect the climate control vacuum supply hoses and remove the vacuum harness. Klj . 6 ba
