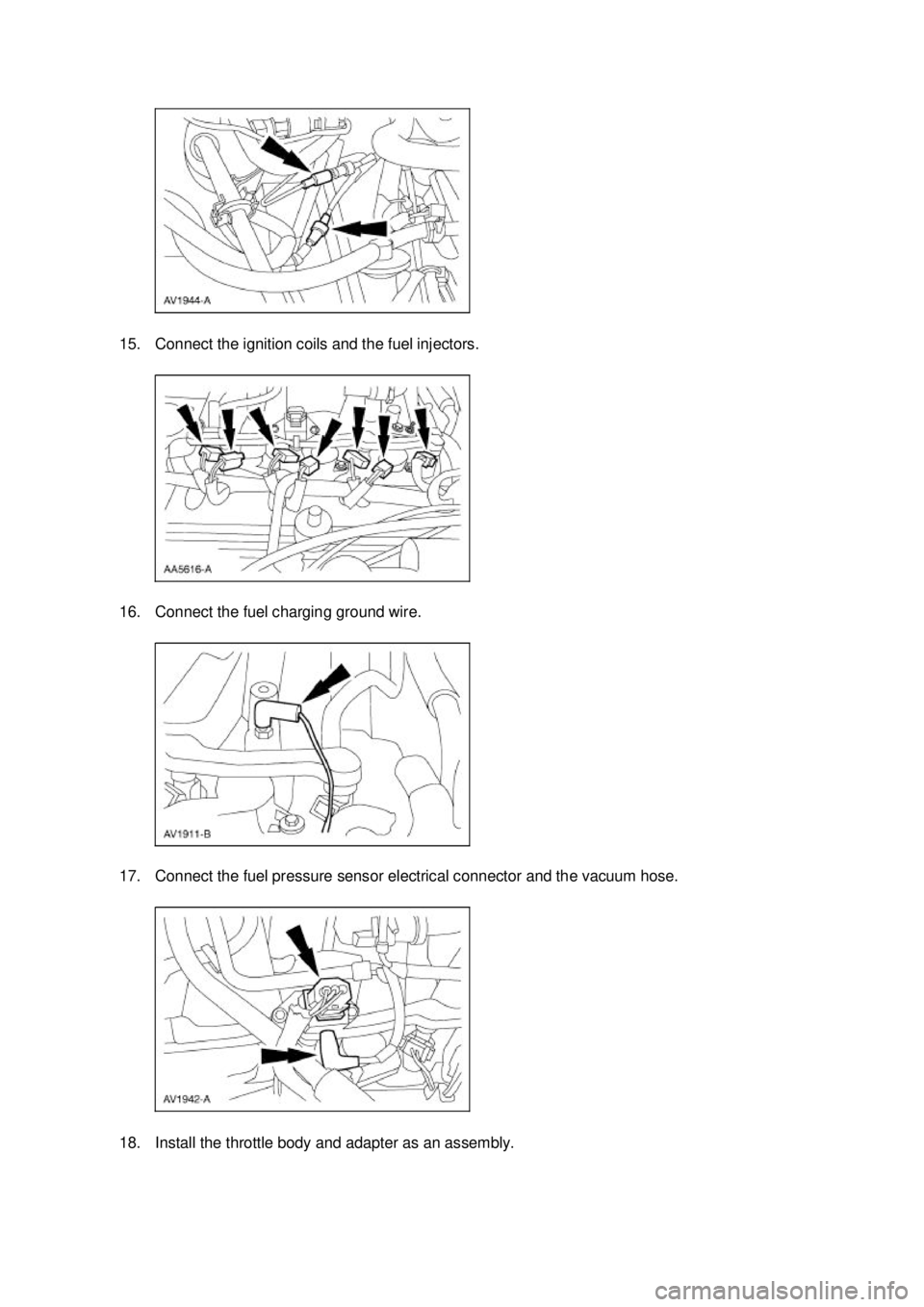

Page 1159 of 4378
15. Connect the ignition coils and the fuel injectors.
16. Connect the fuel charging ground wire.
17. Connect the fuel pressure sensor electrical connector and the vacuum hose.
18. Install the throttle body and adapter as an assembly. Klj . 14 ba
202003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

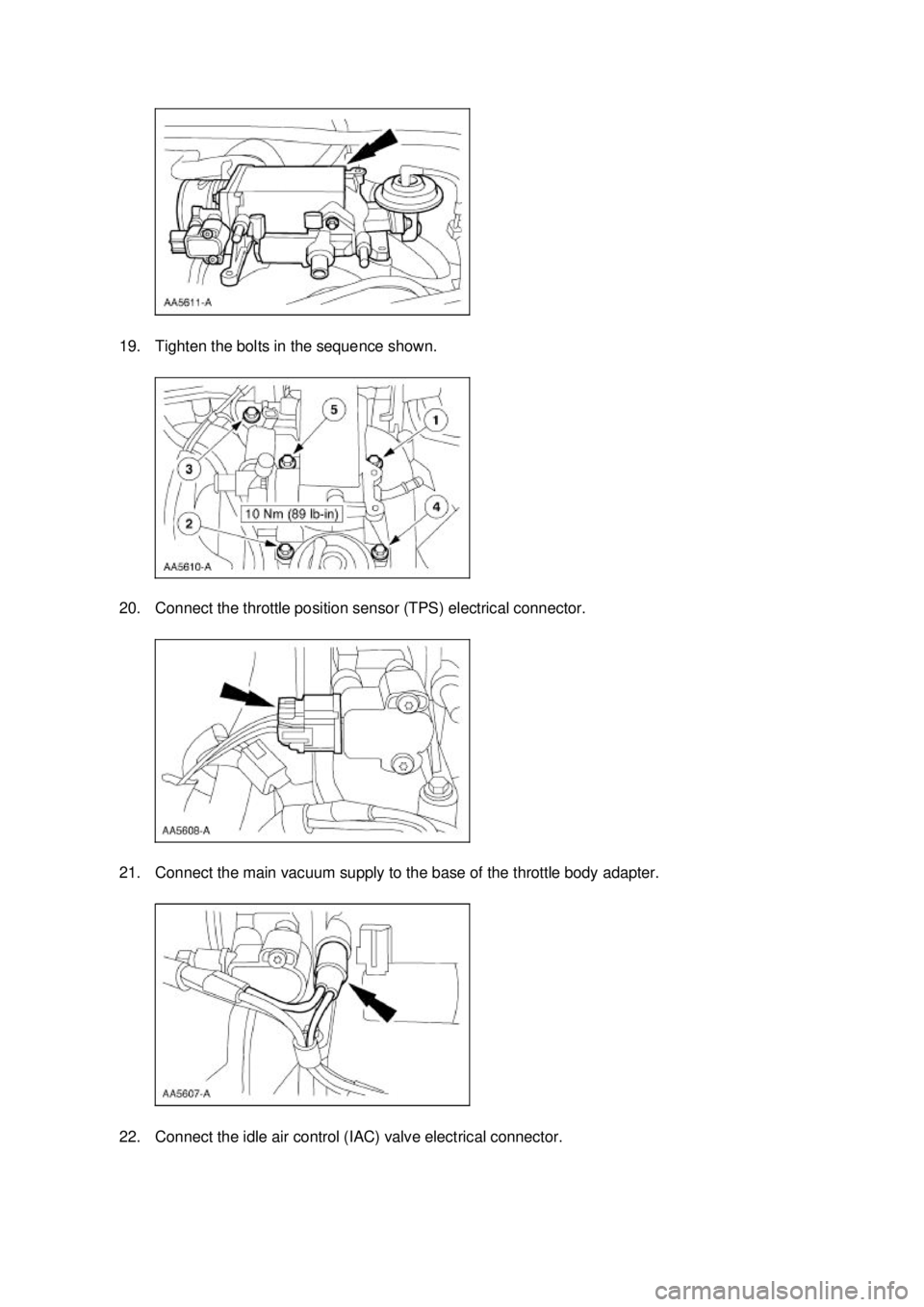

Page 1160 of 4378
19. Tighten the bolts in the sequence shown.
20. Connect the throttle position sensor (TPS) electrical connector.
21. Connect the main vacuum supply to the base of the throttle body adapter.
22. Connect the idle air control (IAC) valve electrical connector. Klj . 15 ba
202003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

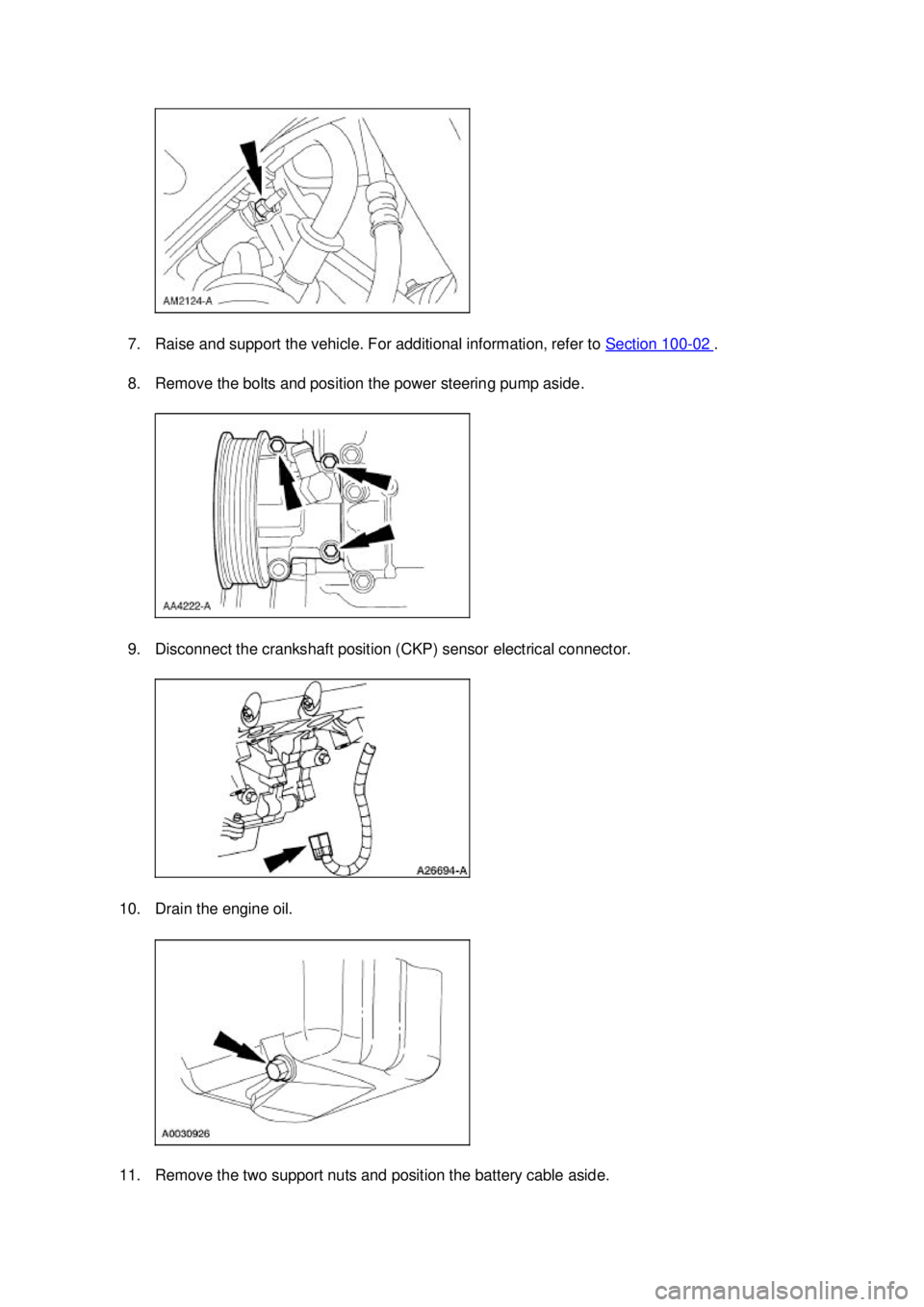

Page 1179 of 4378
7. Raise and support the vehicle. For additional information, refer to
Section 100 - 02 .
8. Remove the bolts and position the power steering pump aside.
9. Disconnect the crankshaft position (CKP) sensor electrical connector.
10. Drain the engine oil.
11. Remove the two support nuts and position the battery cable aside. Klj . 2 ba
92003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

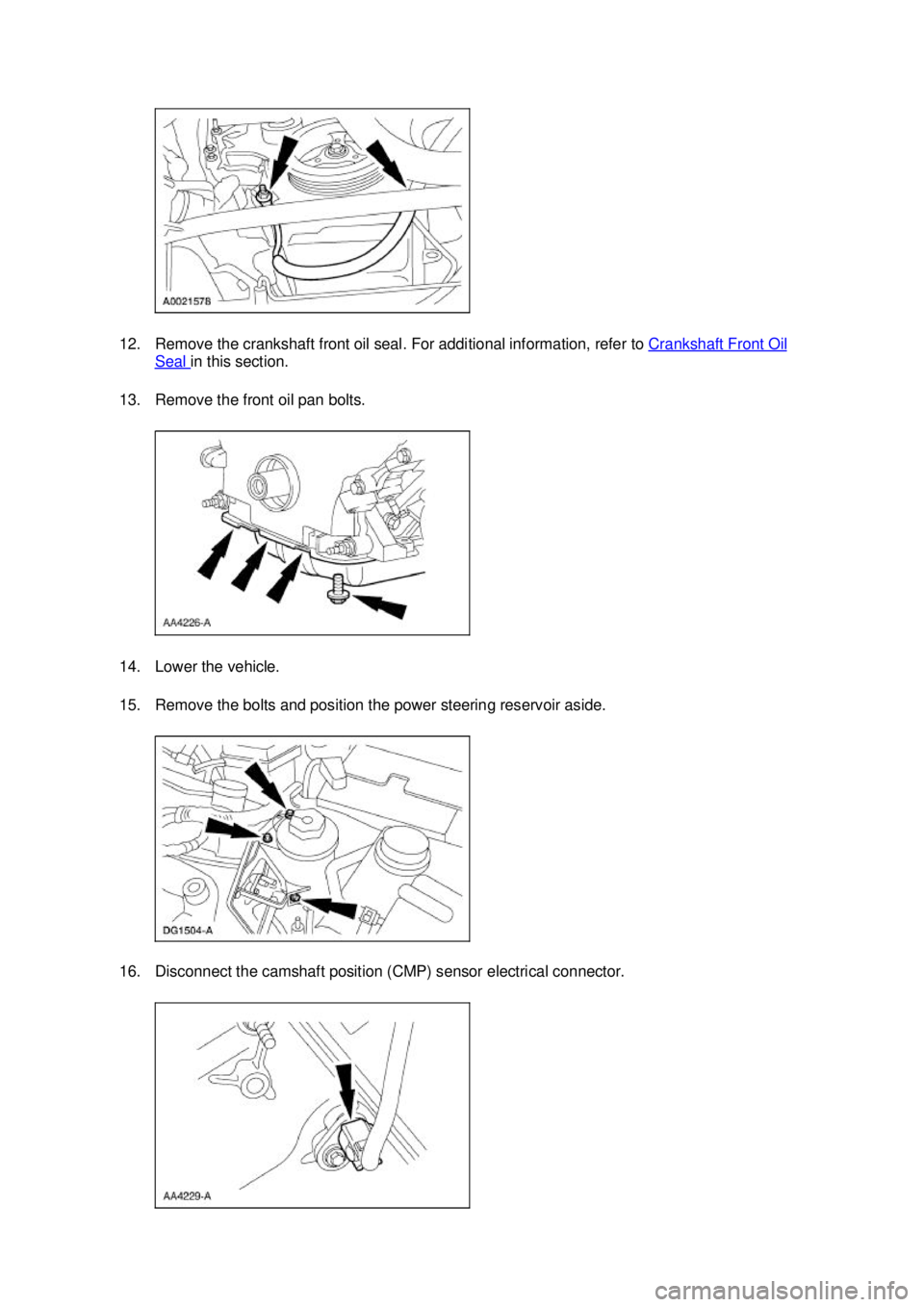

Page 1180 of 4378
12. Remove the crankshaft front oil seal. For additional information, refer to
Crankshaft Front Oil Seal in this section.
13. Remove the front oil pan bolts.
14. Lower the vehicle.
15. Remove the bolts and position the power steering reservoir aside.
16. Disconnect the camshaft position (CMP) sensor electrical connector. Klj . 3 ba
92003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 1183 of 4378
4. Connect the CMP sensor electrical connector.
5. Raise the vehicle.
6. Install the crankshaft front oil seal. For additional information, refer to
Crankshaft Front Oil Seal in this section.
7. Tighten the four oil pan bolts in the sequence shown. zStage 1: Tighten to 2 Nm (18 lb- in).
z Stage 2: Tighten to 20 Nm (15 lb- ft).
z Stage 3: Tighten an additional 60 degrees.
8. Install the drain plug. Klj . 6 ba
92003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

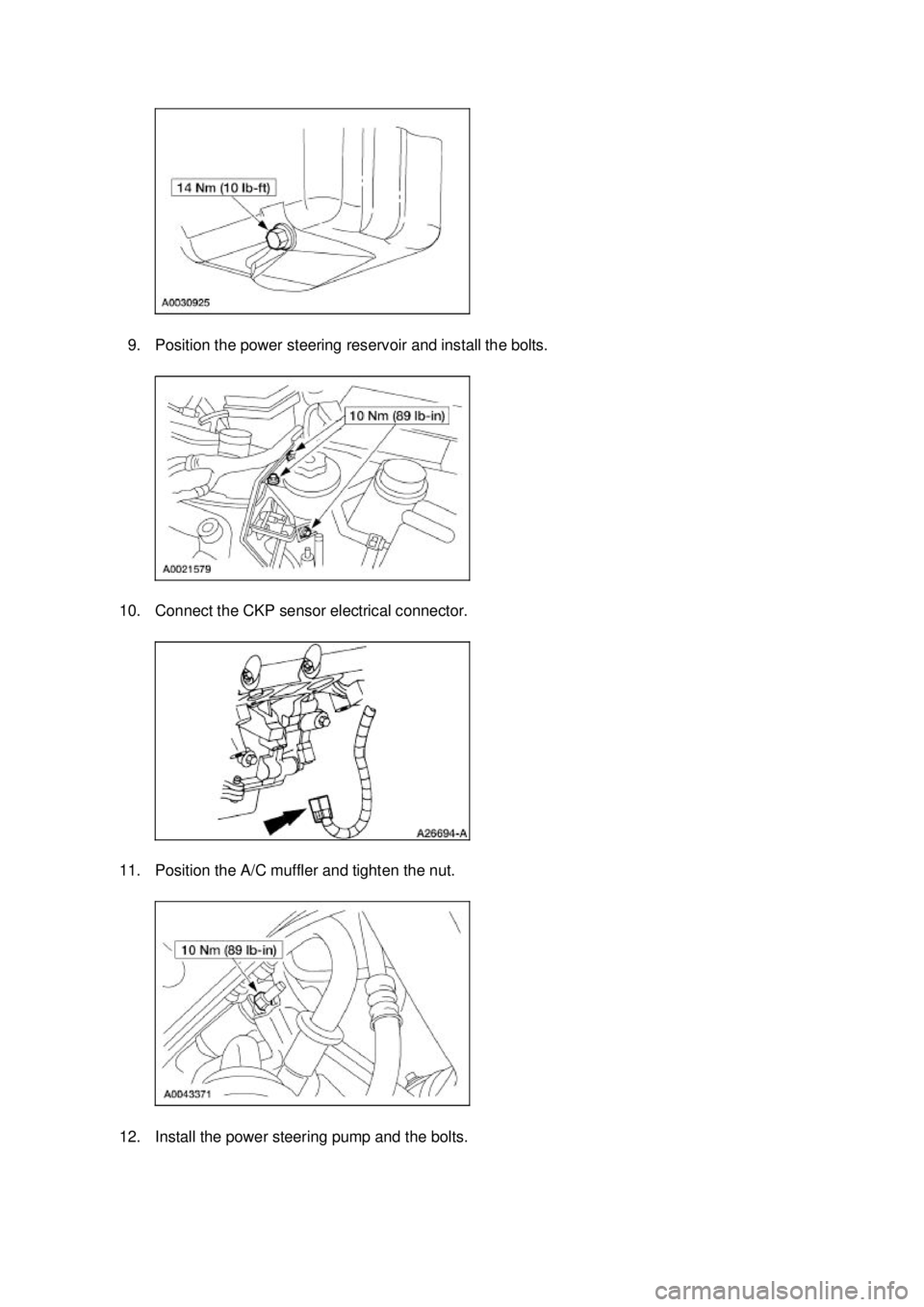

Page 1184 of 4378
9. Position the power steering reservoir and install the bolts.
10. Connect the CKP sensor electrical connector.
11. Position the A/C muffler and tighten the nut.
12. Install the power steering pump and the bolts. Klj . 7 ba
92003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

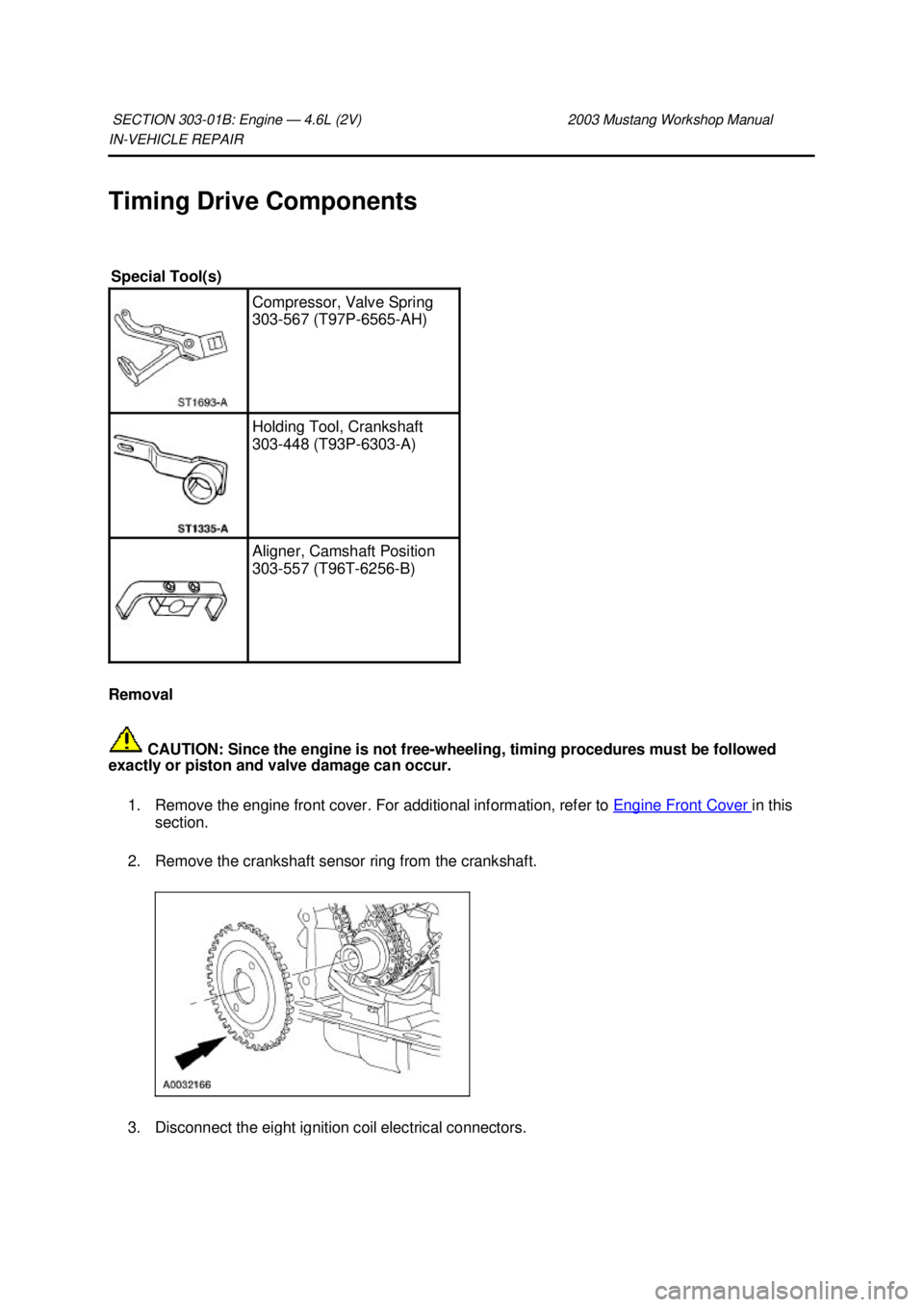

Page 1187 of 4378
IN-
VEHICLE REPAIR
Timing Drive Components
Removal CAUTION: Since the engine is not free- wheeling, timing procedures must be followed
exactly or piston and valve damage can occur.
1. Remove the engine front cover. For additional information, refer to Engine Front Cover in this
section.
2. Remove the crankshaft sensor ring from the crankshaft. 3. Disconnect the eight ignition coil electrical connectors. SECTION 303-
01B: Engine — 4.6L (2V) 2003 Mustang Workshop Manual Special Tool(s)
Compressor, Valve Spring
303-
567 (T97P-6565- AH) Holding Tool, Crankshaft
303-
448 (T93P-6303- A) Aligner, Camshaft Position
303-
557 (T96T-6256- B) Klj . 1 ba
132003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

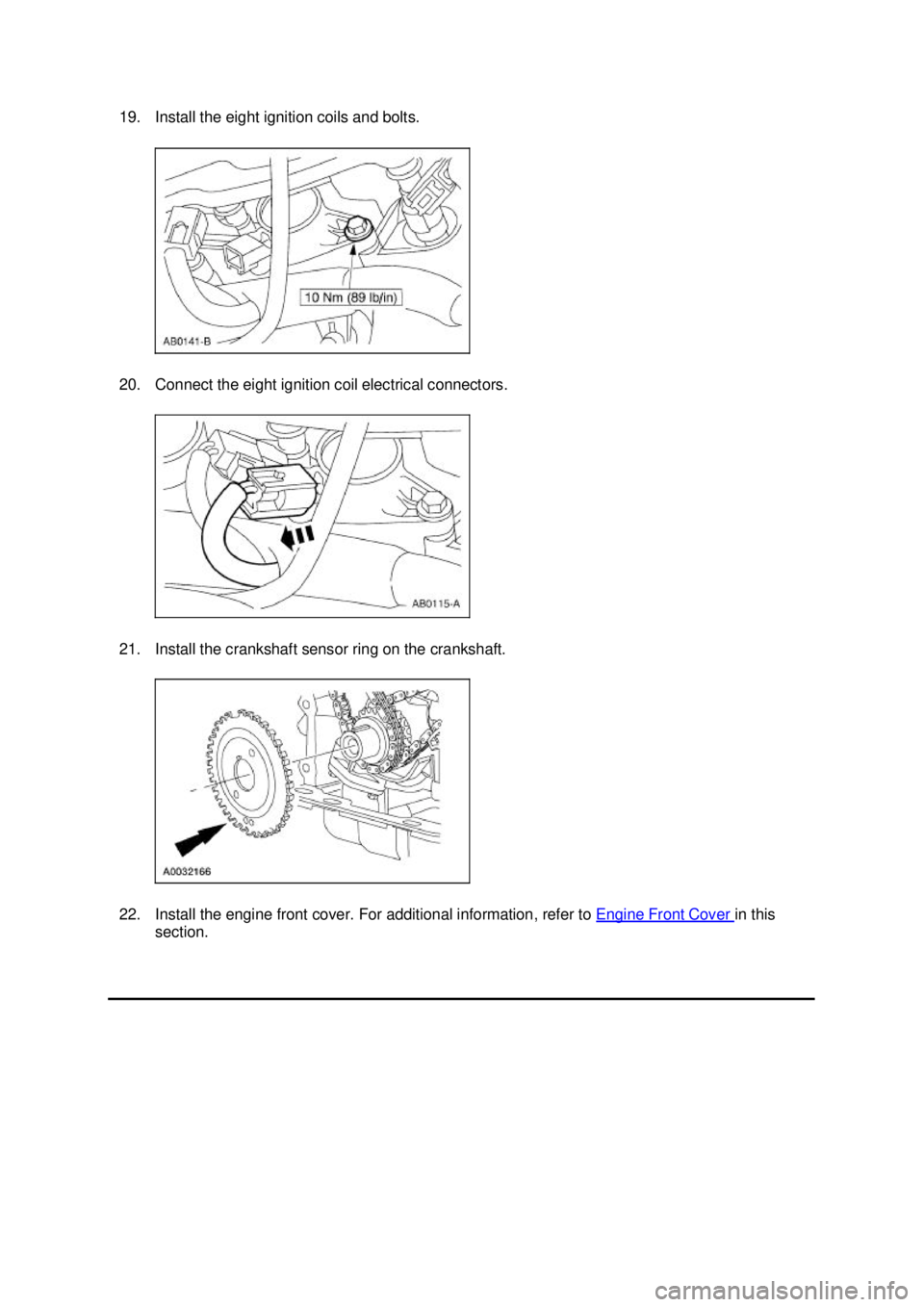

Page 1198 of 4378
19. Install the eight ignition coils and bolts.
20. Connect the eight ignition coil electrical connectors.
21. Install the crankshaft sensor ring on the crankshaft.
22. Install the engine front cover. For additional information, refer to
Engine Front Cover in this
section. Klj . 12 ba
132003 Mustang Workshop Manual
