50. Make sure that the copper (marked) chain links are lined up with the dots on the crankshaft
sprockets and the camshaft sprocket.
51. NOTE: Sensor ring teeth must face forward.
Position the crankshaft sensor ring on the crankshaft.
52. NOTE: The front cover must be installed within four minutes of applying sealant.
Apply silicone gasket and sealant in the locations shown. Klj . 20 ba
362003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

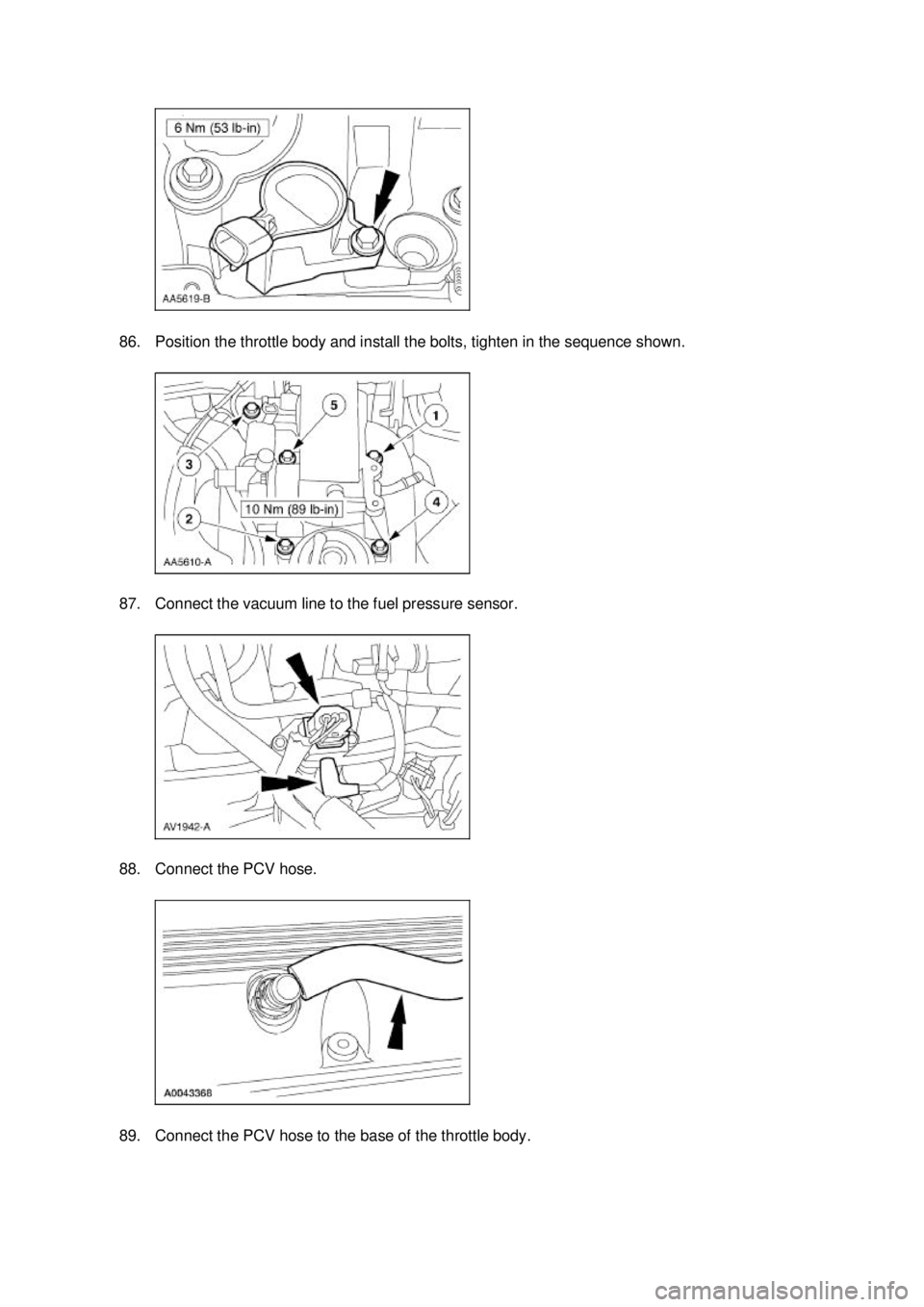

86. Position the throttle body and install the bolts, tighten in the sequence shown.
87. Connect the vacuum line to the fuel pressure sensor.
88. Connect the PCV hose.
89. Connect the PCV hose to the base of the throttle body. Klj . 31 ba
362003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

94. Install the breather tube.
95. Install the engine control sensor wiring.
Item Part Number Description
1 — To crankshaft position sensor
2 — To A/C compressor
3 — To radio ignition interference capacitor (2)
4 — To fuel injectors (8) Klj . 33 ba
362003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

96. Install the RH and LH special tools.
97. Using the special tool, remove the engine from the stand.
98. Using the special tool, install the crankshaft rear main seal.
zLubricate the oil seal using clean engine oil. 5 — To ignition coils (8)
6 — To engine coolant temperature sensor
7 — To throttle position sensor
8 — To idle air control valve
9 — To EGR vacuum regulator
10 — To differential pressure feedback EGR
11 — To fuel pressure regulator
12 — Fuel injection ground
13 — To generator
14 — To camshaft position sensor
15 — To body
16 — To heated oxygen sensor (2)
17 — Engine bulkhead connector
18 — To low coolant sensor
19 — To body
20 — To power distribution box
21 — To body Klj . 34 ba
362003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

21. Position the RH timing chain tensioner arm on the dowel pin and install the RH timing chain
tensioner.
22. Remove the retaining clip from the RH timing chain tensioner.
23. Make sure that the copper (marked) chain links are lined up with the dots on the crankshaft sprockets and the camshaft sprocket.
24. Install the crankshaft sensor ring on the crankshaft. Klj . 9 ba
252003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

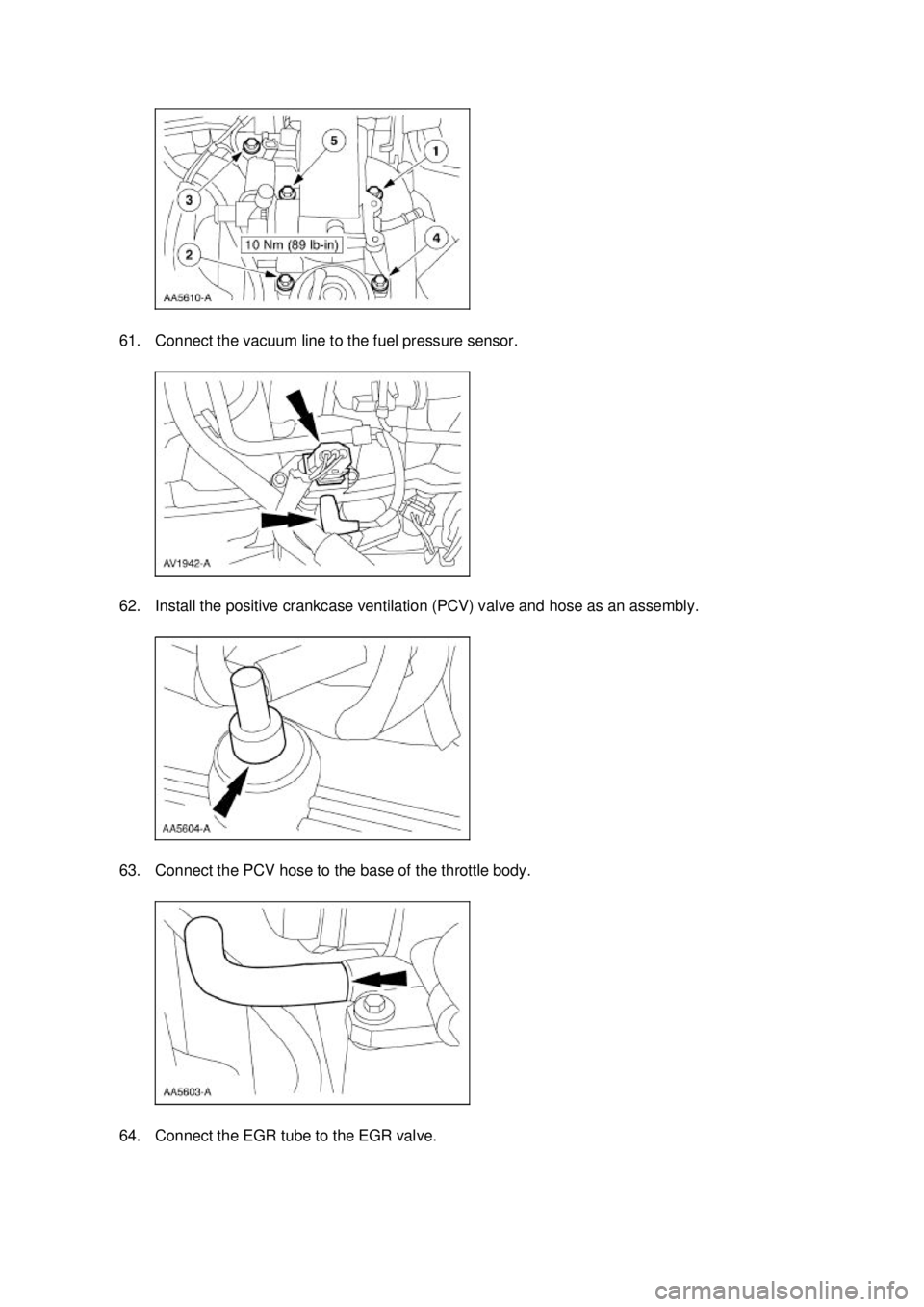

61. Connect the vacuum line to the fuel pressure sensor.
62. Install the positive crankcase ventilation (PCV) valve and hose as an assembly.
63. Connect the PCV hose to the base of the throttle body.
64. Connect the EGR tube to the EGR valve. Klj . 21 ba
252003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

69. Install the engine control sensor wiring.
Item Part Number Description
1 — To crankshaft position sensor
2 — To A/C compressor
3 — To radio ignition interference capacitor (2)
4 — To fuel injectors (8)
5 — To ignition coils (8)
6 — To engine coolant temperature sensor
7 — To throttle position sensor
8 — To idle air control valve
9 — To EGR vacuum regulator
10 — To differential pressure feedback EGR
11 — To fuel pressure regulator
12 — Fuel injection ground
13 — To generator
14 — To camshaft position sensor Klj . 23 ba
252003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

70. Install the RH and LH special tool.
71. Using the special tool, remove the engine from the stand.
72. Install the separator plate.
73. Install the flywheel. 15 — To body
16 — To heated oxygen sensor (2)
17 — Engine bulkhead connector
18 — To low coolant sensor
19 — To body
20 — To power distribution box
21 — To body Klj . 24 ba
