2003 FORD MUSTANG sensor

Install the lock cylinder housing.
zPosition the lock cylinder housing and the shaft assembly on the actuator housing.
z Make sure the upper and lower lock actuators are aligned.
z Install and compress the steering column position spring.
z Align the lock cylinder housing bushings with the pivot screws and tighten the screws.
z Using a long thin screwdriver, remove the nuts installed under the lock levers.
18. Install the bearing tolerance ring.
19. Install the sensor ring. 1. Install the sensor ring.
2. Install the lower bearing spring.
20. Install the ignition switch. Align the ignition switch with the slot and index- mark on the actuator
housing.
zInstall the screws. Klj . 15 ba
182003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Symptom Chart
Pinpoint Tests
PINPOINT TEST A: NO COMMUNICATION WITH THE GENERIC
ELECTRONIC MODULE Circuit Failure
B2488 RF Side Repeater Lamp Output
Circuit Failure GEM REFER to
Section 417 - 01 .
C1189 Brake Fluid Level Sensor Input
Short Circuit to Ground GEM REFER to
Section 413 - 01 .
C1223 Lamp Brake Warning Output
Circuit Failure GEM REFER to
Section 413 - 01 .
C1225 Lamp Brake Warning Output
Circuit Short to Battery GEM REFER to
Section 413 - 01 .
Symptom Chart Condition
Possible Sources Action
z No communication with
the generic electronic
module z
CJB Fuse 39
(5A).
z Circuitry.
z GEM. z
Go To Pinpoint Test A .
z The ignition switch is
inoperative z
BJB Fuse IGN
SW (40A).
z Ignition switch.
z Circuitry. z
Go To Pinpoint Test B .
z No power in ACC zIgnition switch.
z Circuitry. z
Go To Pinpoint Test C .
z No power in RUN zIgnition switch.
z Circuitry. z
Go To Pinpoint Test D .
z No power in START zIgnition switch.
z Circuitry. z
Go To Pinpoint Test E .
z The multifunction
switch/hazard switch
does not operate
correctly z
Multifunction
switch. z
Carry out the multifunction
switch component test.
REFER to Wiring Diagrams,
Cell 149, Component
Testing. Test Step Result / Action to Take
CAUTION: Use the correct probe adapter(s) when making measurements. Filaure to
use the correct probe adapter(s) may damage the connector. A1 CHECK THE GENERIC ELECTRONIC MODULE (GEM)
POWER SUPPLY z
Key in OFF position.
z Disconnect: Generic Electronic Module (GEM) C201a. Yes
GO to
A2 . Klj . 4 ba
82003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

z
intake manifold gaskets
z cylinder head gaskets
z oil bypass filter
z oil filter adapter
z engine front cover
z oil filter adapter and filter body
z oil level indicator tube connection
z oil pressure sensor
Leakage Points— Under Engine—With Vehicle on Hoist
z oil pan gaskets (6710)
z oil pan sealer
z oil pan rear seal (6723)
z engine front cover gasket
z crankshaft front seal (6700)
z crankshaft rear oil seal (6701)
z crankshaft main bearing cap side bolts
z oil filter adapter and filter body
z oil cooler, if equipped
Leakage Points— With Transmission and Flywheel Removed
z crankshaft rear oil seal
z rear main bearing cap parting line
z rear main bearing cap and seals
z flywheel mounting bolt holes (with flywheel [6375] installed)
z camshaft rear bearing covers (6266) or pipe plugs at the end of oil passages
Oil leaks at crimped seams in sheet metal parts and cracks in cast or stamped parts can be detected
when using the dye method.
Compression Test— Compression Gauge Check
1. Make sure the oil in the crankcase is of the correct viscosity and at the correct level and that the battery (10655) is correctly charged. Operate the vehicle until the engine is at normal operating
temperature. Turn the ignition switch to the OFF position, then remove all the spark plugs
(12405).
2. Set the throttle plates in the wide- open position.
3. Install a compression gauge such as the Compression Tester in the No. 1 cylinder.
4. Install an auxiliary starter switch in the starting circuit. With the ignition switch in the OFF position, and using the auxiliary starter switch, crank the engine a minimum of five compression
strokes and record the highest reading. Note the approximate number of compression strokes Klj . 7 ba
172003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

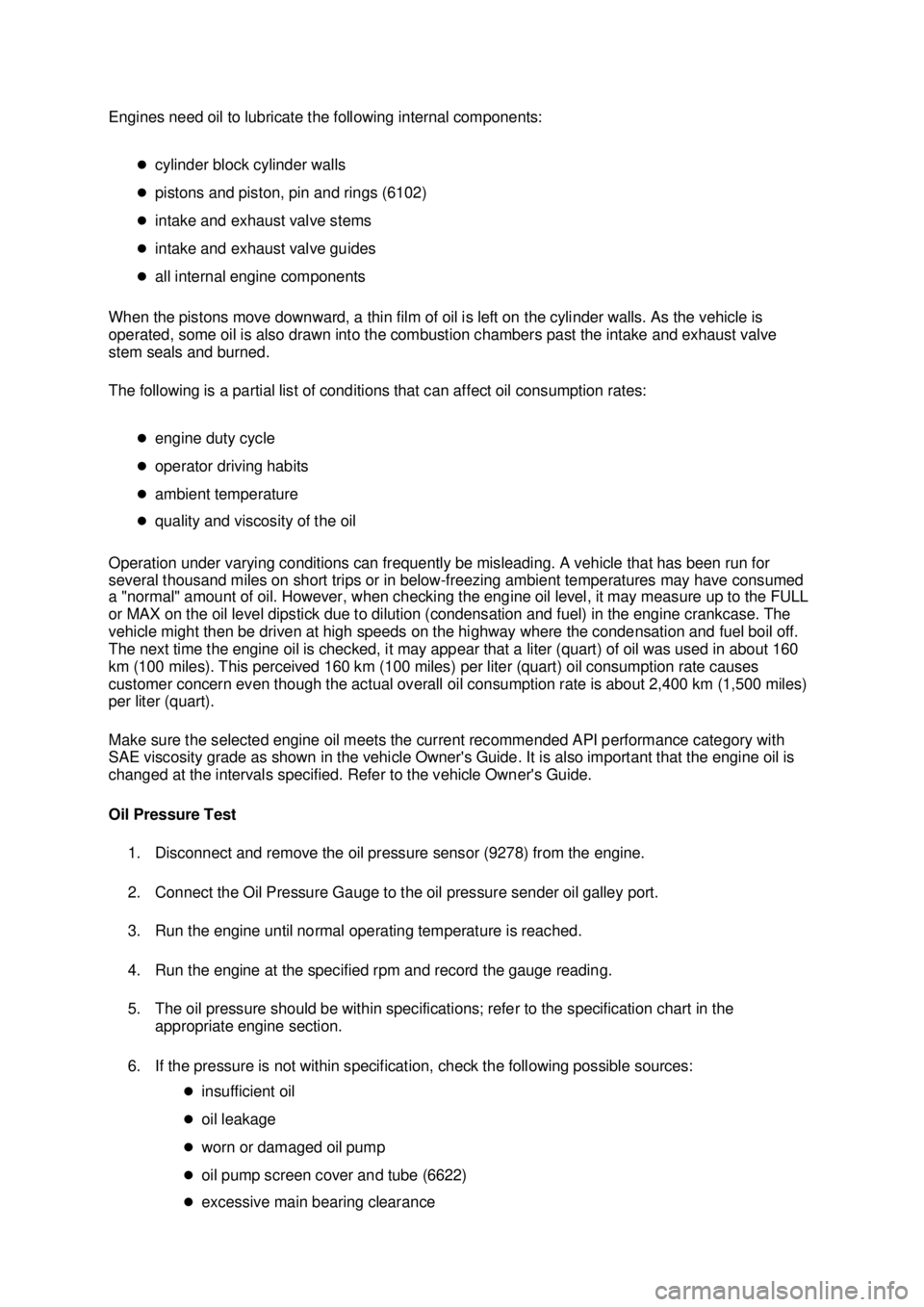

Engines need oil to lubricate the following internal components:
zcylinder block cylinder walls
z pistons and piston, pin and rings (6102)
z intake and exhaust valve stems
z intake and exhaust valve guides
z all internal engine components
When the pistons move downward, a thin film of oil is left on the cylinder walls. As the vehicle is
operated, some oil is also drawn into the combustion chambers past the intake and exhaust valve
stem seals and burned.
The following is a partial list of conditions that can affect oil consumption rates:
zengine duty cycle
z operator driving habits
z ambient temperature
z quality and viscosity of the oil
Operation under varying conditions can frequently be misleading. A vehicle that has been run for
several thousand miles on short trips or in below- freezing ambient temperatures may have consumed
a "normal" amount of oil. However, when checking the engine oil level, it may measure up to the FULL
or MAX on the oil level dipstick due to dilution (condensation and fuel) in the engine crankcase. The
vehicle might then be driven at high speeds on the highway where the condensation and fuel boil off.
The next time the engine oil is checked, it may appear that a liter (quart) of oil was used in about 160
km (100 miles). This perceived 160 km (100 miles) per liter (quart) oil consumption rate causes
customer concern even though the actual overall oil consumption rate is about 2,400 km (1,500 miles)
per liter (quart).
Make sure the selected engine oil meets the current recommended API performance category with
SAE viscosity grade as shown in the vehicle Owner's Guide. It is also important that the engine oil is
changed at the intervals specified. Refer to the vehicle Owner's Guide.
Oil Pressure Test
1. Disconnect and remove the oil pressure sensor (9278) from the engine.
2. Connect the Oil Pressure Gauge to the oil pressure sender oil galley port.
3. Run the engine until normal operating temperature is reached.
4. Run the engine at the specified rpm and record the gauge reading.
5. The oil pressure should be within specifications; refer to the specification chart in the appropriate engine section.
6. If the pressure is not within specification, check the following possible sources: zinsufficient oil
z oil leakage
z worn or damaged oil pump
z oil pump screen cover and tube (6622)
z excessive main bearing clearance Klj . 13 ba
172003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

a
20- 200 seconds to leakdown 3.18 mm (0.125 in) with 225 Newtons (50 pounds) load and tappet filled
with leak- down fluid. —
desired Connecting rod bearing-
to-crankshaft clearance
— allowable 0.022-
0.069 mm (0.00086- 0.0027 in) Connecting rod side clearance 0.11-
0.49 mm (0.0047- 0.0193 in) Balance Shaft
Journal diameter 52.108-
52.082 mm (2.0515- 2.0505 in) Bore inside diameter 55.689-
55.664 mm (2.192- 2.191 in) Maximum runout 0.025 mm (0.001 in)
End play 0.075-
0.200 mm (0.003- 0.008 in)
Torque Specifications Description Nm lb-
ft lb-
in EGR transducer bracket-
to-intake manifold bolts 10 — 89
Ignition coil-
to-intake manifold bolts 6 — 53
Water outlet tube-
to-intake manifold stud bolt 10 — 89
EGR tube-
to-EGR valve nut 40 30 —
Water outlet tube-
to-front water pump bolt 10 — 89
Fuel supply manifold bolts 10 — 89
LH valve cover-
to-cylinder head bolts 10 — 89
LH valve cover-
to-cylinder head stud bolts 10 — 89
EGR tube-
to-exhaust manifold nut 40 30 —
RH valve cover-
to-cylinder head bolts 10 — 89
RH valve cover-
to-cylinder head stud bolts 10 — 89
Coolant recovery reservoir-
to-cylinder head stud bolts 10 — 89
Coolant recovery reservoir-
to-bracket bolts 5 — 44
Crankshaft pulley bolt 160 118 —
Camshaft position sensor bolts 3 — 27
Camshaft synchronizer-
to-front cover bolt 25 18 —
Front cover-
to-cylinder block bolts 25 18 —
Radiator fan shroud-
to-radiator bolts 9 — 80
Camshaft thrust plate-
to-cylinder block bolts 12 9 —
Camshaft synchronizer drive gear-
to-camshaft bolt 45 33 —
Timing chain tensioner-
to-cylinder block bolts 12 9 —
Exhaust manifold-
to-cylinder head nuts 33 24 —
Power steering pump bracket-
to-water pump nuts 20 15 —
Power steering pump bracket-
to-generator bracket bolts 20 15 —
Generator bracket-
to-cylinder head bolts 40 30 —
Exhaust manifold studs 8 — 71
A/C compressor bracket-
to-cylinder head bolts 48 35 —
A/C compressor bracket-
to-cylinder head nut 48 35 — Klj . 4 ba
62003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Engine Components Item Part Number Description
1 6B288 Camshaft position sensor
2 8507 Water pump housing gasket
3 12A362 Camshaft synchronizer
4 6A618 Oil pump intermediate shaft
5 6020 Engine front cover gasket
6 6010 Cylinder block
7 6019 Engine front cover
8 6714 Oil bypass filter
9 6C315 Crankshaft position sensor
10 8501 Water pump
11 6312 Crankshaft pulley Klj . 3 ba
82003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Cylinder Block and Lower End Components 9 18801 Radio ignition interference capacitor
10 12281 Ignition wire set —
LH 11 18696 Tube assembly
12 9424 Intake manifold (lower)
13 9439 Intake manifold gasket —
RH 14 9439 Intake manifold gasket —
LH 15 9A424 Intake manifold seal (rear)
16 6A008 Cylinder head-
to-block dowel 17 6010 Cylinder block
18 6A373 Engine rear plate (automatic transmission)
19 6375 Flywheel (automatic transmission)
20 6375 Flywheel (manual transmission)
21 6A372 Engine rear plate (manual transmission)
22 6723 Oil pan rear seal
23 6675 Oil pan
24 7120 Pilot bushing
25 9278 Oil pressure sensor
26 9B339 Oil pressure sensor fitting
27 9A424 Intake manifold seal (front)
28 18663 Heater water outlet tube
29 8255 Thermostat housing-
to-intake manifold gasket 30 8592 Water outlet connection
31 9875 Water thermostat
32 9D475 EGR valve
33 9H465 Vacuum control solenoid
34 9723 Accelerator cable bracket
35 9E936 Throttle body gasket
36 9J433 EGR transducer
37 9E498 Vacuum hose
38 12280 Ignition wire set —
RH Klj . 5 ba
82003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

IN-
VEHICLE REPAIR
Upper Intake Manifold
Removal 1. Disconnect the battery ground cable. For additional information, refer to Section 414 - 01 .
2. Remove the engine air cleaner outlet pipe. For additional information, refer to Section 303 - 12 .
3. Disconnect the vacuum hose and the idle air control (IAC) valve electrical connector.
4. Disconnect the throttle position (TP) sensor electrical connector and the evaporative emissions (EVAP) return tube.
5. Disconnect the accelerator and the speed control cables from the throttle body cam. 6. Remove the bolts and position the accelerator cable bracket assembly aside. SECTION 303-
01A: Engine — 3.8L 2003 Mustang Workshop Manual Klj . 1 ba
