2002 Hyundai Getz Owner's Manual

TABLE OF CONTENTS
SECTION PAGE
1. FEATURES OF YOUR HYUNDAI ....................................................................... 1-1
2. DRIVING YOUR HYUNDAI .................................................................................. 2-1
3. WHAT TO DO IN AN EMERGENCY ................................................................... 3-1
4. CORROSION PREVENTION & APPEARANCE CARE ...................................... 4-1
5. VEHICLE MAINTENANCE REQUIREMENTS ..................................................... 5-1
6. DO-IT-YOURSELF MAINTENANCE ................................................................... 6-1
7. EMISSION CONTROL SYSTEMS ....................................................................... 7-1
8. CONSUMER INFORMATION .............................................................................. 8-1
9. VEHICLE SPECIFICATIONS ............................................................................... 9-1
10. INDEX ................................................................................................................ 10-1
1
2
3
4
5
6
7
8
9
10

YOUR VEHICLE AT A GLANCE

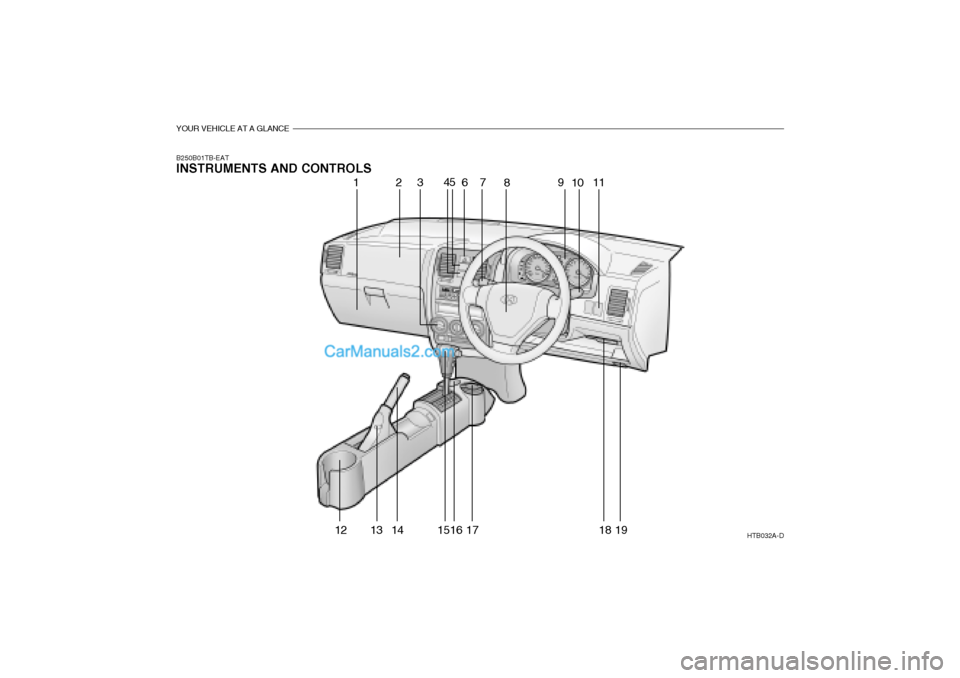

B250B01TB-EAT INSTRUMENTS AND CONTROLSHTB032A-D
123 45
6 7
8 9
10 11
12 13 14 1516 17 18 19

YOUR VEHICLE AT A GLANCE
1. Glove Box
2. Passenger's Airbag (Not all models)
3. Heating/Air Conditioning Control Panel(Not all models)
4. Rear Fog Light Switch
5. Front Fog Light Switch (Not all models)
6. Hazard Warning Light
7. Windshield Wiper/Washer Switch
8. Horn and Driver's Airbag (Not all models)
9. Instrument Cluster
10. Multi-Function Light Switch
CAUTION:
When installing a container of liquid air freshener inside a vehicle, do not place it near the instrument cluster nor on the instrument panel pad surface. If there is any leakage from the air freshener onto these areas (instrument cluster, instrument panel pad or air ventilator), it may damage these parts. If the liquid from the air freshener does leak onto these areas, wash them with water immediately. 11. Headlight Leveling Switch (Not all models)
12. Rear Drink Holder
13. Cigarette Lighter
14. Parking Brake Lever
15. Shift Lever (Not all models)
16. Front Drink Holder
17. Ashtray
18. Fuse Box
19. Hood Release Lever
!

YOUR VEHICLE AT A GLANCE
B255A01TB-GAT INDICATOR SYMBOLS ON THE INSTRUMENT PANEL * A detail explanations of these items will be found on page 1-37
SRS (Airbag) Service Reminder Indicator ABS Service Reminder Indicator Turn Signal Indicator Lights High Beam Indicator Light Oil Pressure Warning Light Parking Brake/Brake Level Warning Light Charging System Warning Light Tail Gate Open Warning LightDoor Ajar Warning Light and Chime
Low Fuel Level Warning Light Malfunction Indicator Light Seat Belt Reminder Light
O/D OFF Indicator (Automatic transaxle only)
Electric Power Steering System (EPS)Warning Light
Diesel Pre-heat Indicator Light (Diesel only)
Fuel Filter Warning Light (Diesel only)
Immobilizer Indicator

1. FEATURES OF YOUR HYUNDAI
Fuel Recommendations ................................................................... 1-2
Running In ........................................................................................ 1-3
Immobilizer system .......................................................................... 1-4
Door locks (Theft-alarm system) ..................................................... 1-5
Power windows .............................................................................. 1-10
Seat ................................................................................................ 1-11
Seat Belt ......................................................................................... 1-16
Child restraint system .................................................................... 1-21
Supplemental restraint (AIRBAG) system ..................................... 1-29
Instrument cluster and indicator lights ............................................ 1-35
Warning Light and Indicator ............................................................ 1-37Trip computer................................................................................. 1-44
Multi-Function Light Switch ............................................................ 1-46
Windshield wiper/Washer Switch ................................................... 1-48
Sunroof .......... ................................................................................. 1-53
Mirror .............................................................................................. 1-57
Bonnet Release .............................................................................. 1-60How to use luggage Room ............................................................. 1-63
Heating and cooling control ............................................................ 1-68Stereo sound system ..................................................................... 1-77
Antenna .......................................................................................... 1-81
1

1- 2 FEATURES OF YOUR HYUNDAI
B010A02O-EAT FUEL RECOMMENDATIONS Petrol Engines THIS VEHICLE MUST ONLY BE OP- ERATED WITH UNLEADED FUEL.SERIOUS DAMAGE WILL RESULTFROM THE USE OF LEADED FUEL. The use of leaded fuel in this vehicle willresult in irreversible pollution of thecatalyst element. Such pollution willprevent correct operation of the cata-lyst and give rise to increased operating temperatures leading to the catalyst element melting and restricting the ex-haust flow along with an increase inexhaust emission levels.
Unleaded fuel with a Research OctaneNumber (RON) of 91 or higher must beused in this vehicle.To prevent accidental filling of the fueltank with leaded fuel, a small diameterfiller neck along with a restrictor flap are fitted to ensure that only unleaded fuel pump nozzles may enter the filler neck.However, care must be exercised whenfilling the vehicle tank from jerry cans orby means of a funnel that the fuel beingused is unleaded. HTB187
!
CAUTION:
The vehicle warranty will not extend to damage arising from the use of incorrect fuels. Diesel Engines Diesel fuel of 52 to 54 cetane is used in Hyundai vehicle. If two types of diesel fuel are available, use summer or winter fuel properly according to the followingtemperature conditions.
o Above 23°F (-5°C) ... Summer type diesel fuel.
o Below 23°F (-5°C) ... Winter type
diesel fuel.
! Watch the fuel level in the tank very carefully : If the engine stops due to fuelfailure, the circuits must be completelypurged to permit restarting.
CAUTION:
Do not let any petrol or water enter the tank. This would make it neces- sary to drain it out and bleed thelines to avoid jamming the injectionpump and damaging the engine. Overseas Operation: When the vehicle is to be operated overseas, the vehicle operator shouldestablish that a suitable fuel for satis-factory operation of the vehicle is avail-able. SB010E1-A PETROLS FOR CLEANER AIR To help contribute to cleaner air, Hyundai recommends that you use fuels treated with detergent additives, which help to prevent deposit formation in the engine.These fuels will help the engines runcleaner and the Emission Control Sys-tem performance.

FEATURES OF YOUR HYUNDAI 1- 3

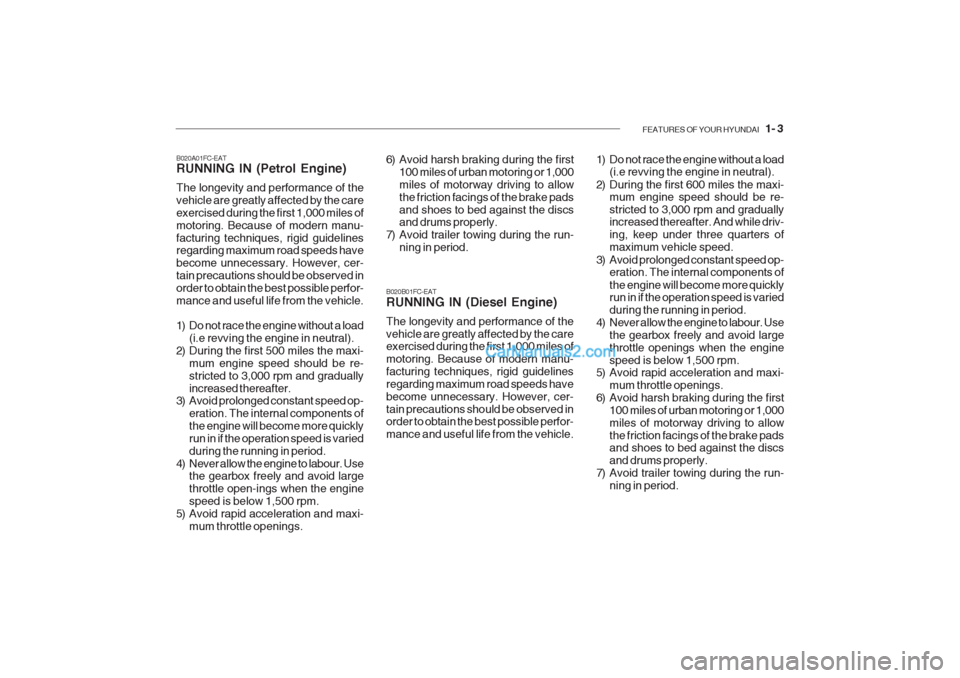

B020A01FC-EAT RUNNING IN (Petrol Engine) The longevity and performance of the vehicle are greatly affected by the careexercised during the first 1,000 miles ofmotoring. Because of modern manu-facturing techniques, rigid guidelines regarding maximum road speeds have become unnecessary. However, cer-tain precautions should be observed inorder to obtain the best possible perfor-mance and useful life from the vehicle.
1) Do not race the engine without a load
(i.e revving the engine in neutral).
2) During the first 500 miles the maxi- mum engine speed should be re- stricted to 3,000 rpm and graduallyincreased thereafter.
3) Avoid prolonged constant speed op-
eration. The internal components ofthe engine will become more quicklyrun in if the operation speed is variedduring the running in period.
4) Never allow the engine to labour. Use the gearbox freely and avoid largethrottle open-ings when the enginespeed is below 1,500 rpm.
5) Avoid rapid acceleration and maxi- mum throttle openings. 6) Avoid harsh braking during the first
100 miles of urban motoring or 1,000miles of motorway driving to allowthe friction facings of the brake padsand shoes to bed against the discs and drums properly.
7) Avoid trailer towing during the run- ning in period.
B020B01FC-EATRUNNING IN (Diesel Engine) The longevity and performance of the vehicle are greatly affected by the care exercised during the first 1,000 miles of motoring. Because of modern manu-facturing techniques, rigid guidelinesregarding maximum road speeds havebecome unnecessary. However, cer-tain precautions should be observed in order to obtain the best possible perfor- mance and useful life from the vehicle. 1) Do not race the engine without a load
(i.e revving the engine in neutral).
2) During the first 600 miles the maxi- mum engine speed should be re-stricted to 3,000 rpm and gradually increased thereafter. And while driv- ing, keep under three quarters ofmaximum vehicle speed.
3) Avoid prolonged constant speed op- eration. The internal components ofthe engine will become more quickly run in if the operation speed is varied during the running in period.
4) Never allow the engine to labour. Use
the gearbox freely and avoid largethrottle openings when the enginespeed is below 1,500 rpm.
5) Avoid rapid acceleration and maxi-
mum throttle openings.
6) Avoid harsh braking during the first
100 miles of urban motoring or 1,000miles of motorway driving to allowthe friction facings of the brake pads and shoes to bed against the discs and drums properly.
7) Avoid trailer towing during the run-
ning in period.

1- 4 FEATURES OF YOUR HYUNDAI

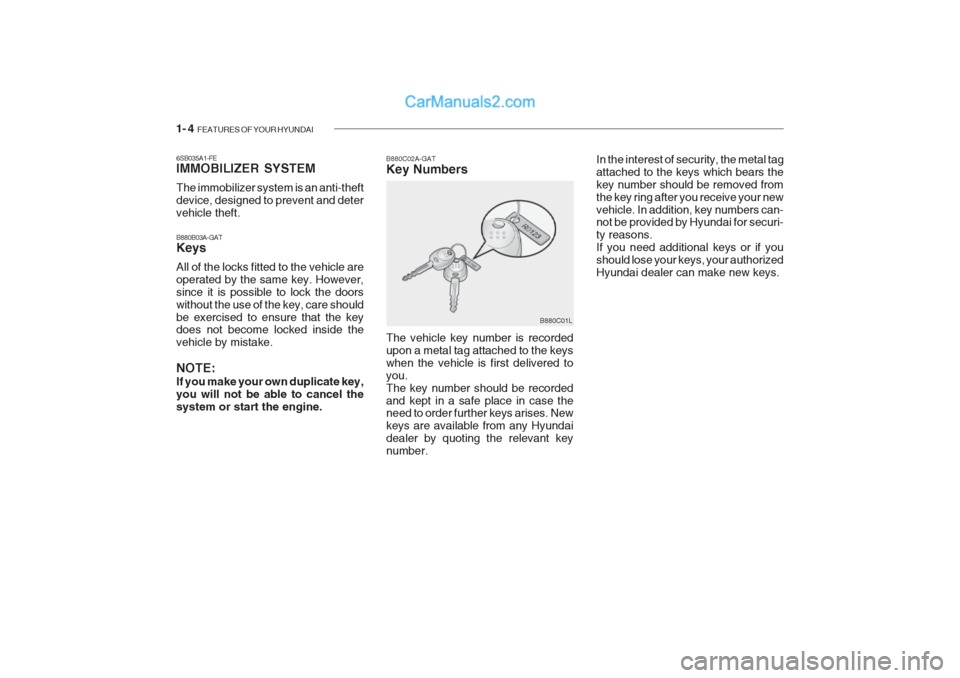

6SB035A1-FE IMMOBILIZER SYSTEM The immobilizer system is an anti-theft device, designed to prevent and detervehicle theft. B880B03A-GAT Keys All of the locks fitted to the vehicle are operated by the same key. However,since it is possible to lock the doorswithout the use of the key, care shouldbe exercised to ensure that the key does not become locked inside the vehicle by mistake. NOTE: If you make your own duplicate key, you will not be able to cancel thesystem or start the engine. B880C02A-GAT Key Numbers The vehicle key number is recorded upon a metal tag attached to the keyswhen the vehicle is first delivered toyou.The key number should be recordedand kept in a safe place in case the need to order further keys arises. New keys are available from any Hyundaidealer by quoting the relevant keynumber.
B880C01L
In the interest of security, the metal tag attached to the keys which bears thekey number should be removed fromthe key ring after you receive your newvehicle. In addition, key numbers can- not be provided by Hyundai for securi- ty reasons.If you need additional keys or if youshould lose your keys, your authorizedHyundai dealer can make new keys.
