2002 Hyundai Getz Owner's Manual

FEATURES OF YOUR HYUNDAI 1- 61
SB440A1-E REMOTE FUEL FILLER LID RELEASE (Not all models) The fuel filler lid may be opened from inside the vehicle by pulling up on thefuel filler lid release.
!
HTB115-D
Before closing the bonnet, return the support rod to its clip to prevent it fromrattling. Lower the bonnet until it isabout 30 cm (1 ft.) above the closedposition and let it drop. Make sure that it locks into place.
HTB288
3. Pull the support rod from the bonnet.
HTB308
CAUTION:
Make sure that the support rod has been released prior to closing thebonnet.
4. Hold the bonnet open with the sup- port rod. WARNING:
o Always double check to be sure that the bonnet is firmly latchedbefore driving away. If it is notlatched, the bonnet could fly open while the vehicle is being driven, causing a total loss of visibility,which might result in an accident.
o The support rod must be inserted
completely into the hole providedin the bonnet whenever you in- spect the engine compartment. This will prevent the bonnet fromfalling and possibly injuring you. o Do not move the vehicle with the
bonnet in the raised position, asvision is obstructed and the bon-net could fall or be damaged.
!

1- 62 FEATURES OF YOUR HYUNDAI
NOTE: If the fuel filler lid will not open because ice has formed around it,tap lightly or push on the lid to breakthe ice and release the lid. Do not pryon the lid. If necessary, spray aroundthe lid with an approved deicer fluid (do not use radiator anti-freeze) or move the vehicle to a warm placeand allow the ice to melt.
B540A01FC-GAT TAIL GATE
HTB067WARNING:
The tail gate should always be kept completely closed while the vehicleis in motion. If it is left open or ajar,poisonous exhaust gases may en-ter the car resulting in serious ill- ness or death to the occupants. See additional warnings concerning ex-haust gases on page 2-2.
o The tail gate can be locked or un- locked with a key.
o The tail gate is opened by pulling the
outside handle up, raising the tail gate manually.
o To close, lower the tail gate, then press down on it until it is closed. Tobe sure the tail gate is fully closed, always try to pull it up again without using the outside handle.
HTB068
!!WARNING:
Fuel vapours are dangerous. Before refuelling, turn off the engine andnever allow sparks, lit cigarettes oropen flames near the filler area. When releasing the filler cap, a small amount of residual pressure maygenerate a slight hissing sound which
is not indicative of an abnormality. Inthe event of the fuel filler cap requir-ing replacement, only a Genuine Hyundai replacement part should be used to prevent fuel leakage.

FEATURES OF YOUR HYUNDAI 1- 63
B540B01TB-GAT SEAT POCKET (Not all models)
HTB214
Seat side pocket is located on the front passenger seat to accept scratch pa- per and so on. There are seatback pockets on thebackside of the front seats (Not allmodels). HTB298-DB545A01TB-GAT HOW TO USE LUGGAGE ROOM B650A01FC-GAT Cargo Area Cover Nothing should be carried on top of the luggage cover. Loose materials couldresult in injury to vehicle occupants during sudden braking.
There is a front passenger seatback holder to hang a shopping bag and so on.
HTB279
B540A01TB-EAT SEATBACK HOLDER
!
CAUTION
Do not hang a bag beyond 66 Lbs (30 kg). It may cause damage to theseatback holder.

1- 64 FEATURES OF YOUR HYUNDAI

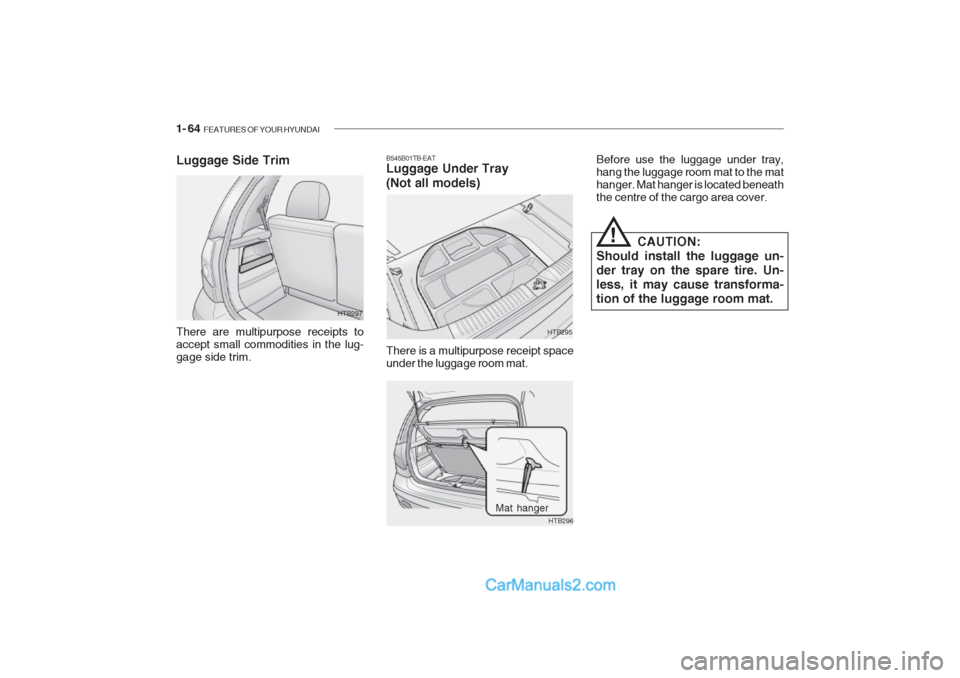

B545B01TB-EAT Luggage Under Tray (Not all models) There is a multipurpose receipt space under the luggage room mat. HTB295Before use the luggage under tray,hang the luggage room mat to the mathanger. Mat hanger is located beneaththe centre of the cargo area cover.
HTB296
Mat hanger CAUTION:
Should install the luggage un- der tray on the spare tire. Un-less, it may cause transforma-tion of the luggage room mat.
!
Luggage Side Trim
HTB297
There are multipurpose receipts to accept small commodities in the lug-gage side trim.

FEATURES OF YOUR HYUNDAI 1- 65

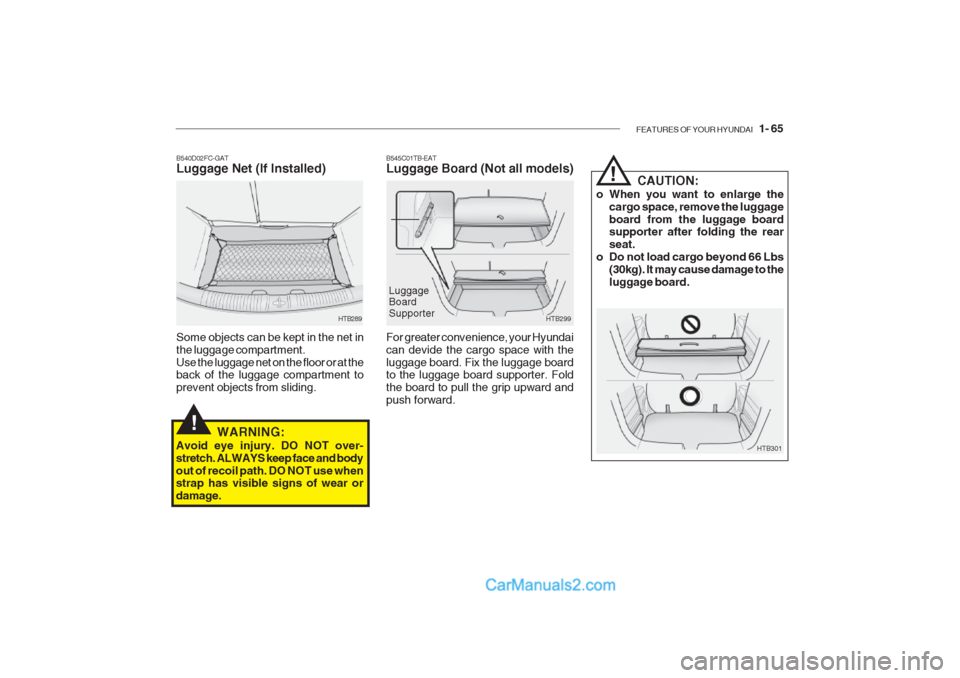

B545C01TB-EAT Luggage Board (Not all models)
HTB299
For greater convenience, your Hyundai can devide the cargo space with theluggage board. Fix the luggage board to the luggage board supporter. Fold the board to pull the grip upward andpush forward. CAUTION:
o When you want to enlarge the cargo space, remove the luggageboard from the luggage board supporter after folding the rear seat.
o Do not load cargo beyond 66 Lbs
(30kg). It may cause damage to theluggage board.
HTB301
!
Luggage Board Supporter
!
B540D02FC-GAT Luggage Net (If Installed) Some objects can be kept in the net in the luggage compartment.Use the luggage net on the floor or at the back of the luggage compartment to prevent objects from sliding.
HTB289
WARNING:
Avoid eye injury. DO NOT over- stretch. ALWAYS keep face and bodyout of recoil path. DO NOT use when strap has visible signs of wear or damage.

1- 66 FEATURES OF YOUR HYUNDAI
B560B01O-EAT AUTO FUEL CUT SWITCH (Petrol Engine)
The auto fuel cut switch is located on the driver's side of the engine compartment.In the event of a collision or sudden impact, the auto fuel cut device cuts off the fuel supply. If this device is acti-vated, it must be reset by pressing inon the top of the switch before theengine can be restarted. HTB304
!WARNING:
Before resetting the auto fuel cut switch, the fuel line should be checked for fuel leaks.
HTB098-D
B580A01TB-GAT SUN VISOR
HTB148-D
A Type
B Type
o To use the luggage board with
unfolding, fix it in the luggage board supporter. There will be an audible "Click" when the luggageboard fixes in the supporter.
o The luggage board can be thrown out in the event of a sudden stopor an accident. Unfold the lug- gage board stablely to prevent cargo damage.
HTB302

FEATURES OF YOUR HYUNDAI 1- 67

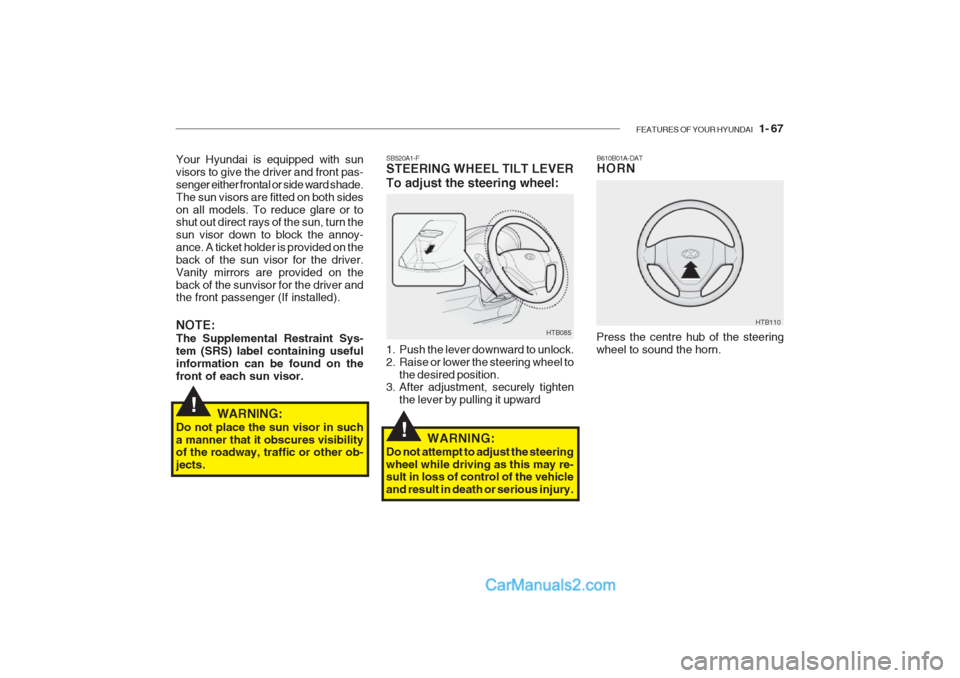

B610B01A-DAT HORN
Press the centre hub of the steering wheel to sound the horn. HTB110SB520A1-F STEERING WHEEL TILT LEVER To adjust the steering wheel:
HTB085
1. Push the lever downward to unlock.
2. Raise or lower the steering wheel to the desired position.
3. After adjustment, securely tighten
the lever by pulling it upward
!WARNING:
Do not attempt to adjust the steering wheel while driving as this may re- sult in loss of control of the vehicle and result in death or serious injury.
Your Hyundai is equipped with sunvisors to give the driver and front pas-senger either frontal or side ward shade.The sun visors are fitted on both sideson all models. To reduce glare or to shut out direct rays of the sun, turn the sun visor down to block the annoy-ance. A ticket holder is provided on theback of the sun visor for the driver.Vanity mirrors are provided on theback of the sunvisor for the driver and the front passenger (If installed). NOTE: The Supplemental Restraint Sys- tem (SRS) label containing usefulinformation can be found on thefront of each sun visor.
WARNING:
Do not place the sun visor in sucha manner that it obscures visibility of the roadway, traffic or other ob- jects.
!

1- 68 FEATURES OF YOUR HYUNDAI
B710A01TB-EAT
HEATING AND COOLING CONTROL (If Installed)
1. Side defrost nozzle
2. Side Ventilator
3. Windscreen Defrost Ventilator
4. Centre Ventilator B710A01S-AAT VENTILATION To operate the ventilation system:
o Set the air intake control to "Fresh"
mode
( ).
o To direct all intake air to the dash- board vents, set the air flow controlto "Face".
o Adjust the fan speed control to the desired speed.
o Set the temperature control between "Cool" and "Warm".
HTB032A-D
1
2
3
4 1
2
B710B01A-DAT Centre Ventilator The centre ventilators are located in the middle of the dashboard. To change the direction of the airflow, turn the control knob on the middle ofthe ventilator as desired.
