2002 Hyundai Getz Owner's Manual

1- 60 FEATURES OF YOUR HYUNDAI
B460A01Y-AAT SUNROOF (If installed) Sun Shade
Your HYUNDAI is equipped with a sliding sunshade which you can manu-ally adjust to let in light with the sunroof closed, or to block sunlight.
Loading condition Switch
position
Driver only Driver + front passenger Full passengers (includingdriver)Full passengers (includingdriver) + full trunk loading(or light trailer loading) Driver + full trunk loading (or maximum trailer loading) 0
1 2
3 0
B470A01FC
WARNING:
Never adjust the sunshade while driving.!
B460B01GK-GAT Opening the Sunroof System The sunroof can be electrically opened or closed with the ignition key in the"ON" position. The sunroof is moved to its fully open position by pushing the "Open" switch, and to stop at the de-sired position, push in any switches(Open, Close, Up, Down). To close,press and hold the "CLOSE" button.Release the button when the sunroof reaches the desired position. HFC2021

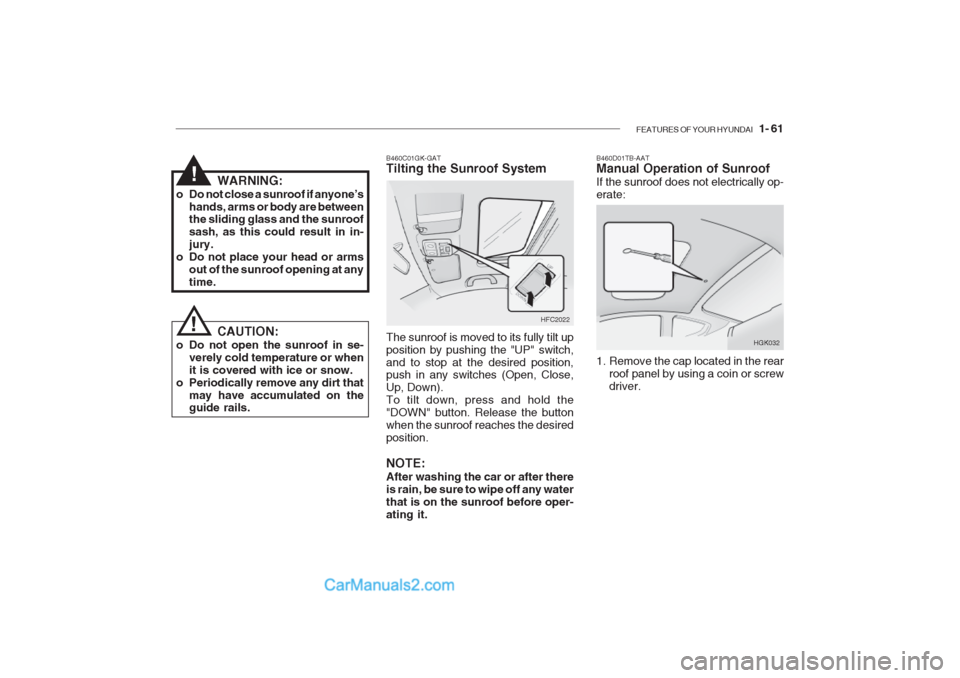

FEATURES OF YOUR HYUNDAI 1- 61
B460D01TB-AAT Manual Operation of Sunroof If the sunroof does not electrically op- erate:
HGK032
1. Remove the cap located in the rear roof panel by using a coin or screwdriver.
HFC2022
B460C01GK-GAT Tilting the Sunroof System The sunroof is moved to its fully tilt up position by pushing the "UP" switch,and to stop at the desired position, push in any switches (Open, Close, Up, Down).To tilt down, press and hold the"DOWN" button. Release the buttonwhen the sunroof reaches the desiredposition. NOTE: After washing the car or after there is rain, be sure to wipe off any waterthat is on the sunroof before oper-ating it.
WARNING:
o Do not close a sunroof if anyone’s hands, arms or body are between the sliding glass and the sunroof sash, as this could result in in-jury.
o Do not place your head or arms
out of the sunroof opening at anytime.
CAUTION:
o Do not open the sunroof in se- verely cold temperature or whenit is covered with ice or snow.
o Periodically remove any dirt that
may have accumulated on the guide rails.
!
!

1- 62 FEATURES OF YOUR HYUNDAI
2. Insert the hexagonal head wrench
provided with the vehicle into the socket. This wrench can be found inthe vehicle’s trunk or glove box.
3. Turn the wrench counterclockwise to open or clockwise to close the sunroof. HGK033
With Sunroof
B480A01E-AAT FRONT INTERIOR LIGHT Map Light
The two map light switches are located on both sides of the front overheadconsole. Push in the map light switch to turn the light on or off. This light produces a spot beam for convenientuse as a map light at night or as apersonal light for the driver and thepassenger.
B460E01TB-GAT Resetting the Sunroof System If the battery has been recharged, disconnected, if the sunroof is oper-ated with the hexagonal head wrenchmanually, or if the sunroof operation isstopped by that ignition key is turned tothe "OFF" position while it is moving, you may need to reset the sunroof. To do this;
1. Turn the ignition switch "OFF".
2. With pressing "open" "up" button at
the same time, turn the ignition switch "ON".
3. If the sunroof is set like this, the
sunroof is reset with tilting up/down automatically once for all.Without Sunroof
HTB050
!CAUTION:
If the sunroof is not reset, it may not be operated properly.

FEATURES OF YOUR HYUNDAI 1- 63
B500A01A-AAT GLOVE BOX
HTB101
HTB102
B491A01TB-GAT SPECTACLE CASE (If Installed) The spectacle case is located on the driver side of roof trim.Pull the end of the cover to open thespectacle case.
o OFF In the "OFF" position, the light stays off at all times even though a door is open.
WARNING:
Do not keep objects such as sharpor unsuitable things inside the spec-tacle case. Such objects can bethrown out in the event of a suddenstop or an accident, possibly injur- ing the passengers in the vehicle.
!
The interior courtesy light has a button of three positions. The three positionsare:
oDR In the "DR" position, the interior cour- tesy light comes on when any door isopened regardless of the ignition keyposition. The light goes out when thedoor is closed.
oON In the "ON" position, the light stays on at all times.
B490A01E-AAT INTERIOR LIGHT
HTB303
With Sunroof
Without unroof

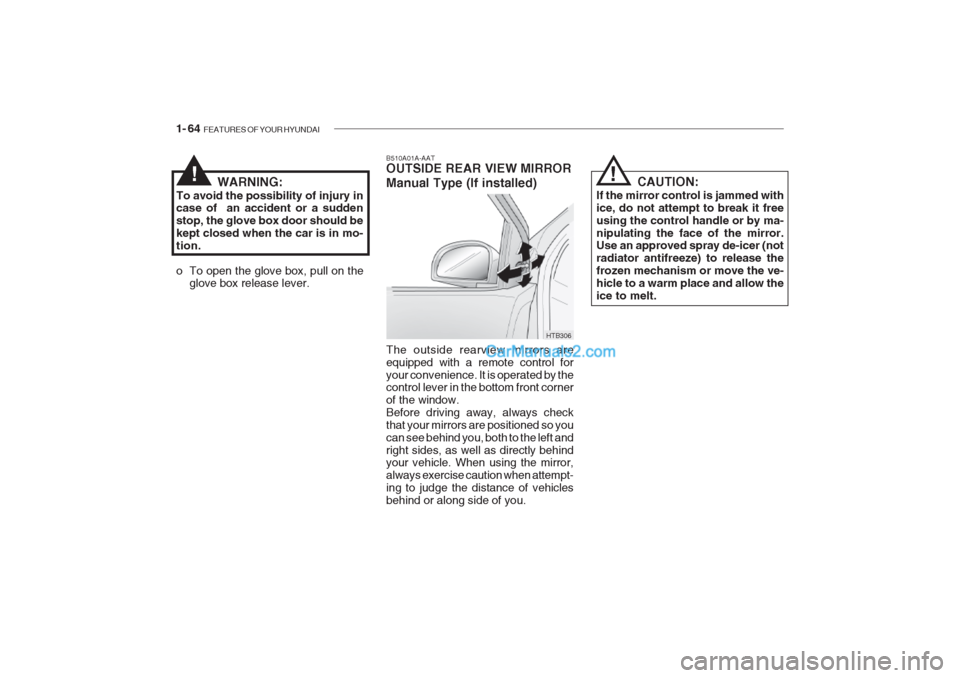

1- 64 FEATURES OF YOUR HYUNDAI
WARNING:
To avoid the possibility of injury in case of an accident or a sudden stop, the glove box door should bekept closed when the car is in mo-tion.
o To open the glove box, pull on the glove box release lever.!
B510A01A-AAT OUTSIDE REAR VIEW MIRROR Manual Type (If installed) The outside rearview mirrors are equipped with a remote control foryour convenience. It is operated by the control lever in the bottom front corner of the window.Before driving away, always checkthat your mirrors are positioned so youcan see behind you, both to the left andright sides, as well as directly behind your vehicle. When using the mirror, always exercise caution when attempt-ing to judge the distance of vehiclesbehind or along side of you. HTB306
CAUTION:
If the mirror control is jammed withice, do not attempt to break it freeusing the control handle or by ma-nipulating the face of the mirror. Use an approved spray de-icer (not radiator antifreeze) to release thefrozen mechanism or move the ve-hicle to a warm place and allow theice to melt.
!

FEATURES OF YOUR HYUNDAI 1- 65
To adjust the position of either mirror:
1. Move the selecting switch to the
right or left to activate the adjustable mechanism for the correspondingdoor mirror.
2. Now, adjust mirror angle by de- pressing the appropriate perimeterswitch as illustrated.
HTB213CAUTION:
o Do not operate the switch con- tinuously for an unnecessarylength of time.
o Scraping ice from the mirror face could cause permanent damage. To remove any ice, use a sponge, soft cloth or approved de-icer.
WARNING:
Be careful when judging the size ordistance of any object seen in thepassenger side rear view mirror. Itis a convex mirror with a curved surface. Any objects seen in this mirror are closer than they appear.
!
!
B510B01FC-GAT Electric Type (If installed)
The outside rearview mirrors can be adjusted to your preferred rear vision,both directly behind the vehicle, and to the rear of the left and right sides. The remote control outside rearviewmirror switch controls the adjustmentsfor both right and left outside mirrors. HTB104

1- 66 FEATURES OF YOUR HYUNDAI
B520A01A-AAT DAY/NIGHT INSIDE REARVIEW MIRROR
Your Hyundai is equipped with a day/ night inside rearview mirror. The "night"position is selected by flipping the tab at the bottom of the mirror toward you. In the "night" position, the glare ofheadlights of cars behind you is re-duced. HTB103B510D01HP-AAT OUTSIDE REARVIEW MIRROR
HEATER (If Installed) The outside rearview mirror heater is actuated in connection with the rearwindow defroster. To heat the outside
rearview mirror glass, push in the switch for the rear window defroster. Therearview mirror glass will be heated fordefrosting or defogging and will giveyou improved rear vision in inclementweather conditions. Push the switch again to turn the heater off. The out- side rearview mirror heater automati-cally turns itself off after 20 minutes. B510C01A-AAT FOLDING THE OUTSIDE REAR- VIEW MIRRORS To fold the outside rearview mirrors, push them towards the rear.The outside rearview mirrors can be folded rearward for parking in narrow areas.
HTB039
HTB205
WARNING:
Do not adjust or fold the outsiderearview mirrors while the vehicle is moving. This could result in loss of control, and an accident whichcould cause death, serious injuryor property damage.
!

FEATURES OF YOUR HYUNDAI 1- 67
Always engage the parking brake be- fore leaving the car. This also turns onthe parking brake indicator light when the key is in the "ON" or "START" position. Before driving away, be surethat the parking brake is fully releasedand the indicator light is off.
o To engage the parking brake, pull
the lever up as far as possible.
o To release the parking brake, pull up the lever and press the thumb button. Then, while holding the but-ton in, lower the brake lever.
B530A01A-AAT PARKING BRAKE
B550A01S-GATHIGH-MOUNTED REAR STOP
LIGHT (If Installed) In addition to the lower-mounted rear stop lights on either side of the car, thehigh mounted rear stop light in the center of the rear window or inserted in the rear spoiler also lights when thebrakes are applied.
HTB251
HTB255
B570A01TB-GAT HOOD RELEASE
HTB070
1. Pull the release knob to unlatch the hood.
HTB069
2. Push the safety catch lever sidewards and lift the hood.
